AC318D-OD4Z 8 MP Motorized Dome Camera
Login to see prices SKU: AC318D-OD4Z
| Camera Resolutions | |
|---|---|
| Image Sensor | 8.29 Megapixel Progressive Scan CMOS |
| Camera Style | |
| Lens Type | |
| Resolution | 3840(H)×2160(V) |
| Minimum Illumination | Color: 0.01 Lux@ (F1.2 ,AGC ON) ,0 Lux with IR on |
| Shutter Speed | PAL: 1/12.5 s to 1/50 ,000 s NTSC: 1/15 s to 1/50 ,000 s |
| Lens Size | |
| Horizontal Field of View | 108.1° to 45.6° |
| Lens Mount | Φ14 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°to 355°; Tilt:0° to 75°; Rotate: 0° to 355° |
| Synchronization | Internal synchronization |
| Video Output | 1 HD analog output |
| Power | 9 VDC to 15 VDC‐A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC |
| Power Consumption | Max.6.4 W‐A: Max.8.2 W |
| Protection | IP67 |
| Material | Metal |
| IR Range | Up to 60 m |
| Dimensions | 145.2 mm×124.1 mm(7.1"×4.9") |
| Weight | Approx.640 g(1.41 lb.) |
AC318D-VB4Z 8 MP Smart IR Motorized Bullet Camera
Login to see prices SKU: AC318D-VB4Z
| Image Sensor | 8.29 Megapixel Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Camera Style | |
| Lens Size | |
| Lens Type | |
| Minimum Illumination | Color: 0.01 Lux@ (F1.2 ,AGC ON) ,0 Lux with IR on |
| Shutter Speed | PAL: 1/12.5 s to 1/50 ,000 s NTSC: 1/15 s to 1/50 ,000 s |
| Horizontal Field of View | 108.1° to 45.6° |
| Lens Mount | Φ14 |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Synchronization | Internal synchronization |
| Video Output | 1 HD analog output |
| Power | 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC |
| Power Consumption | Max 10.8W |
| Protection | IP67 |
| Material | Front cover: Metal Main body: Plastic Bracket: Metal |
| IR Range | Up to 80 m |
| Dimensions | 84.5 mm×92 mm×255.1 mm(3.33"×3.62"×10") |
| Weight | Approx.695 g(1.53 lb.) |
AC326-VD4Z 5MP MOTORIZED VARI FOCAL DOME CAMERA
Login to see prices SKU: AC326-VD4Z
| Camera Resolutions | |
|---|---|
| Lens Type | |
| Camera Style | |
| Resolution | 2560(H)×1944(V) |
| Minimum Illumination | Color: 0.01 Lux@ (F1.2 ,AGC ON) ,0 Lux with IR on |
| Shutter Speed | PAL:1/25s to 1/50000s; NTSC: 1/30s to 1/50000s |
| Lens Size | |
| Horizontal Field of View | 95.7° to 29.1° |
| Lens Mount | Φ14 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°;Tilt: 0° to 75°; Rotate: 0° to 360° |
| Synchronization | Internal synchronization |
| Video Output | 1 HD analog output |
| Power | DC12V ±25% |
| Power Consumption | Max 6.3W |
| Protection | IP67 |
| Material | Metal |
| IR Range | Up to 40 m |
| Dimensions | 123.86 mm x 134.3 mm x 110.11 mm (4.88"x 5.29" x 4.38") |
| Weight | Approx.580 g(1.28 lb.) |
AC336D-VB4Z 5MP MOTORIZED VARIFOCAL BULLET CAMERA
Login to see prices SKU: AC336D-VB4Z
| Max. Resolution | 2592 × 1944 |
|---|---|
| Lens Mount | Φ14 |
| Lens Size | |
| WDR | DWDR |
| Camera Style | |
| Lens Type | |
| Digital Noise Reduction | 2D DNR |
| IR Range | Up to 40 m |
| Signal System | PAL/NTSC |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Camera Resolutions | |
| Shutter Speed | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Consumption | Max 8.8 W |
| Material | Front cover: Metal, Main body: Plastic |
| Dimension | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10.04") |
| Weight | Approx. 682 g (1.50 lb.) |
| Power | 12VDC±15% ,24VAC±15% |
| Protection | IP67 |
AC346D-VD4Z 5 MP Ultra-Low Light varifocal Camera
Login to see prices SKU: AC346D-VD4Z
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Type | |
| Signal System | PAL/NTSC |
| Max. Resolution | 2560 × 1944 |
| Minimum Illumination | 0 Lux with IR ,AGC ON) ,Color: 0.003 Lux@(F1.2 |
| Shutter Speed | PAL: 1/25s to 1/50000s NTSC: 1/30s to 1/50000s |
| Lens Size | |
| Horizontal Field of View | 92.3° to 29.3° |
| Lens Mount | Φ14 |
| Day & Night | ICR |
| WDR | ≥130 dB |
| Angle Adjustment | Pan: 0° to 360°; Tilt:0° to 75°; Rotate: 0° to 360° |
| Image Mode | STD/HIGH‐SAT |
| Video Output | Switchable TVI /AHD /CVI /CVBS |
| Power | 12 VDC±20% ,24 VAC±20% |
| Power Consumption | Max.10.5 W |
| Protection Level | IP67 |
| Material | Metal |
| IR Range | Up to 60 m |
| Dimensions | 123.86 mm x 134.3 mm x 110.24 mm (4.88" x 5.29" x 4.34") |
| Weight | Approx.630 g(1.39 lb.) |
CVI-BU223R-IR-Z 2MP Starlight HDCVI IR Bullet Camera
Login to see prices SKU: CVI-BU223R-IR-Z
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 1937(H)×1097(V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| Minimum Illumination | 0.005 Lux/F1.3, 30IRE, 0 Lux IR on |
| IR Distance | 60 m |
| Lens Type | |
| Lens Mount | Board-in |
| Focal Length | 2.7mm–13.5mm |
| Max. Aperture | F1.3 |
| WDR | 120 dB |
| Digital Noise Reduction | 2D/3D DNR |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Power | DC12V ±25% |
| Power Consumption | Max 10.1W (12V DC, IR on) |
| Ingress Protection & Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimension | 213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56") |
| Net Weight | 0.61kg (1.34lb) |
| Gross Weight | 0.74kg (1.63lb) |
CVI-BU240R-IR-Z 4 MP WDR HDCVI IR Motorized Bullet Camera
Login to see prices SKU: CVI-BU240R-IR-Z
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/3" CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| Camera Style | |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| Minimum Illumination | 0.01 Lux/F1.3, 30IRE, 0 Lux IR on |
| IR Distance | 60 m |
| IR LEDs | 4 |
| Lens Type | |
| Lens Mount | Board-in |
| Focal Length | 2.7-13.5mm |
| Max. Aperture | F1.3 |
| Video Resolution | 4MP (2560×1440) |
| Video Frame Rate | 25fps@4MP, 25/30fps@1080P, 25/30fps@720P |
| Video Output | 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output |
| WDR | 120 dB |
| Noise Reduction | 2D/3D |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Power | 12V DC ±25% |
| Power Consumption | Max 11.1W (12V DC, IR on) |
| Casing | Aluminium |
| Dimensions | 213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56") |
| Net Weight | 0.61kg (1.34lb) |
| Gross Weight | 0.74kg (1.63lb) |
CVI-EB240R-IR-Z 4 MP WDR HDCVI IR Motorized Eyeball Camera
Login to see prices SKU: CVI-EB240R-IR-Z
| Image Sensor | 1/3" CMOS |
|---|---|
| Lens Size | |
| Effective Pixels | 2688(H)×1520(V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| Camera Style | |
| Minimum Illumination | 0.01 Lux/F1.3, 30IRE, 0 Lux IR on |
| IR Distance | 60 m |
| IR LEDs | 2 |
| Lens Type | |
| Lens Mount | Board-in |
| Focal Length | 2.7-13.5mm |
| Max. Aperture | F1.3 |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
| Resolution | 4MP (2560×1440) |
| Frame Rate | 25fps@4MP, 25/30fps@1080P, 25/30fps@720P |
| WDR | 120 dB |
| Noise Reduction | 2D/3D |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Power | 12V DC ±25% |
| Power Consumption | Max 8.4W (12V DC, IR on) |
| Ingress Protection & Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimensions | Φ122mm×104.9mm (Φ4.8"×4.13") |
| Net Weight | 0.59kg (1.30lb) |
| Gross Weight | 0.74kg (1.63lb) |
HDC-LP4A/2M-Z 2.4MEGAPIXEL 1080P HD MOTORIZED VARI FOCAL 4 IN 1 LPR CAMERA
Login to see prices SKU: HDC-LP4A/2M-Z
| Image Sensor | 1/3" 2.4 Megapixel CMOS |
|---|---|
| Effective Pixels | 1944(H)×1092(V) |
| Video Frame Rate | PAL:25fps@1080P NTSC:30fps@1080P |
| Shutter Speed | PAL:1/50s~1/300,000s NTSC:1/60s~1/300,000s |
| Minimum Illumination | Color.0.1 lux. BW:0.5 lux. Color.DSS: 0.017 lux. BW DSS: 0.0008 lux |
| Synchronization | Internal |
| Lens Type | |
| Power | DC 12V |
| Power consumption | 1.5A |
| Unit G.W. | 1.5KG |
| Dimension | 241mm*110mm*80mm |
| Package/CTN | 12PCS/CTN |
| CTN G.W. | 17.5KG |
| Meas. | 605*423*37mm |
HDC-VPI35/2M-Z 2 MP 1080P 4 IN 1 MOTORIZED IR VANDAL DOME CAMERA
Login to see prices SKU: HDC-VPI35/2M-Z
| Image Sensor | 1/3" 2.4 Megapixel CMOS |
|---|---|
| Lens Type | |
| Camera Style | |
| Signal system | PAL/NTSC |
| Effective Pixels | 1944(H)×1092(V) |
| Minimum Illumination | Color.0.1 lux. BW: 0.5 lux. Color. DSS: 0.017 lux. BWDSS: 0.0008 lux |
| Shutter Speed | PAL:1/50s~1/30,000s/NTSC:1/60s~1/30,000s |
| Lens Size | |
| Lens Mount | ￠5 |
| Video Frame Rate | PAL:25fps@1080P/NTSC:30fps@1080P |
| HD Video Output | AHD/CVI/TVI/CVBS(Long press the confirmation key switching TVI/AHD/CVI) |
| Power | 12VDC ±15% |
| Power Consumption | 550mA |
| Protection | IP66 |
| Max.IRLEDs length | 25-35m |
| Transmission Distance | Over 300m via 75-3 coaxial cable |
| Unit G.W. | 0.83 KG |
| Dimensions | 136mm*127mm |
| Package/CTN | 16PCS/CTN |
| CTNG.W. | 20KG |
| Meas. | 661*337*385mm |
IPC-BU344T-IR-ZAS 4MP LITE AI IR VARI-FOCAL MOTORIZED BULLET NETWORK CAMERA
Login to see prices SKU: IPC-BU344T-IR-ZAS
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/512 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.005 Lux@F1.5 |
| IR Distance | 60 m |
| Pan/Tilt/Rotation Range | Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360° |
| WDR | 120 dB |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 104°–27°； Vertical: 55° –15° ；Diagonal: 124° –31° |
| Edge Storage | FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPE |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | <9.8 W |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 244.1 mm × 79.0 mm × 75.9 mm (9.6" × 3.1" × 3.0") |
| Gross Weight | 1090 g (2.4 lb) |
IPC-BU584E-IR-ZE 8 MP WDR IR Motorized Bullet Network Camera
Login to see prices SKU: IPC-BU584E-IR-ZE
| Image Sensor | 1/2.5" Progressive Scan CMOS |
|---|---|
| IR Distance | Distance up to 50m (164ft) |
| Lens Type | |
| Effective Pixels | 3840(H)×2160(V) |
| Camera Style | |
| RAM/ROM | 512MB/32MB |
| Lens Mount | Board-in |
| Scanning System | Progressive |
| Shutter Speed | 1/3s to 1/100000s |
| Minimum Illumination | 0.05 Lux/F1.4 (Color,1/3 s,30 IRE); 0.2 Lux/F1.4 (Color,1/30 s,30 IRE); 0 Lux /F1.4(IR on) |
| S/N Ratio | More than 50dB |
| IR LEDs | 4 |
| Digital Noise Reduction | 3D DNR |
| Focal Length | 2.7mm~12mm |
| Camera Resolutions | |
| Max. Aperture | F1.4 |
| Angle of View | H:110°~40° , V:58°~23° |
| Close Focus Distance | 0.3 m |
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
| Bit Rate | H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps |
| Power | DC12V ,PoE (802.3af)(Class 0) |
| Power Consumption | <12.95W |
| Protection | IP67, IK10 |
| Casing | Metal |
IPC-BU833E-Z 3MP WDR ULTRA-SMART MOTORIZED BULLET NETWORK CAMERA
Login to see prices SKU: IPC-BU833E-Z
| Image Sensor | 1/3" 3 Megapixel Exmor R CMOS |
|---|---|
| Camera Style | |
| Effective Pixels | 2048(H)×1536(V) |
| Scanning System | Progressive |
| Shutter Speed | Auto/Manual 1/3(4)~1/100000 s |
| Minimum Illumination | 0. 005 Lux/F1.4( Color), 0 Lux/F1.4(IR on) |
| S/N Ratio | More than 50dB |
| Video Output | 1 port |
| Max. IR LEDs Length | 50m |
| Focal Length | 2.7-12mm |
| Max. Aperture | F1.4 |
| Lens Size | |
| Lens Type | |
| Compression | H.265/H.264/MJPEG |
| Resolution | 3M(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1(704×576) /CIF(352× 288) |
| Bit Rate | H.264: 40K ~ 10 Mbps |
| Power | DC 12 V(AC 24 V optional), PoE (802.3af) |
| Power Consumption | Max 11W |
| Protection | IP67 |
| Dimension | 273.3mm × 94.8mm× 94.8mm |
| Weight | 1.4kg |
IPC-EB244T-IR-ZS 4MP WDR IR Motorized Eyeball Network Camera
Login to see prices SKU: IPC-EB244T-IR-ZS
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Effective Pixels | 2688(H)×1520(V) |
| Camera Style | |
| ROM/RAM | 128 MB/128 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.008 Lux@F1.5 |
| IR Distance | 40 m |
| Pan/Tilt/Rotation Range | Pan 0°–360° ; Tilt: 0°–78°; Rotation: 0°–360° |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Field of View | Pan: 104°–27°; Tilt: 55°–15°; Diagonal: 124°–31° |
| Max. Aperture | F1.5 |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | < 6.4 W |
| Protection | IP67 |
| Casing | Metal |
| Dimensions | 108.3 mm × Φ122 mm (4.26" × Φ1.80") |
IPC-EB284T-IR-S-ZS 8MP IR Vari-focal Eyeball WizSense Network Camera
Login to see prices SKU: IPC-EB284T-IR-S-ZS
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Max. Resolution | 3840 (H) × 2160 (V) |
| Camera Style | |
| Camera Resolutions | |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100 ,000 s |
| S/N Ratio | >56 dB |
| Illumination Distance | 40 m (131.23 ft) (IR) |
| Focal Length | 2.7 mm–13.5 mm |
| Lens Type | |
| Video Bit Rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Audio | |
| Network Port | RJ-45 (10/100 Base-T) |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.8 W (12 VDC); 3.6 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.4 W (12 VDC); 7.6 W (PoE) |
| Protection | IP67 |
| Casing Material | Metal |
| Product Dimensions | 108.3 mm 脳 桅122 mm (4.26" 脳 桅4.80") |
| Net Weight | 0.70 kg (1.54 lb) |
| Gross Weight | 0.88 kg (1.94 lb) |
IPC-EB344R-IR-ZAS 4MP LITE AI IR VARI-FOCAL MOTORIZED EYEBALL NETWORK CAMERA
Login to see prices SKU: IPC-EB344R-IR-ZAS
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/512 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.005 Lux@F1.5 |
| IR Distance | 40 m |
| Pan/Tilt/Rotation Range | Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360° |
| Digital Noise Reduction | 3D DNR |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Camera Style | |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 104°–27°; Vertical: 55° –15° ; Diagonal: 124° –31° |
| Edge Storage | FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Audio | |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | <8.3W |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 108.3 mm × Φ122 mm (4.3" × Φ4.8") |
| Gross Weight | 828 g (1.8 lb) |

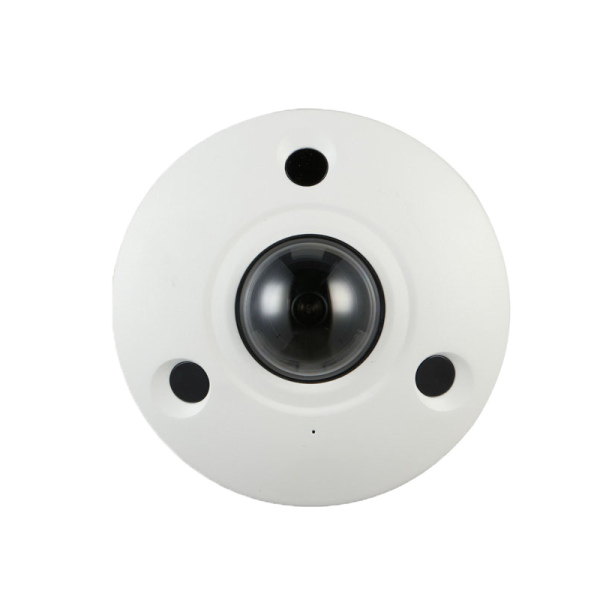

IPC-FE8124-IRA 12MP PANORAMIC NETWORK IR FISHEYE CAMERA
Login to see prices SKU: IPC-FE8124-IRA
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/1.7" CMOS |
| Camera Style | |
| Effective Pixels | 4000(H)×3000(V) |
| Lens Type | |
| Lens Size | |
| ROM/RAM | 4 GB/4 GB |
| IR LEDs | 3 (IR LEDs) |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.001 Lux/F2.0 (Colour, 1/3 s, 30 IRE); 0.01 Lux/F2.0 (Colour,, 1/30 s, 30 IRE); 0 Lux/F2.0 (IR on) |
| IR Distance | 10 m |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| Storage | FTP, Micro SD card (256 G) |
| Focal Length | 1.85 mm |
| Lens Mount | M12 |
| Max. Aperture | F2.0 |
| Field of View | Horizontal: 185°; Vertical: 180° |
| Video Encoding | H.265, H.264, H.264H, H.264B, MJPEG |
| Video Bit Rate | H264: 88Kbps-16384Kbps ;H265: 52Kbps-16384Kbps |
| Power | 12V DC /POE |
| Power Consumption | Basic power consumption: 6.2W (12V DC), 9.2W (POE) Max power consumption: (ICR switch, and IR full intensity): 9.2W (12V DC), 12.9W (POE) |
| Protection | IK10 ,IP67 |
| Enclosure | Metal + Plastic |
| Dimensions | 59.8 mm × Φ149.8 mm (2.35" × Φ5.9") |
| Net Weight | 0.77 kg(1.70 lb) |
| Gross Weight | 1.16 kg(2.56 lb) |
IPC-VD244R-IR-ZS 4MP WDR IR Motorized Dome Network Camera
Login to see prices SKU: IPC-VD244R-IR-ZS
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/128 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.008 Lux@F1.5 |
| IR Distance | 40 m |
| Pan/Tilt/Rotation Range | Horizonal: 0°–355° ; Vertical: 0°–75° ; Rotation: 0°–355° |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| Camera Style | |
| Digital Noise Reduction | 3D DNR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Pan: 104°–27° ; Tilt: 55°–15° ; Diagonal: 124°–31° |
| Edge Storage | Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 6.5W |
| Protection | IK10 ,IP67 |
| Casing | Metal |
| Dimensions | Φ122 mm × 88.9 mm (Φ4.80" × 3.50") |
