DEU1016-B 16 HDDs 3U Disk Enclosure
Login to see prices| Built-in PoE Ports | N/A |
|---|---|
| HDD Support | |
| Capacity | Up to 16TB for each disk |
| miniSAS | 1 |
| RS232 | 1 |
| Power Supply | AC 100～240V |
| Working Temperature | -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉) |
| Working Humidity | 5%~95% RH (non-condensing) |
| Power Consumption (With HDD) | < 160W(With 16 HDDs) |
| Weight (Without HDD) | < 10Kg (22lb) |
| Dimensions | 482mm × 477mm× 131mm (19.0"×18.8"×5.1") |
| Case |

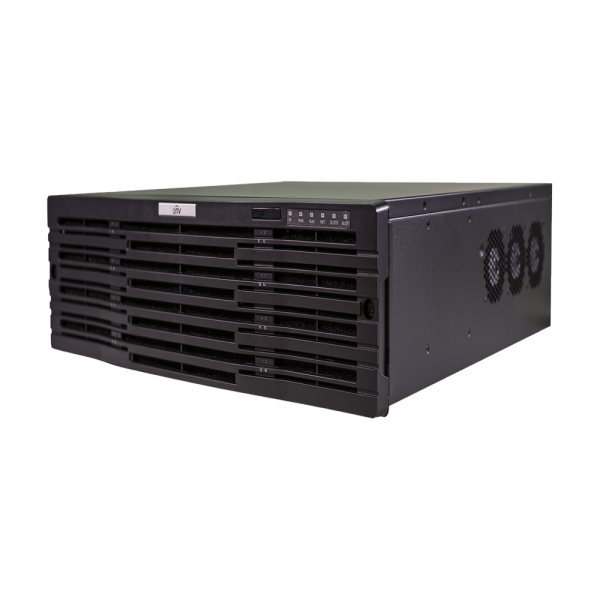

Unicorn UNV Embed All in One VMS Server
Login to see prices| Built-in PoE Ports | N/A |
|---|---|
| HDD Support | |
| Incoming bandwidth | 512Mbps |
| Outgoing bandwidth | 384Mbps |
| Storage stream bandwidth | 512Mbps |
| Decoding Capability | 3 ports ,total 4-ch 4K@30 ,16-ch 1080p@30 ,36-ch 720p@30 ,64-ch D1@30 |
| Decoding resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF |
| Built-in decoding output | 2xHDMI ,1xVGA; supports simultaneous 4K output via dual HDMI ports (VGA will be unavailable in this case) |
| RAM | 4GB |
| HDD | 16 (No HDD is included at delivery) |
| USB | 4*USB3.0 |
| Alarm | 24 in ,8 out |
| Storage expansion interface | 2*miniSAS |
| Network interface | 4*GE copper interface + 2*GE optical interface |
| 12V DC output | 1 |
| Primary power input | Standard: 1 power module ,optional: dual power modules ,hot-pluggable |
| Power | 100V to 240V AC Supports dual-power redundancy |
| Total power consumption | <50W (without HDD) ≤165W (with HDD) |
| Dimensions (with front panel) (H x D x W) | 3U ,fits in 19” standard cabinet 130.5mm×492mm×481.6mm (remove front panel for HDD installation) |
| Weight | ≤ 10.0 kg (not including cards ,power module ,HDD) |

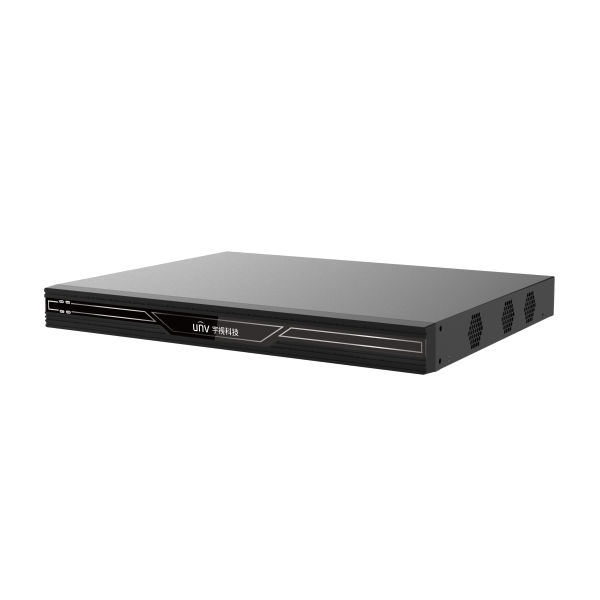

VMS-B180-A Integrated Machine
Login to see prices| Built-in PoE Ports | N/A |
|---|---|
| HDD Support | |
| Incoming bandwidth | 512Mbps |
| Outgoing bandwidth | 384Mbps |
| Number of smart image storage streams | 256 channels |
| Image push performance | 100 images per second |
| Alarm receiving and forwarding performance | 100 alarms per second |
| RAM | 4GB |
| HDD | 1 (No HDD is included at delivery) |
| USB | 4*USB3.0 |
| Power | 100V to 240V AC input ,50Hz/60Hz |
| Total power consumption | Max. 40W |
| Dimensions (with front panel) (H x D x W) | 48mm×345.5mm×440mm/1U |
| Weight | ≤4kg (without HDD) |
