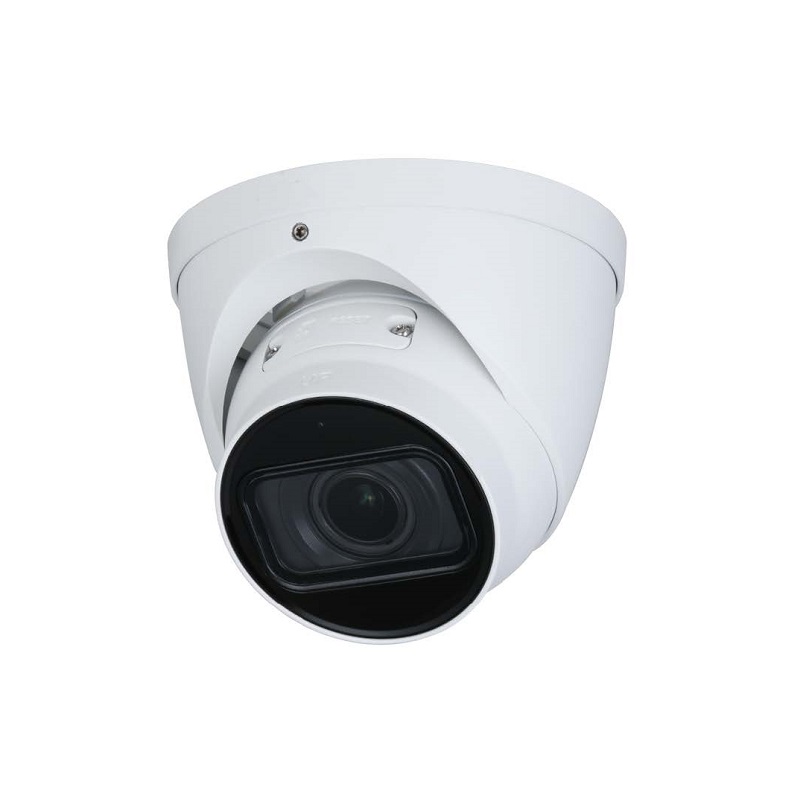

IPC-EB344R-IR-ZAS 4MP LITE AI IR VARI-FOCAL MOTORIZED EYEBALL NETWORK CAMERA

Name: IPC-EB344R-IR-ZAS 4MP LITE AI IR VARI-FOCAL MOTORIZED EYEBALL NETWORK CAMERA
SKU: IPC-EB344R-IR-ZAS

SKU: IPC-EB344R-IR-ZAS

4MP LITE AI IR VARI-FOCAL MOTORIZED EYEBALL NETWORK CAMERA

14 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

4MP, 1/3” CMOS image sensor, low illuminance, high image definition
Outputs max. 4MP (2688 × 1520)@30 fps
H.265 codec, high compression rate, low bit rate
Built-in IR LED, max. IR distance: 40 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, net work disconnection, IP conflict, illegal access, voltage detection
Supports max. 256 G Micro SD card, built-in Mic
12V DC/POE power support
IP67 protection
SMD

Product Manual

No related firmware found.

Additional information

Camera Resolutions	4 MP
Image Sensor	1/3" Progressive Scan CMOS
Effective Pixels	2688(H)×1520(V)
ROM/RAM	128 MB/512 MB
Scanning System	Progressive
Shutter Speed	1/3 s to 1/100 , 000 s , Auto/Manual
Minimum Illumination	0.005 Lux@F1.5
IR Distance	40 m
Pan/Tilt/Rotation Range	Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360°
Digital Noise Reduction	3D DNR
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Camera Style	Eyeball
Lens Type	Motorized Lens
Lens Mount	Φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Field of View	Horizontal: 104°–27°; Vertical: 55° –15° ; Diagonal: 124° –31°
Edge Storage	FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG
Audio	Built-in Mic
Power	12V DC/PoE (802.3af)
Power Consumption	<8.3W
Ingress Protection	IP67
Casing	Metal
Dimensions	108.3 mm × Φ122 mm (4.3" × Φ4.8")
Gross Weight	828 g (1.8 lb)
