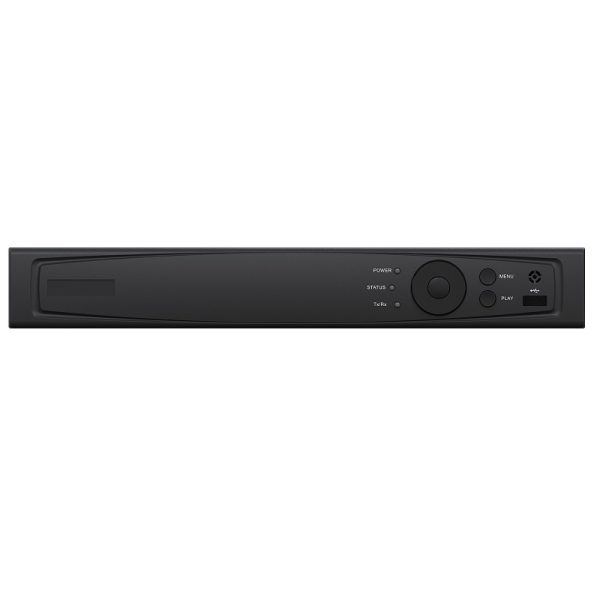

AR324-8/K2 8 Channel 1080P 1U 2HDD Bay TVI 4.0 XDVR
Login to see prices| Channels | |
|---|---|
| Video compression | H.265+/H.265/H.264+/H.264 |
| Analog video input | 8-ch BNC interface (1.0 Vp-p ,75 Ω) ,supporting coaxitron connection |
| IP Video Input | 2-ch |
| Audio compression | G.711u |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio bit rate | 64 Kbps |
| Stream type | Video, Video & Audio |
| Encoding resolution | When 1080p Lite mode not enabled: 3 MP /1080p /720p/VGA /WD1 /4CIF /CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite /VGA /WD1 /4CIF/CIF |
| Synchronous playback | 8-ch |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input) |
| HDD Support | |
| Capacity | Up to 6 TB capacity for each disk |
| Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Power | DC 12V |
| Consumption | ≤ 7.5 W |
| Dimensions | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
| Weight | ≤ 1.78 kg (3.9 lb) |
| Case |

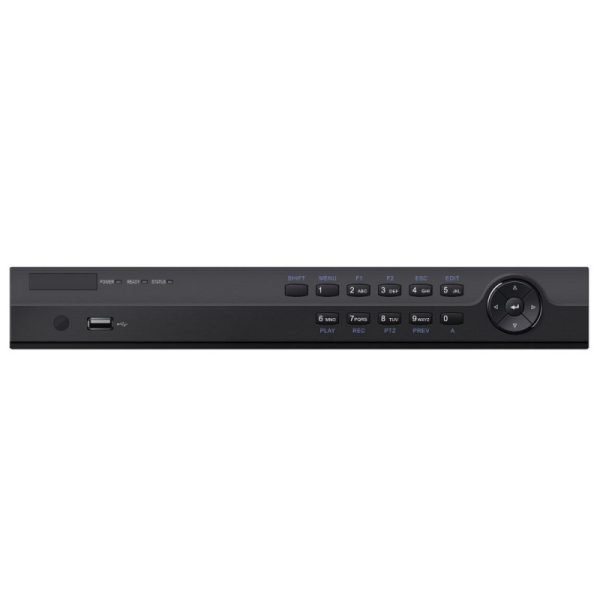

AR326-8/E 8 Channel 8 MP 1HDD Bay TVI 4.0 ALL IN ONE DVR
Login to see prices| Video compression | H.265+/H.265/H.264+/H.264 |
|---|---|
| Analog video input | 8-ch BNC interface(1.0Vp-p ,75Ω) ,supporting coaxitron connection |
| HDTVI input | 8MP ,5MP ,4MP ,3MP ,1080p30 ,1080p25 ,720p60 ,720p50 ,720p30 ,720p25 |
| AHD input | 5MP ,4MP ,1080p25 ,1080p30 ,720p25 ,720p30 |
| IP Video Input | 2-ch Up to 8MP resolution Supports H.265+/H.265/H.264+/H.264 IP cameras |
| Case | |
| Audio compression | G.711 u |
| Channels | |
| Encoding resolution | 8MP /5MP /4MP /3MP /1080p /720p /WD1 /4CIF /VGA /CIF |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Synchronous playback | 8‐ch |
| HDD Support | |
| Capacity | Up to 8 TB capacity for each disk |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Power | DC 12V |
| Consumption (without HDD) | ≤20 W |
| Dimensions | 315×242×45 mm(12.4×9.5×1.8 inch) |
| Weight (without HDD) | ≤1.16 kg(2.6 lb) |
AR334-16/A 16 Channel 1080P H.265 2HDD Bay TURBO ACUSENSE DVR
Login to see prices| Human/Vehicle Analysis | Up to 4-ch |
|---|---|
| Facial Detection and Capture | Face picture detection ,face picture search |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Channels | |
| Analog Video Input | 16-ch;BNC interface (1.0 Vp-p ,75 Ω) ,supporting coaxitron connection |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| IP Video Input | 2-ch ,8-ch |
| Synchronous playback | 16-ch |
| Total Bandwidth | 128 Mbps |
| Capacity | Up to 10 TB capacity for each disk |
| HDD Support | |
| Interface Network | 1 RJ-45 Port (10/100/1000Mbps) |
| Power | DC 12V |
| Consumption | ≤ 40 W |
| Dimension (W × D × H) | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
| Weight | ≤ 2 kg (4.4 lb) |

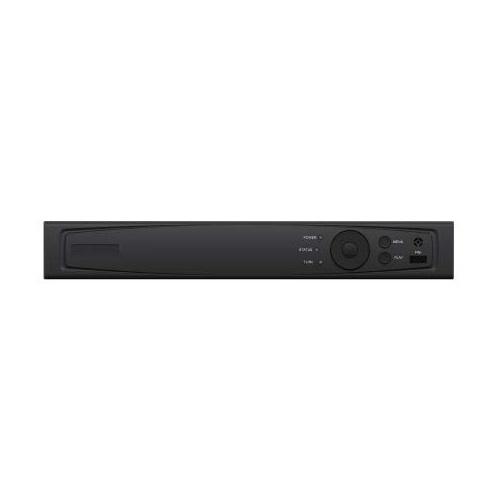

AR334-4/A 4 Channel 1080P H.265+ 1U 1HDD TVI 4.0 XDVR
Login to see prices| Channels | |
|---|---|
| Case | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog Video Input | 4-ch;BNC interface (1.0 Vp-p ,75 Ω) ,supporting coaxitron connection |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| HDMI Output | 1-ch ,1920 × 1080/60Hz ,1280 × 1024/60Hz ,1280 × 720/60Hz ,HDMI/VGA simultaneous output |
| Synchronous playback | 4-ch |
| Capacity | Up to 10 TB capacity for each disk |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| HDD Support | |
| Power | DC 12V |
| Consumption | ≤ 18 W |
| Dimension (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight | ≤ 1.16 kg (2.6 lb) |
AR334-8/A 8 Channel 1080P H.265+ 1U 1HDD Bay TVI 4.0 XDVR
Login to see prices| Human/Vehicle Analysis | Up to 4-ch |
|---|---|
| Case | |
| Facial Detection and Capture | Face picture detection ,face picture search |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Channels | |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Analog Video Input | 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Synchronous playback | 8-ch |
| IP Video Input | 2-ch |
| Total Bandwidth | 96 Mbps |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| HDD Support | |
| Capacity | Up to 10 TB capacity for each disk |
| Power | DC 12V |
| Consumption | ≤ 18 W |
| Dimension (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight | ≤ 1.78 kg (3.9 lb) |
AR336-16/A 16 Channel H.2658 MP 1U 2HDD BAY TVI xDVR
Login to see prices| Encoding resolution | Main stream: 8 MP@8fps /5 MP@12fps /3K@12 fps /4 MP@15fps /3 MP@18fps 1080p /720p /WD1 /4CIF /VGA /CIF@25 fps (P) /30 fps (N) Sub-stream: WD1 /4CIF /CIF@25 fps (P)/30 fps (N) |
|---|---|
| Channels | |
| Case | |
| Human/Vehicle Analysis | Up to 4-ch |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Audio bit rate | 64 Kbps |
| Analog video input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Video output mode | HDMI/VGA simultaneous output |
| Synchronous playback | 16-ch |
| Remote connection | 128 |
| HDD Support | |
| Capacity | Up to 10 TB capacity for each disk |
| Dimension | 380×320×48 mm(15.0×12.6×1.9 inch) |
| Weight (without hard disk) | ≤2.1 kg(4.6 lb) |
AR336-4/A 4CH 1 HDD TURBO ACUSENSE DVR
Login to see prices| Channels | |
|---|---|
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels ,it can classify human and vehicle ,and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Encoding resolution | Main stream: 8 MP@8fps /5 MP@12fps /3K@12 fps/4 MP@15fps /8 MP Lite@ 15 fps /3 MP@18 fps 1080p /720p /WD1 /4CIF /VGA /CIF@25 fps (P) /30 fps (N) Encoding resolution *: 8 MP@ 8fpsis only available for channel 1 ,8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1 /4CIF /CIF @25 fps (P)/30 fps (N) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Stream type | Video, Video & Audio |
| Analog video input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Video output mode | HDMI/VGA simultaneous output |
| Synchronous playback | 4-ch |
| HDD Support | |
| Capacity | Up to 10 TB capacity for each disk |
| Power | DC 12V |
| Consumption (without HDD) | ≤10 W |
| Dimensions | 315×242×45 mm(12.4×9.5×1.8 inch) |
| Weight (without HDD) | ≤1.16 kg(2.6 lb) |
| Case |

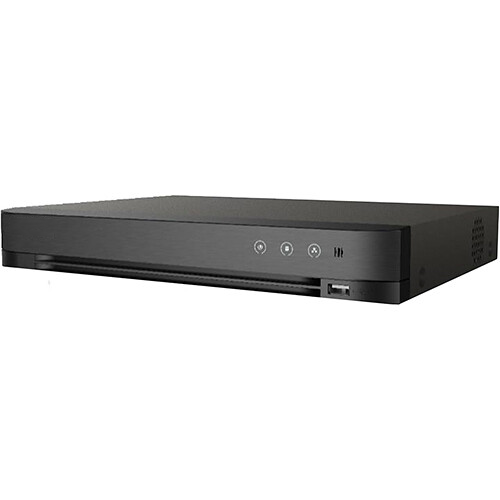

AR336-8/A 8 Channel 8 MP 1U 2HDD TVI 4.0 XDVR
Login to see prices| Human/Vehicle Analysis | 4-ch |
|---|---|
| Channels | |
| Case | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution | Main stream: 8 MP@8fps /5 MP@12fps /3K@12 fps /4 MP@15fps /3 MP@18fps 1080p /720p /WD1 /4CIF /VGA /CIF@25 fps (P)/30 fps (N) Sub-stream: WD1 /4CIF /CIF@25 fps (P)/30 fps (N) |
| IP Video Input | 4-ch |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Audio bit rate | 64 Kbps |
| Synchronous playback | 8-ch |
| HDD Support | |
| Capacity | Up to 10 TB capacity for each disk |
| Serial interface | RS-485(half-duplex) |
| Power | DC 12V |
| Consumption (without HDD) | ≤15 W |
| Dimensions | 380×320×48 mm(15.0×12.6×1.9 inch) |
| Weight (without HDD) | ≤1.78 kg(3.9 lb) |

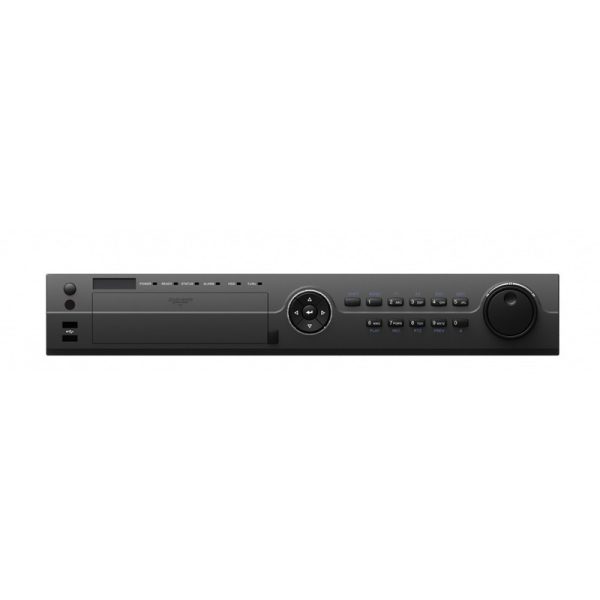

AR524-24 24 Channel H.265+ 4MP Lite 1.5U 4HDD TVI Tribrid DVR
Login to see prices| Video compression | H.265+/H.265/H.264+/H.264 |
|---|---|
| Case | |
| Analog video input | 24-ch BNC interface(1.0Vp-p ,75Ω) ,supporting coaxitron connection |
| Channels | |
| HDTVI input | 4 MP ,3 MP ,1080p25 ,1080p30 ,720p25 ,720p30 ,720p50 ,720p60 Note: The 3 MP signal input is only available for channel 1/2/3/4. |
| AHD input | 4 MP ,1080p25 ,1080p30 ,720p25 ,720p30 |
| IP Video Input | 8-ch |
| Encoding resolution | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Audio bit rate | 64 Kbps |
| Synchronous playback | 16-ch |
| HDD Support | |
| Capacity | Up to 8 TB capacity for each disk |
| Power | 100 to 240 VAC |
| Consumption (without HDD) | ≤ 45 W |
| Dimensions | 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) |
| Weight (without HDD) | ≤ 7 kg (15.4 lb) |
AR524-32 32 Channel H.265+ 4MP Lite 1.5U 4HDD TVI Tribrid DVR
Login to see prices| Video compression | H.265+/H.265/H.264+/H.264 |
|---|---|
| Analog video input | 32-ch BNC interface(1.0Vp-p ,75Ω) ,supporting coaxitron connection |
| Case | |
| IP Video Input | 16-ch |
| Channels | |
| Audio compression | G.711u |
| Encoding resolution | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Audio bit rate | 64 Kbps |
| Synchronous playback | 16-ch |
| HDD Support | |
| Capacity | Up to 10 TB capacity for each disk |
| Power | 100 to 240 VAC |
| Consumption (without HDD) | ≤ 45 W |
| Dimensions | 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) |
| Weight (without HDD) | ≤ 7 kg (15.4 lb) |
AR536-32 32CH 8 MP 4 SATA TURBO HD DVR
Login to see prices| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|---|---|
| Encoding Resolution | 8MP /3K /5MP /4MP /3MP /1080p /720p /WD1 /4CIF /VGA /CIF |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Channels | |
| Stream Type | Video ,Video&Audio |
| Audio Compression | G.711 u |
| IP Video Input | 32-ch |
| Analog Video Input | 32-ch BNC interface (1.0 Vp-p,75Ω),supporting coaxitron connection |
| Incoming / Outgoing Bandwidth | 320 Mbps/256 Mbps |
| HDTVI Input | 8 MP, 3 K, 5MP, 4 MP, 3 MP, 1080 p 25, 1080p 30, 720p 25, 720p 30, 720p 50, 720p 60 |
| AHD Input | 5 MP, 4 MP, 1080p 25, 1080p 30, 720p 25, 720p 30 |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| HDD Support | |
| Case | |
| Power | 100 to 240 VAC |
| Consumption | ≤55 W(without HDD) |
| Dimension(W×D×H) | 445×400×71 mm(17.5×15.7×2.8 inch) |
| Weight | ≤7 kg(without HDD,15.4 lb.) |

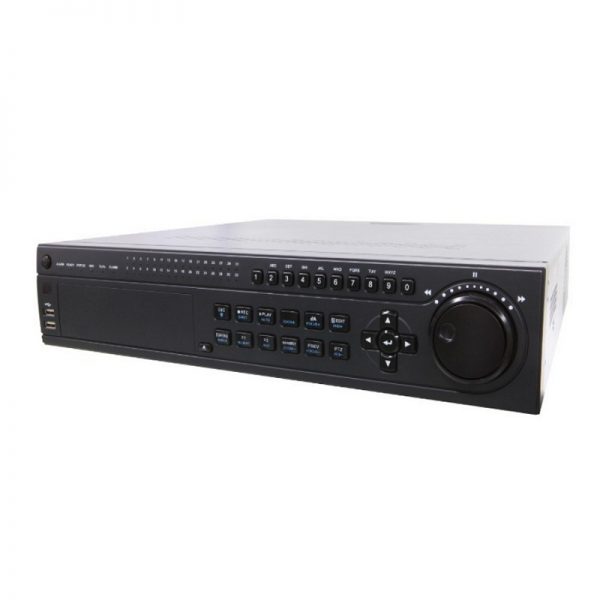

AR704-32 16-CH TURBO HD DVR
Login to see prices| Channels | |
|---|---|
| Video compression | H.264 |
| Analog and HDTVI video input | 32-ch BNC interface (1.0 Vp-p ,75 Ω) ,supporting coaxitron connection |
| Supported camera types | 720p25 ,720p30 ,720p50 ,720p60 ,1080p25 ,1080p30 ,CVBS |
| IP Video Input | 16-ch |
| Audio compression | G.711u |
| Audio input | 16-ch RCA (2.0 Vp-p, 1 KΩ) |
| Encoding resolution | 1080p/720p/VGA/WD1/4CIF/CIF |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64Kbps Per Channel |
| Synchronous playback | 32-ch |
| HDD Support | |
| Capacity | Up to 6 TB capacity for each disk |
| Power | 100 to 240 VAC |
| Consumption (without HDD) | ≤ 67 W |
| Dimensions (W × D × H) | 445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch) |
| Weight (without HDD) | ≤ 8 kg (17.6 lb) |
AR715-16 16 Channel Full 1080P 2U 8HDD TVI Tribrid DVR
Login to see prices| Video compression | H.264+/H.264 |
|---|---|
| Analog video input | 16-ch BNC interface(1.0Vp-p ,75Ω) ,supporting coaxitron connection |
| Channels | |
| HDTVI input | 3 MP ,1080p25 ,1080p30 ,720p25 ,720p30 ,720p50 ,720p60 |
| AHD input | 720p25 ,720p30 ,1080p25 ,1080p30 |
| IP Video Input | 2-ch (up to 18-ch) Up to 8 MP resolution H.265/H.264+/H.264 |
| Case | |
| Network bandwidth | 260 Mbps |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Audio bit rate | 64 Kbps |
| Synchronous playback | 16-ch |
| Remote connections | 128 |
| HDD Support | |
| Capacity | Up to 6 TB capacity for each disk |
| Power | 100 to 240 VAC |
| Consumption (without HDD) | ≤65 W |
| Dimensions | 445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch) |
| Weight (without HDD) | ≤ 8 kg (17.6 lb) |
