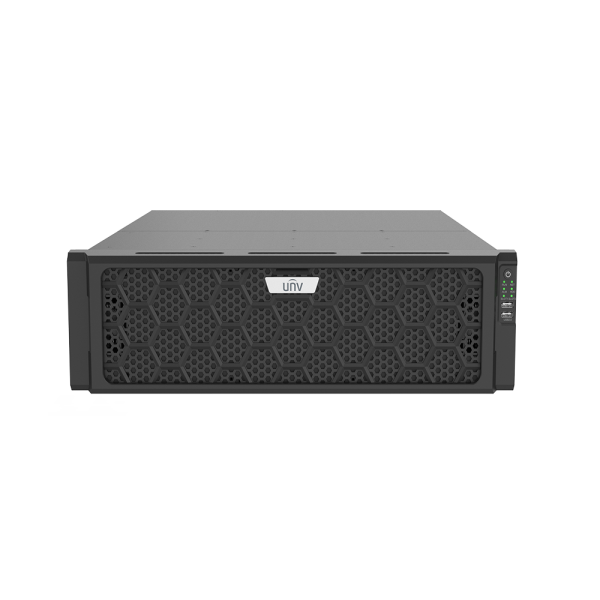

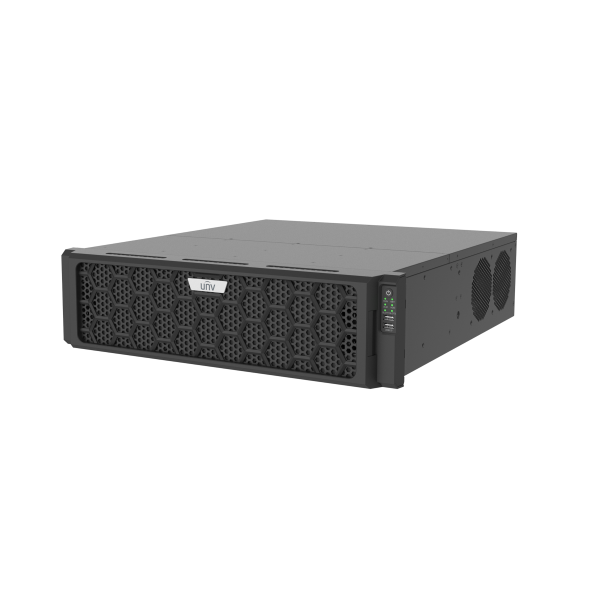

NVR516-128E-R 16 HDDs 128-ch 3U Network Video Recorder
Login to see prices SKU: NVR516-128E-R
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | H264 : 2 x 32MP@30 ,4 x 16MP@30 ,6 x 12MP@30 ,9 x 4K@30 ,14 x 5MP@30 ,18 x 4MP@30 ,24 x 3MP@30 ,36 x 1080P@30 ,72 x 720P@30 ,128 x D1 H265 : 3 x 32MP@30 ,6 x 16MP@30 ,8 x 12MP@30 ,12 x 4K@30 ,19 x 5MP@30 ,24 x 4MP@30 ,32 x 3MP@30 ,48 x 1080P@30 ,96 x 720P@30 ,128 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8640 pixels in length or width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 640Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Power Consumption (without HDD) | ≤ 50W |
| Weight (without HDD) | ≤ 6.5Kg (14.3lb) |
| Dimensions | 482mm × 533mm × 131mm (19.0"×21.0"×5.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR516-64E-R 16 HDDs 64-ch 3U Network Video Recorder
Login to see prices SKU: NVR516-64E-R
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | H264 : 2 x 32MP@30 ,4 x 16MP@30 ,6 x 12MP@30 ,9 x 4K@30 ,14 x 5MP@30 ,18 x 4MP@30 ,24 x 3MP@30 ,36 x 1080P@30 ,64 x 720P@30 H265 : 3 x 32MP@30 ,6 x 16MP@30 ,8 x 12MP@30 ,12 x 4K@30 ,19 x 5MP@30 ,24 x 4MP@30 ,32 x 3MP@30 ,48 x 1080P@30 ,64 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8640 pixels in length or width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 640Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Power Consumption (without HDD) | ≤ 50W |
| Weight (without HDD) | ≤ 6.5Kg (14.3lb) |
| Dimensions | 482mm × 533mm × 131mm (19.0"×21.0"×5.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

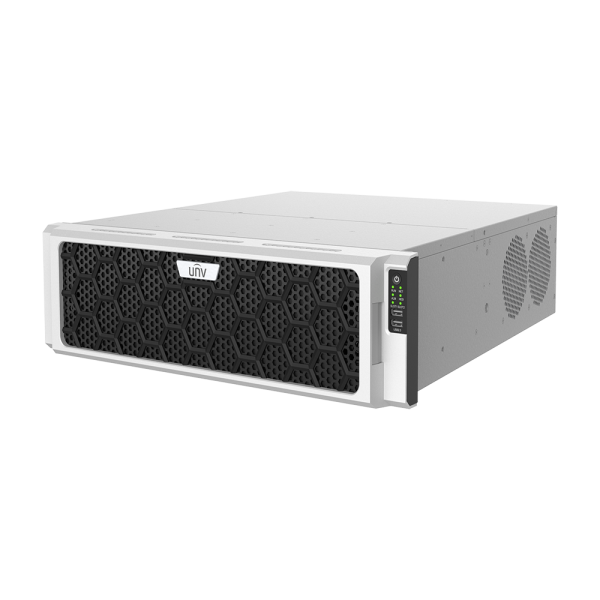

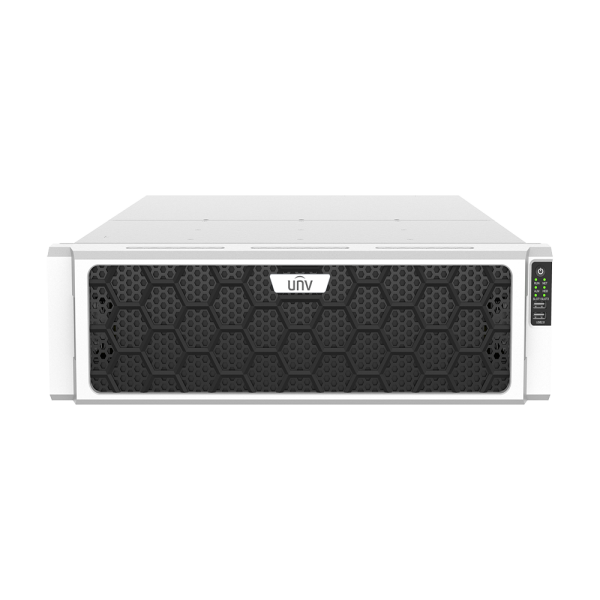

NVR816-128 16 HDDs 128-ch 3U Network Video Recorder
Login to see prices SKU: NVR816-128
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 3 x 12MP@25 ,4 x 4K@30 ,16 x 1080P@30 ,32 x 960P@25 ,36 x 720P@30 ,64 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4096 pixels in length or width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 512 Mbps |
| Outgoing Bandwidth | 512 Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 24-ch |
| Power Consumption (without HDD) | ≤ 65W |
| Weight (without HDD) | ≤ 12.5Kg (27.56lb) |
| Dimensions | 482mm × 533mm × 131.0mm (19.0"×21.0"×5.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR816-128-R-IM2-8G 16 HDDs 128-ch 3U Network Video Recorder
Login to see prices SKU: NVR816-128-R-IM2-8G
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 3 x 12MP@30 ,5 x 4K@30 ,8 x 5MP@25 ,10 x 4MP@30 ,13 x 3MP@30 ,20 x 1080P@30 ,45 x 720P@30 ,96 x D1@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4096 pixels in length or width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 768 Mbps |
| Outgoing Bandwidth | 768 Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 24-ch |
| Power Consumption (without HDD) | ≤200W |
| Weight (without HDD) | 12KG |
| Dimensions | 482mm × 559mm × 131mm (19.0" × 22.0" × 5.1" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR816-64 16 HDDs 64-ch 3U Network Video Recorder
Login to see prices SKU: NVR816-64
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 3 x 12MP@25 ,4 x 4K@30 ,16 x 1080P@30 ,32 x 960P@25 ,36 x 720P@30 ,64 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4096 pixels in length or width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 512 Mbps |
| Outgoing Bandwidth | 512 Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 24-ch |
| Power Consumption (without HDD) | ≤ 65W |
| Weight (without HDD) | ≤ 12.5Kg (27.56lb) |
| Dimensions | 482mm × 533mm × 131.0mm (19.0"×21.0"×5.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR816-64-R-IM2-4G 16 HDDs 64-ch 3U Network Video Recorder
Login to see prices SKU: NVR816-64-R-IM2-4G
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 3 x 12MP@30 ,5 x 4K@30 ,8 x 5MP@25 ,10 x 4MP@30 ,13 x 3MP@30 ,20 x 1080P@30 ,45 x 720P@30 ,64 x D1@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4096 pixels in length or width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 768 Mbps |
| Outgoing Bandwidth | 768 Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 24-ch |
| Power Consumption (without HDD) | ≤200W |
| Weight (without HDD) | 12KG |
| Dimensions | 482mm × 559mm × 131mm (19.0" × 22.0" × 5.1" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
