EX-06EO Flush Mount Piezoelectric Button
Login to see prices SKU: EX-06EO
| Outputs | One dry contact relay with two separate outputs One Normally Open, One Normally Closed 2 A |
|---|---|
| Input Current, Max | Standby 15 mA @ 24 VDC Maximum 140 mA @ 24 VDC |
| Button Switch Lifespan | Over 1 Billion Cycles |
| Relay Expectancy | 100,000 @ 2 A 30 VDC 500,000 @ 1 A 30 VDC |
| Operating Environment | Suitable for indoor and outdoor use (meets IP-65) |
| Operating Temperature Range | -35˚C to 66˚C (-31˚F to 151˚F) |
| Material | Stainless steel faceplate and button cup |
| Dimensions | 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.) |
| Weight | 238 g (8.4 oz.) |
| Output Mode | Selectable Toggle or timed Pulse |
| Pulse and Led indication time | Selectable 1–60 seconds |
| Led indicator | Off, Red, and Green |
| SYSTEM COMPONENTS | The EX-06 is compatible with all switch operated electrical devices. The unit also works with all of Rosslare’s Access control units as well as all standard access control systems. |
| PRODUCT WARRANTY | 5-year limited product warranty |
EX-07 Non-Sparking Digital Tactile Switch
Login to see prices SKU: EX-07
| Operating Voltage Range | 12-24 VAC / VDC |
|---|---|
| Outputs (4A, dual 2 + 2) | One dry contact relay with two separate full Form C outputs |
| Input Current, Max | Standby 15 mA @ 24 VDC Maximum less than 150 mA @ 24 VDC |
| Button Switch Lifespan | Over 1 Billion Cycles |
| Relay Expectancy | 100,000 @ 2 A 24 VDC 500,000 @ 1 A 24 VDC |
| Operating Environment | Suitable for indoor and outdoor use (meets IP-65) |
| Operating Temperature | -35˚C to 66˚C (-31˚F to 151˚F) |
| Material | Stainless steel faceplate and butt |
| Dimensions | 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.) |
| Weight | 277 g (9.8 oz) |
| Output Mode | Selectable Toggle or timed Pulse |
| Input Mode | Selectable LED control or alarm |
| Pulse and Led indication time | Selectable 1-60 seconds |
| Led indicator | Off, Red, and Green |
| Buzzer mode | Off, On (selectable between alarm input mode and buzzer beep upon button press mode) |
| External lighting alert input | For evacuation and other applications |
| EX-0700 | No Text |
| EX-07E0 | “PUSH TO EXIT” |

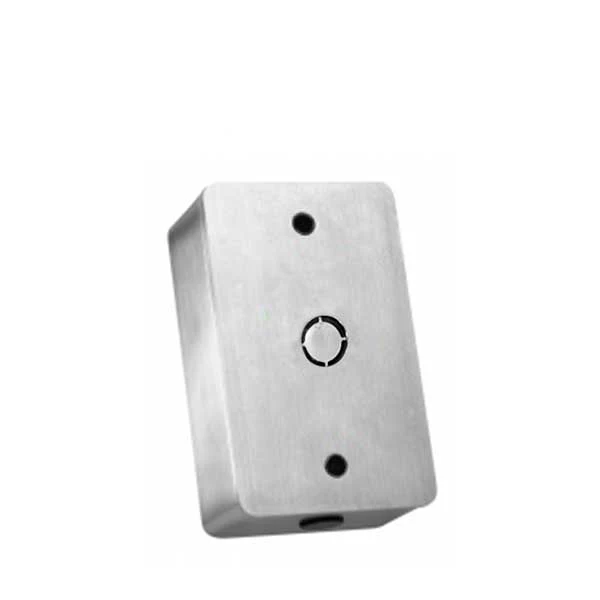

| MP-06 | External mounting metal box |
| SYSTEM COMPONENTS | The EX-07 is compatible with all switch operated electrical devices. The unit also works with all of Rosslare’s Access control units as well as all standard access control systems. |
| PRODUCT WARRANTY | 5-year Limited Product Warranty |
EX-16EO Mullion Non-Sparking Tactile Switch
Login to see prices SKU: EX-16EO
| Operating Voltage Range | 10–24 VDC |
|---|---|
| Outputs | One dry contact relay with two separate outputs One Normally Open, One Normally Closed |
| Input Current, Max | 140 mA @ 24 VDC |
| Button Switch Lifespan | Over 1 Billion Cycles |
| Relay Expectancy | 100,000 @ 2A 30VDC 500,000 @ 1A 30VDC |
| Operating Environment | Suitable for indoor and outdoor use (meets IP-65) |
| Operating Temperature Range | -35˚C to 66˚C (-31˚F to 151˚F) |
| Material | Stainless steel faceplate and button cup |
| Dimensions | 11.4 x 4.4 x 3.2 cm (4.5 x 1.75 x 1.25 inch) |
| Weight | 173 g (6.1 oz) |
| Output Mode | Selectable Toggle or timed Pulse |
| Pulse and LED Indication Time | Selectable 1–60 seconds |
| Led indicator | Off, Red, and Green |
| EX-1600 | No Text |
| EX-16E0 | “EXIT” |
| MP-06 | External mounting metal box |
| SYSTEM COMPONENTS | The EX-16 is compatible with all switch operated electrical devices. The unit also works with all of Rosslare’s Access control units as well as all standard access control systems. |
| PRODUCT WARRANTY | 5-year limited product warranty |
EX-17EO Non-sparking Digital Tactile Switch
Login to see prices SKU: EX-17EO
| Operating Voltage Range | 12– 24 VAC/VDC |
|---|---|
| Outputs (4 A, dual 2 + 2) | One dry contact relay with two separate full Form C outputs |
| Input Current, Max | Standby 15 mA @ 24 VDC Maximum 150 mA @ 24 VDC |
| Button Switch Lifespan | Over 1 billion cycles |
| Relay Expectancy | 100,000 @ 2 A 24 VDC 500,000 @ 1 A 24 VDC |
| Operating Environment | Suitable for indoor and outdoor use (meets IP-65) |
| Operating Temperature | -35˚C to 66˚C (-31˚F to 151˚F) |
| Material | Stainless steel faceplate and button |
| Dimensions | 11.4 x 4.4 x 3.2 cm (4.5 x 1.75 x 1.25 in.) |
| Weight | 205 g (7.2 oz) |
| Output Mode | Selectable Toggle or Timed Pulse |
| Input Mode | Selectable LED control or alarm |
| Pulse and Led Indication Time | Selectable 1–60 seconds |
| Led Indicator | Off (dims upon button press), red, and green (color changes gradually) |
| Buzzer Mode | Off, On (selectable between alarm input mode and buzzer beep upon button press mode) |
| External lighting alert input | For evacuation and other applications |
| EX-1700 | No Text |
| EX-17E0 | “EXIT” |
| MP-16 | External mounting metal box |
| SYSTEM COMPONENTS | The EX-17 is compatible with all switch operated electrical devices. The unit also works with all of Rosslare’s Access control units as well as all standard access control systems. |
| PRODUCT WARRANTY | 5-year Limited Product Warranty |
EX-H04/M04 Sensitive Piezoelectric Button Switches
Login to see prices SKU: EX-H04/M04
| Operating Voltage Range | 8– 30 VDC |
|---|---|
| Switch Voltage | 30 VDC [OC] |
| Outputs | Normally open (transistor output open collector) |
| Wire Leads (Switch Output) | 2 x 24 AWG 280 mm (11.02 in.) length (UL 1569) blue wires |
| '+VDC and Ground | Red and black wires for LED Power |
| Button Switch Lifespan | Over 1 million cycles |
| Operating Environment | Suitable for indoor and outdoor use |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Dimensions | EX-H04: 114 x 70 x 10 mm (4.5 x 2.8 x 0.4 in.) EX-M04: 92 x 92 x 10 mm (3.6 x 3.6 x 0.4 in.) |
| Weight | EX-H04: 50 g (1.8 oz.) EX-M04: 55 g (1.9 oz.) |
| SYSTEM COMPONENTS | The EX-H04 and EX-M04 are compatible with all switch operated electrical devices. The unit also works with all of Rosslare’s Access control units as well as all standard access control systems. |
| PRODUCT WARRANTY | 2-year limited product warranty |
EX-H22/M22 Passive Infrared Motion Sensor Switches
Login to see prices SKU: EX-H22/M22
| Operating Voltage Range | 8– 30 VDC |
|---|---|
| Switch Voltage | 30 VDC [OC] |
| Outputs | Normally open (transistor output open collector |
| Wire Leads (switch output) | 2 x 24 AWG 280 mm (11.02 in.) length (UL 1569) Blue wires |
| VDC and Ground | Red and black wires for LED power |
| Operating Environment | Suitable for indoor and outdoor use |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Dimensions-EX-H22 | 114 x 70 x 10 mm (4.5 x 2.8 x 0.4 in.) |
| Dimensions-EX-M22 | 92 x 92 x 10 mm (3.6 x 3.6 x 0.4 in.) |
| Weight-EX-H22 | 50 g (1.8 oz.) |
| Weight-EX-M22 | 55 g (1.9 oz.) |
| SYSTEM COMPONENTS | The EX-H22 and EX-M22 are compatible with all switch operated electrical devices. The units also work with all of Rosslare’s access control units as well as all standard access control systems. |
| PRODUCT WARRANTY | 2-year limited product warranty |
EX-H22N / EX-M22N Passive Infrared Anti-Vandal Motion Sensor Switches
Login to see prices SKU: EX-H22N / EX-M22N
LK-M03L MAGLOCKS 300 LBS
Login to see prices SKU: LK-M03L
| Voltage | Dual Voltage 12/24 VDC |
|---|---|
| Current | 12 VDC: 360 mA 24 VDC: 180 mA |
| Operating Environment | Suitable for indoor use |
| Holding Force | 136 kg (300 lb) |
| Dimensions | Main: 166 x 38.6 x 21.5 mm (6.54 x 1.52 x 0.85 in.) Contact: 129 x 31.5 x 7.5 mm (5.08 x 1.24 x 0.03 in.) |
| Weight | Main: 0.63 kg (1.39 lb) Contact: 0.25 kg (0.55 lb) |

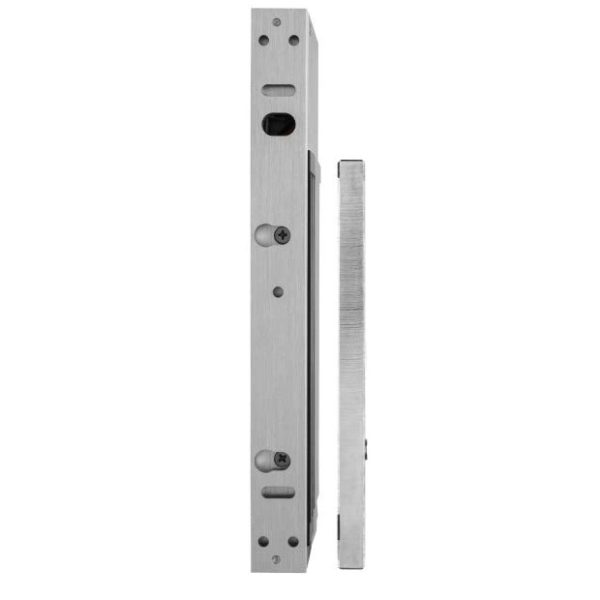

LK-M06L MAGLOCKS 600 LBS
Login to see prices SKU: LK-M06L
| Voltage | Dual Voltage 12/24 VDC |
|---|---|
| Current | 12 VDC: 500 mA 24 VDC: 250 mA |
| Operating Environment | Suitable for indoor use |
| Holding Force | 272 kg (600 lb ) |
| Dimensions | Main: 250 x 47.2 x 26.6 mm (9.84 x 1.86 x 1.05 in.) Contact: 185 x 37.5 x 11.5 mm (7.28 x 1.47 x 0.45 in.) |
| Weight | Main: 1.22 kg (2.7 lb) Contact: 0.66 kg (1.45 lb) |
LK-M12L MAGLOCKS 1200 LBS
Login to see prices SKU: LK-M12L
| Voltage | Dual Voltage 12/24 VDC |
|---|---|
| Current | 12 VDC: 500 mA 24 VDC: 250 mA |
| Operating Environment | Suitable for indoor use |
| Holding Force | 544 kg (1200 lb) |
| Dimensions | Main: 266 x 73 x 40 mm (10.5 x 2.87 x 1.57 in.) Contact: 184 x 60 x 16 mm (7.24 x 2.36 x 0.63 in.) |
| Weight | Main: 3.09 kg (6.8 lb) Contact: 1.39 kg (3.06 lb) |

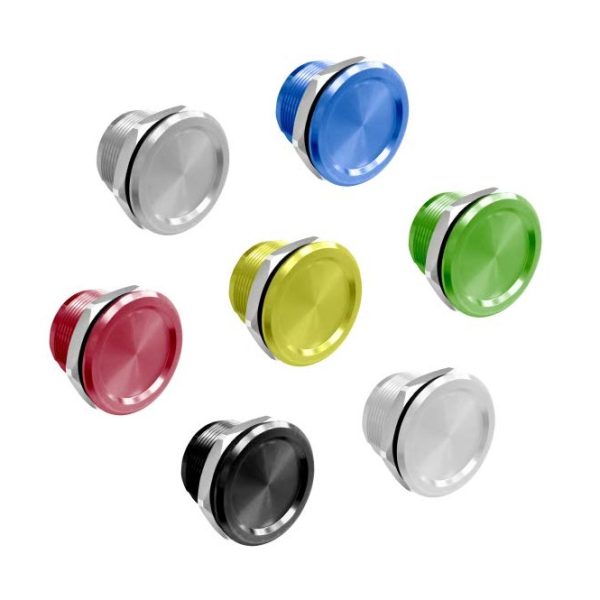

PX-13 0-30VDC Rugged Piezoelectric Switches Metal Enclosure
Login to see prices SKU: PX-13
| Color | Black ,Blue ,Gold ,Natural ,Red ,White |
|---|---|
| Switch Voltage | 0 VDC to 30 V AC/DC |
| Switch Current | 1 A (max) |
| Wire Leads | 2 x 24 AWG 280 mm (11.0 in.) wires |
| 2-Wire Interface | No polarity |
| Button Life | Up to 20 million cycles |
| Impulse Time | >50 ms (on actuation) |
| Operating Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 0% to 99% Wet – Meets IP68 (waterproof) |
| Operating Environment | Indoor and Outdoor |
| Dimensions | Height: 19.5 mm (0.8 in.), Diameter: 29.5 mm (1.2 in.) |
| Standard Thread | 22 mm (0.9 in.) |
| Weight | 22 g (0.8 oz) |
| PRODUCT WARRANTY | Lifetime Warranty |
