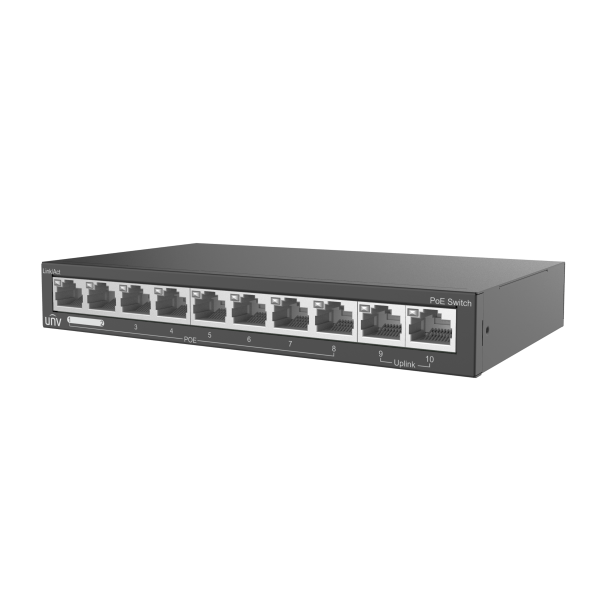

NSW2020-10T-POE-IN UNV Ethernet 8 Port 88W PoE Switch
Login to see prices| Ports Type | 10×100Mbps network ports (RJ45) ,including 8 PoE ports |
|---|---|
| Switching capacity | 2 Gbps |
| Packet Buffer | 448K bit |
| MAC | 1K |
| Forwarding performance | 1.49Mpps |
| Prior Ports | 1 to 2 |
| Standards | IEEE802.3 ,IEEE802.3u ,IEEE802.3az ,IEEE802.3x ,IEEE802.3af ,IEEE802.3at |
| Power Supply | DC: 48/51V ,powered by adapter(100 to 240V ,50/60Hz) |
| PoE Standard | IEEE 802.3 at ,IEEE 802.3af |
| PoE Mode | ModeB (4578) |
| Max.PoE Power | Max capacity:88W Max capacity for single port: 30W |
| Max.Power | 94W |
| Cooling Fans | 0 |
| Dimensions (W×D×H) | 171*103*25mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Weight | 0.29KG |

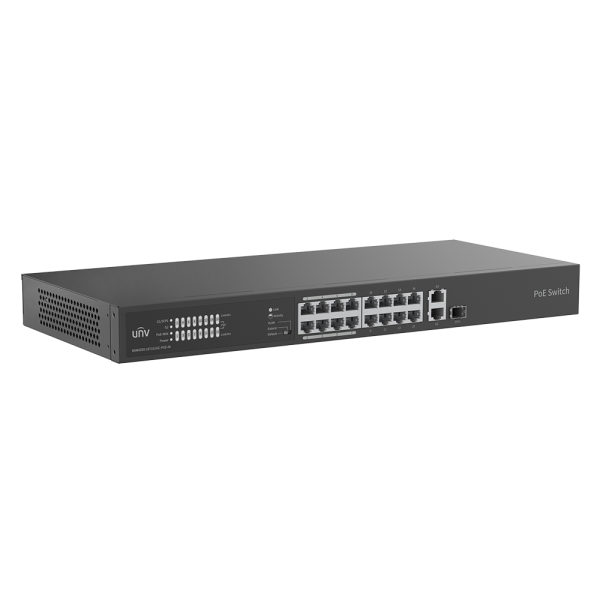

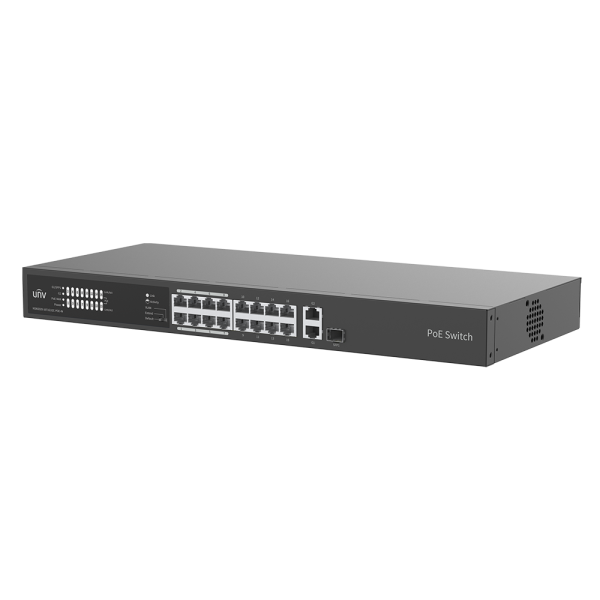

NSW2020-16T1GT1GC-POE-IN UNV Ethernet 16 Port 225W PoE Switch
Login to see prices| Ports Type | 16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports |
|---|---|
| Switching capacity | 7.2 Gbps |
| Packet Buffer | 4 M bit |
| MAC | 16K |
| Forwarding performance | 5.36Mpps |
| Prior Ports | 1 to 8 |
| Standards | IEEE802.3 ,IEEE802.3u ,IEEE802.3z ,IEEE802.3ab ,IEEE802.3x ,IEEE802.3af ,IEEE802.3at ,IEEE802.3az |
| Power Supply | AC: 100 to 240V ,50/60Hz |
| PoE Standard | IEEE 802.3 at ,IEEE 802.3af |
| PoE Mode | ModeB (4578) |
| Max.PoE Power | Max capacity:250W Max capacity for single port: 30W |
| Max.Power | 265W |
| Cooling Fans | 1 |
| Dimensions (W×D×H) | 440*195*44mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Weight | 2.12KG |

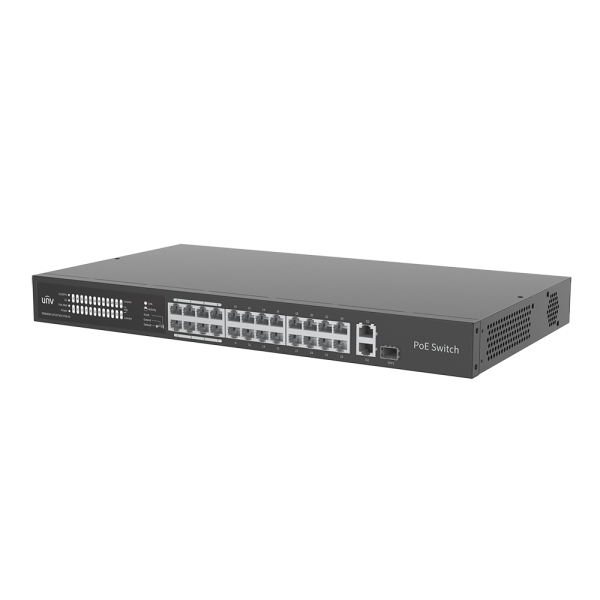

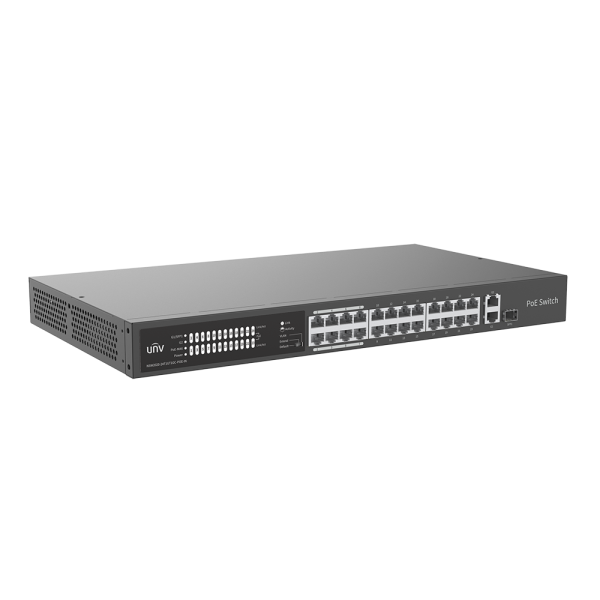

NSW2020-24T1GT1GC-POE-IN UNV Ethernet 24 Port 370W PoE Switch
Login to see prices| Ports Type | 24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports |
|---|---|
| Switching capacity | 8.8 Gbps |
| Packet Buffer | 4 M bit |
| MAC | 16K |
| Forwarding performance | 6.55Mpps |
| Prior Ports | 1 to 8 |
| Standards | IEEE802.3 ,IEEE802.3u ,IEEE802.3z ,IEEE802.3ab ,IEEE802.3x ,IEEE802.3af ,IEEE802.3at ,IEEE802.3az |
| Power Supply | AC: 100 to 240V ,50/60Hz |
| PoE Standard | IEEE 802.3 at ,IEEE 802.3af |
| PoE Mode | ModeB (4578) |
| Max.PoE Power | Max capacity:370W Max capacity for single port: 30W |
| Max.Power | 390W |
| Cooling Fans | 1 |
| Dimensions (W×D×H) | 440*250*44mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Weight | 2.93KG |

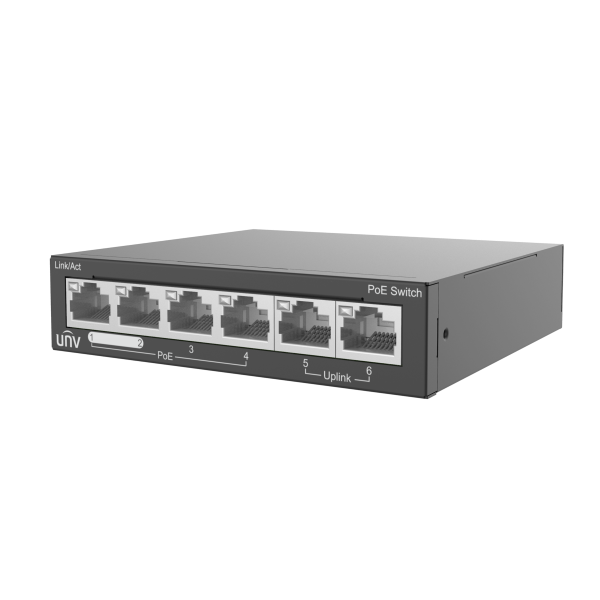

NSW2020-6T-POE-IN UNV Ethernet 4 Port 60W PoE Switch
Login to see prices| Ports Type | 6×100Mbps network ports (RJ45) ,including 4 PoE ports |
|---|---|
| Switching capacity | 1.2 Gbps |
| Packet Buffer | 448K bit |
| MAC | 1K |
| Forwarding performance | 0.90Mpps |
| Prior Ports | 1 to 2 |
| Standards | IEEE802.3 ,IEEE802.3u ,IEEE802.3az ,IEEE802.3x ,IEEE802.3af ,IEEE802.3at |
| Power Supply | DC: 48/51V ,powered by adapter(100 to 240V ,50/60Hz) |
| PoE Standard | IEEE 802.3 at ,IEEE 802.3af |
| PoE Mode | ModeB (4578) |
| Max.PoE Power | Max capacity:60W Max capacity for single port: 30W |
| Max.Power | 65W |
| Cooling Fans | 0 |
| Dimensions (W×D×H) | 107*101*25mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% (noncondensing) |
| Weight | 0.19KG |

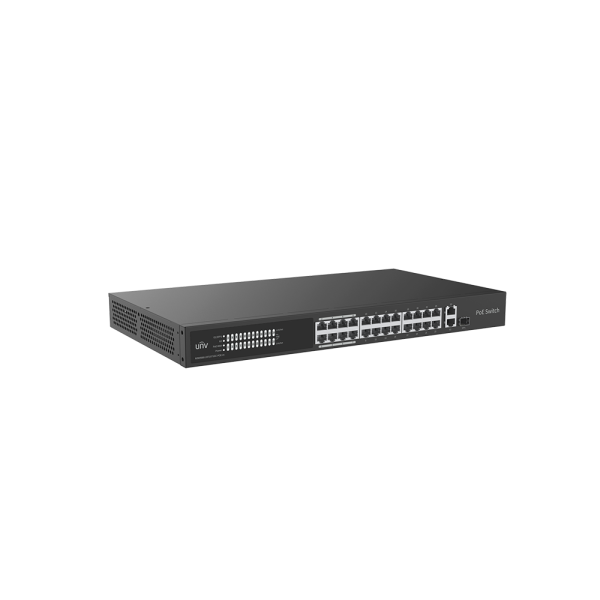

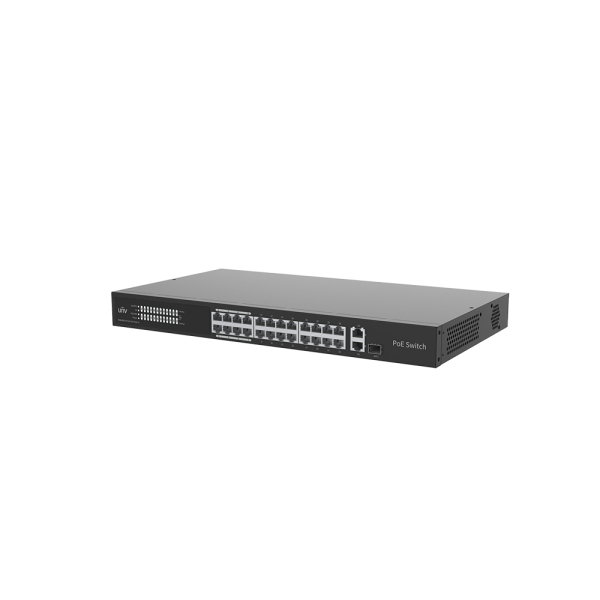

NSW3000-24T1GT1GC-POE-IN UNV Ethernet 24 Port 370W Cloud Managed Ethernet PoE Switch
Login to see prices| Ports Type | 24 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45) + 1 x Gigabit Combo |
|---|---|
| Switching capacity | 8.8 Gbps |
| Packet Buffer | 4 M bit |
| MAC | 16K |
| Forwarding performance | 6.55Mpps |
| Prior Ports | 1 to 8 |
| Standards | IEEE802.3 ,IEEE802.3u ,IEEE802.3z ,IEEE802.3ab ,IEEE802.3x ,IEEE802.3af ,IEEE802.3at ,IEEE802.3az |
| Power Supply | AC: 100 to 240V ,50/60Hz |
| PoE Standard | IEEE 802.3af ,IEEE 802.3 at |
| PoE Mode | ModeA (1236) ,ModeB (4578) |
| Max.PoE Power | Maximum total power: 370W Maximum PoE power for single port: 30W |
| Max.Power | 385W |
| Cooling Fans | 1 |
| Dimensions (W×D×H) | 440mm x 244.8mm x 44mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 5% to 90% RH ,noncondensing |
| Weight | 2.9kg |
