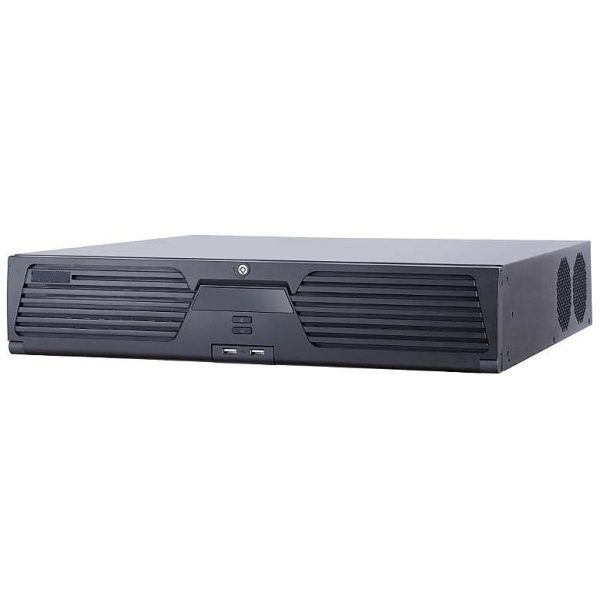

iNRA10-32/8F 32 Channel 2U 4K DeepInmind SERIES NVR
Login to see prices| Channels | |
|---|---|
| Face picture library | 16 libraries 100 ,000 pictures |
| Face picture search | Search by picture is supported |
| Face picture comparison alarm | 8-ch face pictures comparison alarm ,Alarm linkage actions: recording ,audio warning ,notify surveillance center ,send email |
| False alarm filtering | Up to 16-ch 2 MP video analysis for human and vehicle recognition to filter false alarm |
| IP Video Input | 32-ch |
| Incoming/outgoing bandwidth | 320 Mbps/256 Mbps |
| Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p /UXGA /720p /VGA /4CI/DCIF /2CIF /CIF /QCIF |
| CVBS output (Optional) | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio output | 2-ch, RCA (Linear, 1 KΩ) |
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Live view/playback resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080 p /UXGA /720 p /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Synchronous playback | 16-ch |
| Capability | 16-ch @ 1080 p |
| HDD Support | 8 HDD |
| Capacity | Up to 10 TB capacity for each HDD |
| Array type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Serial interface | RS-232; RS-485; Keyboard |
| USB interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power | 220 VAC |
| Total power | 200 W |
| Consumption (without hard disk) | ≤ 70 W |
| Working humidity | 10 to 90 % |
| Dimensions | 445 × 470 × 90 mm (17.5"× 18.5" × 3.5") |
| Weight (without hard disk) | ≤ 10 kg (22 lb) |
iNRA10-32/S 32 Channel 320M 2U Hotswap 4K DeepinMind Super Network Video Recorder
Login to see prices| IP Video Input | 32-ch |
|---|---|
| Incoming/outgoing bandwidth | 320 Mbps/250 Mbps |
| Recording resolution | 12 MP /8 MP /6 MP/5 MP /4 MP/3 MP /1080p /UXGA /720p /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Synchronous playback | 16-ch |
| HDD Support | |
| Power | 100 to 240 VAC ,50 to 60Hz |
| Consumption (without hard disk) | ≤70 W |
| Dimension | 445×470×90 mm(17.5"×18.5"×3.5") |
| Weight (without hard disk) | ≤10 kg(22 lb) |
NR21P4-4D 4-CH 1U 1 HDDs 4 POE 4K Network Video Recorder
Login to see prices| IP Video Input | 4-ch |
|---|---|
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 8 MP /6 MP / 5 MP /4 MP/3 MP / 1080 p/ UXGA /720 p/VGA/ 4CIF / DCIF/2 CIF/ CIF / QCIF |
| Synchronous playback | 4-ch |
| HDD Support | |
| Capacity | Up to 8 TB capacity for each disk |
| Power | DC 48V ,1.35A |
| Dimension | 320×240×48 mm(12.4"×9.4"×1.9") |
| Weight | ≤1.18 kg(without HDD ,2.6 lb.) |
| Channels | |
| Built-in PoE Ports | 4 |
| Case |

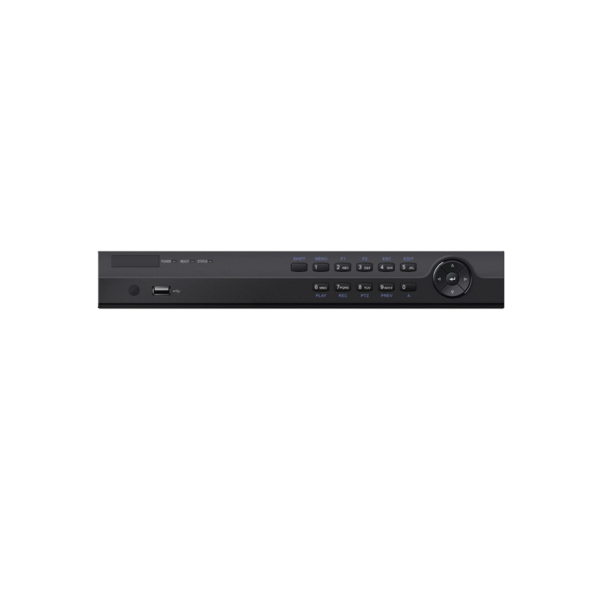

NR21P6-16D Embedded 16ch Plug & Play 1U 16 PoE 4K Network Video Recorders
Login to see prices| IP Video Input | 16-ch |
|---|---|
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080 p/UXGA/720 p/VGA/4 CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| HDD Support | |
| Power | 100 to 240 VAC ,50 to 60Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Dimension | 385×315×52 mm(15.2"×12.4"×2.0") |
| Weight | ≤ 2.6 kg (without HDD ,5.7 lb.) |
| Channels | |
| Built-in PoE Ports | 16 |
| Case |

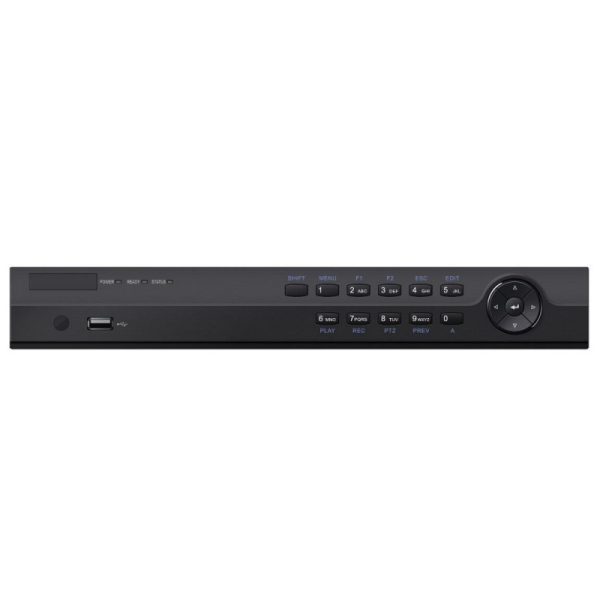

NR21P8-8/D 8-ch 2 SATA 2HDDs 1U 8 PoE 4K Network Video Recorder
Login to see prices| IP Video Input | 8-ch |
|---|---|
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Recording Resolution | 8 MP / 6 MP/5 MP / 4 MP /3 MP / 1080 p / UXGA / 720 p / VGA /4 CIF / DCIF/ 2CIF / CIF / QCIF |
| Synchronous playback | 8-ch |
| HDD Support | |
| Capacity | Up to 8 TB capacity for each disk |
| Power | DC 48V ,2.5 A |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Dimension | 385 × 315 ×52 mm(15.2"×12.4" × 2.0") |
| Weight | ≤ 2.6 kg (without HDD ,5.7 lb.) |
| Channels | |
| Built-in PoE Ports | 8 |
| Case |
NR320-16 16 Channel 4K 160M 1U Network Video Recorder
Login to see prices| IP Video Input | 16-ch |
|---|---|
| Incoming bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Recording resolution | 8 MP/6 MP /5 MP /4 MP /3 MP /1080 p /UXGA /720p /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Synchronous playback | 16-ch |
| HDD Support | |
| Power | DC 12V ,≤40W |
| Dimension | 385×315×52 mm(15.2"×12.4"×2.0") |
| Weight (without hard disk) | ≤1 kg(2.2 lb) |
| Channels | |
| Case |
NR33P6-16D 16CH Embedded Plug & Play AcuSense NVR
Login to see prices| IP Video Input | 16-ch |
|---|---|
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Decoding Format | H.265/H.265+/H.264+/H.264 |
| Channels | |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capability | AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30fps) |
| Remote Connection | 128 |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power | ≤ 200 W |
| HDD Support | |
| Capacity | Up to 10 TB capacity for each HDD |
| Power | 100 to 240 VAC |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Dimension (W × D × H) | 385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0") |
| Weight | ≤ 3 kg (without HDD, 6.6 lb.) |

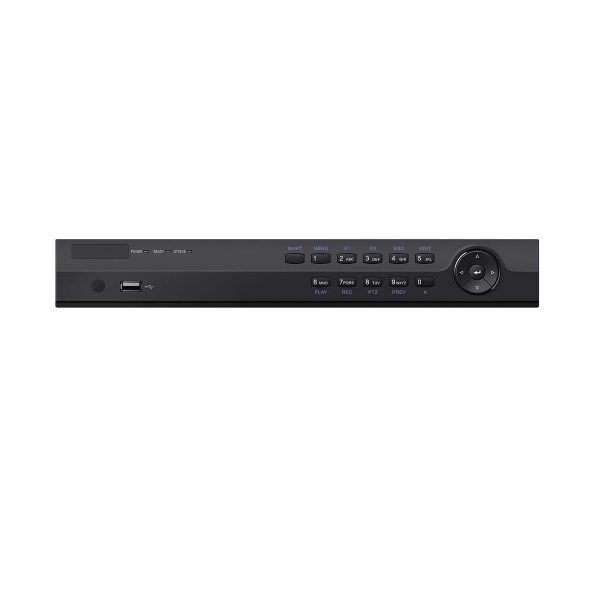

NR33P8-8/D 8-ch PoE 2HDDs 1U K Series AcuSense 4K Network Video Recorder
Login to see prices| IP Video Input | 8-ch |
|---|---|
| HDD Support | |
| Incoming Bandwidth | 80 Mbps |
| Channels | |
| Case | |
| Outgoing Bandwidth | 160 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Video Output Mode | HDMI/VGA independent output |
| Decoding Format | H.265/H.265+/H.264+/H.264 |
| Synchronous playback | 8-ch |
| Decoding Capability | AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30fps) |
| Remote Connection | 128 |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | 48 VDC, 2.5 A |
| Consumption | ≤ 15 W (without HDD, and PoE off) |
| Dimension (W × D × H) | 385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0") |
| Weight | ≤ 3 kg (without HDD, 6.6 lb.) |
NR50P6-32 32 Channel 200M 1.5U 16 PoE Network Video Recorder
Login to see prices| Channels | |
|---|---|
| Case | |
| Built-in PoE Ports | 16 |
| Video Compression | H.264 |
| IP Video Input | 32 ch IPC with Integrated 16 port 802.3af PoE Switch (160Mbps incoming Bandwidth) |
| Video Output | 1 HDMI ,1 VGA ,1 BNC |
| Network Interface | 1 ,RJ45 10M/100M/1000M adaptive Ethernet Interface |
| PoE Network Interfaces/Built-in switch | 16 independent 100 Mbps PoE network interfaces |
| Internal SATA | 4 SATA interfaces (up to 6TB each) |
| eSATA | 1 eSATA |
| USB interface | 3 ,USB2.0 |
| Chassis | 19-inch rack-mounted 2U |
| Dimensions (W × D × H) | 17.5 × 15.4 × 2.75 inch |
| Power Supply | 100 ~ 240VAC ,6.3A |
| Weight | ≤ 8.82 lbs (without hard disk) |

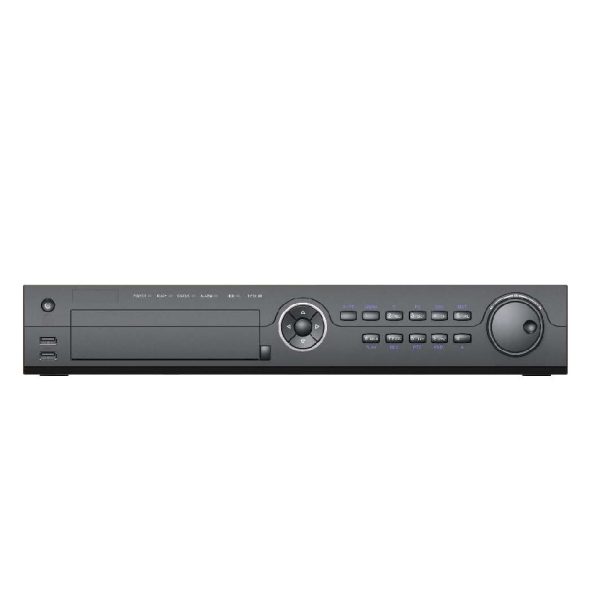

NR520-32 Embedded M Series 8K 32-Channel Network Video Recorder
Login to see prices| IP Video Input | 32-ch |
|---|---|
| Incoming Bandwidth | 320 Mbps |
| Channels | |
| Outgoing Bandwidth | 400 Mbps |
| HDD Support | |
| Decoding Capability | 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps) |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Auxiliary Interface Capacity | Up to 14 TB capacity for each disk |
| Case | |
| Power | 100 to 240 VAC |
| Consumption | ≤ 15 W (without HDD) |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
NR52P24-32 32-ch 4HDDs 1.5U 24 PoE 8K AcuSense Network Video Recorder
Login to see prices| IP Video Input | 32-ch |
|---|---|
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Synchronous Playback | 16-ch |
| HDD Support | |
| Capacity | Up to 14 TB capacity for each HDD |
| Power | 100 to 240 VAC ,50 to 60Hz |
| Consumption | ≤15 W (without HDD and PoE off) |
| Dimension(W×D×H) | 445×400×75 mm(17.5"×15.7"×3.0") |
| Incoming/Outgoing Bandwidth | 320 Mbps/400 Mbps |
| Channels | |
| Built-in PoE Ports | 24 |
| Case |
NR52P6-16 16-ch 1.5U 16 PoE 8K AcuSense NVR
Login to see prices| Incoming Bandwidth | 256Mbps |
|---|---|
| Channels | |
| Built-in PoE Ports | 16 |
| Case | |
| Outgoing Bandwidth | 256 Mbps |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080 p/ UXGA/720 p/VGA /4 CIF/DCIF/2CIF/CIF/QCIF *:After ultra HD resolution mode is enabled ,the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| IP Video Input | 16-ch |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Synchronous Playback | 16-ch |
| HDD Support | |
| Capacity | Up to 16 TB capacity for each disk |
| Power | 100 to 240 VAC ,50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Dimension | 445 × 400 ×75 mm(17.5"×15.7" × 3.0") |
| Weight | ≤ 5 kg(without HDD, 11 lb.) |

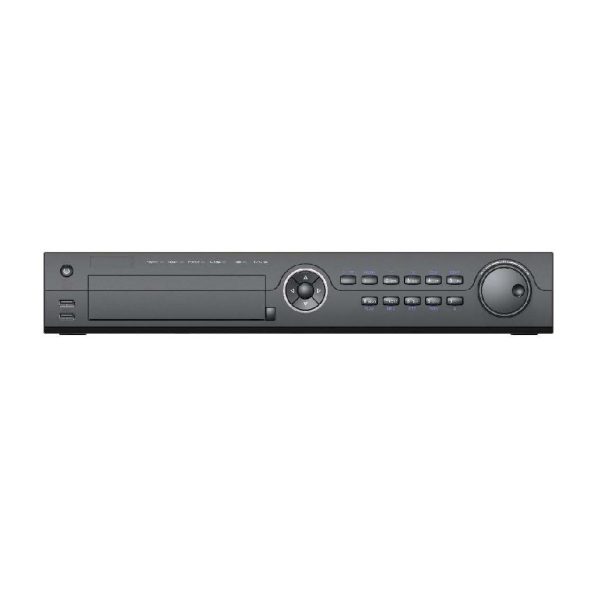

NR52P6-32 32-ch 1.5U 4 HDDs 16 PoE 8K AcuSense Network Video Recorder
Login to see prices| IP Video Input | 32-ch |
|---|---|
| Channels | |
| Case | |
| HDD Support | |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080 p/ UXGA/ 720 p/VGA / 4 CIF / DCIF/ 2 CIF/CIF/QCIF *: After ultra HD resolution mode is enabled ,the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Synchronous Playback | 16-ch |
| Capacity | Up to 16 TB capacity for each disk |
| Power | 100 to 240 VAC ,50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Dimension | 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
NRA20-32 32 Channel 320Mbps 2U, 8K Super Network Video Recorder
Login to see prices| Channels | |
|---|---|
| Case | |
| IP Video Input | 64-ch |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP / 24 MP /12 MP /8 MP /7 MP /6 MP/5 MP/4 MP /3 MP / 1080 p / UXGA / 720 p/VGA/ 4CIF/ DCIF / 2CIF / CIF / QCIF |
| Synchronous playback | 16-ch |
| HDD Support | |
| Capacity | Up to 16 TB capacity for each disk |
| Power | 100 to 240 VAC ,50 to 60Hz |
| Consumption | ≤50 W(without HDD) |
| Dimension | 445×465×93 mm(17.5"×18.3"×3.7") |
| Weight | ≤10kg(22lb) |

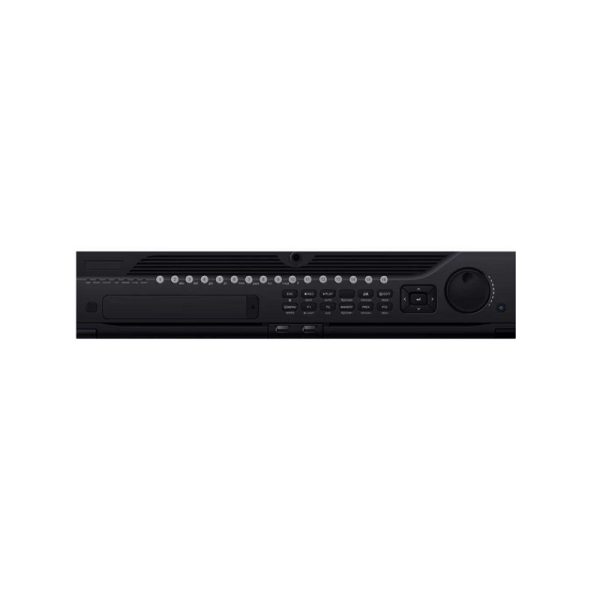

NRA20-64 64 Channel 400Mbps 3U, 8K Super Network Video Recorder
Login to see prices| IP Video Input | 64-ch |
|---|---|
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080 p/ UXGA/720 p/VGA/ 4 CIF/ DCIF/2 CIF/ CIF/ QCIF |
| Synchronous playback | 16-ch |
| HDD Support | |
| Power | 100 to 240 VAC ,50 to 60Hz |
| Consumption | ≤50 W(without HDD) |
| Dimension | 445×465×93 mm(17.5"×18.3"×3.7") |
| Weight | ≤10 kg(22 lb) |
| Channels | |
| Case |

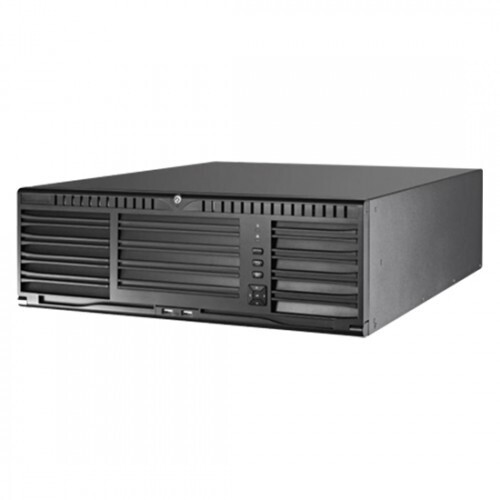

NRT00-128/I16 128 Channel Super NVR With 576Mbps incoming bandwidth
Login to see prices

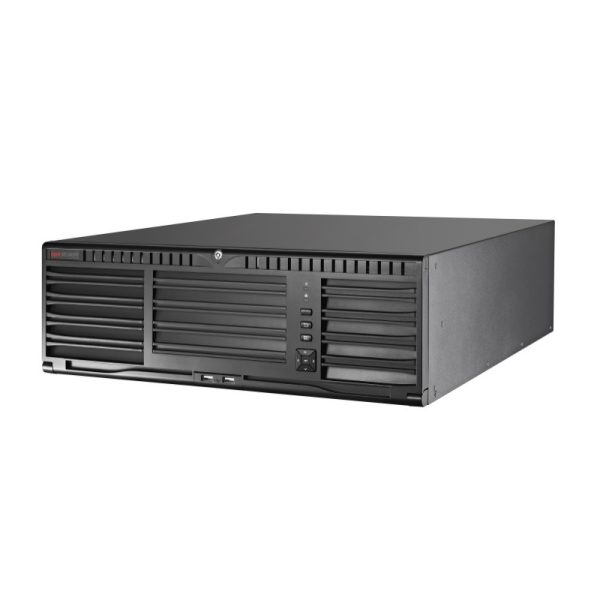

NRT00-256/I24 256 Channel 768M 24 HDD Bay Super NVR
Login to see prices| IP Video Input | 256-ch |
|---|---|
| Incoming/outgoing bandwidth | 768 Mbps/768 Mbps |
| Decoding format | H.265 ,H.265+ ,H.264 ,H.264+ ,MPEG4 ,MJPEG (for Hikvision IP camera only) |
| Video resolution | 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080 p/UXGA /720 p /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Synchronous playback | Up to 16 channels |
| Power | 100 to 240 VAC ,550W |
| Consumption (without HDD) | ≤ 140W |
| Dimension(W×D×H) | 447 × 528 × 172 mm (17.6 × 20.8 × 6.8 inch) |
| Weight (without HDD) | ≤ 23 kg (50.7 lb) |
| Channels |

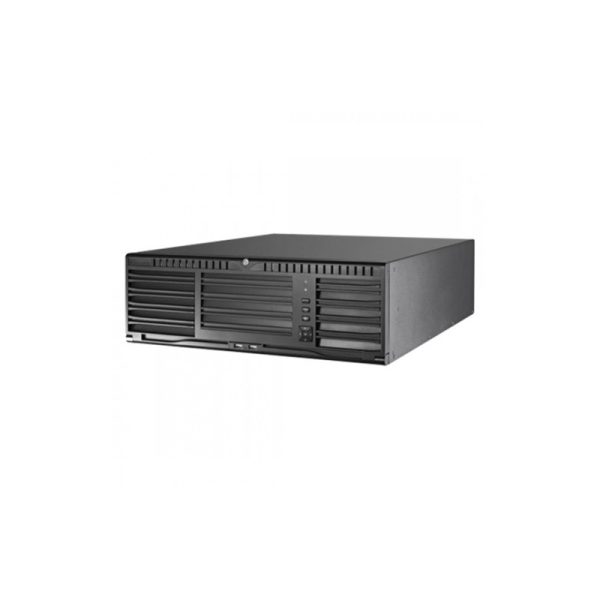

NRT10-128/I16 128 Channel H.265+ 4K 576M 16 HDD Bay Super NVR
Login to see prices| IP Video Input | 128-ch |
|---|---|
| Incoming/Outgoing Bandwidth | 768 Mbps/512 Mbps |
| Decoding format | H.265 ,H.265+ ,H.264 ,H.264+ ,MPEG4 ,MJPEG (for Hikvision IP camera only) |
| Video resolution | 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p /UXGA /720p /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Synchronous playback | Up to 16 channels |
| Power | 100 to 240 VAC ,550W |
| Consumption (without HDD) | ≤ 140W |
| Dimension | 442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch) |
| Weight (without HDD) | ≤ 16 kg (35.3 lb) |
| Channels |
