NVR302-08B-P8-IQ 2 HDDs 8-ch 8 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 8 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 ,8 x 1080P@30 Smart On：2 x 4K@30 ,4 x 4MP@30 ,8 x 1080P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100~240V |
| PoE Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 130 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 2.7Kg (6.0lb) |
| Dimensions | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR302-32B-IQ 2 HDDS 32-ch 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 ,10 x 1080P@30 ,20 x 720P@30 ,32 x D1 Smart On：2 x 4K@30 ,4 x 4MP@30 ,8 x 1080P@30 ,16 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/3 A |
| Working Temperature | -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Alarm Out | N/A |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 2Kg (4.4lb) |
| Dimensions | 380mm × 315mm × 53mm (15.0"×12.4"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

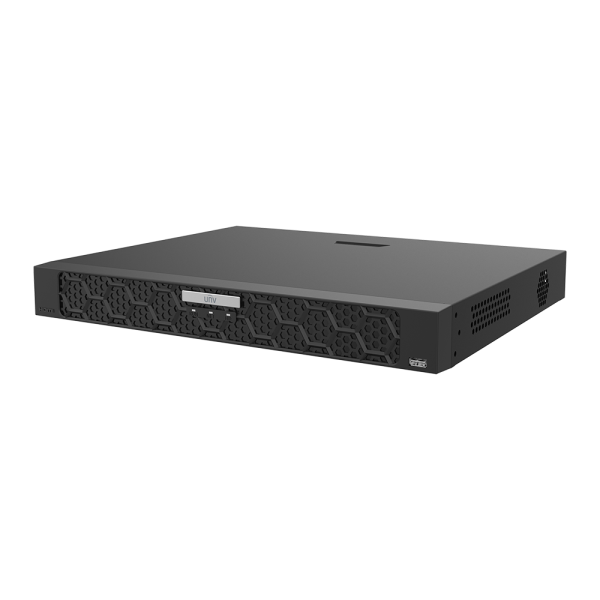

NVR502-08B-P8 2 HDDs 8-ch 8 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 8 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| PoE Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 130 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 20W |
| Weight (without HDD) | ≤ 2.6Kg (5.73lb) |
| Dimensions | 380mm × 322mm × 53mm(15.0"×12.7"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

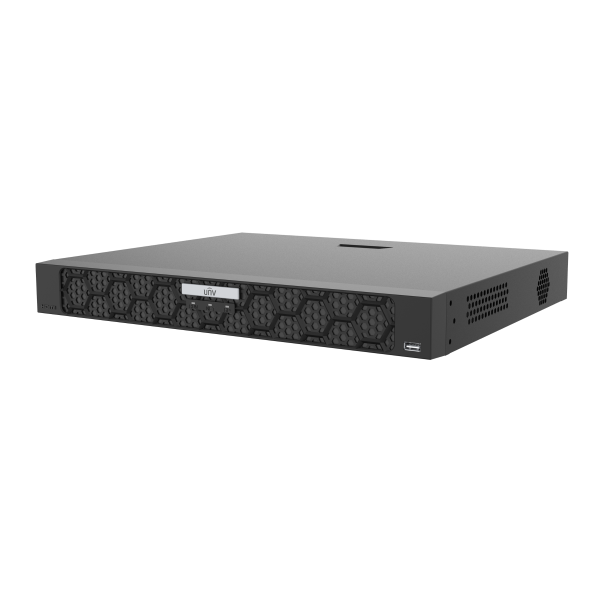

NVR502-08B-P8-IQ 2 HDDs 8-ch 8 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 8 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 ,8 x 3MP@30 ,8 x 1080P@30 Smart On：2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 ,8 x 1080P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100~240V |
| PoE Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 130 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 2.7Kg (6.0lb) |
| Dimensions | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

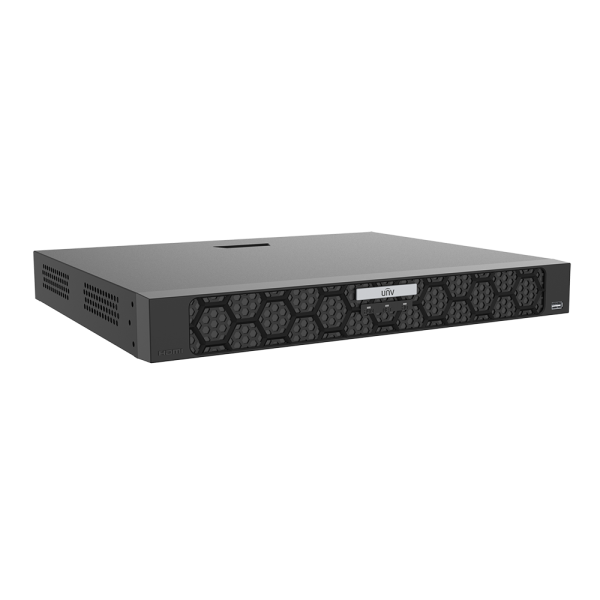

NVR502-16B 2 HDDs 16-ch 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 ,14 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front: 1 x USB2.0 ,Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/3 A |
| RS485 | 1 |
| Alarm In | 8-ch |
| Alarm Out | 2-ch |
| Power Consumption (without HDD) | ≤ 20W |
| Weight (without HDD) | ≤ 2Kg (4.40lb) |
| Dimensions | 380mm × 315mm × 53mm (15.0"×12.4"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR502-16B-IQ 2 HDDs 16-ch 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 Smart On：2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 ,12 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/3 A |
| RS485 | 1 |
| Alarm In | 8-ch |
| Alarm Out | 2-ch |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 2Kg (4.4lb) |
| Dimensions | 380mm × 315mm × 53mm (15.0"×12.4"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR502-16B-P16 2 HDDs 16-ch 16 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 ,14 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 240 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 20W |
| Weight (without HDD) | ≤ 2.6Kg (5.73lb) |
| Dimensions | 380mm × 322mm × 53mm(15.0"×12.7"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR502-16B-P16-IQ 2 HDDs 16-ch 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 Smart On：2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 ,12 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100~240V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 240 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 2.7Kg (6.0lb) |
| Dimensions | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR502-32B 2 HDDs 32-ch 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 ,32 x 960P@25 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 ,14 x 1080P@30 ,30 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front: 1 x USB2.0 ,Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/3 A |
| RS485 | 1 |
| Alarm In | 8-ch |
| Alarm Out | 2-ch |
| Power Consumption (without HDD) | ≤ 20W |
| Weight (without HDD) | ≤ 2Kg (4.40lb) |
| Dimensions | 380mm × 315mm × 53mm (15.0"×12.4"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR502-32B-IQ 2 HDDs 32-ch 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 ,32 x 720P@30 Smart On：2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 ,12 x 1080P@30 ,24 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/3 A |
| RS485 | 1 |
| Alarm In | 8-ch |
| Alarm Out | 2-ch |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 2Kg (4.4lb) |
| Dimensions | 380mm × 315mm × 53mm (15.0"×12.4"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

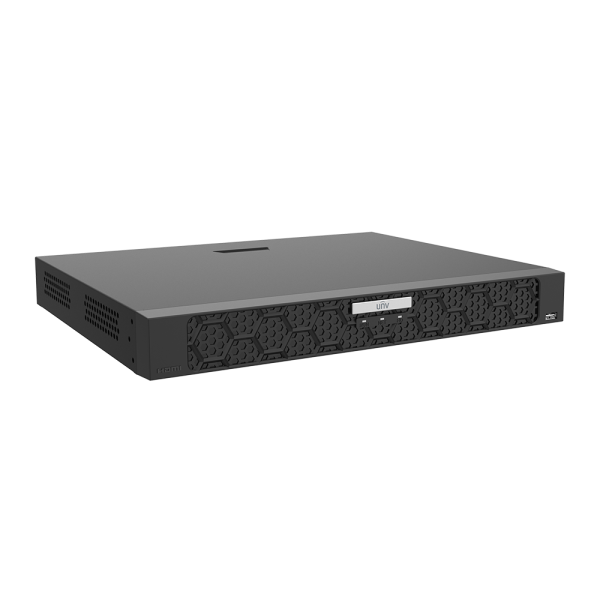

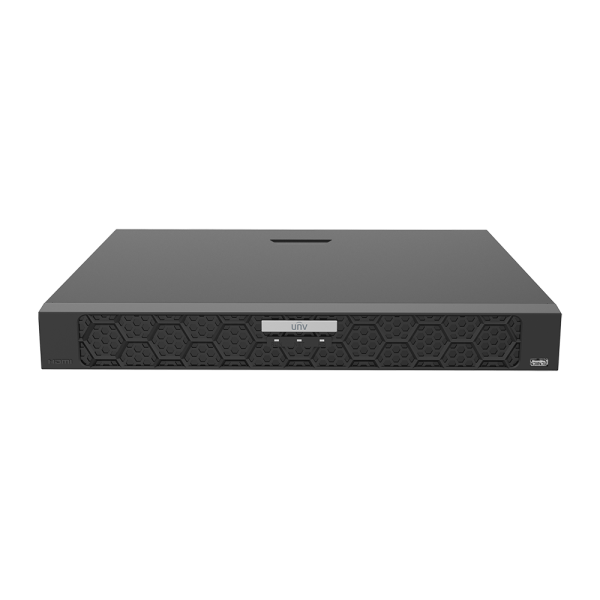

NVR502-32B-P16 32-ch 16 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 ,32 x 960P@25 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 ,14 x 1080P@30 ,30 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 240 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 20W |
| Weight (without HDD) | ≤ 2.6Kg (5.73lb) |
| Dimensions | 380mm × 322mm × 53mm(15.0"×12.7"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR502-32B-P16-IQ 32-ch 16 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 ,32 x 720P@30 Smart On：2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 ,12 x 1080P@30 ,24 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100~240V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 240 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 2.7Kg (6.0lb) |
| Dimensions | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
