C5EBC1000UL-CMR Cat5e U/UTP 4 Pair Riser Network Cable | UL, CMR, 24AWG | Bare Copper
| Shielding Type | Unshielded (U/UTP) |
|---|---|
| Category Type | |
| Jacket Rating | |
| Color | Black ,Blue ,White ,Yellow |
| Test Standard | ISO/IEC11801 、TIA-568-C.2 、YD/T1019 |
| Conductor Material | Solid-Bare copper |
| Insulation Material | HDPE |
| Sheath Thickness | 0.50±0.05 mm |
| Packing | Wooden Tray & Carton |
| Carton dimension | 35cm*35cm*20cm |
| Packing length | (305±1.5)m |
C6BC1000-OD-BK Outdoor Waterblock Cat6 550MHz 1000ft
Login to see prices| Category Type | |
|---|---|
| Shielding Type | Unshielded (U/UTP) |
| Voltage /temperature | 30V/75℃ |
| Product specifications | 1/0.52mm BC ,PE Jacket ,OUTDOOR，1-550Mhz |
| Conductor | 1/0.52mm BC |
| Insulation material | HDPE |
| Insulation OD | 0.94mm |
| Insulation color | blue、white(blue)、orange、white(orange)、green、white(green)、brown、white(brown) |
| Twisted pairs | blue&white(blue)、orange&white(orange)、green&white(green)、brown&white(brown) |
| Cable assemble | All of the wires stranded together，filler Cross skeleton，Mylar tape wrapping |
| Jacket material | PE，filler polypropylene ripcord |
| Jacket OD. | 5.9±0.2mm |
| Test Voltage | 1.5KV DC |
| Conductor resistance | 93.8Ω/km Max. |
| Electrical characteristics | ANSI/TIA568C.2 CAT6 Channel Spec. |
| Characteristic Impedance | 100±15Ω |
| Transmission frequency | 1-550Mhz |
| Operating voltage | 30V |
| No hazardous substance | RoHS Compliant Directive 2011/65/EU |
C6BC1000UL-CMP Cat6 U/UTP 4Pair PLENUM Network Cable | UL, CMP, 23AWG | Bare Copper
| Category Type | |
|---|---|
| Shielding Type | Unshielded (U/UTP) |
| Jacket Rating | |
| Test Standard | ISO/IEC11801 ,TIA-568-C.2 ,YD/T1019 |
| Conductor Material | Solid-Bare Copper |
| Insulation Material | FEP |
| Sheath Thickness | 0.4±0.05 mm |
| Packing | Wooden Tray & Carton |
| Carton dimension | 40.5*40.5*21 cm OR customized |
| Packing length | 305±1.5m |
| Color | Black ,White |
C6BC1000UL-CMR 1000 ft U/UTP 4 PAIRS CABLE-CATEGORY 6-250MHZ PVC SHEATH
| Color | Black ,Blue ,White ,Yellow |
|---|---|
| Shielding Type | Unshielded (U/UTP) |
| Category Type | |
| Jacket Rating | |
| Test Standard | ISO/EC11801、TIA-568-C.2、YD/T1019 |
| Conductor Material | Solid-Bare Copper |
| Conductor Nom.0.D.(mm) | 0.570 uP +0.005 ,down -0.005 |
| Insulation Material | HDPE |
| Insulation Diameter | 1.02±0.03mm |
| Cross | 4.5*0.45 mm |
| Sheath Thickness | 0.55+0.05 mm |
| Sheath Surface | Clean,Frap,Satiation |
| Sheath Material | PVC |
| Packing | Wooden Tray & Carton |
| Carton dimension | 40.5*40.5*21cm |
| Packing length | 305±1.5m |
CAT5E-CCU-1000 1000ft CAT5E CCU UTP Cable
CAT5E-CCU-1000-WN 1000FT CCU UTP CABLE
Login to see prices
CAT6-CCU-1000 1000ft UL Listed 550MHz Full Copper Cat6 Cable
CAT6-PLENUM-CMP-600MHZ UTP PLENUM NETWORK CABLE
CAT6-RISER-CMR-600MHZ 1000ft CAT6 CCU UTP Cable

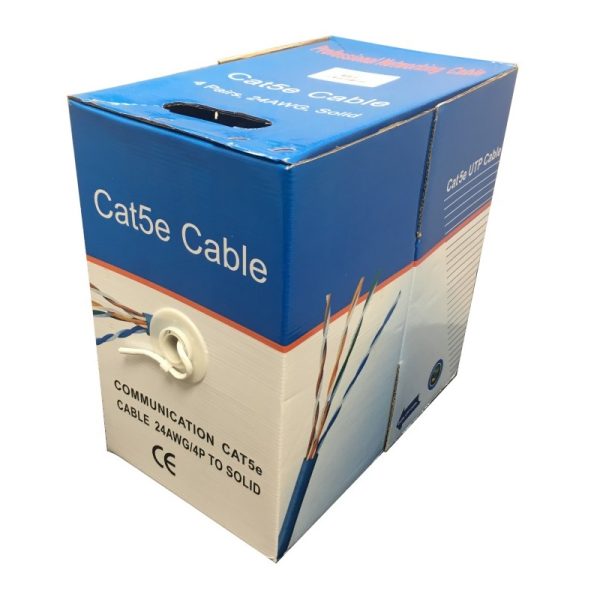

W-CAT5E/CCA 1000ft CAT5E CCA UTP Cable

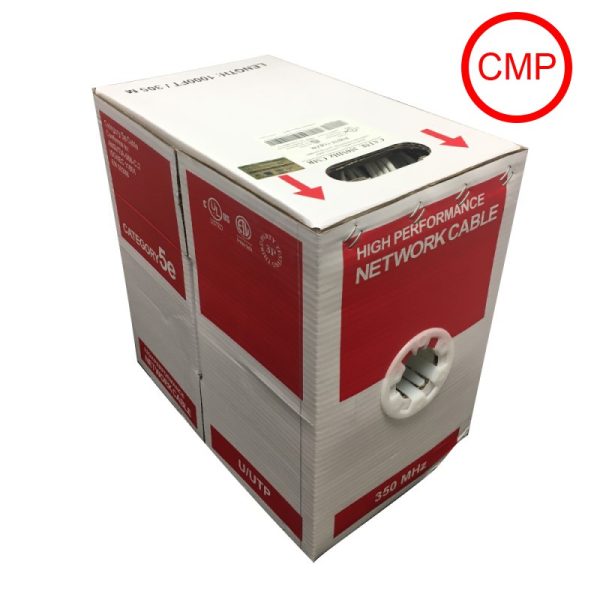

W-CAT5E/CMP/W(B) UL W-CAT5E UTP PLENUM NETWORK CABLE
