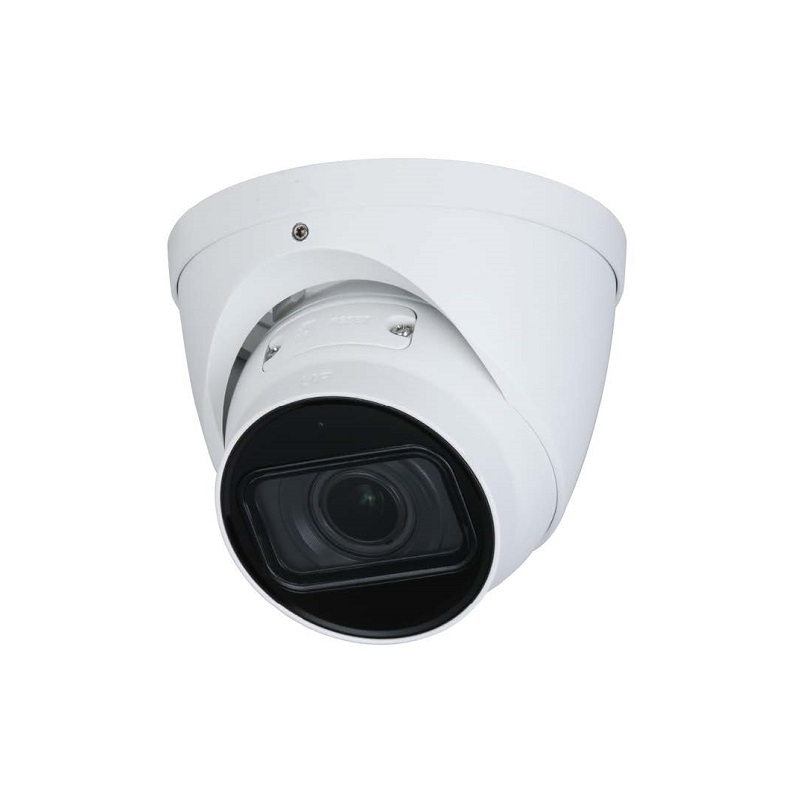

IPC-EB244T-IR-ZS 4MP WDR IR Motorized Eyeball Network Camera

SKU: IPC-EB244T-IR-ZS

4MP WDR IR Motorized Eyeball Network Camera

15 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

4MP, 1/3” CMOS image sensor,low illuminance, high image definition
Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520)@20 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 40 m
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
Supports max. 256 GB Micro SD card
12V DC/PoE power support
IP67 protection

Product Manual

No related firmware found.

Additional information

Image Sensor	1/3" Progressive Scan CMOS
Camera Resolutions	4 MP
Effective Pixels	2688(H)×1520(V)
Camera Style	Eyeball
ROM/RAM	128 MB/128 MB
Scanning System	Progressive
Shutter Speed	1/3 s to 1/100 , 000 s , Auto/Manual
Minimum Illumination	0.008 Lux@F1.5
IR Distance	40 m
Pan/Tilt/Rotation Range	Pan 0°–360° ; Tilt: 0°–78°; Rotation: 0°–360°
Video Bit Rate	H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
WDR	120 dB
Digital Noise Reduction	3D DNR
Image Rotation	0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
Lens Type	Motorized Lens
Lens Mount	Φ14
Focal Length	2.7 mm–13.5 mm
Field of View	Pan: 104°–27°; Tilt: 55°–15°; Diagonal: 124°–31°
Max. Aperture	F1.5
Video Compression	H.265; H.264; H.264B; MJPEG
Power	12V DC/PoE (802.3af)
Power Consumption	< 6.4 W
Protection	IP67
Casing	Metal
Dimensions	108.3 mm × Φ122 mm (4.26" × Φ1.80")
