iXVR531H-8 8 Channel Penta-brid 1080P Mini 1U Digital Video Recorder
Login to see prices| Main Processor | Embedded Processor |
|---|---|
| Operating System | Embedded LINUX |
| Analog Camera Input | 8 Channel ,BNC |
| HDCVI Camera | 5MP ,4MP ,1080P@25/30fps ,720P@50/60fps ,720P@25/30fps |
| AHD Camera | 5MP ,4MP ,1080P@25/30 ,720P@25/30fps |
| IP Camera Input | 8+4 channels, each channel up to 6MP |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Channels | |
| Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Display Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Playback | 1/4/9It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode. |
| Storage Internal HDD | 1 SATA Port, up to 10TB capacity |
| USB/RS485 | USB: 2 USB Ports (USB 2.0) RS485: 1 Port, for PTZ Control |
| Case | |
| Power | DC12V |
| Power Consumption (Without HDD) | <7W |
| Dimensions | Mini 1U, 325 mm × 257 mm × 55 mm (12.80" × 10.10" × 2.17") |
| Net Weight (without HDD) | 1.2 kg (2.7 lb) |
| Gross Weight | 1.9 kg (4.2 lb) |
| Installation | Desktop installation |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
iXVR534L-32 32 Channel Penta-brid 5M-N/1080P 1.5U WizSense Digital Video Recorder
Login to see prices| Channels | |
|---|---|
| Main Processor | Embedded Processor |
| Performance | 2 channels ,max 12 face pictures/sec processing 2 channels video stream face recognition ,only support analog camera |
| Database Application | Each database can be applied to video channels independently |
| Analog Camera Input | 32 channels ,BNC |
| HDCVI Camera Input | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| IP Camera Input | 32 channels, each channel up to 8MP |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Record Rate | Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N /720P /960H / D1 /CIF (1fps–25/30fps) Sub stream: D1/CIF (1fps–15fps) |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Resolution | HDMI 1:3840×2160 ,1920×1080 ,1280×1024 ,1280×720 HDMI2/VGA: 1920×1080 ,1280×1024 ,1280×720 |
| Playback | 1/4/9/16 |
| Internal HDD | 4 SATA Ports, up to 10TB capacity for each disk |
| eSATA | 1 Port |
| USB/RS485/ RS232 | USB: 3 USB Ports (1 USB 2.0 , 2 USB 3.0) RS485: 1 Port, for PTZ Control RS232: 1 Port, for PC Communication & Keyboard |
| HDD Support | |
| Power | 100 to 240 VAC |
| Power Consumption (Without HDD) | <22W |
| Case | |
| Dimensions | 1.5U, 440 mm × 421 mm × 76 mm (17.32" × 16.54" × 2.99") |
| Net Weight (without HDD) | 4.8 kg (10.7 lb) |
| Gross Weight | 7.1 kg (15.6 lb) |
| Installation | Desktop/racket mounted |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
iXVR541H-16-4KL 16 Channels Penta-brid 4K-N/5MP Mini 1U 1HDD WizSense Digital Video Recorder
Login to see prices

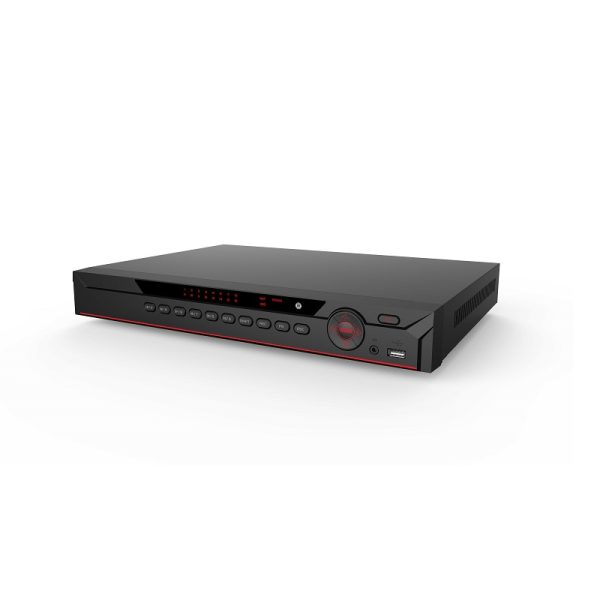

iXVR542AN-16-4KL 16 Channels Penta-brid 4K-N/5MP 1U 2HDDs WizSense Digital Video Recorder
Login to see prices
iXVR542AN-32 32 Channels Penta-brid 5M-N/1080P 1U 2HDDs WizSense Digital Video Recorder
Login to see prices

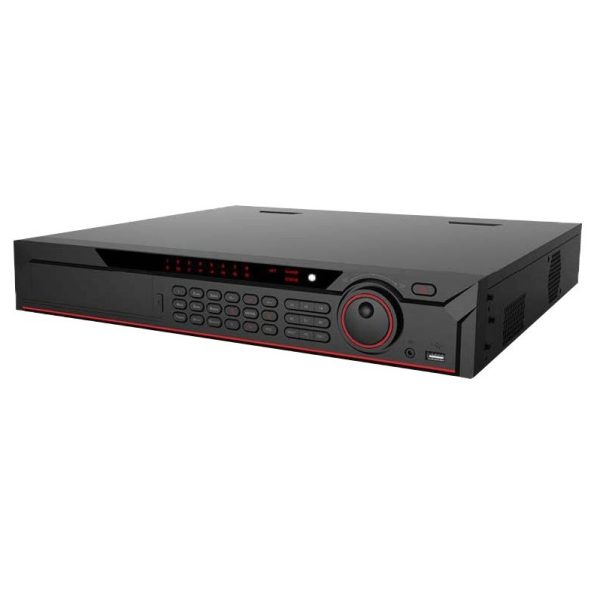

iXVR544L-32-4KL 32CH Penta-brid 4K Value/5MP 1.5U 4HDDs WizSense Digital Video
Login to see prices| Main Processor | Industrial-grade processor |
|---|---|
| Analog Camera Input | 32 BNC ports ,supports HDCVI/AHD/TVI/CVBS auto detect |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Bit Rate | 64 kbps |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Samsung |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Intelligent Alarm | Face detection; face recognition; perimeter protection |
| Audio Input | 4-channel BNC 32-channel BNC (Coaxial Audio) |
| eSATA | 1 |
| RS-232 | 1 port, for PC Communication & Keyboard |
| RS-485 | 1 port, for PTZ control |
| USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| Channels | |
| Case | |
| Power | 100-240 VAC ,50/60 Hz |
| Power Consumption | <30 W (without HDD) |
| Gross Weight | 7.20 kg (15.88 lb) |
| Net Weight | 4.90 kg (10.81 lb) |
| Product Dimensions | 440.0 mm × 420.2 mm × 76.0 mm (17.32" × 16.54" × 2.99") (W × D × H) |
| Packaging Dimensions | 529.0 mm × 499.0 mm × 211.0 mm (20.83" × 19.65" × 8.31") |

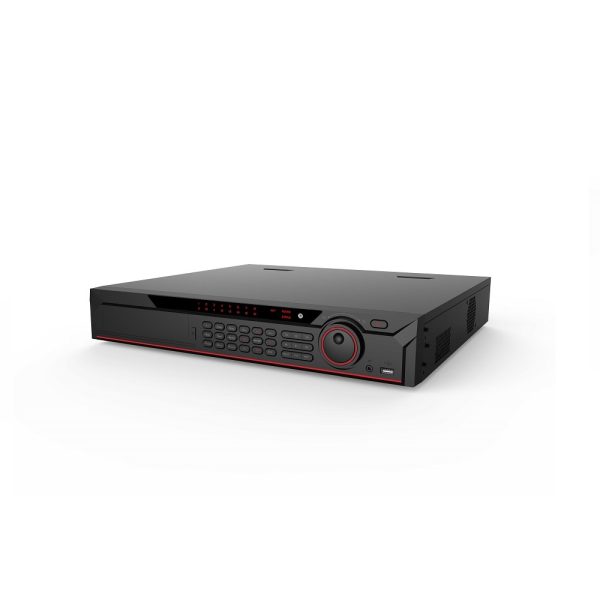

iXVR548S-32-4KL 32 Channels Penta-brid 4K-N/5MP 2U 8HDDs WizSense Digital Video
Login to see prices| Channels | |
|---|---|
| Main Processor | Industrial-grade processor |
| HDD Support | |
| Case | |
| Operating System | Embedded Linux |
| SMD Plus by Recorder | 32 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| Analog Camera Input | 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto- detect |
| Video Bit Rate | 32 kbps–6144 kbps |
| Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| HDD Interface | 8 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature |
| Power | 100 to 240 VAC |
| Power Consumption | <30 W (without HDD) |
| Weight | Net Weight: 7.00 kg (15.44 lb) Gross Weight: 9.60 kg (21.17 lb) |
| Product Dimensions | 439.9 mm × 463.0 mm × 94.9 mm (17.32" × 18.23" ×3.73") (W × D × H) |
| Packaging Dimensions | 570.0 mm × 570.0 mm × 226.0 mm (22.45" × 22.45" ×8.90") |

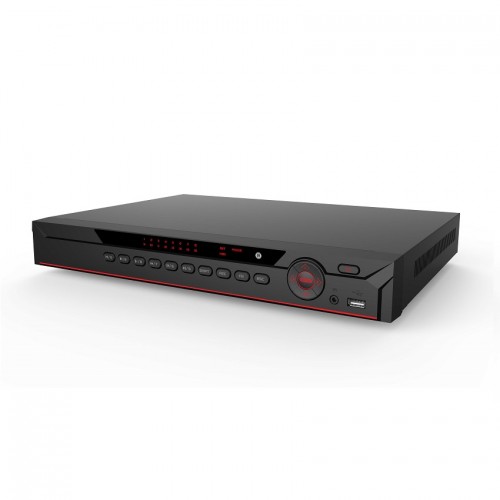

iXVR722A-8-4KL 8 Channel Penta-brid 4K 1U Digital Video Recorder Series
Login to see prices| Main Processor | Embedded Processor |
|---|---|
| Operating System | Embedded LINUX |
| Analog Camera Input | 8 Channel ,BNC |
| HDCVI Camera | 4K ,6MP ,4MP ,1080P@25/30fps ,720P@50/60fps ,720P@25/30fps |
| AHD Camera | 5MP ,4MP ,3MP ,1080P@25/30 ,720P@25/30fps |
| IP Camera Input | 8+8 Channel, each channel up to 8MP |
| Compression | H.265+/H.265/H.264+/H.264 |
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Audio Bit Rate | 64Kbps Per Channel |
| Resolution | HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Playback | 8CH: 1/4/9 |
| Internal HDD | 2 SATA Ports, up to 10TB capacity for each disk |
| USB/ RS232/ RS485 | USB: 2 USB Ports (1 USB 2.0 , 1 USB 3.0) RS232: N/A RS485: 1 Port, for PTZ Control |
| Channels | |
| HDD Support | |
| Case | |
| Power | DC12V |
| Power Consumption | 8CH: <10W (Without HDD) |
| Dimensions | 1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1") |
| Net Weight | 1.8kg (3.70 lb) (without HDD) |
| Gross Weight | 3.2kg (7.05lb) |
| Installation | Desktop installation |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
