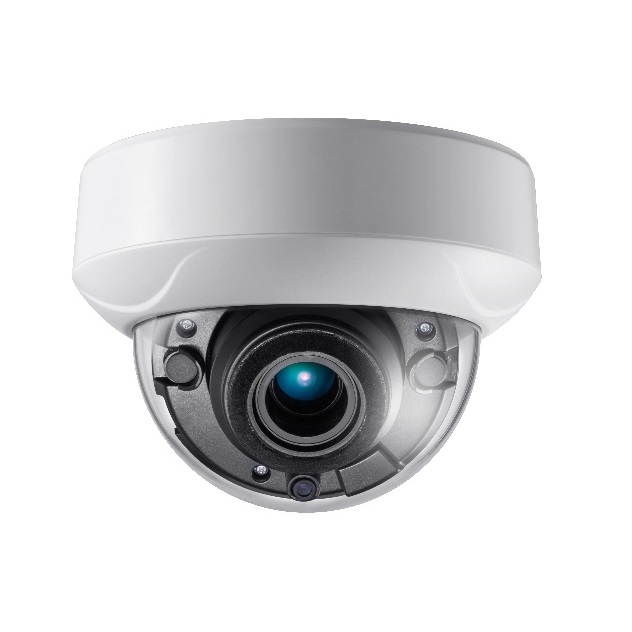

AC318D-OD4Z 8 MP Motorized Dome Camera
Click to enlarge

AC318D-OD4Z 8 MP Motorized Dome Camera

SKU: AC318D-OD4Z

8 MP Motorized Dome Camera

Add to wishlist
Add to compare
18 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 8.29 MP high performance CMOS
  • Auto focus
  • 3840 × 2160 resolution
  • 2.7 mm to 13.5 mm motorized vari‐focal lens
  • EXIR 2.0, smart IR, up to 60 m IR distance
  • OSD menu, DNR,
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67
  • Up the coax (UTC‐C)

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Image Sensor

8.29 Megapixel Progressive Scan CMOS

Camera Style

Lens Type

Resolution

3840(H)×2160(V)

Minimum Illumination

Color: 0.01 Lux@ (F1.2

,

AGC ON)

,

0 Lux with IR on

Shutter Speed

PAL: 1/12.5 s to 1/50

,

000 s NTSC: 1/15 s to 1/50

,

000 s

Lens Size

Horizontal Field of View

108.1° to 45.6°

Lens Mount

Φ14

Day & Night

IR cut filter

Angle Adjustment

Pan: 0°to 355°; Tilt:0° to 75°; Rotate: 0° to 355°

Synchronization

Internal synchronization

Video Output

1 HD analog output

Power

9 VDC to 15 VDC‐A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC

Power Consumption

Max.6.4 W‐A: Max.8.2 W

Protection

IP67

Material

Metal

IR Range

Up to 60 m

Dimensions

145.2 mm×124.1 mm(7.1"×4.9")

Weight

Approx.640 g(1.41 lb.)
