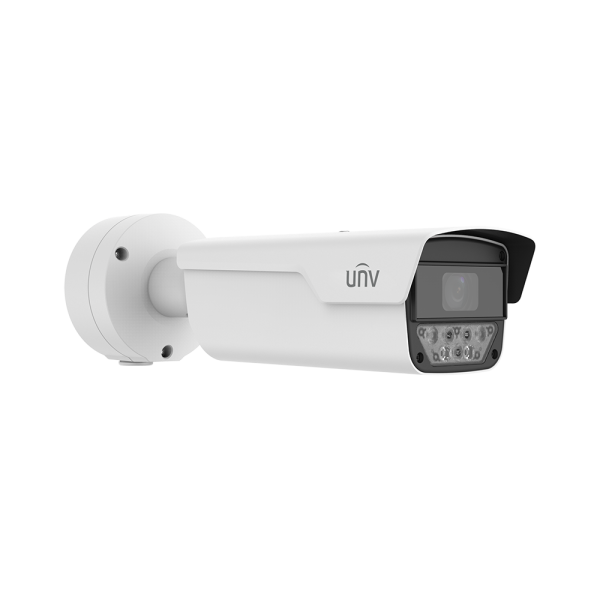

PKC2640@Z28-P 4MP Overseas Recognition Of Vehicle License Plate Bullet IP Camera
Login to see prices| Sensor | 1/1.8-inch 4MP CMOS |
|---|---|
| Camera Resolutions | |
| Lens Size | |
| Camera Style | |
| IR Range | Up to 50 m |
| Minimum illumination | 0.001lux (F1.4) |
| Image collection format | 2688*1520@30 (default) ,2688*1520@25 |
| Frame rate | 30 (default) ,25 ,22 ,20 ,18 ,16 ,15 ,12.5 ,10 ,8 ,6 ,5 ,4 ,3 ,2 ,1 |
| Shutter | Auto/Manual ,range: 1/30 to 1/100000s |
| ROI | Supports up to 8 regions |
| BNC | PAL ,NTSC |
| Video OSD | Supports 8 overlay areas and allows contents including date ,time ,date&time ,zoom ratio ,custom contents |
| Application scenario | ≤ 30km/h for entrances and exits ,≤ 80km/h for regular roads; Supports simultaneous application to road and entry/exit scenes without switching |
| Video Compression | H.264 (default) ,H.265 |
| Illumination | Built-in integrated illumination module ,including 4 warm light LEDs ,50m illumination distance ,automatic on/off control |
| Compatible Integration | ONVIF (Profile S ,Profile G ,Profile T) ,SDK ,API |
| Edge Storage | Supports ANR with a Micro SD card ,up to 256GB |
| Weight | 2.1kg |
| Power supply | DC12V + 25% – 10% Max. power consumption: 20W Supports PoE (802.3at ,class 4) |
| Dimensions (L×W×H) | 406mm x 126mm x 130mm |
| Operating environment | -40℃ to 60℃ ,≤90% RH |
| Heater | N/A |
| EMC | CE-EMC (EN 55032:2015+A11:2020+A1:2020 ,EN 61000-3-3:2013+A1:2019+A2:2021 ,EN IEC 61000-3-2:2019+A1:2021 ,EN 50130-4:2011+A1:2014) FCC(FCC CFR 47 part15 B ,ANSI C63.4 2014) |
| Safety | EN IEC 62368-1:2020+A11:2020 UL (UL 62368-1 ,2nd Ed. ,Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863);WEEE (2012/19/EU) |
| Protection | IK10 ,IP67 |

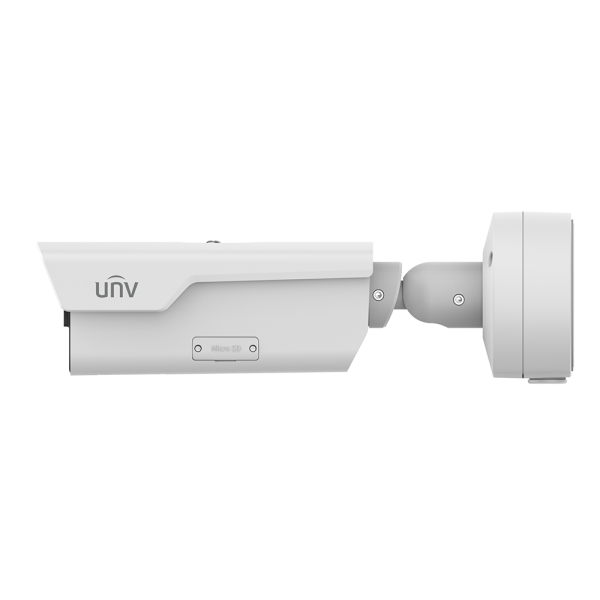

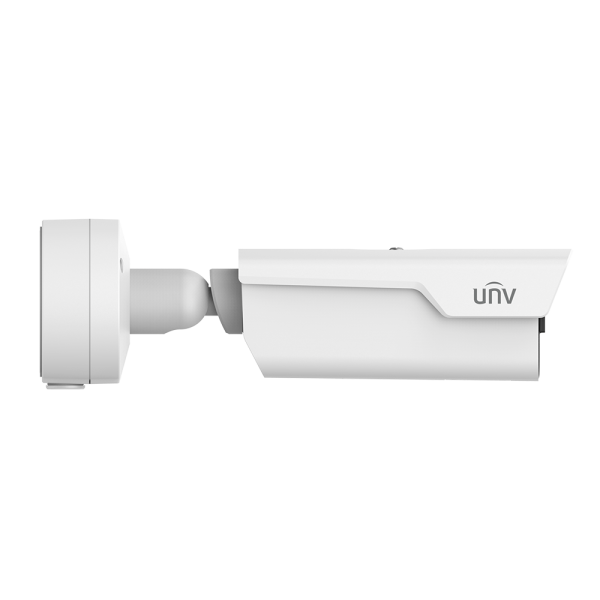

PKC2640@Z80-IR-P 4MP Overseas Recognition Of Vehicle License Plate Bullet IP Camera
Login to see prices| Sensor | 1/1.8" CMOS |
|---|---|
| Camera Resolutions | |
| Lens Size | 8 ~ 32mm |
| Camera Style | |
| IR Range | Up to 50 m |
| FOV | Horizontal FOV: 42.4° to 15.9° ,Vertical FOV: 23.9° to 9.8° ,Diagonal FOV: 52.5° to 17.8° |
| Min. Illumination | 0.002lux (F1.7) |
| Image collection format | 2688*1520@30 (default) ,2688*1520@25 |
| Shutter | Auto/Manual ,range: 1/30 to 1/100000s |
| Frame rate | 30 (default) ,25 ,22 ,20 ,18 ,16 ,15 ,12.5 ,10 ,8 ,6 ,5 ,4 ,3 ,2 ,1 |
| Video compression | H.264 (default) ,H.265 |
| ROI | Supports up to 8 regions |
| Video OSD | Supports 8 overlay areas and allows contents including date ,time ,date&time ,zoom ratio ,custom contents |
| Application scenario | ≤ 80km/h for regular roads; Camera with the focal length of 8 to 32mm can be used for regular roads |
| Vehicle detection mode | Supports video detection |
| License plate number recognition | Supports recognition of license plates with numbers and letters by default |
| Edge Storage | Supports ANR with a Micro SD card ,up to 256GB |
| Bracket | 3-axis mounting bracket |
| Compatible Integration | ONVIF (Profile S ,Profile G ,Profile T) ,SDK ,API |
| Interface Network | 1×10M/100M RJ45 |
| Storage interface | 1 × Micro SD card slot |
| Power supply | DC12V + 25% – 10% Max. power consumption: 20W Supports PoE (802.3at ,class 4) |
| Dimensions (L×W×H) | 406mm x 126mm x 130mm |
| Weight | 2.1kg |
| Operating environment | -40℃ to 60℃ ,≤90% RH |
| Heater | N/A |
| Protection | IK10 ,IP67 |
PKC2640@Z80-P 4MP Overseas Recognition Of Vehicle License Plate Bullet IP Camera
Login to see prices| Sensor | 1/1.8" CMOS |
|---|---|
| Camera Resolutions | |
| Lens Size | 8 ~ 32mm |
| Camera Style | |
| IR Range | Up to 50 m |
| FOV | Horizontal FOV: 42.4° to 15.9° ,Vertical FOV: 23.9° to 9.8° ,Diagonal FOV: 52.5° to 17.8° |
| Min. Illumination | 0.002lux (F1.7) |
| Image collection format | 2688*1520@30 (default) ,2688*1520@25 |
| Shutter | Auto/Manual ,range: 1/30 to 1/100000s |
| Frame rate | 30 (default) ,25 ,22 ,20 ,18 ,16 ,15 ,12.5 ,10 ,8 ,6 ,5 ,4 ,3 ,2 ,1 |
| Video compression | H.264 (default) ,H.265 |
| ROI | Supports up to 8 regions |
| Video OSD | Supports 8 overlay areas and allows contents including date ,time ,date&time ,zoom ratio ,custom contents |
| Application scenario | ≤ 80km/h for regular roads; Camera with the focal length of 8 to 32mm can be used for regular roads |
| Vehicle detection mode | Supports video detection |
| License plate number recognition | Supports recognition of license plates with numbers and letters by default |
| Edge Storage | Supports ANR with a Micro SD card ,up to 256GB |
| Bracket | 3-axis mounting bracket |
| Compatible Integration | ONVIF (Profile S ,Profile G ,Profile T) ,SDK ,API |
| Interface Network | 1×10M/100M RJ45 |
| Storage interface | 1 × Micro SD card slot |
| Power supply | DC12V + 25% – 10% Max. power consumption: 20W Supports PoE (802.3at ,class 4) |
| Dimensions (L×W×H) | 406mm x 126mm x 130mm |
| Weight | 2.1kg |
| Operating environment | -40℃ to 60℃ ,≤90% RH |
| Heater | N/A |
| Protection | IK10 ,IP67 |
