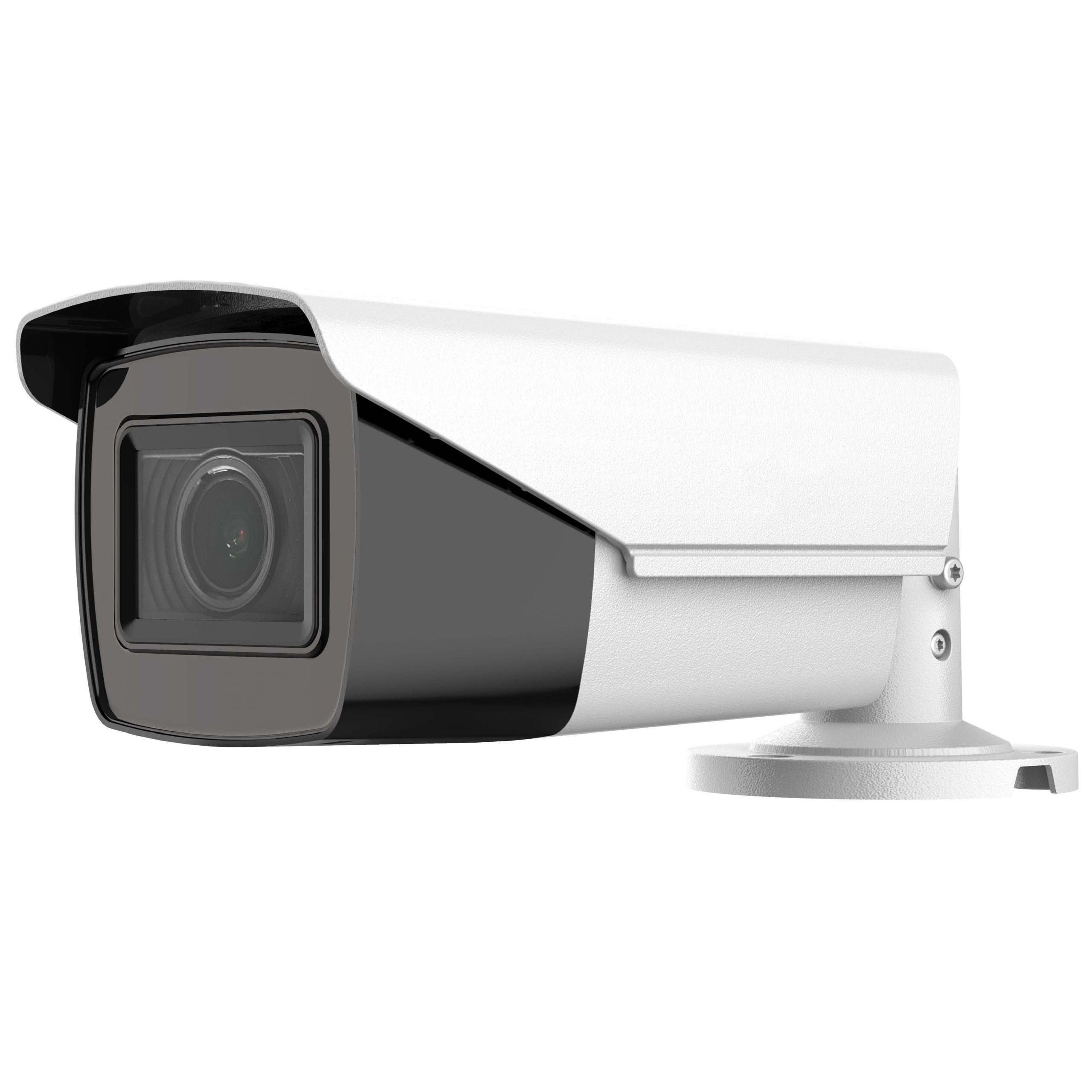

AC336D-VB4Z 5MP MOTORIZED VARIFOCAL BULLET CAMERA
Click to enlarge

AC336D-VB4Z 5MP MOTORIZED VARIFOCAL BULLET CAMERA

SKU: AC336D-VB4Z

5MP MOTORIZED VARIFOCAL BULLET CAMERA

Add to wishlist
Add to compare
18 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • High quality imaging with 5 MP, 2560 × 1944 resolution
  • 2.7 mm to 13.5 mm motorized varifocal lens
  • Up to 40 m IR distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP67)

Download

Product Manual

No related firmware found.
Additional information
Max. Resolution

2592 × 1944

Lens Mount

Φ14

Lens Size

WDR

DWDR

Camera Style

Lens Type

Digital Noise Reduction

2D DNR

IR Range

Up to 40 m

Signal System

PAL/NTSC

Minimum Illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Camera Resolutions

Shutter Speed

PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Consumption

Max 8.8 W

Material

Front cover: Metal, Main body: Plastic

Dimension

84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10.04")

Weight

Approx. 682 g (1.50 lb.)

Power

12VDC±15%

,

24VAC±15%

Protection

IP67
