AY-G6270B O26 MIFARE AND MIFARE PLUS/DESFIRE EV1 READER
Login to see prices SKU: AY-G6270B
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26,32,34,40,56,64,128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use • IP68 water and dust resistant • AY-G6270 and AY-H6270 pigtail models • IP65 water and dust resistant • AY-G6270 and AY-H6270 terminal block models • AY-G6370 and AY-H6370 |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.) |
| Weight | 155 g (5.5 oz) |
AY-G6270B+P00 O2S MIFARE AND MIFARE PLUS EV1 PROX READER
Login to see prices SKU: AY-G6270B+P00
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.) |
| Weight | 155 g (5.5 oz) |
AY-G6270B+TR0 O2S MIFARE AND MIFARE PLUS EV1 PROX READER
Login to see prices SKU: AY-G6270B+TR0
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by:85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26,32,34,40,56,64,128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m(500ft) with18-AWG cable OSDP(RS-485):1200m(4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use • IP68 water and dust resistant • AY-G6270 and AY-H6270 pigtail models • IP65 water and dust resistant • AY-G6270 and AY-H6270 terminal block models • AY-G6370 and AY-H6370 |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.) |
| Weight | 155 g (5.5 oz) |
AY-G6280B+P00 MIFARE DESFIRE EV1 SMART CARD READER PROX ONLY
Login to see prices SKU: AY-G6280B+P00
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 30 mm (1.5 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
AY-G6280B+TRO MIFARE DESFIRE EV1 SMARTCARD READER PROX ONLY
Login to see prices SKU: AY-G6280B+TRO
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 30 mm (1.5 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
AY-G6370B+P00 O2S MIFARE PLUS X/S SMART CARD READER WITH KEYPAD
Login to see prices SKU: AY-G6370B+P00
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Vandal Resistance | IK08 |
| Dimensions of Pigtail Models (H x W x D) | 120.0 x 80.0 x 23.0 mm (4.7 x 3.2 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.) |
| Weight | 217 g (7.7 oz) |
AY-G6370B+TR0 O2S MIFARE PLUS X/S SMART CARD READER WITH KEYPAD
Login to see prices SKU: AY-G6370B+TR0
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.) |
| Weight | 155 g (5.5 oz) |
AY-G6380B+P00 O2S MIFARE DESFIRE EV1 SMART CARD READER PIGTAIL
Login to see prices SKU: AY-G6380B+P00
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 30 mm (1.5 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
AY-G6380B+TR0 AY-G SERIES OPEN TO SECURE- TERMINAL BLOCK
Login to see prices SKU: AY-G6380B+TR0
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 30 mm (1.5 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
AY-H6270B+P00 AY H SERIES OPEN TO SECURE
Login to see prices SKU: AY-H6270B+P00
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic ELED ControlV1 MIFARE Plus | 40 to 45mTwo Inputs: Green LED CTL and RED LED CTL–TTLm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 120.0 x 80.0 x 23.0 mm (4.7 x 3.2 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.) |
| Weight | 217 g (7.7 oz) |
AY-H6270B+TR0 O2S GANGBOX PROX READER
Login to see prices SKU: AY-H6270B+TR0
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 120.0 x 80.0 x 23.0 mm (4.7 x 3.2 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.) |
| Weight | 217 g (7.7 oz) |
AY-H6280B+P00 02S MIFARE DESFIRE EV1 SMARTCARD READER
Login to see prices SKU: AY-H6280B+P00
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 25 mm (1 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
AY-H6280B+TRO 02S-MIFARE DESFIRE EV1 SMAR EACH CARD READER
Login to see prices SKU: AY-H6280B+TRO
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 25 mm (1 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |

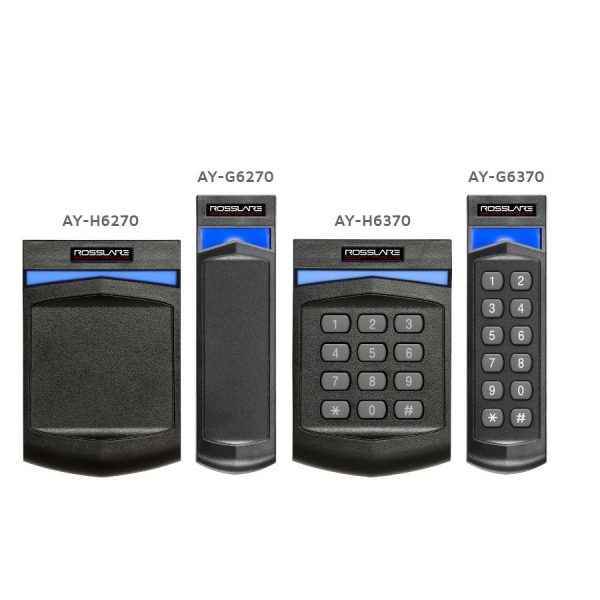

AY-H6370B+P00 O2S MIFARE PLUS X/S SMARTCARD READER AND 3X4 MATRIX KEYPAD W/18″ PIGTAIL
Login to see prices SKU: AY-H6370B+P00
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.) |
| Weight | 155 g (5.5 oz) |
AY-H6380B+P00 O2S – MIFARE® DESFire EV1 Smart Card Reader & 3×4 Matrix Keypad with 18″ (46-cm) Pigtail
Login to see prices SKU: AY-H6380B+P00
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 25 mm (1 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |

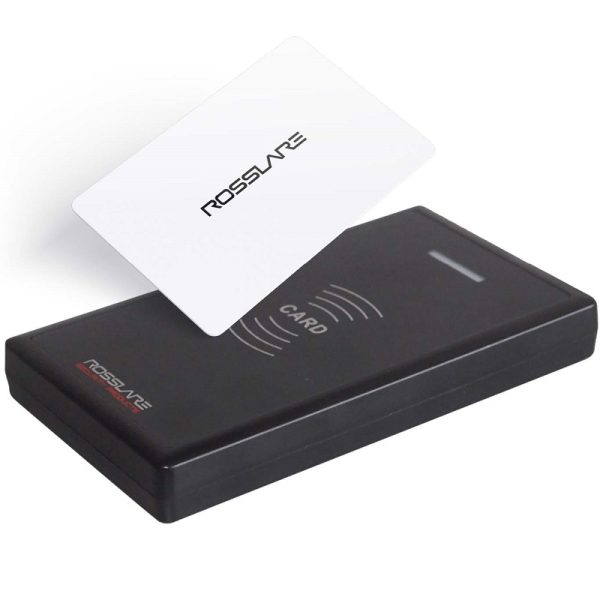

DR-6280 MIFARE ENROLLMENT READER
Login to see prices SKU: DR-6280
| Operating Voltage | 5VDC (USB powered) |
|---|---|
| Operation Current | Standby:87mA, Max:135mA |
| Supported Transponders | MIFARE Classic EV1 MIFARE DESFire EV1 |
| Read Card Distance | Up to 50mm (2.0 in.) |
| RF Modulation | ASK |
| Operation Frequency | 13.56 MHz |
| Output Format | O2S-Preprogrammed key Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bitand customized* |
| OS Support | Windows 7 32-bit and 64-bit Windows 10 32-bit and 64-bit |
| Operating Environment | Indoor use |
| Operating Temperature Range | 0°C to 63°C (32°F to 145°F) |
| Storage Temperature Range | -20°C to 63°C (-4°F to 145°F) |
| Enclosure Dimensions | 123 x 70 x 16mm (4.9 x 2.8 x 0.6 in.) |
| Weight | 130g (4.6oz.) |
