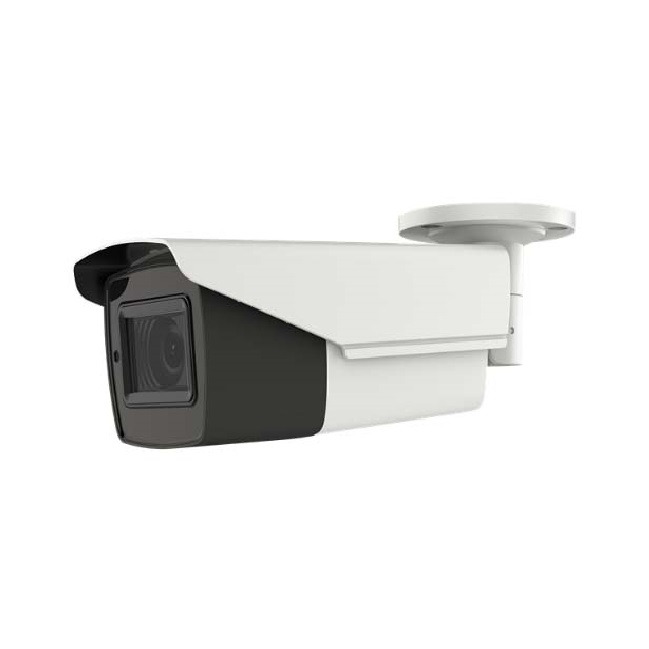

AC318D-VB4Z 8 MP Smart IR Motorized Bullet Camera
Click to enlarge

AC318D-VB4Z 8 MP Smart IR Motorized Bullet Camera

SKU: AC318D-VB4Z

8 MP Bullet Camera

Add to wishlist
Add to compare
12 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 8.29 MP high performance CMOS
  • Auto focus
  • 3840 × 2160 resolution
  • 2.7 mm to 13.5 mm motorized vari‐focal lens
  • EXIR 2.0, Smart IR, up to 80 m IR distance
  • OSD menu, DNR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67
  • Up the coax (UTC‐C)

Download

Product Manual

No related firmware found.
Additional information
Image Sensor

8.29 Megapixel Progressive Scan CMOS

Camera Resolutions

Camera Style

Lens Size

Lens Type

Minimum Illumination

Color: 0.01 Lux@ (F1.2

,

AGC ON)

,

0 Lux with IR on

Shutter Speed

PAL: 1/12.5 s to 1/50

,

000 s NTSC: 1/15 s to 1/50

,

000 s

Horizontal Field of View

108.1° to 45.6°

Lens Mount

Φ14

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°

Synchronization

Internal synchronization

Video Output

1 HD analog output

Power

9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC

Power Consumption

Max 10.8W

Protection

IP67

Material

Front cover: Metal Main body: Plastic Bracket: Metal

IR Range

Up to 80 m

Dimensions

84.5 mm×92 mm×255.1 mm(3.33"×3.62"×10")

Weight

Approx.695 g(1.53 lb.)
