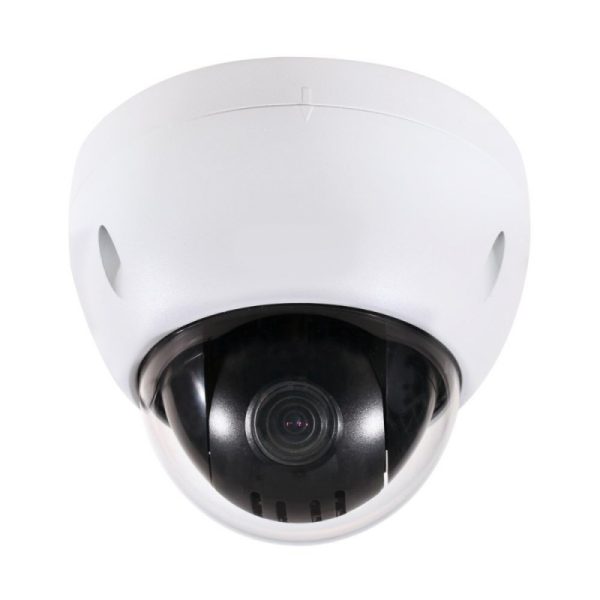

XVI-PD42215L-S 2MP 15x Starlight HDCVI PTZ Camera
Login to see prices| Image Sensor | 1/2.8" STARVIS™ CMOS |
|---|---|
| Camera Resolutions | |
| Pixel | 2MP |
| Max. Resolution | 1920 × 1080 |
| Shutter Speed | 1/3s to 1/100000s |
| Scanning System | Progressive |
| Minimum Illumination | Color: 0.005 Lux@F1.6 B/W: 0.0005 Lux@F1.6 |
| Focal Length | 5 mm–75 mm |
| Field of View | H: 58.9–5.1; V: 34.1–2.9; D: 66.6–5.8 |
| Resolution | 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480) |
| WDR | 120 dB |
| Digital Noise Reduction | 2D/3D DNR |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Power | DC 12V± 10% |
| Power Consumption | Basic: 9.6W Max: 12W (module zooming, PTZ operations) |
| Protection | IK10; TVS 6000V lightning protection; surge protection |
| Dimensions | 155 mm × Φ170 mm (6.10" × Φ6.69") |
| Net Weight | 1.8 kg (3.97 lb) |
| Gross Weight | 3.3 kg (7.28 lb) |

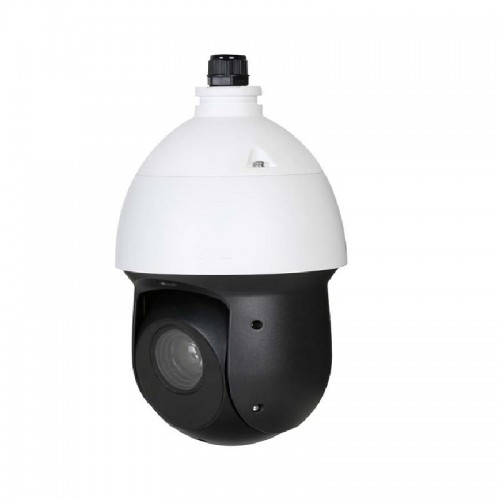

XVI-PD49225L-W 2MP 25x Starlight IR PTZ HDCVI Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.8" STARVIS™ CMOS |
| Max. Resolution | 1920 × 1080 |
| ROM/RAM | 16 MB/256 MB |
| Electronic Shutter Speed | 1/3 s–1/100000 s |
| Min. Illumination | Color: 0.005 Lux@F1.6 B/W: 0.0005 Lux@F1.6 0 Lux@F1.6 (IR on) |
| Illumination Distance | 100 m (328.08 ft) |
| Focal Length | 4.8 mm–120 mm |
| Pan/Tilt Range | Pan: 0°–360°Tilt: -15°–+90°; auto flip 180° |
| Digital Noise Reduction | 2D/3D DNR |
| WDR | 120 dB |
| Power | DC 12V |
| Power Consumption | 9.6 W 23.2 W (IR light on, PTZ) |
| Protection | IP66 |
| Dimensions | 295.4 mm × Φ160.0 mm (11.63" × Φ6.30") |
| Weight | Net Weight: 3 kg (6.61 lb) Gross Weight: 4.2 kg (9.26 lb) |

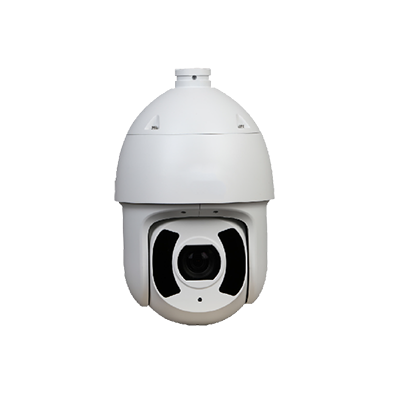

XVI-PD6CE225-W 2MP 25x Starlight IR PTZ HDCVI Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.8" STARVIS™ CMOS |
| Effective Pixels | 1920(H)×1080(V) |
| Scanning System | Progressive |
| Shutter Speed | 1/1 s to 1/30 ,000 s |
| Minimum Illumination | 0Lux with IR on ,AGC ON) ,Color: 0.005Lux@(F1.6 |
| IR Distance | 200 m |
| IR LEDs | 6 |
| Focal Length | 4.8mm~120mm |
| Max. Aperture | F1.6 ~ F4.4 |
| Angle of View | H: 62.8° ~ 2.6° |
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -20° ~ 90° ,auto flip 180° |
| Resolution | 1080P(1920×1080) / 720P(1280×720) |
| Digital Noise Reduction | 2D/3D DNR |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
| Power | AC 24V/3A(±25%) |
| Power Consumption | 17W, 25W(IR On, Heater On) |
| Protection | IK10 ,IP67 |
| Casing | Metal |
| Dimensions | φ209×337.4mm |
| Net Weight | 5.8kg(12.79lb) |
| Gross Weight | 9.6kg(21.16lb) |
