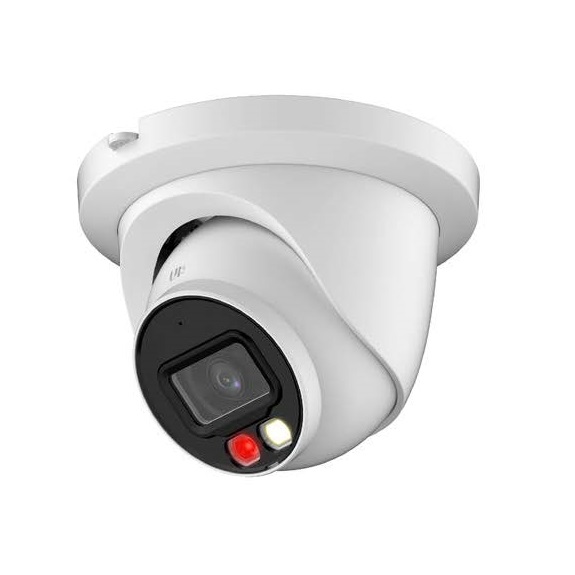

Camera Resolutions	4 MP
Image Sensor	1/2.9" Progressive Scan CMOS
Max. Resolution	2688 × 1520
Camera Style	Eyeball
ROM/RAM	128 MB/128 MB
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Illumination Distance	30 m (98.43 ft) (IR), 30 m (98.43 ft) (Warm light)
Lens Type	Fixed Lens
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F1.6
Video Compression	H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Storage	FTP; SFTP; Micro SD card (support max. 256 GB)
WDR	120 dB
Digital Noise Reduction	3D DNR
Audio	Built-in Mic
Power	DC 12V
Protection	IP67
Power Consumption	Basic: 2.1 W (12 VDC); 2.5 W (PoE) Max. (H.265 + intelligence on + WDR + warm light): 4.4 W (12 VDC); 5.2 W (PoE)
Casing Material	Inner core: Metal; Cover: Metal; Decoration ring: Plastic
Product Dimensions	99.1 mm × Φ121.9 mm (3.90" × Φ4.80")
Net Weight	0.46 kg (1.01 lb)
Gross Weight	0.65 kg (1.43 lb)

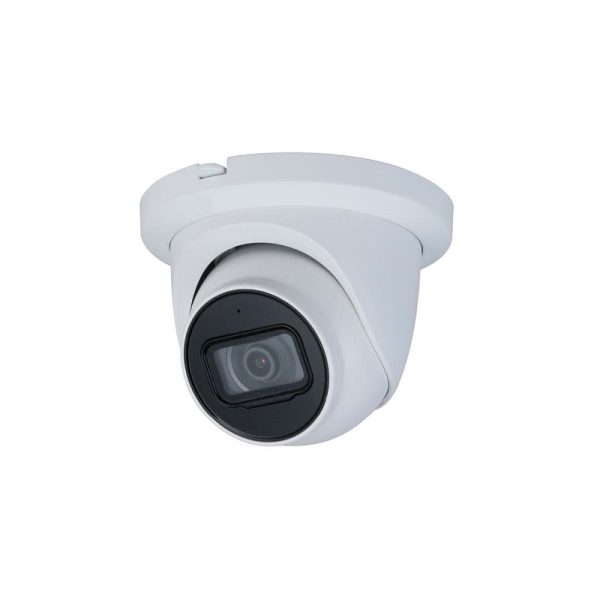

Image Sensor	1/2.7" Progressive Scan CMOS
Lens Type	Fixed Lens
Effective Pixels	3840(H)×2160(V)
ROM/ RAM	128 MB/256 MB
Minimum Illumination	0.009 Lux@F2.0
Illumination Distance	30 m (98.43 ft) (IR)
Camera Resolutions	8 MP
Video Bit Rate	H.264: 32 Kbps–8192 Kbps; H.265: 12 Kbps–8192 Kbps
Digital Noise Reduction	3D DNR
Camera Style	Eyeball
Lens Mount	M12
Max. Aperture	F2.0
Audio	Built-in Mic
Storage	FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2.7 W (12 VDC); 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 4.5 W (12 VDC); 5.4 W (PoE)
Protection	IP67
Casing Material	Inner core: Metal; Cover: Metal Decoration ring: Plastic Quick install mounting plate: Metal
Product Dimensions	99.1 mm × Φ121.9 mm (3.90"× Φ4.80")
Net Weight	0.48 kg (1.06 lb)
Gross Weight	0.68 kg (1.50 lb)

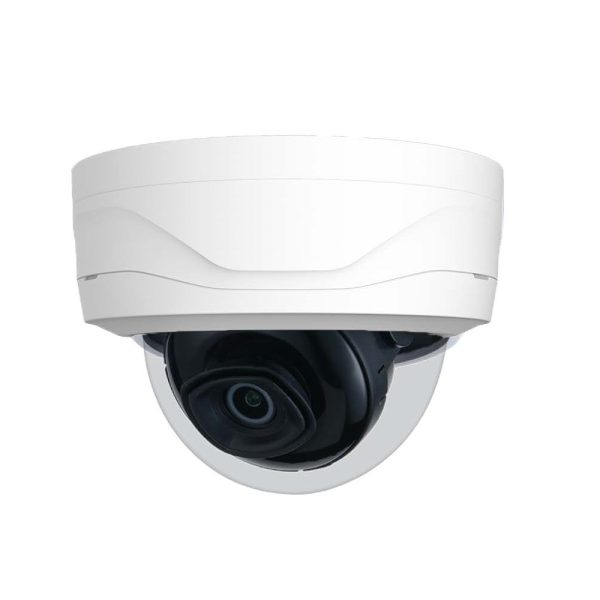

Camera Style	Dome
Image Sensor	1/2.7" CMOS
Lens Type	Fixed Lens
Max. Resolution	2960 × 1668
ROM/RAM	128 MB/256 MB
Scanning System	Progressive
Shutter Speed	1/3 s to 1/100 , 000 s , Auto/Manual
Minimum Illumination	0.007 Lux@F1.6 (Color, 30 IRE); 0.0007 Lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
Illumination Distance	Up to 30 m (98.43 ft) (IR)
Pan/Tilt/Rotation Range	Pan: 0°–355° ; Tilt: 0°–65°; Rotation: 0°–355°
Video Bit Rate	H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
WDR	120 dB
Digital Noise Reduction	3D DNR
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F1.6
Storage	FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Audio	Built-in Mic
Power	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2.3 W (12 VDC); 2.9 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 5 W (12 VDC); 6.1 W (PoE)
Casing Material	Metal
Product Dimensions	81.0 mm × Φ109.9 mm (3.19" × Φ4.33")
Net Weight	0.34 kg (0.75 lb)
Gross Weight	0.49 kg (1.08 lb)
Protection	IK10 , IP67

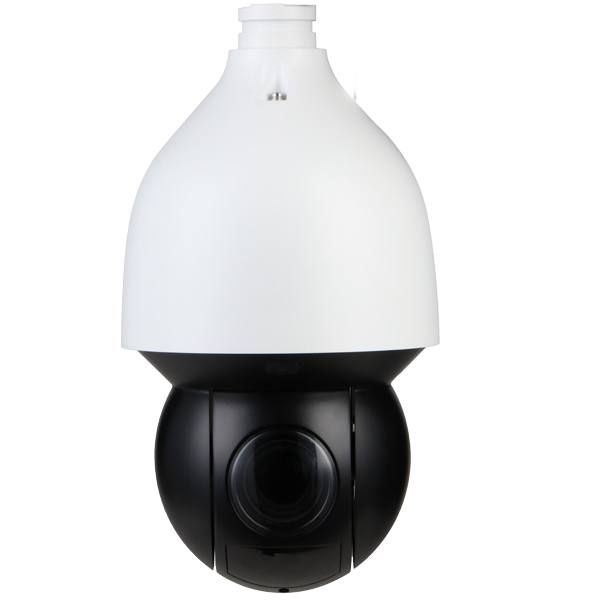

Camera Resolutions	4 MP
Image Sensor	1/2.8" STARVIS™ CMOS
Pixel	4MP
Max. Resolution	2560 × 1440
ROM/RAM	4GB/1GB
Shutter Speed	1/1 s–1/30 , 000 s
Minimum Illumination	0Lux with IR on , AGC ON) , Color: 0.005Lux@(F1.6
Illuminator Number	4
Compression	H.265+/H.265/H.264+/H.264/MJPEG (sub stream)
Bit Rate	H.265/H.264: 3 kbps–20480 kbps
Focal Length	4.8 mm–120 mm
Max. Aperture	F1.6–F4.0
Field of View	H: 60.0°–2.5°; V: 30.8°–2.2°; D: 66.7°–2.9°
Digital Noise Reduction	2D/3D DNR
Pan/Tilt Range	Pan: 0°–360° (endless); Tilt: -15°–90° (auto flip 180°)
Storage	NAS; Local PC; Micro SD card (256G)
Certifications	CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL62368-1+CAN/CSA C22.2,No. 62368-1
Power	DC 12V/3A PoE+ (802.3at)
Power Consumption	13W ; 21W (IR on)
Protection	IP66
Dimensions	Φ160 mm × 295 mm (6.30" × 11.61")
Net Weight	3 kg (6.61 lb)
Gross Weight	4.8 kg (10.58 lb)
