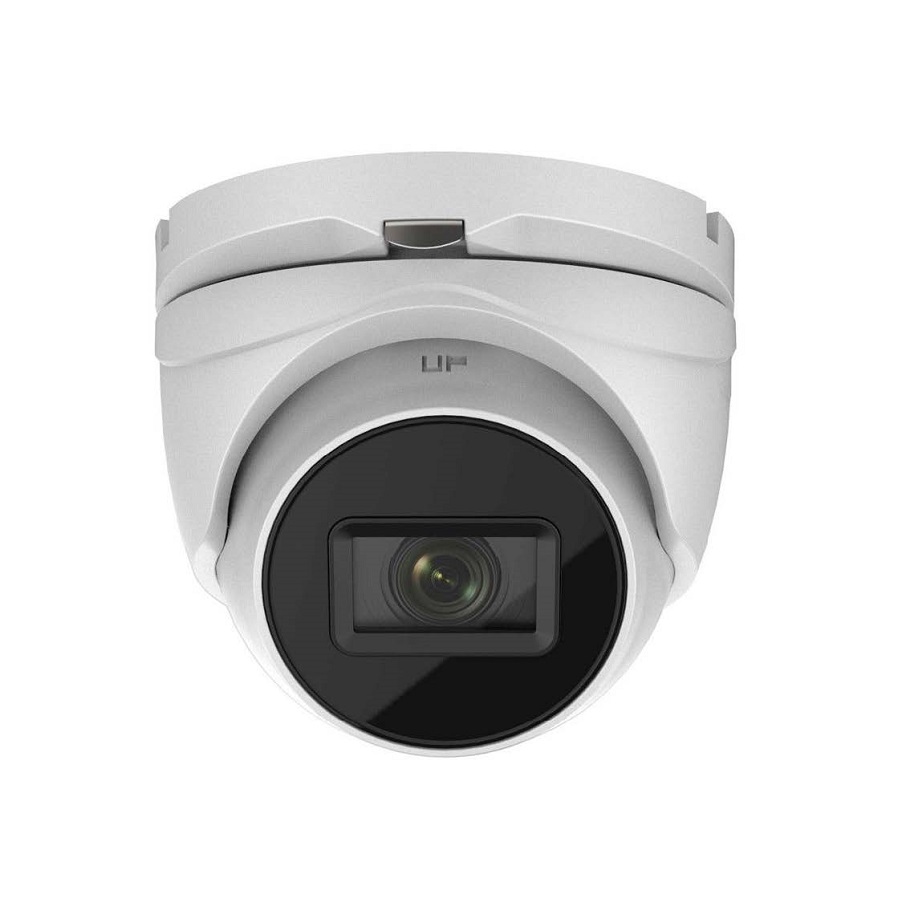

AC346D-VD4Z 5 MP Ultra-Low Light varifocal Camera
Click to enlarge

AC346D-VD4Z 5 MP Ultra-Low Light varifocal Camera

SKU: AC346D-VD4Z

5 MP Ultra-Low Light varifocal Camera

Add to wishlist
Add to compare
11 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 5 MP, 2560 × 1944 resolution
  • Ultra‐low light
  • 130 dB true WDR, 3D DNR
  • 2.7 mm to 13.5 mm varifocal lens, auto focus
  • Smart IR, up to 60 m IR distance
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Camera Style

Lens Type

Signal System

PAL/NTSC

Max. Resolution

2560 × 1944

Minimum Illumination

0 Lux with IR

,

AGC ON)

,

Color: 0.003 Lux@(F1.2

Shutter Speed

PAL: 1/25s to 1/50000s NTSC: 1/30s to 1/50000s

Lens Size

Horizontal Field of View

92.3° to 29.3°

Lens Mount

Φ14

Day & Night

ICR

WDR

≥130 dB

Angle Adjustment

Pan: 0° to 360°; Tilt:0° to 75°; Rotate: 0° to 360°

Image Mode

STD/HIGH‐SAT

Video Output

Switchable TVI /AHD /CVI /CVBS

Power

12 VDC±20%

,

24 VAC±20%

Power Consumption

Max.10.5 W

Protection Level

IP67

Material

Metal

IR Range

Up to 60 m

Dimensions

123.86 mm x 134.3 mm x 110.24 mm (4.88" x 5.29" x 4.34")

Weight

Approx.630 g(1.39 lb.)
