NVR308-32X 8 HDDs 32-ch 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 ,9 x 4MP@25 ,16 x 1080P@30 ,32 x 960P@25 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4096 pixels in length or width |
| Incoming Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 384 Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 12 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| RS485 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| Power Consumption (without HDD) | ≤ 25W |
| Weight (without HDD) | ≤ 5.7Kg (12.57lb) |
| Dimensions | 442mm ×426mm× 89mm (17.4"×16.8"×3.5") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR508-32B 8 HDDs 32-ch 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 ,32 x 960P@25 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 ,14 x 1080P@30 ,28 x 960P@25 ,30 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| RS485 | 1 |
| RS232 | N/A |
| Power Switch | Support |
| Power Consumption (without HDD) | ≤ 25W |
| Weight (without HDD) | ≤ 5.5Kg (12.13lb) |
| Dimensions | 442mm × 426mm × 89mm (17.4"×16.8"×3.5") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

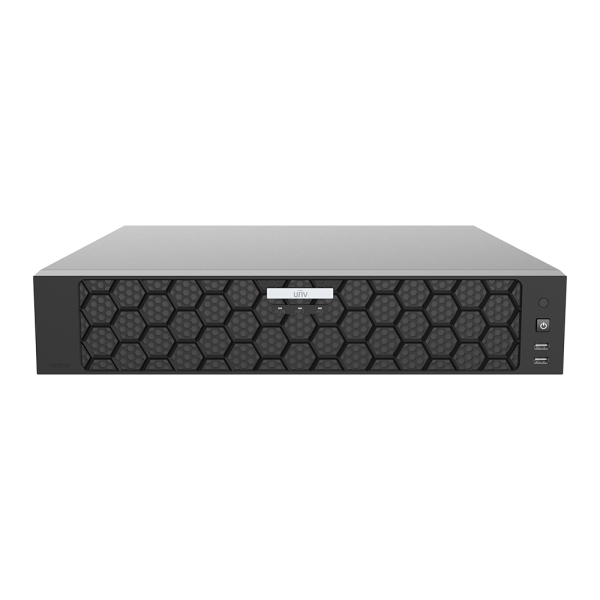

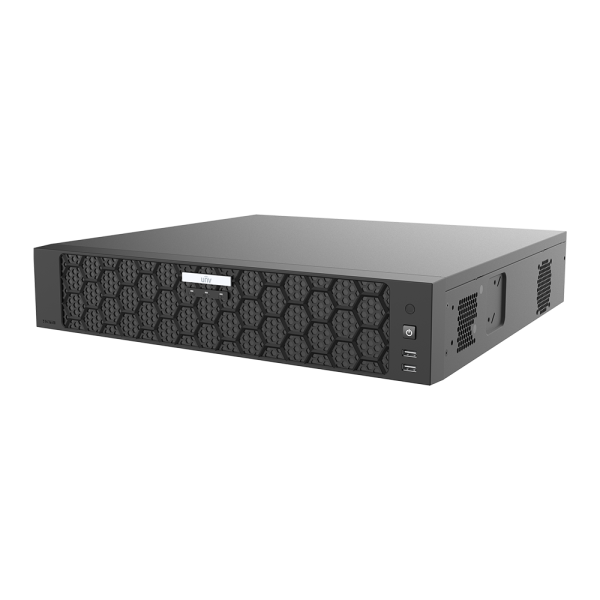

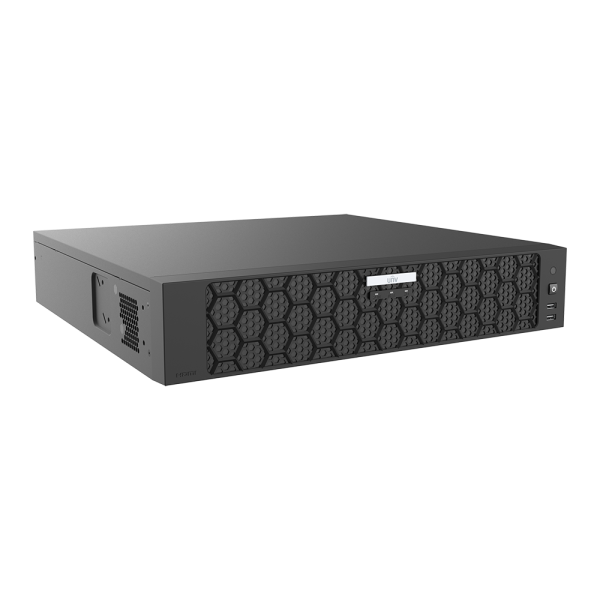

NVR508-32E-IQ 8 HDDs 32-ch 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 32MP@30 ,4 x 16MP@30 ,5 x 12MP@30 ,8 x 4K@30 ,10 x 6MP@30 ,12 x 5MP@30 ,16 x 4MP@30 ,20 x 3MP@30 ,32 x 1080P@30 Smart On：1 x 32MP@30 ,3 x 16MP@30 ,4 x 12MP@30 ,6 x 4K@30 ,8 x 6MP@30 ,9 x 5MP@30 ,12 x 4MP@30 ,16 x 3MP@30 ,24 x 1080P@30 ,32 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Incoming Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Outgoing Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100~240V |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Power Consumption (without HDD) | ≤ 35W |
| Weight (without HDD) | ≤ 5.5Kg (12.1lb) |
| Dimensions | 442mm × 432mm × 86mm (17.4"×17.0"×3.4") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

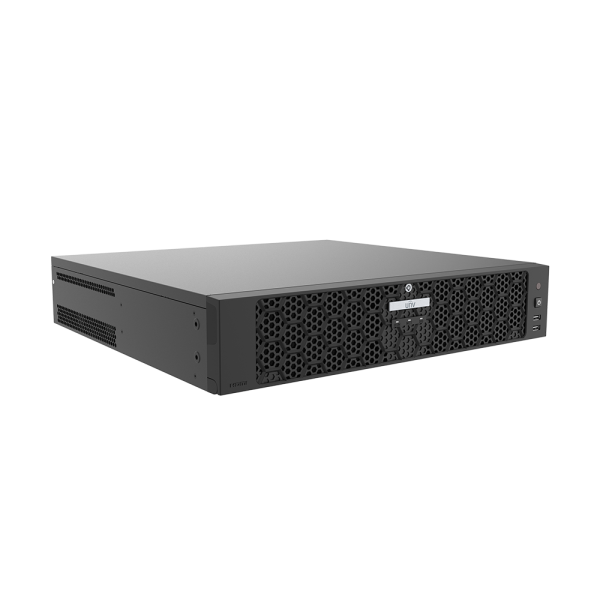

NVR508-32E-R 8 HDDs 32-ch 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 2 x 32MP@30 ,4 x 16MP@30 ,5 x 12MP@30 ,8 x 4K@30 ,16 x 4MP@30 ,32 x 1080P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Incoming Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 384 Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| RS485 | 1 |
| RS232 | 1 |
| Power Output | 12 V |
| Power Consumption (without HDD) | ≤ 35W |
| Weight (without HDD) | ≤ 6Kg (13.23lb) |
| Dimensions | 442mm × 448mm × 93mm (17.4" × 17.6" × 3.7") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

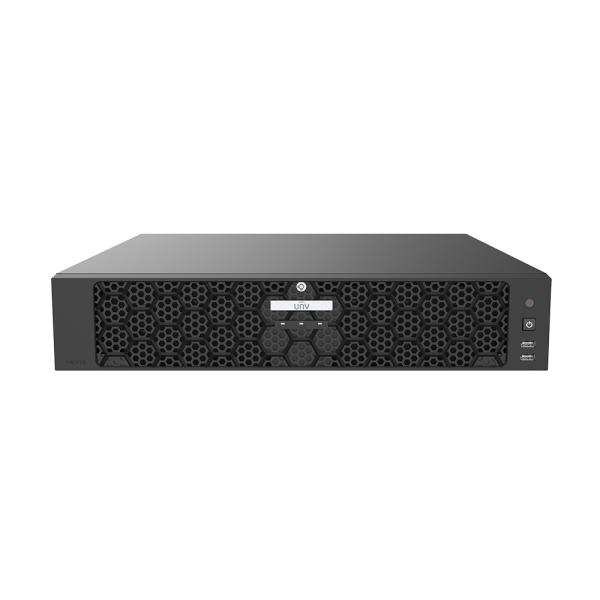

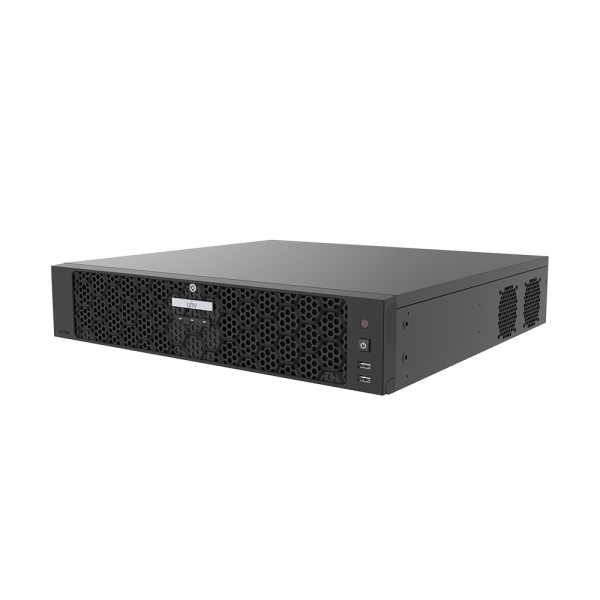

NVR508-32E-R-IQ 8 HDDs 32-ch 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 32MP@30 ,4 x 16MP@30 ,5 x 12MP@30 ,8 x 4K@30 ,10 x 6MP@30 ,12 x 5MP@30 ,16 x 4MP@30 ,20 x 3MP@30 ,32 x 1080P@30 Smart On：1 x 32MP@30 ,3 x 16MP@30 ,4 x 12MP@30 ,6 x 4K@30 ,8 x 6MP@30 ,9 x 5MP@30 ,12 x 4MP@30 ,16 x 3MP@30 ,24 x 1080P@30 ,32 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Incoming Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Outgoing Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100~240V |
| RS485 | 1 |
| RS232 | 1 |
| Power Switch | Support |
| Power Consumption (without HDD) | ≤ 35W |
| Weight (without HDD) | ≤ 6.5Kg (14.3lb) |
| Dimensions | 443mm × 448mm × 93mm (17.4"×17.6"×3.7") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR508-64B 8 HDDs 64-ch 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 ,32 x 960P@25 ,36 x 720P@30 ,64 x D1 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 ,14 x 1080P@30 ,28 x 960P@25 ,30 x 720P@30 ,64 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| RS485 | 1 |
| RS232 | N/A |
| Power Switch | Support |
| Power Consumption (without HDD) | ≤ 25W |
| Weight (without HDD) | ≤ 5.5Kg (12.13lb) |
| Dimensions | 442mm × 426mm × 89mm (17.4"×16.8"×3.5") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR508-64E-IQ 8 HDDs 64-ch 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 32MP@30 ,4 x 16MP@30 ,5 x 12MP@30 ,8 x 4K@30 ,10 x 6MP@30 ,12 x 5MP@30 ,16 x 4MP@30 ,20 x 3MP@30 ,32 x 1080P@30 ,64 x 720P@30 Smart On：1 x 32MP@30 ,3 x 16MP@30 ,4 x 12MP@30 ,6 x 4K@30 ,8 x 6MP@30 ,9 x 5MP@30 ,12 x 4MP@30 ,16 x 3MP@30 ,24 x 1080P@30 ,48 x 720P@30 ,64 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Incoming Bandwidth | Smart off: 512 Mbps ,Smart on: 200 Mbps |
| Outgoing Bandwidth | Smart off: 512 Mbps ,Smart on: 200 Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100~240V |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Power Consumption (without HDD) | ≤ 35W |
| Weight (without HDD) | ≤ 5.5Kg (12.1lb) |
| Dimensions | 442mm × 432mm × 86mm (17.4"×17.0"×3.4") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR508-64E-R 8 HDDs 64-ch 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 2 x 32MP@30 ,4 x 16MP@30 ,5 x 12MP@30 ,8 x 4K@30 ,16 x 4MP@30 ,32 x 1080P@30 ,54 x 960P@25 ,64 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Incoming Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 384 Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| RS485 | 1 |
| RS232 | 1 |
| Power Output | 12 V |
| Power Consumption (without HDD) | ≤ 35W |
| Weight (without HDD) | ≤ 6Kg (13.23lb) |
| Dimensions | 442mm × 448mm × 93mm (17.4" × 17.6" × 3.7") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR508-64E-R-IQ 8 HDDs 64-ch 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 32MP@30 ,4 x 16MP@30 ,5 x 12MP@30 ,8 x 4K@30 ,10 x 6MP@30 ,12 x 5MP@30 ,16 x 4MP@30 ,20 x 3MP@30 ,32 x 1080P@30 ,64 x 720P@30 Smart On：1 x 32MP@30 ,3 x 16MP@30 ,4 x 12MP@30 ,6 x 4K@30 ,8 x 6MP@30 ,9 x 5MP@30 ,12 x 4MP@30 ,16 x 3MP@30 ,24 x 1080P@30 ,48 x 720P@30 ,64 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Incoming Bandwidth | Smart off: 512 Mbps ,Smart on: 200 Mbps |
| Outgoing Bandwidth | Smart off: 512 Mbps ,Smart on: 200 Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100~240V |
| RS485 | 1 |
| RS232 | 1 |
| Power Switch | Support |
| Power Consumption (without HDD) | ≤ 35W |
| Weight (without HDD) | ≤ 6.5Kg (14.3lb) |
| Dimensions | 443mm × 448mm × 93mm (17.4"×17.6"×3.7") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
