NC214-XDZ 4 MP IR VF Network varifocal Turret Camera
Login to see prices| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Lens Type | |
| Minimum Illumination | Color: 0.01 Lux @(F1.2 ,AGC ON) ,0.018 Lux @(F1.6 ,AGC ON) ,0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100000 s |
| Camera Resolutions | |
| Camera Style | |
| Focal Length | 2.8 to 12 mm |
| Lens Mount | Φ14 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Max. Resolution | 2560 × 1440 |
| Power | 12VDC±25% ,5.5mm coaxial power plug PoE(802.3af ,class3) |
| Dimension | Camera: 129.4 mm x 116.4 mm(5.1"×4.6") With package: 170 mm x 150 mm(6.7"×5.9") |
| Weight | Camera:560 g(1.2 lb.) With package: 850 g(1.9 lb.) |
| Ingress Protection | IP67 |
| Material | Camera body: metal, bottom base: plastic |

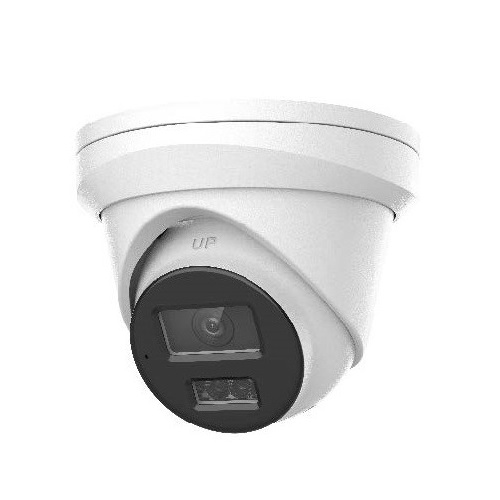

NC224G2-XD/LU 4 MP Smart Hybrid Light Turret Network Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.005 Lux@(F1.6 ,AGC ON) ,B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100000 s |
| Angle Adjustment | Pan: 0° to 360° ,tilt: 0° to 75° ,rotate: 0° to 360° |
| Camera Style | |
| Lens Type | |
| Lens Mount | M12 |
| SmartSupplementLight | Yes |
| Wavelength | 850nm |
| Max. Resolution | 2560 × 1440 |
| Audio | |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Power | 12VDC±25% ,0.4A ,max.5W ,Ø5.5mm coaxial power plug ,reverse polarity protection ,PoE:IEEE802.3af ,Class3 ,max.6.5W |
| Power Consumption and Current | IEEE802.3af ,Class3 ,max.6.5W |
| Camera Material | Metal & Plastic |
| Package Dimension | 110 mm × 89.2 mm (4.3" × 3.5") |
| With Package Weight | Approx.560g(1.2lb.) |
| Protection | IP67 |

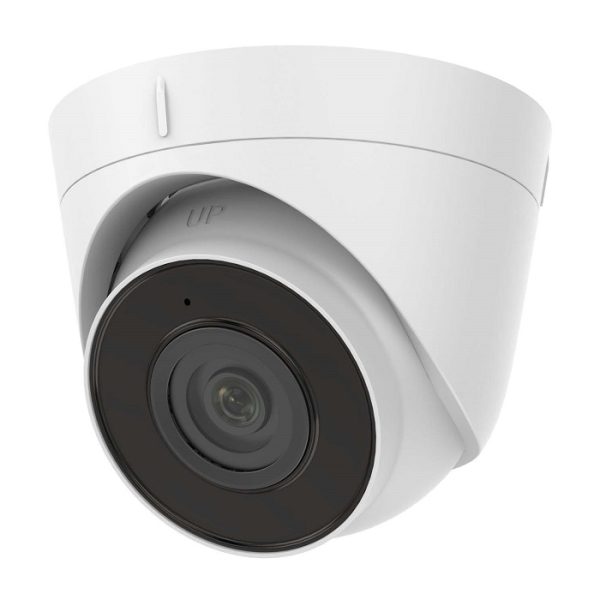

NC228-XDU 8 MP IR Fixed Turret Network Camera 2.8mm
Login to see prices| Image Sensor | 1/2.5" Progressive Scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.01 Lux@ (F1.2 ,AGC ON) ,0 Lux with IR on |
| Shutter Speed | 1/3 s to 1/100000 s |
| Angle Adjustment | Pan: 0° to 360° ,tilt: 0° to 75° ,rotate: 0° to 360° |
| Lens Type | |
| Camera Resolutions | |
| Lens Size | |
| Camera Style | |
| Lens Mount | M12 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Audio | |
| Max. Resolution | 3840 × 2160 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Power | 12VDC±25% PoE:802.3af ,Type1 Class3 |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 V to 57 V), 0.20 A to 0.1 A, max. 6.5 W |
| Camera Material | Aluminum alloy body |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| With Package Weight | Approx. 656 g (1.4 lb.) |

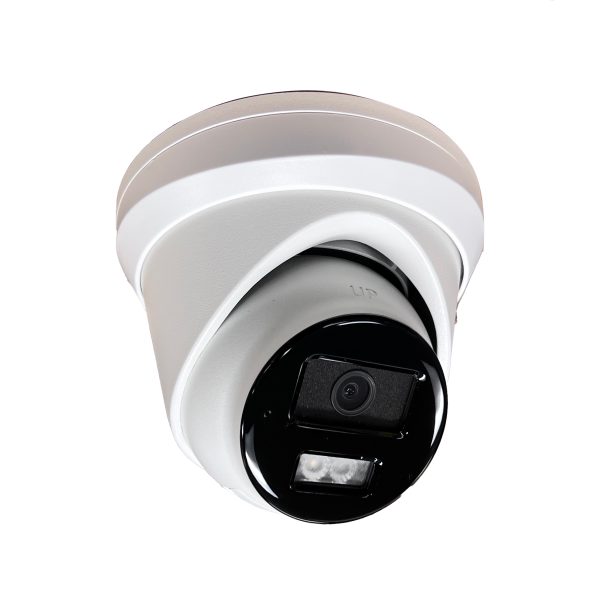

NC228G2-XD-LUJ 8 MP Smart Hybrid Light Fixed Turret Network Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Type | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Shutter Speed | 1/3 s to 1/100 ,000 s |
| Minimum Illumination | Color: 0.01 Lux @ (F2.0 ,AGC ON) ,B/W: 0 Lux with IR |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Focal Length & FOV | 2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° 4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108° |
| Lens Mount | M12 |
| Max. Aperture | F2.0 |
| Supplement Light Type | IR ,White Light |
| Supplement Light Range | Up to 30 m |
| Audio | |
| Material | Metal & Plastic |
| Dimension | 110 mm × 93 mm ( 4.33" × 3.66") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| With Package Weight | Approx. 586 g (1.3 lb.) |
| Wavelength | 850nm |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| WDR | 120 dB |
| Power | 12 VDC ± 25% ,0.41 A ,max. 5 W ,Ø5.5 mm coaxial power plug ,reverse polarity protection ,PoE: IEEE 802.3af ,Class 3 ,max. 6.5 W |
| Protection | IP67 |

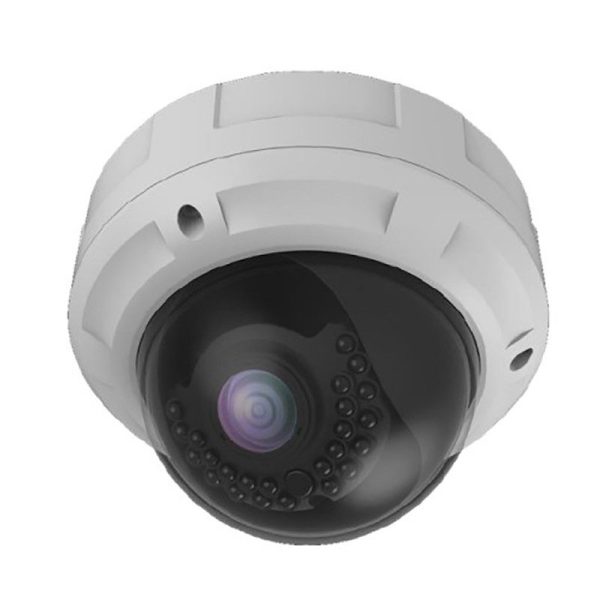

NC312-VD 2 Megapixel CMOS Vandal-proof Network Dome Camera
Login to see prices| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Camera Style | |
| Camera Resolutions | |
| Minimum Illumination | 0.01 lux @(F1.2 ,AGC ON) ,0 Lux with IR 0.014 lux @(F1.4 ,AGC ON) ,0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100000 s |
| Angle Adjustment | Pan:0° – 355° ,Tilt: 0° – 75° ,Rotation: 0° – 355° |
| Lens Size | |
| Lens Mount | Φ14 |
| IR Range | Up to 30 m |
| Video Compression | H.264/ MJPEG |
| Max. Resolution | 1920 × 1080 |
| Video Bit Rate | N/A |
| Power | DC12V±10% ,PoE (802.3af) |
| Power Consumption and Current | Max. 5.5 W |
| Ingress Protection level | IP66 |
| Product Dimension | Φ 140 × 99.9 mm (Φ 5.51” × 3.94”) |
| With Package Weight | 1000g |

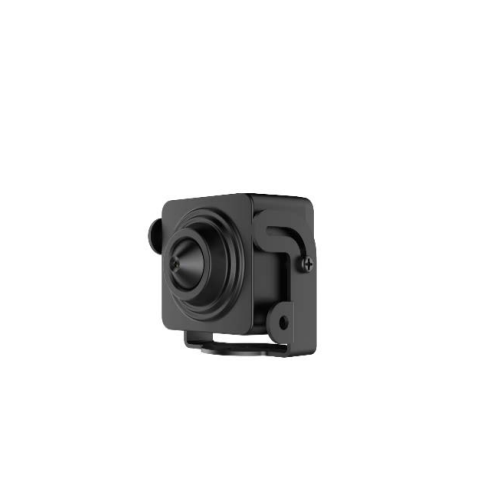

NC322-PH 2 MP H.265+ Mini PinHole Network Camera
Login to see prices| Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Shutter Speed | 1/3s to 1/100000s |
| Camera Style | |
| Digital Noise Reduction | 3D DNR |
| Camera Resolutions | |
| WDR | 120 dB |
| Focal length | Without/M model: 3.7mm With/M model: 2.8mm ,4mm |
| Lens Mount | M12 |
| Video Compression | H.265/H.264/MJPEG |
| H.264 Type | Base line Profile/Main Profile/High Profile |
| Max. Resolution | 1920 × 1080 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Power | 12 VDC±20% ,Φ5.5mm coaxial plug power |
| Power Consumption and Current | 12 VDC ,0.3 A ,max. 3 W |
| Camera Material | Aluminum Alloy |
| Dimensions | Without /M model: 31 mm × 31 mm × 26 mm (1.2" × 1.2" × 1") With /M model: 31 mm × 31 mm × 39 mm (1.2" × 1.2" × 1.5") |
| Weight | With package: approx. 202 g (0.4 lb.) Camera: approx. 93 g (0.2 lb.) |

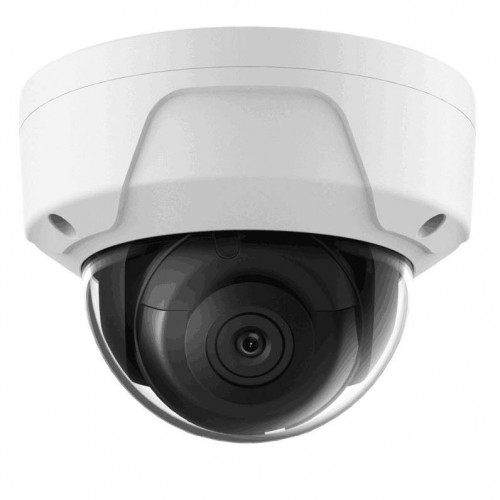

NC322-TD 2 MP IR Fixed Dome Network Camera
Login to see prices| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.01 Lux@(F1.2 ,AGCON) ,0.028 Lux@(F2.0 ,AGCON); B/W:0.001 Lux@(F1.2 ,AGCON) ,0.0028 Lux@(F2.0 ,AGCON) |
| Shutter Speed | 1/3 s to 1/100000 s |
| Camera Resolutions | |
| Camera Style | |
| Lens Type | |
| Lens Size | |
| WDR | 120 dB |
| Focal length | 2.8mm |
| Lens Mount | M12 |
| IR Range | Up to 20 m |
| Wavelength | 850nm |
| Max. Resolution | 1920 × 1080 |
| Power | 12VDC±25% ,PoE(802.3af ,class3) |
| Power Consumption and Current | PoE:(802.3 af ,36 V-57 V) ,0.2 A to 0.1 A ,max.6.5 W 12 VDC ,0.4 A ,max.5 W |
| Material | Front cover: plastic, base: metal |
| Dimensions | Camera:Φ111 x 82.4 mm(Φ4.4" x 3.2") With package:135×135×110 mm(5.3" x 5.3" x 4.3") |
| Weight | Camera: approx.400 g(0.9 lb.) With package: approx.500 g(1.1 lb.) |

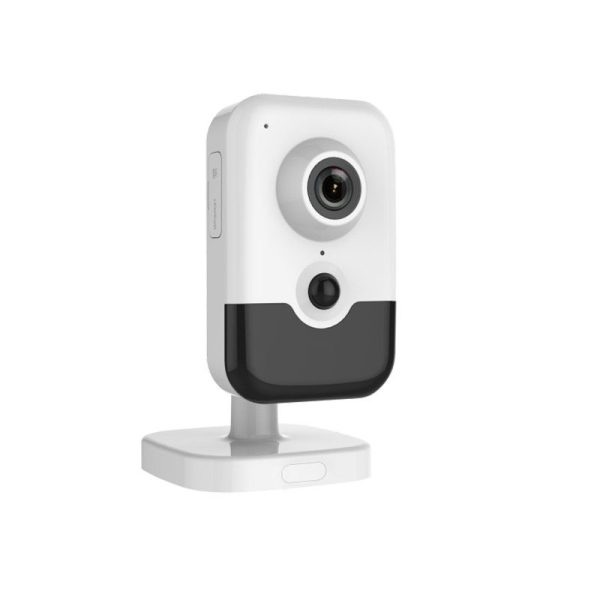

NC324-CU 4 MP IR Fixed Cube Network Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Type | |
| Audio | , |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| Lens Mount | M12 |
| IR Range | Up to 10 m |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Power Supply | 12 V DC ± 25%, PoE (802.3a 802.3af, class 3) |
| Power Consumption and Current | 12 V DC , 0. 5 A, max. 6 W, Φ 5.5 mm coaxial plug power PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W |
| Material | Plastic |
| Dimensions | 102.8 mm × 65.2 mm × 32.6 mm ( 4.1" × 2.6" × 1. 3") |
| Weight | Camera: Approx. 128 g (0. 3 lb.) |

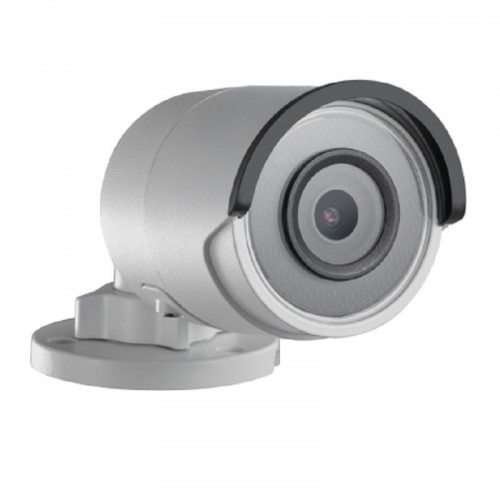

NC324-MB/2.8MM 4 MP IR Fixed Bullet Network Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Lens Type | |
| Camera Style | |
| Lens Size | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01Lux@(F1.2 ,AGC ON) ,0Lux with IR |
| Shutter Speed | 1/3s to 1/100000s |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| Max. Aperture | F1.6 |
| Lens Mount | M12 |
| 3-Axis Adjustment | Pan:0° to 360°,tilt:0° to 90°,rotate:0° to 360° |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Max. Resolution | 2560 × 1440 |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), AN |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Power | 12 VDC±25% ,Φ5.5mm coaxial power plug PoE (802.3af ,class 3) |
| Protection | IP67 |
| Power Consumption and Current | 12 VDC, 0.5A, max. 6W PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W |
| Material | Metal |
| Dimensions | Camera: Φ 70 ×155.03 mm(Φ2.8"× 6.1") Package: 216 × 121 × 118 mm(8.5" × 4.8" × 4.7") |
| Weight | Camera: Approx. 420 g (0.9 lb.) With Package: Approx. 700 g (1.5 lb.) |

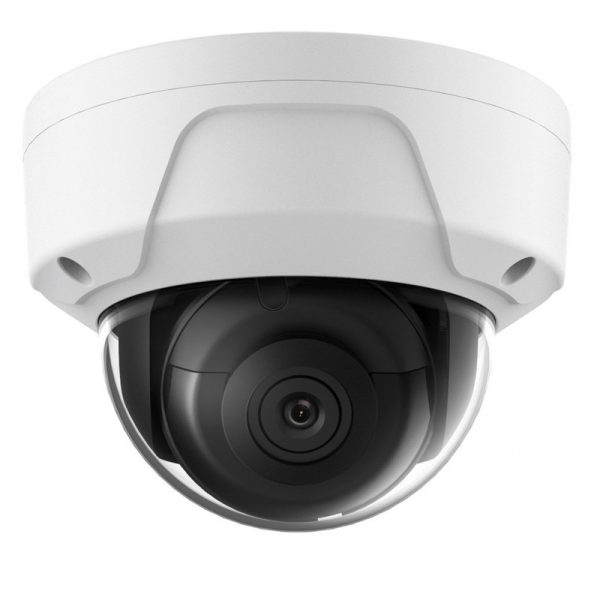

NC324-TDA 4 MP IR Fixed Dome Network Camera
Login to see prices| Lens Size | |
|---|---|
| Camera Resolutions | |
| Lens Type | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Camera Style | |
| Minimum Illumination | Color: 0.01Lux@(F1.2 ,AGC ON) ,0Lux with IR |
| Digital Noise Reduction | 3D DNR |
| Max. Aperture | F1.6 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| WDR | 120 dB |
| Max. Resolution | 2560 × 1440 |
| Shutter Speed | 1/3s to 1/100,000s |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Network Storage | Support MicroSD /SDHC /SDXC card(128G),local storage and NAS(NFS,SMB/CIFS), ANR |
| Power Consumption | 12VDC,0.5A,max.6W PoE(802.3af,37Vto57V),0.2Ato0.1A,max.7.5W |
| Protection | IK10 ,IP67 |
| Material | Metal |
| Dimensions | Camera:Φ111×82.4mm(Φ4.4"×3.2") Package:134×134×108mm(5.3"×5.3"×4.3") |
| Weight | Camera: Approx.610g(1.3lb.) With Package: Approx.820g(1.8lb.) |
NC324-TDA 4mm 4 MP IR Fixed Dome Network Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Size | |
| Lens Type | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01Lux@(F1.2 ,AGC ON) ,0Lux with IR |
| Digital Noise Reduction | 3D DNR |
| Max. Aperture | F1.6 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| WDR | 120 dB |
| Max. Resolution | 2560 × 1440 |
| Shutter Speed | 1/3s to 1/100,000s |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Network Storage | Support MicroSD /SDHC /SDXC card(128G),local storage and NAS(NFS,SMB/CIFS), ANR |
| Power Consumption | 12VDC,0.5A,max.6W PoE(802.3af,37Vto57V),0.2Ato0.1A,max.7.5W |
| Protection | IK10 ,IP67 |
| Material | Metal |
| Dimensions | Camera:Φ111×82.4mm(Φ4.4"×3.2") Package:134×134×108mm(5.3"×5.3"×4.3") |
| Weight | Camera: Approx.610g(1.3lb.) With Package: Approx.820g(1.8lb.) |

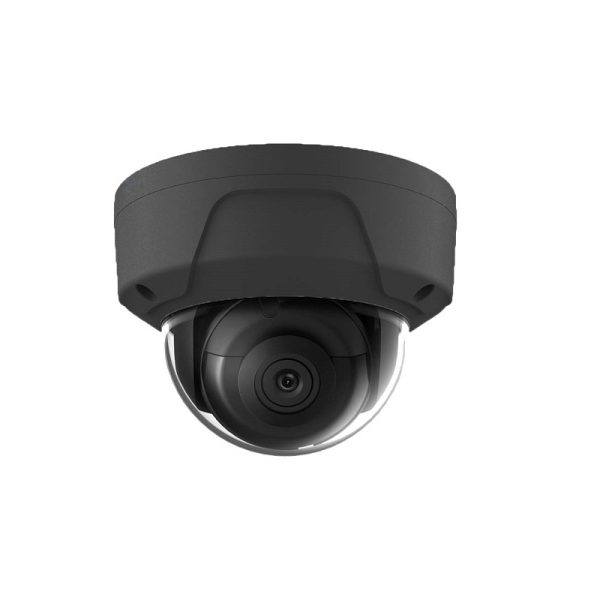

NC324-TDG 4 MP IR Fixed Dome Network Camera
Login to see prices| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Lens Type | |
| Minimum Illumination | Color: 0.01 Lux@(F1.2 ,AGC ON) ,0.018 Lux@ (F1.6 ,AGC ON) ,0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100000 s |
| Camera Resolutions | |
| Camera Style | |
| Angle Adjustment | Pan: 0° to 355°; tilt: 0° to 75°; rotate: 0° to 355° |
| Focal length | 2.8/4/6/8mm |
| Lens Mount | M12 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Max. Resolution | 2560 × 1440 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Power | DC12V ±25% |
| Camera Material | Metal |
| Package Dimension | 134 x 134 x 108mm(5.3"x 5.3"x 4.3") |
| With Package Weight | Approx.820g(1.8lb.) |

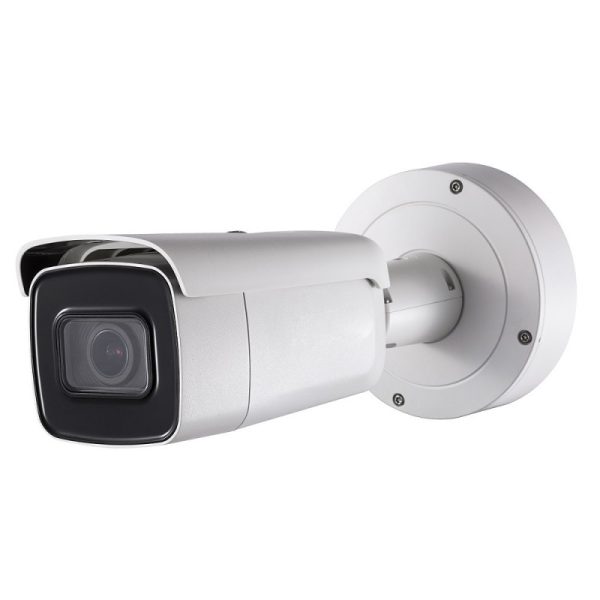

NC324-VBZ 4 MP IR Motorized VF Bullet Network Camera
Login to see prices| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Camera Style | |
| Minimum Illumination | Color: 0.01 Lux @(F1.2 ,AGC ON) ,0.018 Lux @(F1.6 ,AGC ON) ,0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100000 s |
| 3‐Axis Adjustment | Pan: 0° to 360° ,tilt: 0° to 90° ,rotate: 0° to 360° |
| Camera Resolutions | |
| Focal length | 2.8mm to 12mm |
| Lens Type | |
| Lens Mount | Φ14 |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Power | 12VDC±25% ,terminal block PoE(802.3at ,class4) |
| Dimension | Φ144.13 x 332.73 mm(Φ5.7"×13.1") |
| Weight | Camera: Approx.1740 g(3.8 lb.) With Package: Approx.2610 g(5.8 lb.) |
| Protection | IK10 ,IP67 |

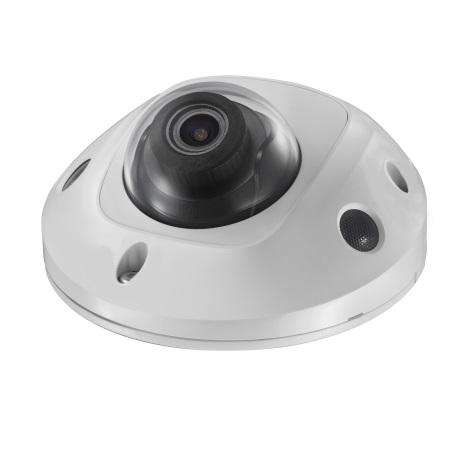

NC324-WDA-4MM 4 MP EXIR Fixed Mini Dome Network Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Size | |
| Lens Type | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01Lux@(F1.2,AGC ON),0Lux with IR |
| Shutter Speed | 1/3s to 1/100,000s |
| Digital Noise Reduction | 3D DNR |
| Color | White |
| WDR | 120 dB |
| Wavelength | 850nm |
| Max. Aperture | F1.6 |
| 3-Axis Adjustment | Pan:-30° to +30°,tilt:0° to 75°,rotate:0° to 360° |
| Video Bit Rate | 256Kbps to 16Mbps |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Network Storage | Support MicroSD /SDHC /SDXCcard(128G),local storage and NAS(NFS,SMB/CIFS),ANR |
| Max. Resolution | 2688 × 1520 |
| Power | 12VDC±25% ,PoE(802.3af ,class3) |
| Power Consumption and Current | 12VDC,0.7A,max.8.5W,Φ5.5mm coaxial plug power PoE(802.3af,36V to 57V),0.3A to 0.1A, max.10W |
| Protection | IK08 ,IP66 |
| Material | Front cover: plastic,Bottom base: metal |
| Dimensions | Φ110mm×56.4mm(Φ4.3"×2.2") |
| Weight | Camera: Approx.400g(0.9lb.) |

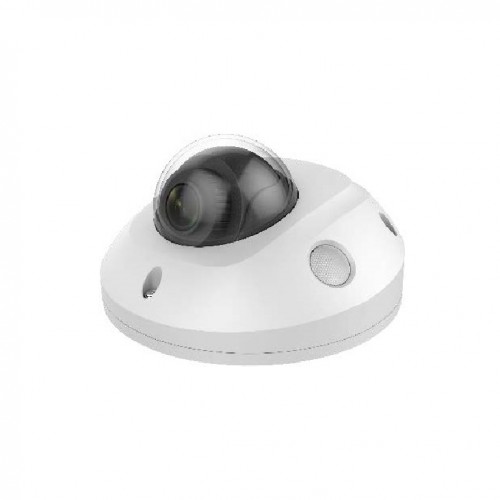

NC324-WDC 4 MP IR Fixed Mini Dome WIFI Network Camera
Login to see prices| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Minimum Illumination | Color: 0.01 Lux @(F1.2 ,AGC ON) ,0.018 Lux @(F1.6 ,AGC ON) ,0 Lux with IR |
| Lens Type | |
| Shutter Speed | 1/3 s to 1/100000 s |
| Camera Style | |
| WDR | 120 dB |
| Focal length | 2.8mm |
| Lens Mount | M12 |
| IR Range | Up to 10 m |
| Wavelength | 850nm |
| Audio Bit Rate | 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2) |
| Max. Resolution | 2688 × 1520 |
| Power | 12VDC±25% ,PoE(802.3af ,class3) |
| Material | Front cover: plastic, Bottom base: metal |
| Dimensions | Φ110 mm x 56.4 mm(Φ4.3" x 2.2") |
| Weight | Camera: Approx.400 g(0.9 lb.) |

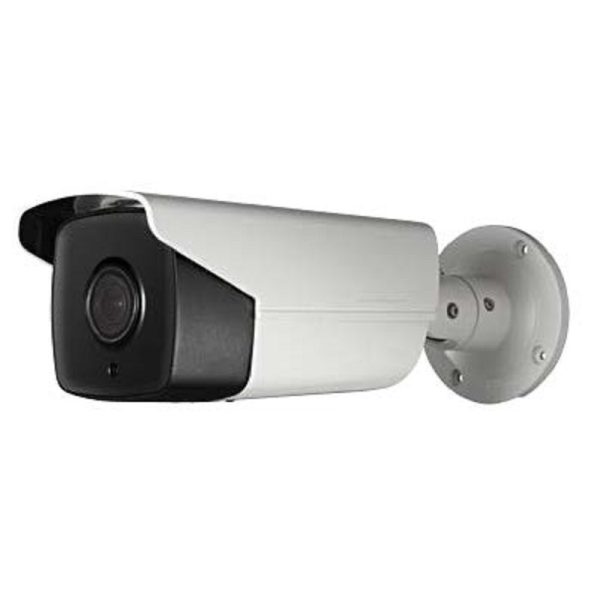

NC324-XB 4 MP IR Fixed Bullet Network Camera
Login to see prices| Lens Size | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01Lux@(F1.2 ,AGC ON) ,0Lux with IR |
| Shutter Speed | 1/3s to 1/100000s |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| 3‐Axis Adjustment | Pan:0° to 360°,tilt:0° to 100°,rotate:0° to 360° |
| Max. Aperture | F1.6 |
| Lens Mount | M12 |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Max. Resolution | 2560 × 1440 |
| Lens Type | |
| Camera Style | |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Power | 12 VDC±25% ,Φ5.5mm coaxial power plug PoE (802.3af ,class 3) |
| Power Consumption and Current | 12 VDC, 0.6A, max. 7.5W PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 9.5W |
| Protection | IP67 |
| Camera Resolutions | |
| Material | Metal |
| Dimensions | Camera: Φ 105× 299.7 mm(Φ4.1"× 11.8") Package: 386 × 156 × 155 mm(15.2" × 6.1" × 6.1") |
| Weight | Camera: Approx. 1180 g (2.6 lb.) With Package: Approx. 1700 g (3.7 lb.) |
NC324-XB-4MM 4 MP IR Fixed Bullet Network Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Lens Type | |
| Lens Size | |
| Camera Style | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01Lux@(F1.2 ,AGC ON) ,0Lux with IR |
| Shutter Speed | 1/3s to 1/100000s |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| 3‐Axis Adjustment | Pan:0° to 360°,tilt:0° to 100°,rotate:0° to 360° |
| Max. Aperture | F1.6 |
| Lens Mount | M12 |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Max. Resolution | 2560 × 1440 |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Power | 12 VDC±25% ,Φ5.5mm coaxial power plug PoE (802.3af ,class 3) |
| Power Consumption and Current | 12 VDC, 0.6A, max. 7.5W PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 9.5W |
| Protection | IP67 |
| Material | Metal |
| Dimensions | Camera: Φ 105× 299.7 mm(Φ4.1"× 11.8") Package: 386 × 156 × 155 mm(15.2" × 6.1" × 6.1") |
| Weight | Camera: Approx. 1180 g (2.6 lb.) With Package: Approx. 1700 g (3.7 lb.) |
NC324G2-MB 4MP EXIR Fixed Bullet Network Camera
Login to see prices| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.005 Lux @ (F1.6 ,AGC ON) ,0 Lux with IR on |
| Camera Resolutions | |
| Lens Type | |
| Shutter Speed | 1/3 s to 1/100000 s |
| Camera Style | |
| WDR | 120 dB |
| Day/Night | ICR Cut |
| Angle Adjustment | Pan: 0° to 360° ,tilt: 0° to 90° ,rotate: 0° to 360° |
| Lens Size | |
| DORI | 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m 6 mm: D: 120 m, O: 47,m, R: 24,m, I: 12 m |
| Max. Resolution | 2688 × 1520 |
| IR Range | Up to 40 m |
| Wavelength | 850nm |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Simultaneous Live View | Up to 6 channels |
| Camera Dimension | 70 × 161.7 mm (2.76″ × 6.37″) |
| With Package Weight | Approx. 724 g (1.6 lb.) |
