AC318-MD 8.29MP HD EXIR Eyeball Camera 2.8 mm fixed lens
Login to see prices SKU: AC318-MD/2.8MM
| Camera Resolutions | |
|---|---|
| Lens Type | |
| Camera Style | |
| Lens Size | |
| Lens Mount | M12 |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.01Lux@(F1.2,AGC ON),0Lux with IR |
| Shutter Speed | PAL: 1/12.5s to1/50,000s NTSC: 1/15s to1/50,000s |
| Day & Night | IR cut filter |
| Angle Adjustment(Bracket) | Pan:0°to 360°,Tilt:0° to 75°,Rotate:0° to 360° |
| Interface Video Output | 1 HD analog output |
| Power Consumption | Max.5.3W |
| Material | Metal |
| Power | DC12V ±25% |
| Protection | IP67 |
| IR Range | Up to 30 m |
| Dimensions | 90mm×79.37mm(3.54"×3.12") |
| Weight | Approx.310g(0.68lb.) |
AC318-MD 8.29MP HD EXIR Eyeball Camera-3.6 mm fixed lens
Login to see prices SKU: AC318-MD/3.6MM
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Type | |
| Lens Size | |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.01Lux@(F1.2,AGC ON),0Lux with IR |
| Shutter Speed | PAL: 1/12.5s to1/50,000s NTSC: 1/15s to1/50,000s |
| Lens Mount | M12 |
| Day & Night | IR cut filter |
| Angle Adjustment(Bracket) | Pan:0°to 360°,Tilt:0° to 75°,Rotate:0° to 360° |
| Interface Video Output | 1 HD analog output |
| Power Consumption | Max.5.3W |
| Material | Metal |
| Power | DC12V ±25% |
| IR Range | Up to 30 m |
| Dimensions | 90mm×79.37mm(3.54"×3.12") |
| Weight | Approx.310g(0.68lb.) |
| Protection | IP67 |
CVI-EB240R-IR-Z 4 MP WDR HDCVI IR Motorized Eyeball Camera
Login to see prices SKU: CVI-EB240R-IR-Z
| Image Sensor | 1/3" CMOS |
|---|---|
| Lens Size | |
| Effective Pixels | 2688(H)×1520(V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| Camera Style | |
| Minimum Illumination | 0.01 Lux/F1.3, 30IRE, 0 Lux IR on |
| IR Distance | 60 m |
| IR LEDs | 2 |
| Lens Type | |
| Lens Mount | Board-in |
| Focal Length | 2.7-13.5mm |
| Max. Aperture | F1.3 |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
| Resolution | 4MP (2560×1440) |
| Frame Rate | 25fps@4MP, 25/30fps@1080P, 25/30fps@720P |
| WDR | 120 dB |
| Noise Reduction | 2D/3D |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Power | 12V DC ±25% |
| Power Consumption | Max 8.4W (12V DC, IR on) |
| Ingress Protection & Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimensions | Φ122mm×104.9mm (Φ4.8"×4.13") |
| Net Weight | 0.59kg (1.30lb) |
| Gross Weight | 0.74kg (1.63lb) |
EC-T8F28M 8MP HD Fixed Eyeball Network Camera
Login to see prices SKU: EC-T8F28M
| Sensor | 1/2.7" CMOS |
|---|---|
| Min. Illumination | Colour: 0.01 lux (F1.6 ,AGC ON) 0 lux with IR on |
| Camera Resolutions | |
| Camera Style | |
| Lens Size | |
| Lens Type | |
| WDR | 120 dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual ,1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360° ,Tilt: 0° ~ 75° ,Rotate: 0° ~ 360° |
| S/N | >52 dB |
| IR On/Off Control | Auto/Manual |
| Iris | F2.0 |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Wavelength | 850nm |
| Video Compression | Ultra 265 ,H.265 ,H.264 ,MJPEG |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD ,up to 512 GB |
| Network Storage | ANR ,NAS (NFS) |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Audio | |
| Power | DC 12V±25% ,PoE (IEEE 802.3af) Power consumption: Max 7.0W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Φ126 x 94mm (Φ5.0” x 3.7”) |
| Weight | 0.30kg (0.66lb) |
| Material | Metal + Plastic |
| Protection | IP67 |
| Surge Protection | 4 KV |
IPC-EB2449TM-ILM 4MP SMART DUAL ILLUMINATION FIXED-FOCAL EYEBALL WIZSENSE NETWORK CAMERA
Login to see prices SKU: IPC-EB2449TM-ILM-2.8
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Camera Style | |
| ROM/RAM | 128 MB/128 MB |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | 30 m (98.43 ft) (IR), 30 m (98.43 ft) (Warm light) |
| Lens Type | |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Video Compression | H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Audio | |
| Power | DC 12V |
| Protection | IP67 |
| Power Consumption | Basic: 2.1 W (12 VDC); 2.5 W (PoE) Max. (H.265 + intelligence on + WDR + warm light): 4.4 W (12 VDC); 5.2 W (PoE) |
| Casing Material | Inner core: Metal; Cover: Metal; Decoration ring: Plastic |
| Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
| Net Weight | 0.46 kg (1.01 lb) |
| Gross Weight | 0.65 kg (1.43 lb) |
IPC-EB244T-IR-ZS 4MP WDR IR Motorized Eyeball Network Camera
Login to see prices SKU: IPC-EB244T-IR-ZS
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Effective Pixels | 2688(H)×1520(V) |
| Camera Style | |
| ROM/RAM | 128 MB/128 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.008 Lux@F1.5 |
| IR Distance | 40 m |
| Pan/Tilt/Rotation Range | Pan 0°–360° ; Tilt: 0°–78°; Rotation: 0°–360° |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Field of View | Pan: 104°–27°; Tilt: 55°–15°; Diagonal: 124°–31° |
| Max. Aperture | F1.5 |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | < 6.4 W |
| Protection | IP67 |
| Casing | Metal |
| Dimensions | 108.3 mm × Φ122 mm (4.26" × Φ1.80") |
IPC-EB244TM-IR 4MP WDR IR Fixed Eyeball Network Camera built-in Mic
Login to see prices SKU: IPC-EB244TM-IR 3.6mm
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/128 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.008 Lux @ F1.6 |
| IR Distance | 30 m |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Video Bit Rate | H.264: 32 Kbps–6144 Kbps; H.265: 12 Kbps–6144 Kbps |
| Digital Noise Reduction | 3D DNR |
| Camera Style | |
| Lens Type | |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | Pan: 102.0° /Tilt: 55.0°/ Diagonal: 121.0° |
| Edge Storage | Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Audio | |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | < 6.6 W |
| Protection | IP67 |
| Casing | Metal |
| Dimensions | 99.1 mm × Φ121.9 mm (3.9" × Φ4.8") |
| Gross Weight | 0.65 kg (1.4 lb) |
IPC-EB244TM-IR-S 4MP IR Fixed-focal Eyeball WizSense Network Camera
Login to see prices SKU: IPC-EB244TM-IR-S 2.8
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Lens Type | |
| Max. Resolution | 2688 × 1520 |
| ROM/RAM | 128 MB/128 MB |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Focal Length | 2.8 mm; 3.6 mm |
| Lens Mount | M12 |
| Digital Noise Reduction | 3D DNR |
| Protection | IP67 |
| Video Compression | H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Power | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.5 W (12 VDC); 3.3 W (PoE); Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE) |
| Casing Material | Inner core: Metal Cover: Metal Decoration ring: Plastic |
| Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
| Net Weight | 0.48 kg (1.06 lb) |
| Gross Weight | 0.68 kg (1.5 lb) |
| Audio | |
| Camera Style |
IPC-EB2849TM-ILM 8MP Smart Dual Illumination Fixed-focal Eyeball WizSense Network Camera
Login to see prices SKU: IPC-EB2849TM-ILM-2.8
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Lens Type | |
| Max. Resolution | 3840 × 2160 |
| ROM/RAM | 128 MB/256 MB |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | 30 m (98.43 ft) (IR); 30 m (98.43 ft) (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens Mount | M12 |
| Max. Aperture | F1.6 |
| Focal Length | 2.8 mm; 3.6 mm |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Audio | |
| Power | DC 12V |
| Protection | IP67 |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| Casing Material | Inner core: Metal Cover: Metal Decoration ring: Plastic Quick install mounting plate: Metal |
| Product Dimensions | 99.1 mm × Φ121.9 mm (3.90"× Φ4.80") |
| Net Weight | 0.48 kg (1.06 lb) |
| Gross Weight | 0.62 kg (1.37 lb) |
IPC-EB284T-IR-S-ZS 8MP IR Vari-focal Eyeball WizSense Network Camera
Login to see prices SKU: IPC-EB284T-IR-S-ZS
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Max. Resolution | 3840 (H) × 2160 (V) |
| Camera Style | |
| Camera Resolutions | |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100 ,000 s |
| S/N Ratio | >56 dB |
| Illumination Distance | 40 m (131.23 ft) (IR) |
| Focal Length | 2.7 mm–13.5 mm |
| Lens Type | |
| Video Bit Rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Audio | |
| Network Port | RJ-45 (10/100 Base-T) |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.8 W (12 VDC); 3.6 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.4 W (12 VDC); 7.6 W (PoE) |
| Protection | IP67 |
| Casing Material | Metal |
| Product Dimensions | 108.3 mm 脳 桅122 mm (4.26" 脳 桅4.80") |
| Net Weight | 0.70 kg (1.54 lb) |
| Gross Weight | 0.88 kg (1.94 lb) |
IPC-EB284TM-IR 8MP LITE IR FIXED-FOCAL EYEBALL NETWORK CAMERA
Login to see prices SKU: IPC-EB284TM-IR 2.8MM
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Lens Mount | M12 |
| Effective Pixels | 3840(H)×2160(V) |
| ROM/ RAM | 128 MB/256 MB |
| Scanning System | Progressive |
| Lens Type | |
| Camera Style | |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.009 Lux@F2.0 |
| IR Distance | 30 m |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps; H.265: 12 Kbps–8192 Kbps |
| Digital Noise Reduction | 3D DNR |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: Pan 105° × Tilt 56° × Diagonal 125° |
| Edge Storage | Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Audio | |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | < 7.2 W |
| Protection | IP67 |
| Casing | Metal |
| Dimensions | 100.9 mm × Φ109.9 mm (3.97" × Φ4.33") |
| Net Weight | 0.48 kg (1.1 lb) |
| Gross Weight | 0.65 kg (1.4 lb) |
IPC-EB284TM-IR-S 8MP IR FIXED-FOCAL EYEBALL WIZSENSE NETWORK CAMERA
Login to see prices SKU: IPC-EB284TM-IR-S 2.8
| Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Lens Type | |
| Effective Pixels | 3840(H)×2160(V) |
| ROM/ RAM | 128 MB/256 MB |
| Minimum Illumination | 0.009 Lux@F2.0 |
| Illumination Distance | 30 m (98.43 ft) (IR) |
| Camera Resolutions | |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps; H.265: 12 Kbps–8192 Kbps |
| Digital Noise Reduction | 3D DNR |
| Camera Style | |
| Lens Mount | M12 |
| Max. Aperture | F2.0 |
| Audio | |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.7 W (12 VDC); 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 4.5 W (12 VDC); 5.4 W (PoE) |
| Protection | IP67 |
| Casing Material | Inner core: Metal; Cover: Metal Decoration ring: Plastic Quick install mounting plate: Metal |
| Product Dimensions | 99.1 mm × Φ121.9 mm (3.90"× Φ4.80") |
| Net Weight | 0.48 kg (1.06 lb) |
| Gross Weight | 0.68 kg (1.50 lb) |
IPC-EB344R-IR-ZAS 4MP LITE AI IR VARI-FOCAL MOTORIZED EYEBALL NETWORK CAMERA
Login to see prices SKU: IPC-EB344R-IR-ZAS
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/512 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.005 Lux@F1.5 |
| IR Distance | 40 m |
| Pan/Tilt/Rotation Range | Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360° |
| Digital Noise Reduction | 3D DNR |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Camera Style | |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 104°–27°; Vertical: 55° –15° ; Diagonal: 124° –31° |
| Edge Storage | FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Audio | |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | <8.3W |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 108.3 mm × Φ122 mm (4.3" × Φ4.8") |
| Gross Weight | 828 g (1.8 lb) |
IPC-EB344TM-IR 4MP Lite AI IR Fixed focal Eyeball Network Camera
Login to see prices SKU: IPC-EB344TM-IR/3.6MM
| Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Camera Style | |
| Lens Size | |
| Lens Type | |
| Effective Pixels | 2688(H)×1520(V) |
| IR Range | Up to 50 m |
| Interface Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Lens Mount | M12 |
| Focal Length | 3.6 mm |
| Digital Noise Reduction | 3D DNR |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Audio | |
| Power | DC 12V ,PoE (802.3af) |
| Power Consumption | <7.7W |
| Protection | IP67 |
| Casing | Metal +Plastic |
| Dimensions | 99.1 mm × Φ121.9 mm (3.9" × Φ4.8") |
| Net Weight | 480 g (1.05 lb) |
| Gross Weight | 660 g (1.45 lb) |
IPC-EB344TM-LED 4MP Lite AI Full-color Warm LED Fixed-focal Eyeball Network Camera
Login to see prices SKU: IPC-EB344TM-LED 2.8MM
| Camera Resolutions | |
|---|---|
| Lens Type | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Camera Style | |
| Max. Resolution | 2688 × 1520 |
| ROM/ RAM | 128 MB/512 MB |
| Minimum Illumination | 0.003 Lux @ F1.0 |
| Illumination Distance | 30 m (98.4 ft) (Warm light) |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Lens Mount | M12 |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: Horizontal 103° × vertical 53° × diagonal 122 |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Audio | |
| Power | DC 12V/PoE |
| Power Consumption | < 8.5 W |
| Protection Grade | IP67 |
| Casing | Inner core: Metal ; Cover: Metal; Decoration ring: Plastic |
| Dimensions | 99.1 mm × Φ121.9 mm (3.9" × Φ4.8") |
| Net Weight | 480 g (1.05 lb) |
| Gross Weight | 660 g (1.45 lb) |
| Protection | IP67 |
IPC-EB384H-IRM-PV 8MP IR Fixed focal Eyeball WizSense Network Camera
Login to see prices SKU: IPC-EB384H-IRM-PV
| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Lens Type | |
| Camera Style | |
| Max. Resolution | 3840 × 2160 |
| ROM/RAM | 128 MB/512 MB |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.007 Lux @F1.4 |
| Illumination Distance | 30 m (98.4 ft) |
| Lens Mount | M12 |
| Digital Noise Reduction | 3D DNR |
| Focal Length | 2.8 mm |
| WDR | 120 dB |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Max. Aperture | F1.4 |
| Audio | , |
| Power | DC 12V |
| Protection | IP67 |
| Casing | Metal |
| Dimensions | Φ122.0 mm × 110.9 mm (4.8" × 4.4") |
| Weight | Net Weight: 754 g (1.7 lb) Gross Weight: 915 g (2.0 lb) |

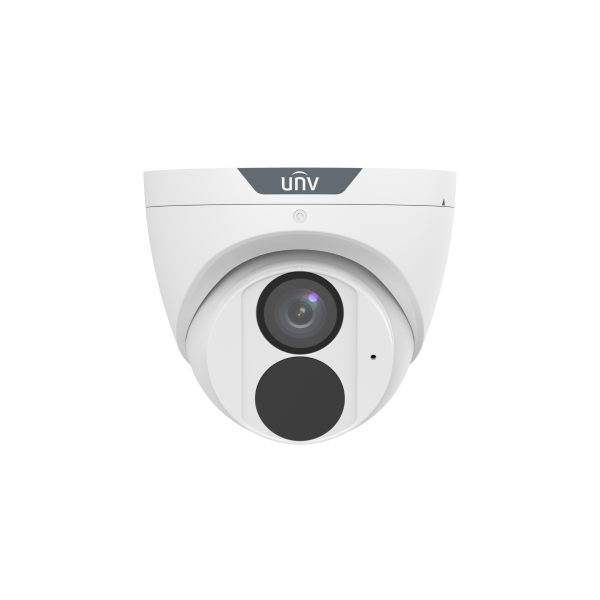

IPC3614SR-ADF28KM-H 4MP HD Easystar WDR Fixed IR Eyeball Network Camera
Login to see prices SKU: IPC3614SR-ADF28KM-H
| Sensor | 1/3.0" CMOS |
|---|---|
| Min. Illumination | Color: 0.003 Lux (F1.6 ,AGC ON) ,0 Lux with IR on |
| Camera Resolutions | |
| Camera Style | |
| Lens Size | |
| Lens Type | |
| WDR | 120 dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual ,1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360° ,Tilt: 0° to 80° ,Rotate: 0° to 360° |
| S/N | >52 dB |
| IR On/Off Control | Auto/Manual |
| Iris | F1.6 |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Wavelength | 850nm |
| Video Compression | Ultra 265 ,H.265 ,H.264 ,MJPEG |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD ,up to 512 GB |
| Network Storage | ANR ,NAS (NFS) |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Audio | |
| Power | DC 12 V±25% ,PoE (IEEE 802.3af) |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H) |
| Weight | 0.32 kg (0.71 lb) |
| Material | Metal |
| Surge Protection | 4 KV |
| Protection | IP67 |
| Power Consumption | Max. 4.4 W |
IPC3614SR-ADF28KMC-DL-H 4MP Double Light WDR Intelligence Eyeball Network Camera
Login to see prices SKU: IPC3614SR-ADF28KMC-DL-H
| Sensor | 1/3.0" CMOS |
|---|---|
| Min. Illumination | Color: 0.003 Lux (F1.6 ,AGC ON) ,0 Lux with light |
| Camera Resolutions | |
| Camera Style | |
| Lens Size | |
| Lens Type | |
| WDR | 120 dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual ,1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360° ,Tilt: 0° to 80° ,Rotate: 0° to 360° |
| S/N | >52 dB |
| IR On/Off Control | Auto/Manual |
| Iris | F1.6 |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Wavelength | 850nm |
| Video Compression | Ultra 265 ,H.265 ,H.264 ,MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD ,up to 512 GB |
| Network Storage | ANR ,NAS (NFS) |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Audio | |
| Power | DC 12 V±25% ,PoE (IEEE 802.3af) |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø110.5 mm × 97.2 mm (Ø4.4" × 3.8") (Ø × H) |
| Weight | 0.32 kg (0.71 lb) |
| Material | Metal |
| Surge Protection | 4 KV |
| Protection | IP67 |
| Power Consumption | Max. 8.0 W |
