Operating Voltage Range	5 to 16 VDC from a regulated power supply
Standby Input Current	35 mA
Maximum Input Current	55 mA
Tamper Output	Open collector, active low, max. sink current 16 mA
Inputs	Programmable LED and buzzer control inputs, N.O, Dry Contact
Indicators	Tri-colored LED indicators
Output Format	Selectable transmission formats: Wiegand 26-Bit w/site code, Fixed 26-bit, 32-Bit, 32-Bit reversed, 34-Bit, 40-Bit and Clock & Data
Proximity Card Reader	Compatible Cards: MIFARE Classic EV1 Compatible ISO-14443A Range also depends on electrical environment and proximity to metal.
Max. Read Range	70 mm (2.8 in.)
Operating Environment	Water resistant, suitable for outdoor use (meets IP65)
Dimensions	110 x 75 x 15 mm (4.3 x 3.0 x 0.6 in.)
Weight	116.9 g (4.1 oz)
SYSTEM COMPONENTS	The AY-x25B series of readers are compatible with a variety of Rosslare's controllers as well as with many third party systems
PRODUCT WARRANTY	5-Year Limited Product Warranty

Operating Voltage Range	Ope5 to 16 VDC from a regulated power supply rating Voltage Range
Standby Input Current	35 mA
Maximum Input Current	55 mA
Tamper Output	Open collector, active low, max. sink current 16 mA
Inputs	Programmable LED and buzzer control inputs, N.O, Dry Contact
Indicators	Tri-colored LED indicators
Output Format	Selectable transmission formats: Wiegand 26-Bit w/site code, Fixed 26-bit, 32-Bit, 32-Bit reversed, 34-Bit, 40-Bit and Clock & Data
Proximity Card Reader	Compatible Cards: MIFARE Classic EV1 Compatible ISO-14443A Range also depends on electrical environment and proximity to metal.
Max. Read Range	60 mm (2.4 in.)
Operating Environment	Water resistant, suitable for outdoor use (meets IP65)
Dimensions	80 x 40 x 12.8 mm (3.2 x 1.6 x 0.5 in.)
Weight	68.5 g (2.4 oz)
SYSTEM COMPONENTS	The AY-x25B series of readers are compatible with a variety of Rosslare's controllers as well as with many third party systems
PRODUCT WARRANTY	5-Year Limited Product Warranty

Operating Voltage Range	5 to 16 VDC from a regulated power supply
Standby Input Current	35 mA
Maximum Input Current	55 mA
Tamper Output	Open collector, active low, max. sink current 16 mA
Inputs	Programmable LED and buzzer control inputs, N.O, Dry Contact
Indicators	Tri-colored LED indicators
Output Format	Selectable transmission formats: Wiegand 26-Bit w/site code, Fixed 26-bit, 32-Bit, 32-Bit reversed, 34-Bit, 40-Bit and Clock & Data
Proximity Card Reader	Compatible Cards: MIFARE Classic EV1 Compatible ISO-14443A Range also depends on electrical environment and proximity to metal.
Max. Read Range	70 mm (2.8 in.)
Operating Environment	Water resistant, suitable for outdoor use (meets IP65)
Dimensions	145 x 43 x 20 mm (5.7 x 1.7 x 0.8 in.)
Weight	111.1 g (3.9 oz)
SYSTEM COMPONENTS	The AY-x25B series of readers are compatible with a variety of Rosslare's controllers as well as with many third party systems
PRODUCT WARRANTY	5-Year Limited Product Warranty

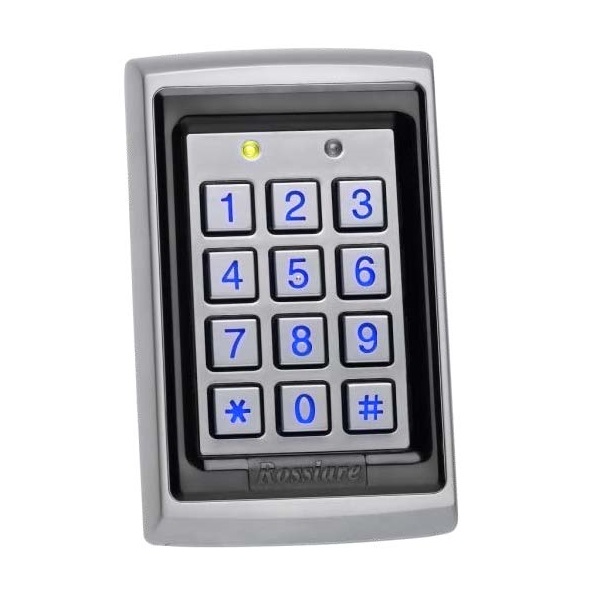

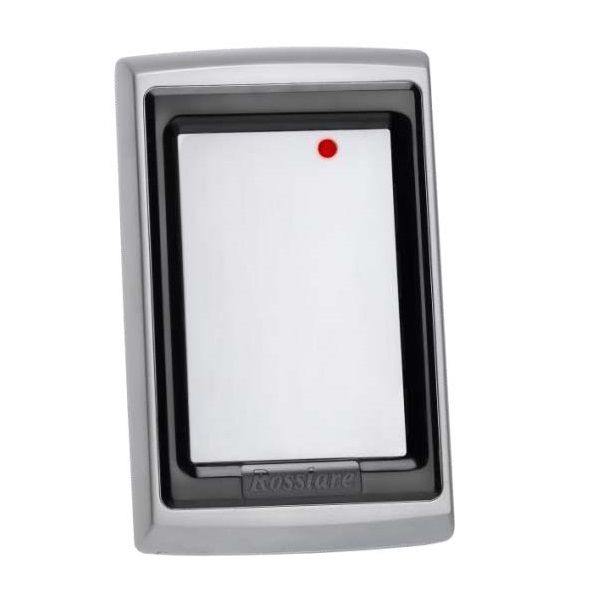

Operating Voltage Range	5–16 VDC
Standby Input Current	110 mA
Maximum Input Current	190 mA
Tamper Output	Open collector, active low, max. sink current 30 mA
Inputs	Programmable LED control / buzzer control Input, N.O, Dry Contact
Indicators	Tri-Colored LED indicator
Output Formats	Wiegand 26-Bit, Clock & Data, Wiegand 32-Bit, Wiegand 34-Bit, Wiegand 40-Bit
Built-In Proximity Reader	Operating Frequency: 13.56 MHz MIFARE Classic EV1 Compatible ISO-14443A-3
Max. Proximity Read Range	45 mm (1.8 in.)
Operating Environment	Water resistant, suitable for outdoor use (meets IP65)
Operating Temperature Range	-31°C to 63°C (-25°F to 145°F)
Dimensions	125 x 83 x 29.5 mm (4.9 x 3.3 x 1.2 in.)
Weight	480 g (1.1 lb)
SYSTEM COMPONENT	The Read-Sector Readers are compatible with Rosslare’s CP-R25 USB Desktop card programmer and its associated AS-B01 Card Programming Software. The readers are compatible with a variety of Rosslare's controllers as well as with many third party systems
PRODUCT WARRANTY	5-Year Limited Product Warranty
