Outputs	One dry contact relay with two separate outputs One Normally Open, One Normally Closed 2 A
Input Current, Max	Standby 15 mA @ 24 VDC Maximum 140 mA @ 24 VDC
Button Switch Lifespan	Over 1 Billion Cycles
Relay Expectancy	100,000 @ 2 A 30 VDC 500,000 @ 1 A 30 VDC
Operating Environment	Suitable for indoor and outdoor use (meets IP-65)
Operating Temperature Range	-35˚C to 66˚C (-31˚F to 151˚F)
Material	Stainless steel faceplate and button cup
Dimensions	11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Weight	238 g (8.4 oz.)
Output Mode	Selectable Toggle or timed Pulse
Pulse and Led indication time	Selectable 1–60 seconds
Led indicator	Off, Red, and Green

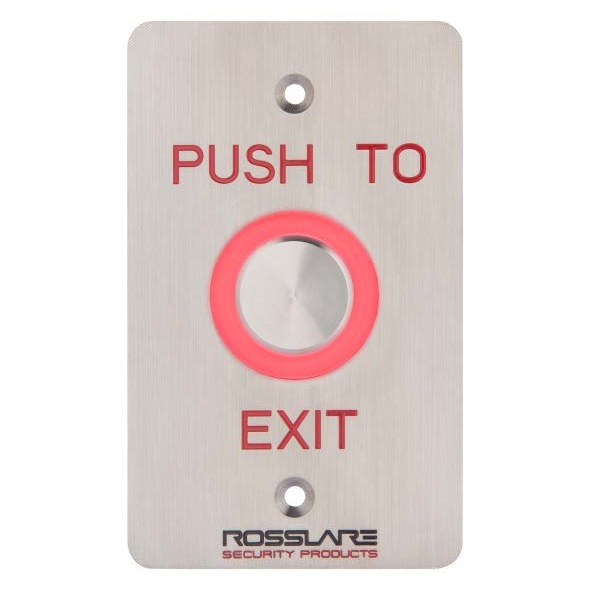

SYSTEM COMPONENTS	The EX-06 is compatible with all switch operated electrical devices. The unit also works with all of Rosslare’s Access control units as well as all standard access control systems.
PRODUCT WARRANTY	5-year limited product warranty

Operating Voltage Range	12-24 VAC / VDC
Outputs (4A, dual 2 + 2)	One dry contact relay with two separate full Form C outputs
Input Current, Max	Standby 15 mA @ 24 VDC Maximum less than 150 mA @ 24 VDC
Button Switch Lifespan	Over 1 Billion Cycles
Relay Expectancy	100,000 @ 2 A 24 VDC 500,000 @ 1 A 24 VDC
Operating Environment	Suitable for indoor and outdoor use (meets IP-65)
Operating Temperature	-35˚C to 66˚C (-31˚F to 151˚F)
Material	Stainless steel faceplate and butt
Dimensions	11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Weight	277 g (9.8 oz)
Output Mode	Selectable Toggle or timed Pulse
Input Mode	Selectable LED control or alarm
Pulse and Led indication time	Selectable 1-60 seconds
Led indicator	Off, Red, and Green
Buzzer mode	Off, On (selectable between alarm input mode and buzzer beep upon button press mode)
External lighting alert input	For evacuation and other applications
EX-0700	No Text
EX-07E0	“PUSH TO EXIT”
MP-06	External mounting metal box

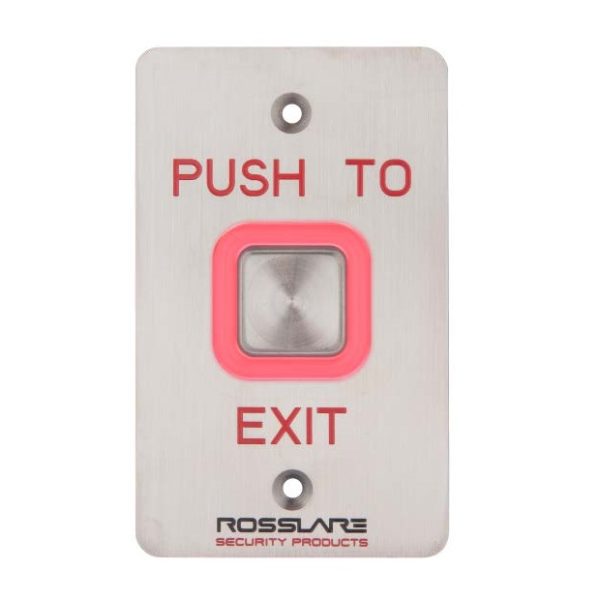

SYSTEM COMPONENTS	The EX-07 is compatible with all switch operated electrical devices. The unit also works with all of Rosslare’s Access control units as well as all standard access control systems.
PRODUCT WARRANTY	5-year Limited Product Warranty

Operating Voltage Range	10–24 VDC
Outputs	One dry contact relay with two separate outputs One Normally Open, One Normally Closed
Input Current, Max	140 mA @ 24 VDC
Button Switch Lifespan	Over 1 Billion Cycles
Relay Expectancy	100,000 @ 2A 30VDC 500,000 @ 1A 30VDC
Operating Environment	Suitable for indoor and outdoor use (meets IP-65)
Operating Temperature Range	-35˚C to 66˚C (-31˚F to 151˚F)
Material	Stainless steel faceplate and button cup
Dimensions	11.4 x 4.4 x 3.2 cm (4.5 x 1.75 x 1.25 inch)
Weight	173 g (6.1 oz)
Output Mode	Selectable Toggle or timed Pulse
Pulse and LED Indication Time	Selectable 1–60 seconds
Led indicator	Off, Red, and Green

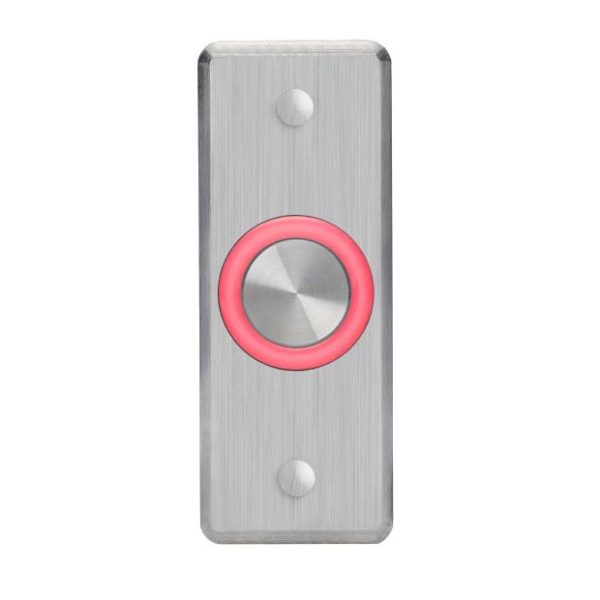

EX-1600	No Text
EX-16E0	“EXIT”
MP-06	External mounting metal box
SYSTEM COMPONENTS	The EX-16 is compatible with all switch operated electrical devices. The unit also works with all of Rosslare’s Access control units as well as all standard access control systems.
PRODUCT WARRANTY	5-year limited product warranty
