NVR301-04B-P4-IQ 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 Smart On：2 x 4K@30 ,4 x 4MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port ,Max 50W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 2.7Kg (6.0lb) |
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR301-04LS3-P4 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 1 x 4K@30 ,4 x 5MP@25 ,4 x 4MP@25 ,4 x 3MP@25 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | 128 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 2 × USB2.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 54 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 9W |
| Weight (without HDD) | ≤ 0.6Kg (1.32lb) |
| Dimensions | 205mm × 205mm × 46mm (8.1"×8.1"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR301-04S3-P4 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 1 x 4K@30 ,4 x 5MP@25 ,4 x 4MP@25 ,4 x 3MP@25 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | 128 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 2 × USB2.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 54 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 9W |
| Weight (without HDD) | ≤ 1.1Kg (2.43lb) |
| Dimensions | 260mm × 240mm × 46mm (10.2"×9.4"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR301-08B-LP8-IQ 1 HDD 8-ch 8 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 8 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart On：2 x 4K@30 ,4 x 4MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 52 V/1.8 A |
| PoE Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port ,Max 75W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 4Kg (8.8lb) |
| Dimensions | 270mm × 212mm × 46mm (10.6"×8.3"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR301-08LS3-P8 1 HDD 8-ch 8 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 8 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 1 x 4K@30 ,4 x 5MP@25 ,4 x 4MP@25 ,4 x 3MP@25 ,6 x 1080P@30 ,8 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | 128 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 2 × USB2.0 |
| Power Supply | DC 52 V/1.8 A |
| PoE Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 75 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 9W |
| Weight (without HDD) | ≤ 0.8Kg (1.76lb) |
| Dimensions | 270mm × 205mm × 46mm (10.6"×8.1"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR301-08S3-P8 1 HDD 8-ch 8 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 8 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 1 x 4K@30 ,4 x 5MP@25 ,4 x 4MP@25 ,4 x 3MP@25 ,6 x 1080P@30 ,8 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | 128 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 2 × USB2.0 |
| Power Supply | DC 52 V/1.8 A |
| PoE Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 75 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 9W |
| Weight (without HDD) | ≤ 1.1Kg (2.43lb) |
| Dimensions | 260mm × 240mm × 46mm (10.2"×9.4"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-04B 1 HDD 4-ch 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/2 A |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Alarm Out | N/A |
| Alarm In | N/A |
| Power Consumption (without HDD) | ≤ 6W |
| Weight (without HDD) | ≤ 0.98Kg (2.16lb) |
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-04B-LP4 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 50 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 10W |
| Weight (without HDD) | ≤ 0.8Kg (1.76lb) |
| Dimensions | 270mm × 205mm × 46mm (10.6"×8.1"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-04B-LP4-IQ 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 Smart On: 2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 50 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 8W |
| Weight (without HDD) | ≤ 1Kg (2.2lb) |
| Dimensions | 205mm ×212mm × 46.6mm (8.1" ×8.3" ×1.8" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-04B-P4 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 50 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 10W |
| Weight (without HDD) | ≤ 1.1Kg (2.43lb) |
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

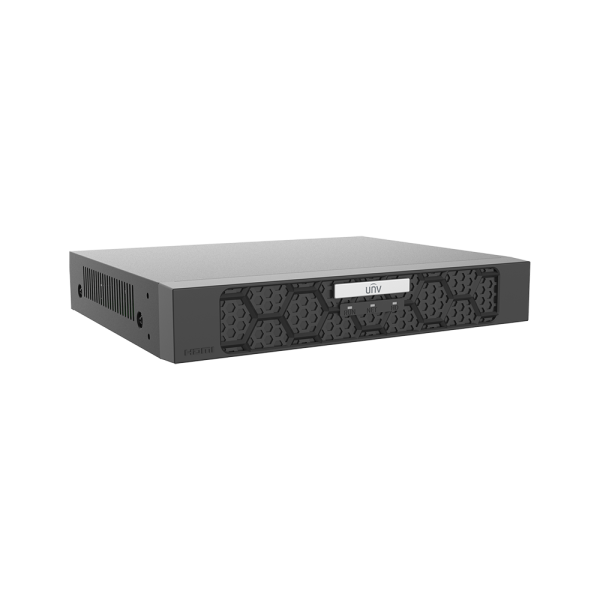

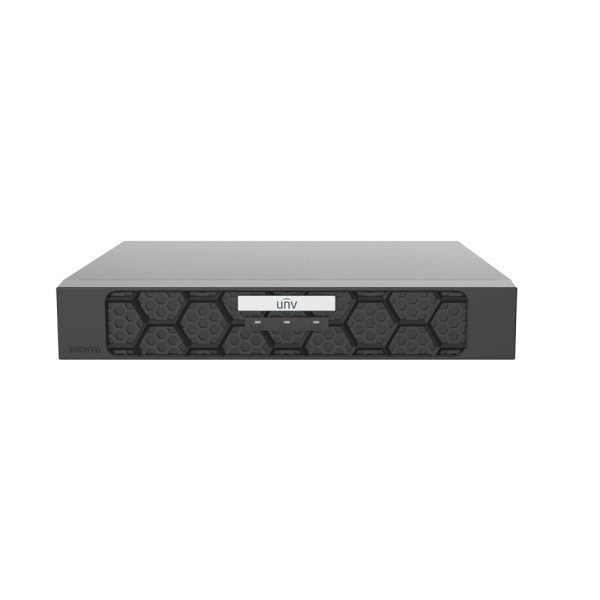

NVR501-04B-P4-IQ 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 Smart On: 2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 50 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 8W |
| Weight (without HDD) | ≤ 1Kg (2.2lb) |
| Dimensions | 260mm ×215mm × 46.6mm (10.2" ×8.5" ×1.8" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-08B 1 HDD 8-ch 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/2 A |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Alarm Out | N/A |
| Alarm In | N/A |
| Power Consumption (without HDD) | ≤ 6W |
| Weight (without HDD) | ≤ 0.98Kg (2.16lb) |
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-08B-LP8 1 HDD 8-ch 8 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 8 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 52 V/1.8 A |
| PoE Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 75 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 10W |
| Weight (without HDD) | ≤ 0.9Kg (1.98lb) |
| Dimensions | 270mm × 205mm × 46mm (10.6"×8.1"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-08B-LP8-IQ 1 HDD 8-ch 8 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 8 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 Smart On: 2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | DC 52 V/1.8 A |
| PoE Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 75 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 8W |
| Weight (without HDD) | ≤ 1Kg (2.2lb) |
| Dimensions | 270mm ×210mm × 46.6mm (10.6" ×8.3" ×1.8" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

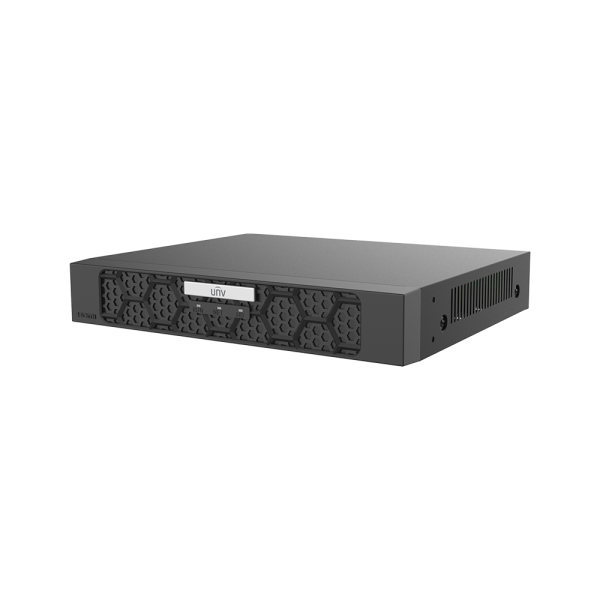

NVR501-08B-P8 8-ch 8 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 8 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 52 V/1.8 A |
| PoE Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 75 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 10W |
| Weight (without HDD) | ≤ 1.1Kg (2.43lb) |
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-08B-P8-IQ 1 HDD 8-ch 8 PoE 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 8 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 Smart On: 2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | DC 52 V/1.8 A |
| PoE Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 75 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 8W |
| Weight (without HDD) | ≤ 1Kg (2.2lb) |
| Dimensions | 260mm ×215mm × 46.6mm (10.2" ×8.5" ×1.8" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-16B 16-ch 1U Network Video Recorder Up to 16 MP
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 ,14 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/2 A |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Alarm Out | N/A |
| Alarm In | N/A |
| Power Consumption (without HDD) | ≤ 6W |
| Weight (without HDD) | ≤ 0.98Kg (2.16lb) |
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

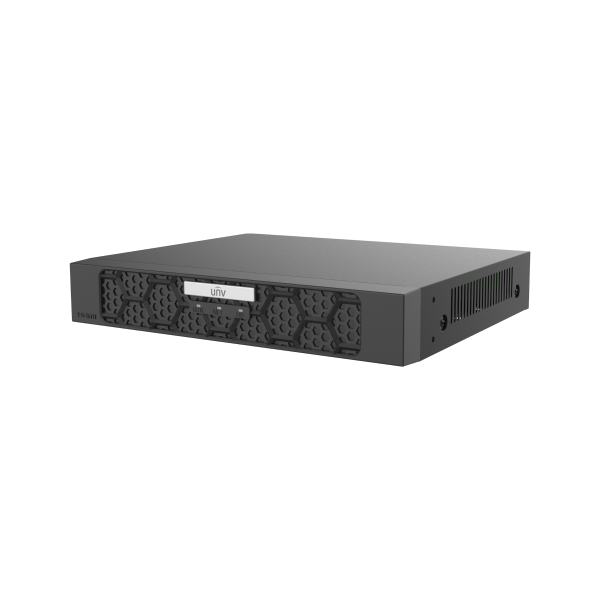

NVR501-16B-IQ 16-ch 1U Network Video Recorder Up to 16 MP
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 Smart On: 2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 ,12 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | DC 12 V/2 A |
| RS485 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Power Consumption (without HDD) | ≤ 8W |
| Weight (without HDD) | ≤ 1Kg (2.2lb) |
| Dimensions | 260mm ×215mm × 46.6mm (10.2" ×8.5" ×1.8" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
