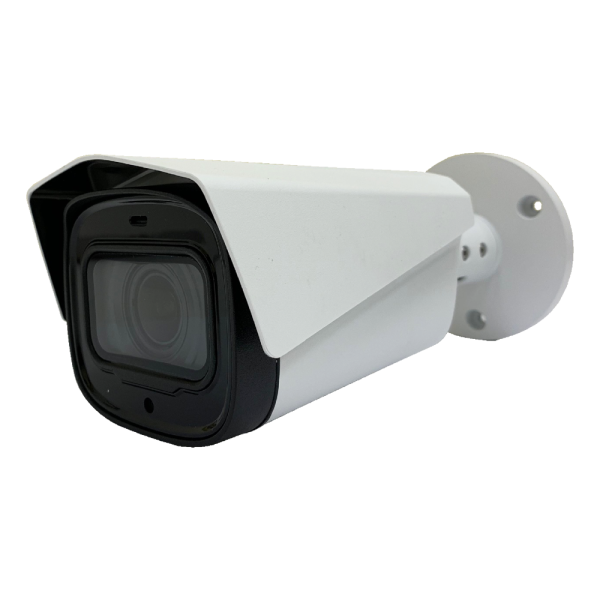

XVI-BU182R-IR-Z 4K HDCVI Smart IR Motorized Bullet Camera
Login to see prices SKU: XVI-BU182R-IR-Z
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Camera Style | |
| Effective Pixels | 3840(H)×2160(V) |
| Shutter Speed | PAL: 1/3s–1/100000s NTSC: 1/4s–1/100000s |
| Minimum Illumination | 0.03 Lux/F1.7 ,30IRE ,0 Lux IR on |
| Lens Size | |
| IR Distance | 60 m |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7mm–13.5mm |
| Max. Aperture | F1.7 |
| Angle of View | Horizontal: 105°–33° Vertical: 56°–18° Diagonal: 126°–38° |
| Resolution | 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480) |
| Digital Noise Reduction | 2D/3D DNR |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio Port | One channel built-in mic (-A) |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio | |
| Power | 12VDC ±30% |
| Power Consumption | Max 11W (12V DC, IR on) |
| Protection | IP67 |
| Casing | Metal throughout the whole casing |
| Dimensions | 209.9mm×90.4mm×90.4mm (8.26"×3.56"×3.56") |
| Net Weight | 0.55kg (1.21lb) |
| Gross Weight | 0.7kg (1.54lb) |

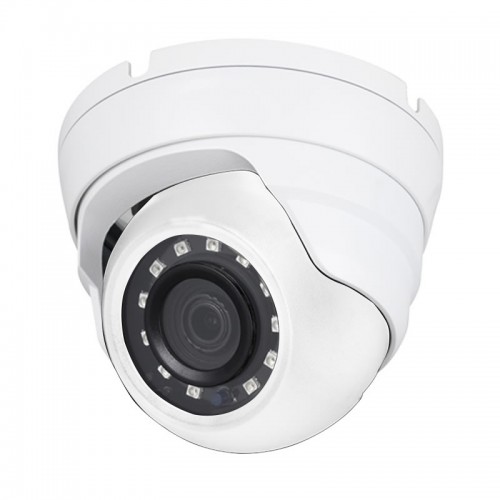

XVI-EB1203M-IR 2MP HDCVI IR EYEBALL CAMERA
Login to see prices SKU: XVI-EB1203M-IR 2.8MM
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Camera Resolutions | |
| Camera Style | |
| Effective Pixels | 1920(H)×1080(V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02 Lux/F1.85 ,30IRE ,0 Lux IR on |
| IR Distance | 30 m |
| Lens Type | |
| Focal Length | 2.8mm |
| Max. Aperture | F1.85 |
| Resolution | 1080P (1920×1080) |
| WDR | DWDR |
| Digital Noise Reduction | 2D DNR |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Power | 12VDC ±30% |
| Power Consumption | Max 3.3W (12V DC, IR on) |
| Ingress Protection & Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimension | Φ93.4mm×79.4mm (Φ3.68"×3.13") |
| Net Weight | 0.27kg (0.60lb) |
| Gross Weight | 0.34kg (0.75lb) |

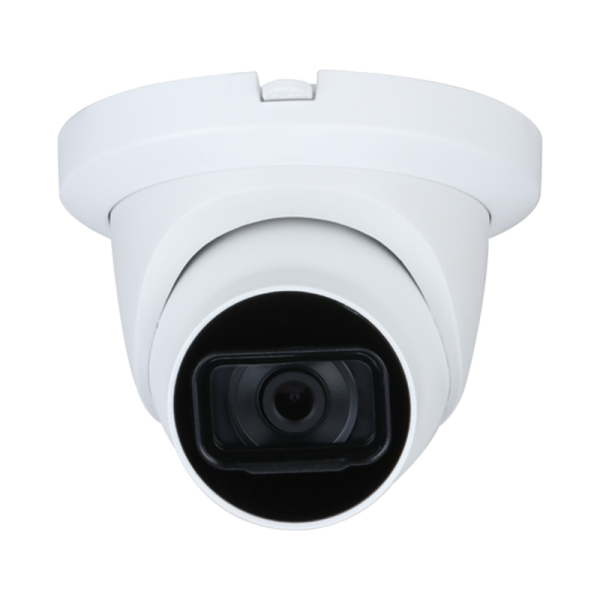

XVI-EB122TLM-IRM 2MP HDCVI QUICK-TO-INSTALL IR EYEBALL CAMERA
Login to see prices SKU: XVI-EB122TLM-IRM 2.8MM
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 1920 × 1080 |
| Pixel | 2MP |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s |
| Minimum Illumination | 0.02 Lux/F1.9, 30 IRE, 0 Lux IR on |
| Illumination Distance | 30 m (98.4 ft) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78° ; Rotation: 0°–360° |
| Lens Type | |
| Camera Style | |
| Lens Size | |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Field of View | 2.8 mm: 119° x 101° x 54°(diagonal x horizontal x vertical) 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) |
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480) |
| Digital Noise Reduction | 2D DNR |
| Audio Output | One channel built-in mic (-A) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio | |
| Power | 12VDC ±30% |
| Power Consumption | Max 2.9W (12V DC, IR on) |
| Protection Grade | IP67 |
| Casing | Metal dome+metal cover+plastic decorative ring |
| Camera Dimensions | φ109.9 mm × 88.1 mm ( φ4.33" × 3.47" ) |
| Gross Weight | 0.44 Kg (0.97 lb) |

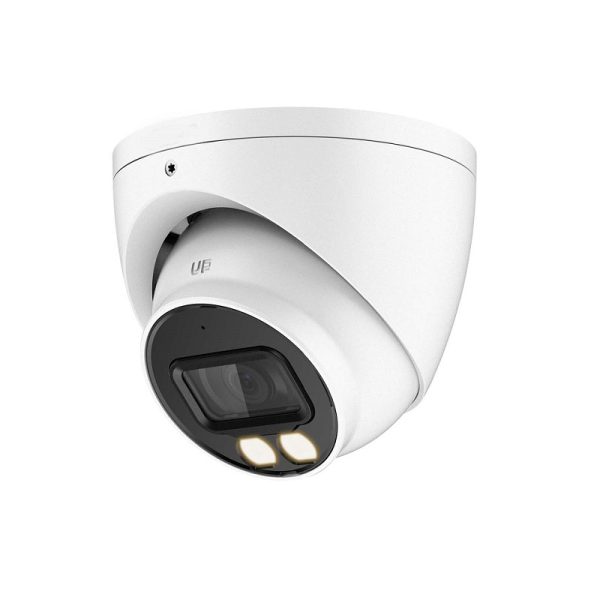

XVI-EB152T-DLM 5MP SMART DUAL LIGHT HDCVI FIXED TURRET CAMERA
Login to see prices SKU: XVI-EB152T-DLM-2.8
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Type | |
| Max. Resolution | 2880 × 1620 |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance | IR: 40 m (131.23 ft); Warm Light: 40 m (131.23 ft) |
| Angle Adjustment | Pan: 0°–360° ; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens Mount | M12 |
| Focal Length | 2.8mm; 3.6mm |
| Max. Aperture | F1.6 |
| Field of View | H: 106°; V: 56°; D: 125°;H: 92°; V: 48°; D: 109° |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| Digital Noise Reduction | 2D DNR |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio | |
| Power | 12VDC ±30% |
| Power Consumption | Max 4.5 W (12 VDC, WLED on) |
| Casing Material | Metal |
| Product Dimensions | φ106.0 mm × 93.6 mm (φ4.17" × 3.69" |
| Net Weight | 0.47 kg (1.04 lb |
| Gross Weight | 0.6 kg (1.32 lb) |
| Protection | IP67 |

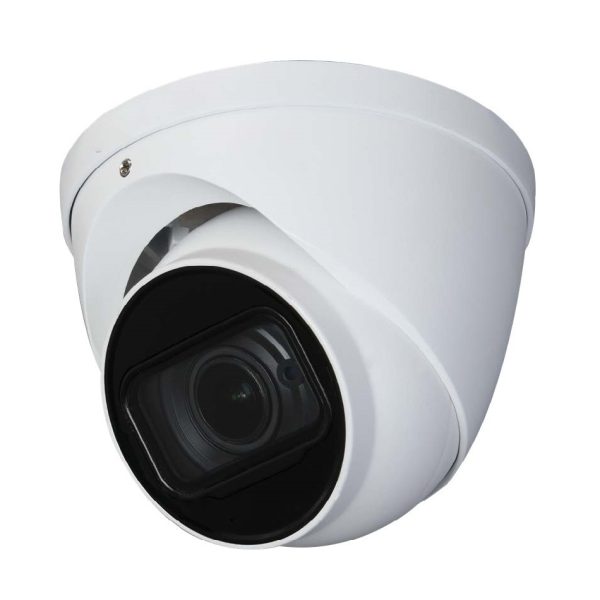

XVI-EB152T-IR-ZA 5MP HDCVI IR MOTORIZED EYEBALL CAMERA
Login to see prices SKU: XVI-EB152T-IR-ZA
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Camera Resolutions | |
| Effective Pixels | 2592(H)×1944(V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02 Lux/F1.8, 30IRE, 0 Lux IR on |
| IR Distance | 60 m |
| Lens Type | |
| Lens Mount | Board-in |
| Camera Style | |
| Focal Length | 2.7-12mm |
| Max. Aperture | F1.8 |
| WDR | DWDR |
| Digital Noise Reduction | 2D DNR |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Audio | |
| Power | 12VDC ±30% |
| Power Consumption | Max. 8.2W (12V DC, IR on) |
| Ingress Protection &Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimension | φ122mm×104mm(Φ4.8"×4.1") |
| Net Weight | 0.57kg (1.26lb) |
| Gross Weight | 0.72kg (1.59lb) |

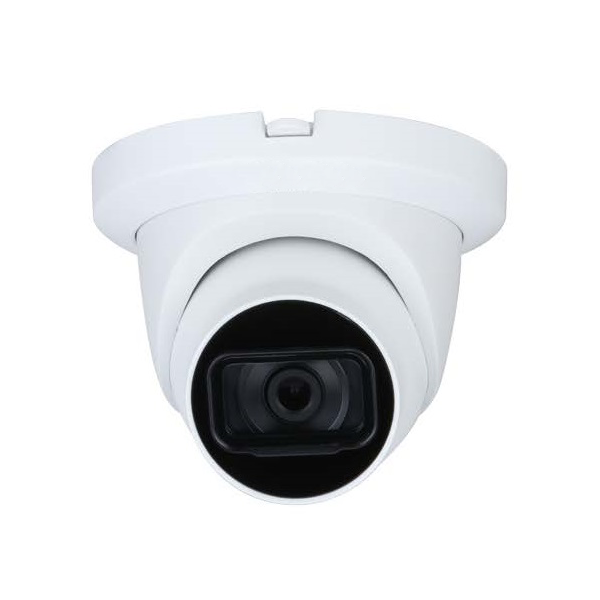

XVI-EB152TM-IRM 5MP STARLIGHT HDCVI QUICK-TO-INSTALL IR EYEBALL CAMERA
Login to see prices SKU: XVI-EB152TM-IRM 2.8MM
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2880 × 1620 |
| Pixel | 5MP |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Minimum Illumination | 0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
| Illumination Distance | 60 m (196.9 ft) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens Type | |
| Lens Size | |
| Camera Style | |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480) |
| WDR | DWDR |
| Digital Noise Reduction | 2D DNR |
| Audio | |
| Power | 12V ±30% DC |
| Power Consumption | Max 5.2W (12V DC, IR on) |
| Protection | IP67 |
| Casing | Metal dome+metal cover+plastic decorative ring |
| Camera Dimensions | φ121.9 mm × 99.1 mm (φ4.8" × 3.9") |
| Net Weight | 0.4 kg (0.88 lb) |
| Gross Weight | 0.6 kg (1.32 lb) |

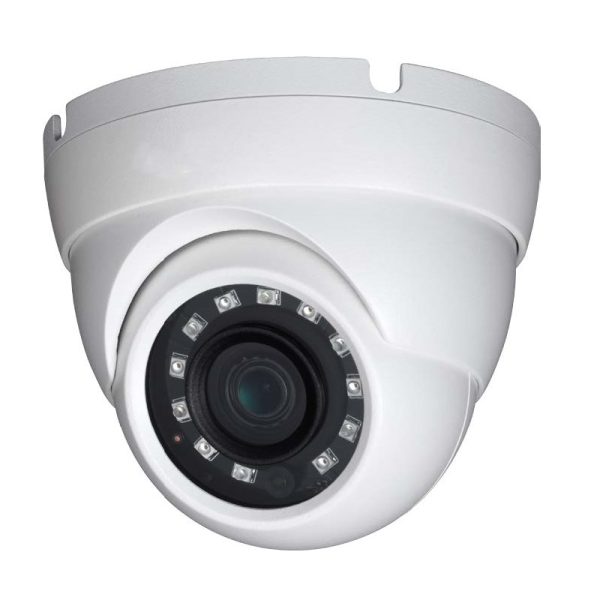

XVI-EB182M-IR 4K HDCVI IR EYEBALL CAMERA
Login to see prices SKU: XVI-EB182M-IR 2.8MM
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Effective Pixels | 3840(H)×2160(V) |
| Shutter Speed | PAL: 1/3s–1/100000s NTSC: 1/4s–1/100000s |
| Minimum Illumination | 0.03 Lux/F2.0 ,30 IRE ,0 Lux IR on |
| IR Distance | 30 m |
| Pan/Tilt/Rotation Range | Pan: 0°-360°; Tilt: 0°-78°; Rotation: 0°-360° |
| Lens Type | |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Angle of View | 2.8mm: 125°×105°×56° (diagonal×horizontal×vertical) |
| Resolution | 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480) |
| WDR | 120 dB |
| Lens Size | |
| Camera Style | |
| Digital Noise Reduction | 2D/3D DNR |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio | |
| Power | 12VDC ±30% |
| Power Consumption | Max 4.9W (12V DC, IR on) |
| Protection | IP67 |
| Casing | Metal throughout the whole casing |
| Dimensions | Φ93.4mm×79.4mm (3.68”×3.13”) |
| Net Weight | 300g (0.66lb) |
| Gross Weight | 380g (0.84lb) |

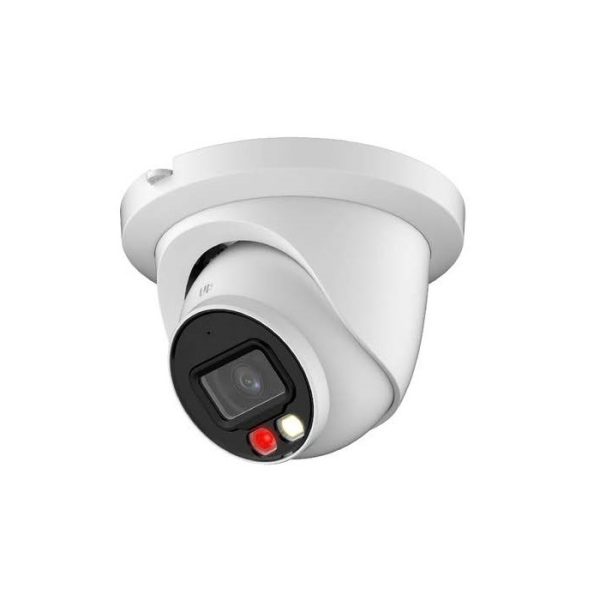

XVI-EB182T-DLM 4K SMART DUAL LIGHT HDCVI FIXED-FOCAL EYEBALL CAMERA
Login to see prices SKU: XVI-EB182T-DLM-2.8
| Image Sensor | 4K CMOS |
|---|---|
| Max. Resolution | 3840 × 2160 |
| Scanning System | Progressive |
| Camera Style | |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.01 lux@F2.0 (Color, 30 IRE) ; 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance | IR: 40 m (131.23 ft); Warm light: 40 m (131.23 ft) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° ; Tilt: 0°–78°; Rotation: 0°–360° |
| Digital Noise Reduction | 3D DNR |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 88°; V: 46°; D: 105° |
| Resolution | 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| WDR | 120 dB |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio | |
| Power | 12VDC ±30% |
| Lens Type | |
| Power Consumption | Max 5.7 W (12 VDC, LED on) |
| Protection | IP67 |
| Casing Material | Metal |
| Product Dimensions | φ106.0 mm × 99.2 mm (φ4.17" × 3.91") |
| Net Weight | 0.47 kg (1.04 lb) |
| Gross Weight | 0.69 kg (1.52 lb) |
XVI-EB182T-IR-ZA 4K HDCVI IR MOTORIZED TURRET CAMERA
Login to see prices SKU: XVI-EB182T-IR-ZA
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Camera Style | |
| Effective Pixels | 3840(H)×2160(V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| Minimum Illumination | 0.03 Lux/F1.7, 30IRE, 0 Lux IR on |
| IR Distance | 60 m |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7mm–13.5mm |
| Max. Aperture | F1.7 |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
| Resolution | 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480) |
| Digital Noise Reduction | 2D/3D DNR |
| Power | 12VDC ±30% |
| Power Consumption | Max. 5.4W (12V DC, IR on) |
| Ingress Protection & Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimension | Φ122mm×107mm (Φ4.8"×4.2") |
| Net Weight | 0.59kg (1.30lb) |
| Gross Weight | 0.69kg (1.52lb) |

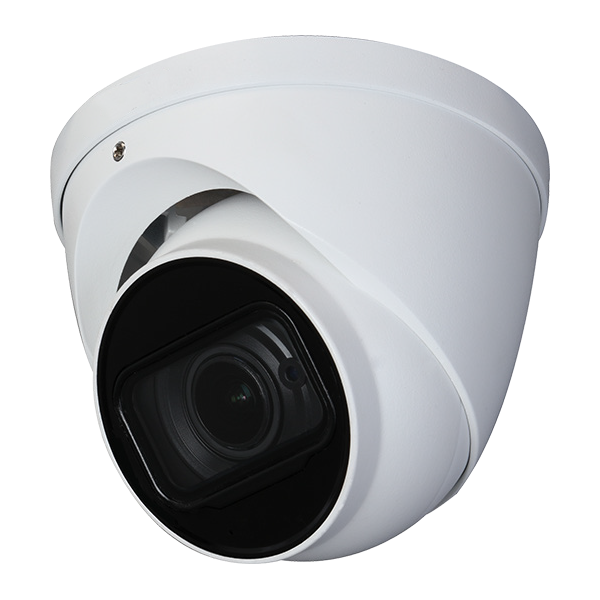

XVI-EB182T-IRM 4K HDCVI IR EYEBALL CAMERA
Login to see prices SKU: XVI-EB182T-IRM 2.8MM
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Effective Pixels | 3840(H)×2160(V) |
| Shutter Speed | PAL: 1/3s–1/100000s NTSC: 1/4s–1/100000s |
| Minimum Illumination | 0.03 Lux/F2.0 ,30 IRE ,0 Lux IR on |
| IR Distance | 30 m |
| Pan/Tilt/Rotation Range | Pan: 0°-360°; Tilt: 0°-78°; Rotation: 0°-360° |
| IR LEDs | 1 |
| Lens Type | |
| Lens Mount | M12 |
| Camera Style | |
| Focal Length | 2.8mm; 3.6mm |
| Max. Aperture | F2.0 |
| Angle of View | 2.8mm: 125°×105°×56° (diagonal×horizontal×vertical) 3.6mm: 104°×87°×47° (diagonal×horizontal×vertical) |
| Video Frame Rate | CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps CVBS: PAL/NTSC AHD: 4K@15fps; 5M@20fps; 4M@25fps/30fps TVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps |
| Resolution | 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480) |
| WDR | 120 dB |
| Noise Reduction | 2D&3D NR |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Port | Built-in mic (-A) |
| Audio | |
| Power Supply | 12V±30% DC |
| Power Consumption | Max 5.2W (12V DC, IR on) |
| Protection | IP67 |
| Casing | Metal cover |
| Dimensions | φ97mm×85.8mm (3.82‘‘×3.38’’) |

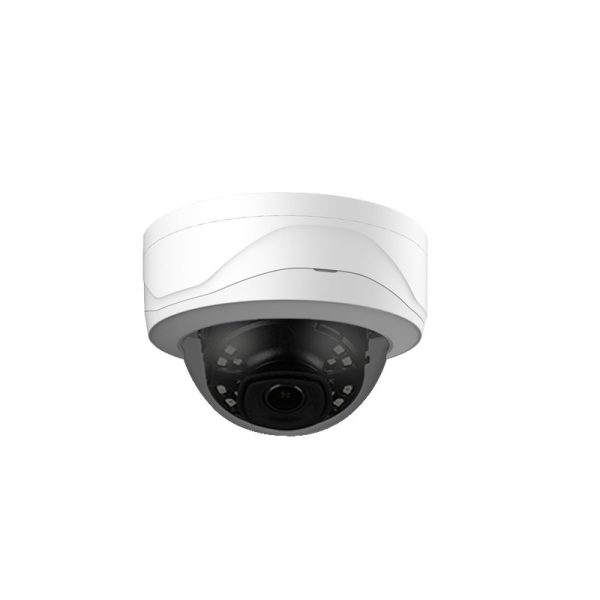

XVI-MD152E-IR 5MP HDCVI IR DOME CAMERA
Login to see prices SKU: XVI-MD152E-IR 2.8MM
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 2592(H)×1944(V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02 Lux/F1.85 ,30IRE ,0 Lux IR on |
| IR Distance | 30 m |
| Lens Type | |
| Focal Length | 2.8mm |
| Max. Aperture | F1.85 |
| Resolution | 5MP (2592×1944) |
| Frame Rate | 20fps@5MP ,25/30fps@4MP ,25/30fps@1080P |
| WDR | DWDR |
| Digital Noise Reduction | 2D DNR |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Power | 12VDC ±30% |
| Power Consumption | Max. 4.2W (12V DC, IR on) |
| Protection | IK10 ,IP67 |
| Casing | Aluminium |
| Dimensions | Φ109.9mm×81.0mm (Φ4.33"×3.19") |
| Net Weight | 0.31kg (0.68lb) |
| Gross Weight | 0.45kg (0.99lb) |
XVI-MD182E-IR 4K HDCVI IR DOME CAMERA
Login to see prices SKU: XVI-MD182E-IR 2.8MM
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Camera Style | |
| Effective Pixels | 3840(H)×2160(V) |
| Shutter Speed | PAL: 1/3s–1/100000s NTSC: 1/4s–1/100000s |
| Minimum Illumination | 0.03 Lux/F2.0 ,30 IRE ,0 Lux IR on |
| IR Distance | 30 m |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355° |
| Lens Type | |
| Lens Mount | M12 |
| Focal Length | 2.8mm; 3.6mm |
| Angle of View | 2.8mm: 125°×105°×56° (diagonal×horizontal×vertical) 3.6mm: 104°×87°×47° (diagonal×horizontal×vertical) |
| Resolution | 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480) |
| WDR | 120 dB |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power | 12VDC ±30% |
| Power Consumption | Max 4.8W (12V DC, IR on) |
| Protection Grade | IP67; IK10 |
| Casing | Metal throughout the whole casing |
| Dimension | Φ109.9mm×81.0mm (Φ4.33"×3.19") |
| Net Weight | 0.32kg (0.71lb) |
| Gross Weight | 0.46kg (1.01lb) |
XVI-VD122R-IR-Z 2 MP HDCVI IR Motorized Dome Camera Series
Login to see prices SKU: XVI-VD122R-IR-Z
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 1920(H)×1080(V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02 Lux/F1.8, 30IRE, 0 Lux IR on |
| IR Distance | 30 m |
| Lens Type | |
| Lens Mount | Board-in |
| Focal Length | 2.7-12mm |
| Max. Aperture | F1.8 |
| Resolution | 1080P (1920×1080) |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| WDR | DWDR |
| Digital Noise Reduction | 2D DNR |
| Power | 12VDC ±30% |
| Power Consumption | Max 6.3W (12V DC, IR on) |
| Protection | IK10 ,IP67 |
| Casing | Aluminium |
| Dimensions | Φ122mm×88.9mm (Φ4.8"×3.5") |
| Net Weight | 0.44kg (0.97lb) |
| Gross Weight | 0.59kg (1.30lb) |
XVI-VD152R-IR-Z 5MP HDCVI IR Motorized DOME CAMERA
Login to see prices SKU: XVI-VD152R-IR-Z
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Camera Style | |
| Effective Pixels | 2592(H)×1944(V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02 Lux/F1.8, 30IRE, 0 Lux IR on |
| IR Distance | 30 m |
| Lens Type | |
| Focal Length | 2.7-12mm |
| Max. Aperture | F1.8 |
| WDR | DWDR |
| Digital Noise Reduction | 2D DNR |
| Power | 12VDC ±30% |
| Power Consumption | Max 7.9W (12V DC, IR on) |
| Protection | IK10 ,IP67 |
| Casing | Aluminium |
| Dimensions | Φ122mm×88.9mm (Φ4.8"×3.5") |
| Net Weight | 0.47kg (1.04lb) |
| Gross Weight | 0.62kg (1.34lb) |

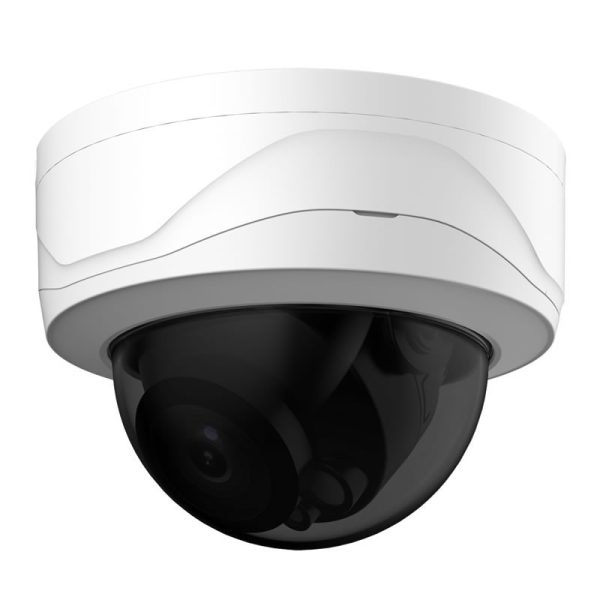

XVI-VD182R-IR-Z 4K HDCVI IR Motorized Dome Camera
Login to see prices SKU: XVI-VD182R-IR-Z
| Camera Style | |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 3840(H)×2160(V) |
| Shutter Speed | PAL: 1/3s–1/100000s NTSC: 1/4s–1/100000s |
| Minimum Illumination | 0.03 Lux/F1.7 ,30IRE ,0 Lux IR on |
| IR Distance | 30 m |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7mm–13.5mm |
| Max. Aperture | F1.7 |
| Resolution | 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480) |
| WDR | 120 dB |
| Digital Noise Reduction | 2D/3D DNR |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power | 12VDC ±30% |
| Power Consumption | Max 6.9W (12V DC, IR on) |
| Protection | IK10 ,IP67 |
| Casing | Metal throughout the whole casing |
| Dimensions | Φ122mm×88.9mm (Φ4.80"×3.50") |
| Net Weight | 0.44 kg (0.97 lb) |
| Gross Weight | 0.6 kg (1.32 lb) |
