W-12VDC-16P13A-RM 12VDC 16 PTC Output Regulated 13AMP Power Supply
Login to see prices SKU: W-12VDC-16P13A-RM
| Input Voltage | 110/120VAC |
|---|---|
| Input Voltage Frequency | 60Hz |
| Average Input Current | 100Vac≤1.0A |
| Efficiency | ≥80% |
| Output Voltage | 12VDC±5% |
| Output Current | 13A, 16channels for 16 sets load |
| Output Ripple Noise | 100mVp-p@25℃/ Rated input voltage & Output rated load |
| reply time of starting up | ≤3S Input 100Vac, Output rated load |
| Type /Rating | PTC 1.1A/60V |
| Leakage Current | ≤0.21ma @AC110V/25℃ |
| RG | ≤0.011Ω@DC8V/25A/25℃ |
| Shape Dimension | 43.5x32x10cm |
| Weight | 4kg |
W-12VDC-16P20A-RM UL 12V DC 20Amps 16-Channel UL-Listed Power Supply
Login to see prices SKU: W-12VDC-16P20A-RM UL
| Channels | |
|---|---|
| Input Voltage | 110~120VAC |
| Output Voltage | 12V DC |
| Total Output Current | 20A 1.11A*18CH |
| Efficiency | >80% |
| Rated Input Voltage | 110VAC |
| Input Voltage Range | 110~120VAC |
| Input Current | 4A |
| Input Freq Range | 50/60Hz |
| Voltage Regulation | 12V DC ±5% |
| Voltage with full load | 12V DC ±5% |
| Products Size | 440×200×44mm |
| Fuse Type | 1.6A PTC FUSE |
W-12VDC-18P/30A 18CHANNELS 30AMPS CAMERA DC POWER SUPPLY
Login to see prices SKU: W-12VDC-18P/30A
| Channels | |
|---|---|
| Specification | 350W 12V 33A 18P |
| Shape Dimension | 28.5*21*9cm |
| Input Voltage | 110/220VAC |
| Input Voltage Frequency | 50Hz～60Hz |
| Average Input Current | 100Vac≤4.0A |
| Efficiency | ≥80% |
| Output Voltage | Output Voltage |
| Output Current | 30A，18channels for 18 sets load |
| Type /Rating | PTC 2.2A/60V |
| Insulating strength Input to output | ≥20MΩ/500VDC@25℃ |
| Leakage Current | ≤0.09ma @AC110V（220V）/25℃ |
| RG | ≤0.005Ω@DC8V/25A/25℃ |
| Weight | 2.9kg |
W-12VDC-18P10A UL 12V DC 10Amps 18-Channel UL-Listed Power Supply
Login to see prices SKU: W-12VDC-18P10A UL
| Input Voltage | 100-240VAC |
|---|---|
| Output Voltage | 12V DC |
| Total Output Current | 10A 0.55A*18CH |
| Channels | |
| Efficiency | >80% |
| Work Temperature | -0°C ~ 40°C |
| Storage Temperature | -25°C ~ 7 5°C |
| Humidity | 95RH |
| Rated Input Voltage | 110VAC |
| Input Voltage Range | 100-240VAC |
| Input Current | 2.5A |
| Input Freq Range | 50/60Hz |
| Voltage Regulation | 12V DC ±5% |
| Voltage with full load | 12V DC ±5% |
| Products Size | 255×208×90mm |
| Fuse Type | 1.1A PTC FUSE |
W-12VDC-18P20A UL 12V DC 20Amps 18-Channel UL-Listed Power Supply
Login to see prices SKU: W-12VDC-18P20A UL
| Input Voltage | 110-120VAC |
|---|---|
| Output Voltage | 12V DC |
| Total Output Current | 20A 1.11A*18CH |
| Channels | |
| Efficiency | >80% |
| Work Temperature | -0°C ~ 40°C |
| Storage Temperature | -25°C ~ 75°C |
| Humidity | 95RH |
| Rated Input Voltage | 110VAC |
| Input Voltage Range | 110-120VAC |
| Input Current | 4A |
| Input Freq Range | 50/60Hz |
| Voltage Regulation | 12V DC ±5% |
| Voltage with full load | 12V DC ±5% |
| Products Size | 254×262×79mm |
| Fuse Type | 1.5A PTC FUSE |
W-12VDC-4P/2A 12VDC/2Amps 4 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY
Login to see prices SKU: W-12VDC-4P/2A
| Channels | |
|---|---|
| Input Voltage | 110/120VAC |
| Input Voltage Frequency | 60Hz |
| Average Input Current | 100Vac≤0.65 A |
| Efficiency | ≥80% |
| Output Voltage | 12VDC±5% |
| Output Current | 2A, 4channels for 4 sets load |
| Output Ripple Noise (Vp-p) | 80mVp-p@25℃/ Rated input voltage & Output rated load |
| reply time of starting up | ≤3S Input 100Vac，Output rated load |
| Fuse Type /Rating | PTC 0.65A/60V |
| Leakage Current | ≤0.12ma @AC110V/25℃ |
| RG | ≤0.011Ω@DC8V/25A/25℃ |
| Input to output | ≥20MΩ/500VDC@25℃ |
| Dimension | 14.5×10.5×4.3cm |
| Weight | 0.59kg |
W-12VDC-4P/5A 12VDC/5Amps 4 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY
Login to see prices SKU: W-12VDC-4P/5A
| Channels | |
|---|---|
| Input Voltage | 110/120VAC |
| Input Voltage Frequency | 60Hz |
| Average Input Current | 100Vac≤1.0A |
| Efficiency | ≥80% |
| Output Voltage | 12VDC±5% |
| Output Current | 5A, 4channels for 4 sets load |
| Output Ripple Noise (Vp-p) | 80mVp-p@25℃/ Rated input voltage & Output rated load |
| reply time of starting up | ≤3S Input 100Vac，Output rated load |
| Type /Rating | PTC 1.6A/60V |
| Leakage Current | ≤0.12ma @AC110V/25℃ |
| RG | ≤0.011Ω@DC8V/25A/25℃ |
| Shape Dimension | 24.5×20.8×8.7cm |
| Weight | 2.02KG |
W-12VDC-8P13A-4K UL 8 channels of DC power supply for 4K/8M CCTV
Login to see prices SKU: W-12VDC-8P13A-4K UL
| Channels | |
|---|---|
| Input Voltage | 100-240VAC |
| Output Voltage | 12V DC |
| Total Output Current | 13A 1.625A*8CH |
| Efficiency | >80% |
| Work Temperature | -0°C ~ 40°C |
| Storage Temperature | -25°C ~ 75°C |
| Humidity | 95RH |
| Rated Input Voltage | 110VAC |
| Input Voltage Range | 100-240VAC |
| Input Current | 3A |
| Input Freq Range | 50/60Hz |
| Voltage Regulation | 12V DC ±5% |
| Voltage with full load | 12V DC ±5% |
| Products Size | 250×204×61mm |
| Fuse Type | 2A PTC FUSE |
W-12VDC-9P/10A UL 12V DC 9 PTC Output High Efficiency Camera Power Supply
Login to see prices SKU: W-12VDC-9P/10A UL
| Input Voltage | 100-240VAC |
|---|---|
| Output Voltage | 12V DC |
| Total Output Currunt | 10A 1.11A*9CH |
| Effenciency | >80% |
| Humidity | 95RH |
| Rated Input Voltage | 110VAC |
| Input Voltage Range | 100-240VAC |
| Input Current | 2.5A |
| Input Freq Range | 50/60Hz |
| Voltage Regulation | 12V DC ±5% |
| Voltage With Full Load | 12V DC ±5% |
| Products Size | 255×208×90mm |
| Fuse Type | 1.5A PTC FUSE |
W-12VDC-9P10A UL 12V DC 10Amps 9-Channel UL-Listed Power Supply
Login to see prices SKU: W-12VDC-9P10A UL
| Channels | |
|---|---|
| Input Voltage | 100-240VAC |
| Output Voltage | 12V DC |
| Total Output Current | 10A 1.11A*9CH |
| Efficiency | >80% |
| Work Temperature | -0°C ~ 40°C |
| Storage Temperature | -25°C ~ 75°C |
| Humidity | 95RH |
| Rated Input Voltage | 110VAC |
| Input Voltage Range | 100-240VAC |
| Input Current | 2.5A |
| Input Freq Range | 50/60Hz |
| Voltage Regulation | 12V DC ±5% |
| Voltage with full load | 12V DC ±5% |
| Products Size | 255×208×90mm |
| Fuse Type | 1.5A PTC FUSE |
W-12VDC9P/5A 12VDC 5 AMPS 9 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY
Login to see prices SKU: W-12VDC9P/5A
| Input Voltage | 110/120VAC |
|---|---|
| Input Voltage Frequency | 60Hz |
| Average Input Current | 100Vac≤1.0A |
| Efficiency | ≥80% |
| Output Voltage | 12VDC±5% |
| Output Current | 5A, 9 channels for 9 sets load |
| Output Ripple Noise (Vp-p) | 80mVp-p@25℃/ Rated input voltage & Output rated load |
| reply time of starting up | ≤3S Input 100Vac，Output rated load |
| Type /Rating | PTC 1.1A/60V |
| Leakage Current | ≤0.12ma @AC110V/25℃ |
| RG | ≤0.011Ω@DC8V/25A/25℃ |
| Shape Dimension | 24.5×20.8×8.7cm |
| Weight | 2.06KG |

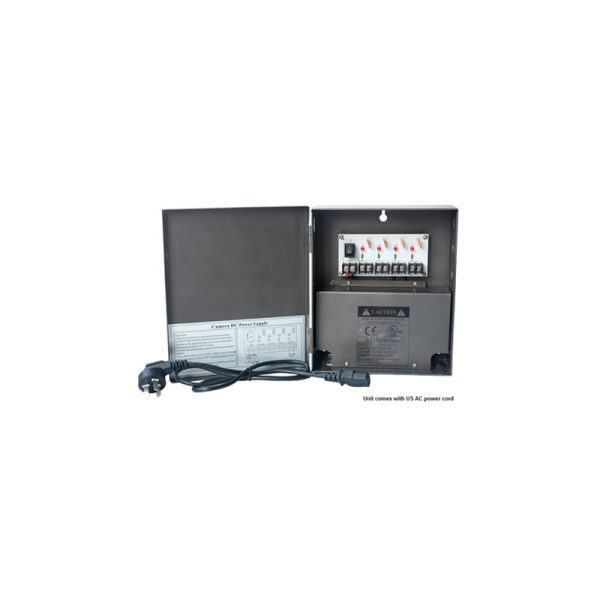

W-UL12VDC-4P/5A UL LISTED 12VDC/5AMPS with 4 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY
Login to see prices SKU: W-UL12VDC-4P/5A
| Channels | |
|---|---|
| Specification | 60W 12V 5A 4P |
| Shape Dimension | 24.5×20.8×8.1cm |
| Input Voltage | 110/120VAC |
| Input Voltage Frequency | 60Hz |
| Average Input Current | 100Vac≤1.0A |
| Efficiency | ≥80% |
| Output Voltage | 12VDC±5% |
| Output Current | 5A，4channels for 4 sets load |
| Connection Input | Three-pin socket |
| Connection Output | 4 channels output |
| Input to output | ≥20MΩ/500VDC@25℃ |
| Leakage Current | ≤0.12ma @AC110V/25℃ |
| RG | ≤0.011Ω@DC8V/25A/25℃ |
W-UL12VDC-9P/5A UL LISTED 12VDC/5AMPS with 9 PTC OUTPUT
Login to see prices SKU: W-UL12VDC-9P/5A
| Specification | 60W12V5A9P |
|---|---|
| Shape Dimension | 24.5×20.8×8.1cm |
| Input Voltage | 110/120VAC |
| Input Voltage Frequency | 60Hz |
| Average Input Current | 100Vac≤1.0A |
| Efficiency | ≥80% |
| Output Voltage | 12VDC±5% |
| Output Current | 5A，9channels for 9 sets load |
| reply time of starting up | ≤3S Input 100Vac，Output rated load |
| Fuse Type /Rating | PTC 1.1A/60V |
| Leakage Current | ≤0.12ma @AC110V/25℃ |
| RG | ≤0.011Ω@DC8V/25A/25℃ |
