CVI-BU240R-IR-Z 4 MP WDR HDCVI IR Motorized Bullet Camera
Login to see prices SKU: CVI-BU240R-IR-Z
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/3" CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| Camera Style | |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| Minimum Illumination | 0.01 Lux/F1.3, 30IRE, 0 Lux IR on |
| IR Distance | 60 m |
| IR LEDs | 4 |
| Lens Type | |
| Lens Mount | Board-in |
| Focal Length | 2.7-13.5mm |
| Max. Aperture | F1.3 |
| Video Resolution | 4MP (2560×1440) |
| Video Frame Rate | 25fps@4MP, 25/30fps@1080P, 25/30fps@720P |
| Video Output | 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output |
| WDR | 120 dB |
| Noise Reduction | 2D/3D |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Power | 12V DC ±25% |
| Power Consumption | Max 11.1W (12V DC, IR on) |
| Casing | Aluminium |
| Dimensions | 213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56") |
| Net Weight | 0.61kg (1.34lb) |
| Gross Weight | 0.74kg (1.63lb) |
EC-B4F28M-V3 4MP WDR IR Mini Bullet Network Camera
Login to see prices SKU: EC-B4F28M-V3
| Sensor | 1/2.9" CMOS |
|---|---|
| Camera Resolutions | |
| Camera Style | |
| Lens Size | |
| Lens Type | |
| WDR | 120 dB |
| Min. Illumination | Colour: 0.01 lux ( F2.0 ,AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual ,1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360° ,Tilt: 0° ~ 90° ,Rotate: 0° ~ 360° |
| S/N | >52 dB |
| IR On/Off Control | Auto/Manual |
| Iris | F2.0 |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Wavelength | 850nm |
| Video Compression | Ultra 265 ,H.265 ,H.264 ,MJPEG |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | Micro SD ,up to 512 GB |
| Network Storage | ANR ,NAS (NFS) |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Audio | |
| Power | DC 12V±25% ,PoE (IEEE 802.3af) Power consumption: Max 7.0W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 166 × 63 × 62mm (6.5” × 2.5” × 2.5”) |
| Weight | 0.39kg (0.86lb) |
| Material | Graphene + Metal |
| Surge Protection | 4 KV |
| Protection | IP67 |
EC-T4F28M-V3 4MP Fixed Dome Network Camera
Login to see prices SKU: EC-T4F28M-V3
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Type | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Minimum Illumination | Colour: 0.01Lux (F2.0 ,AGC ON); 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter Speed | 1s to 1/100000s |
| Adjustment angle | Pan: 0°to 360° ,Tilt: 0°to 75° ,Rotate: 0°to 360° |
| WDR | 120 dB |
| Lens Size | |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| Digital Noise Reduction | 2D/3D DNR |
| Edge Storage | MicroSD，up to 128GB |
| Network Storage | ANR ,NAS(NFS) |
| Audio | |
| Interface Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Power | DC 12V±25% ,PoE (IEEE 802.3af) Power consumption: Max 4.0W |
| Power Interface | 5.5mm coaxial power plug |
| Dimension | Φ126 x 94mm (Φ5.0” x 3.7”) |
| Weight | 0.30kg (0.66lb) |
| Material | Metal+Plastic |
| Surge Protection | 4KV |
IPC-BU244T-IR-ZAS 4MP Lite IR Vari-focal Bullet Network Camera
Login to see prices SKU: IPC-BU244T-IR-ZAS
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Lens Type | |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/128 MB |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Scanning System | Progressive |
| Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Minimum Illumination | 0.008 Lux@F1.5 |
| Illumination Distance | 60 m (196.85 ft) |
| Digital Noise Reduction | 3D DNR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution and lower.) |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Close Focus Distance | 0.8 m–0.8 m (2.62 ft–2.62 ft) |
| Network | RJ-45 (10/100 Base-T) |
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Storage | FTP; Micro SD card (support max. 256 G); NAS; SFTP |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | < 9.6 W |
| Protection | IK10 ,IP67 |
IPC-BU344T-IR-ZAS 4MP LITE AI IR VARI-FOCAL MOTORIZED BULLET NETWORK CAMERA
Login to see prices SKU: IPC-BU344T-IR-ZAS
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/512 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.005 Lux@F1.5 |
| IR Distance | 60 m |
| Pan/Tilt/Rotation Range | Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360° |
| WDR | 120 dB |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 104°–27°； Vertical: 55° –15° ；Diagonal: 124° –31° |
| Edge Storage | FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPE |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | <9.8 W |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 244.1 mm × 79.0 mm × 75.9 mm (9.6" × 3.1" × 3.0") |
| Gross Weight | 1090 g (2.4 lb) |
IPC-EB2449TM-ILM 4MP SMART DUAL ILLUMINATION FIXED-FOCAL EYEBALL WIZSENSE NETWORK CAMERA
Login to see prices SKU: IPC-EB2449TM-ILM-2.8
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Camera Style | |
| ROM/RAM | 128 MB/128 MB |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | 30 m (98.43 ft) (IR), 30 m (98.43 ft) (Warm light) |
| Lens Type | |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Video Compression | H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Audio | |
| Power | DC 12V |
| Protection | IP67 |
| Power Consumption | Basic: 2.1 W (12 VDC); 2.5 W (PoE) Max. (H.265 + intelligence on + WDR + warm light): 4.4 W (12 VDC); 5.2 W (PoE) |
| Casing Material | Inner core: Metal; Cover: Metal; Decoration ring: Plastic |
| Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
| Net Weight | 0.46 kg (1.01 lb) |
| Gross Weight | 0.65 kg (1.43 lb) |
IPC-EB244T-IR-ZS 4MP WDR IR Motorized Eyeball Network Camera
Login to see prices SKU: IPC-EB244T-IR-ZS
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Effective Pixels | 2688(H)×1520(V) |
| Camera Style | |
| ROM/RAM | 128 MB/128 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.008 Lux@F1.5 |
| IR Distance | 40 m |
| Pan/Tilt/Rotation Range | Pan 0°–360° ; Tilt: 0°–78°; Rotation: 0°–360° |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Field of View | Pan: 104°–27°; Tilt: 55°–15°; Diagonal: 124°–31° |
| Max. Aperture | F1.5 |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | < 6.4 W |
| Protection | IP67 |
| Casing | Metal |
| Dimensions | 108.3 mm × Φ122 mm (4.26" × Φ1.80") |
IPC-EB244TM-IR 4MP WDR IR Fixed Eyeball Network Camera built-in Mic
Login to see prices SKU: IPC-EB244TM-IR 3.6mm
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/128 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.008 Lux @ F1.6 |
| IR Distance | 30 m |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Video Bit Rate | H.264: 32 Kbps–6144 Kbps; H.265: 12 Kbps–6144 Kbps |
| Digital Noise Reduction | 3D DNR |
| Camera Style | |
| Lens Type | |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | Pan: 102.0° /Tilt: 55.0°/ Diagonal: 121.0° |
| Edge Storage | Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Video Compression | H.265; H.264; H.264B; MJPEG |
| Audio | |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | < 6.6 W |
| Protection | IP67 |
| Casing | Metal |
| Dimensions | 99.1 mm × Φ121.9 mm (3.9" × Φ4.8") |
| Gross Weight | 0.65 kg (1.4 lb) |
IPC-EB244TM-IR-S 4MP IR Fixed-focal Eyeball WizSense Network Camera
Login to see prices SKU: IPC-EB244TM-IR-S 2.8
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Lens Type | |
| Max. Resolution | 2688 × 1520 |
| ROM/RAM | 128 MB/128 MB |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Focal Length | 2.8 mm; 3.6 mm |
| Lens Mount | M12 |
| Digital Noise Reduction | 3D DNR |
| Protection | IP67 |
| Video Compression | H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
| Power | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.5 W (12 VDC); 3.3 W (PoE); Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE) |
| Casing Material | Inner core: Metal Cover: Metal Decoration ring: Plastic |
| Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
| Net Weight | 0.48 kg (1.06 lb) |
| Gross Weight | 0.68 kg (1.5 lb) |
| Audio | |
| Camera Style |
IPC-EB344R-IR-ZAS 4MP LITE AI IR VARI-FOCAL MOTORIZED EYEBALL NETWORK CAMERA
Login to see prices SKU: IPC-EB344R-IR-ZAS
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/512 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.005 Lux@F1.5 |
| IR Distance | 40 m |
| Pan/Tilt/Rotation Range | Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360° |
| Digital Noise Reduction | 3D DNR |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Camera Style | |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 104°–27°; Vertical: 55° –15° ; Diagonal: 124° –31° |
| Edge Storage | FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Audio | |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | <8.3W |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 108.3 mm × Φ122 mm (4.3" × Φ4.8") |
| Gross Weight | 828 g (1.8 lb) |
IPC-EB344TM-IR 4MP Lite AI IR Fixed focal Eyeball Network Camera
Login to see prices SKU: IPC-EB344TM-IR/3.6MM
| Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Camera Style | |
| Lens Size | |
| Lens Type | |
| Effective Pixels | 2688(H)×1520(V) |
| IR Range | Up to 50 m |
| Interface Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Lens Mount | M12 |
| Focal Length | 3.6 mm |
| Digital Noise Reduction | 3D DNR |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Audio | |
| Power | DC 12V ,PoE (802.3af) |
| Power Consumption | <7.7W |
| Protection | IP67 |
| Casing | Metal +Plastic |
| Dimensions | 99.1 mm × Φ121.9 mm (3.9" × Φ4.8") |
| Net Weight | 480 g (1.05 lb) |
| Gross Weight | 660 g (1.45 lb) |
IPC-EB344TM-LED 4MP Lite AI Full-color Warm LED Fixed-focal Eyeball Network Camera
Login to see prices SKU: IPC-EB344TM-LED 2.8MM
| Camera Resolutions | |
|---|---|
| Lens Type | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Camera Style | |
| Max. Resolution | 2688 × 1520 |
| ROM/ RAM | 128 MB/512 MB |
| Minimum Illumination | 0.003 Lux @ F1.0 |
| Illumination Distance | 30 m (98.4 ft) (Warm light) |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Lens Mount | M12 |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: Horizontal 103° × vertical 53° × diagonal 122 |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Audio | |
| Power | DC 12V/PoE |
| Power Consumption | < 8.5 W |
| Protection Grade | IP67 |
| Casing | Inner core: Metal ; Cover: Metal; Decoration ring: Plastic |
| Dimensions | 99.1 mm × Φ121.9 mm (3.9" × Φ4.8") |
| Net Weight | 480 g (1.05 lb) |
| Gross Weight | 660 g (1.45 lb) |
| Protection | IP67 |

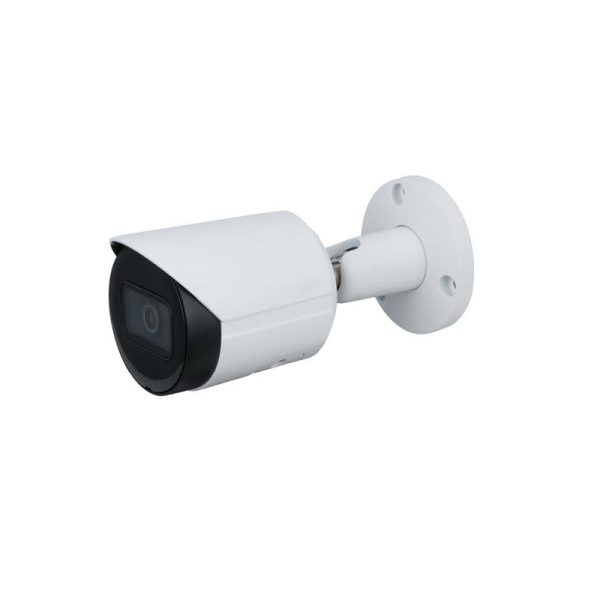

IPC-MB244S-IR 4MP WDR IR Fixed Bullet Network Camera
Login to see prices SKU: IPC-MB244S-IR 2.8mm
| Image Sensor | 1/3" CMOS |
|---|---|
| Camera Style | |
| Camera Resolutions | |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/128 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.01 Lux@F1.6 |
| IR Distance | 30 m |
| Pan/Tilt/Rotation Range | Horizonal: 0°–360°; Vertical: 0°–90°; Rotation: 0°–360° |
| Video Bit Rate | H.264: 32 Kbps–6144 Kbps; H.265: 12 Kbps–6144 Kbps |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Lens Type | |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Edge Storage | Dahua Cloud; FTP; Micro SD card (max. 256 GB); NFS |
| Video Compression | H.265; H.264; H.264B; MJPE |
| Power | 12V DC/POE |
| Protection | IP67 |
| Casing | Metal |
| Dimensions | 166.2 mm × Φ70 mm (6.54" × Φ2.76") |
| Net Weight | 0.48 kg (1.06 lb) |
| Gross Weight | 0.57 kg (1.26 lb) |

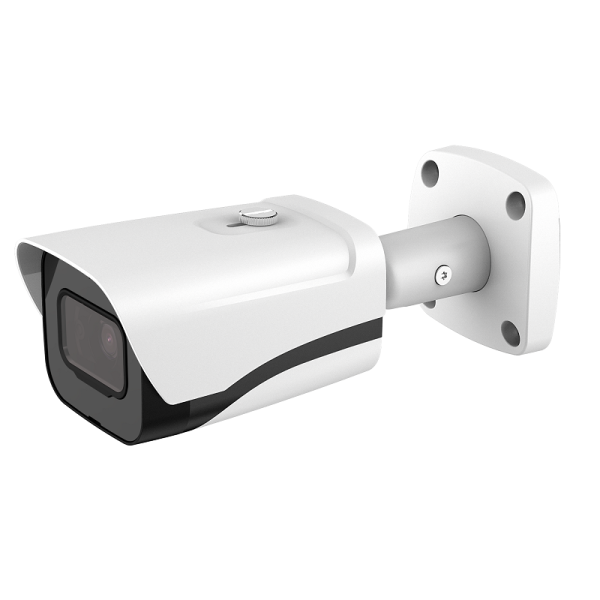

IPC-MB344E-IR 4MP Lite AI IR Fixed focal Mini Bullet Network Camera
Login to see prices SKU: IPC-MB344E-IR-2.8MM
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Type | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| ROM/RAM | 128 MB/512 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0Lux with IR on ,AGC ON) ,Color: 0.005Lux@(F1.6 |
| Illumination Distance | 50 m (164.0 ft) |
| Pan/Tilt/Rotation Range | Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360° |
| Video Bit Rate | H.264: 3 Kbps–8192 Kbps ; H.265: 3 Kbps–8192 Kbps |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.6 |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream) |
| Audio | |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); NAS |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | <5.4 W |
| Protection Grade | IP67 |
| Casing | Metal |
| Dimensions | 192.7 mm × 70.5 mm × 66.4 mm (7.6"×2.8"×2.6") |
| Gross Weight | 780 g (1.7 lb) |

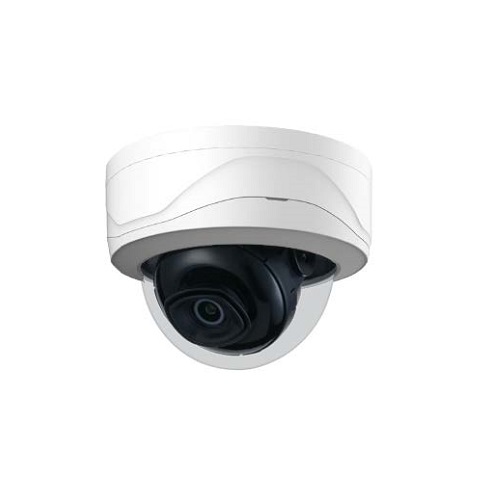

IPC-MD244E-IR-S 4MP IR FIXED-FOCAL DOME WIZSENSE NETWORK CAMERA
Login to see prices SKU: IPC-MD244E-IR-S 2.8
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Type | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| ROM/RAM | 128 MB/128 MB |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 lux@F1.6 (Color, 30 IRE) 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | up to 30 m (98.43 ft) (IR LED) |
| Lens Mount | M12 |
| Max. Aperture | F1.6 |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Storage | FTP;SFTP; Micro SD card (support max. 256 GB) |
| Audio | |
| Power | DC 12V |
| Power Consumption | Basic: 2.3 W (12 VDC); 2.9 W (PoE) Max. (ICR + H.265 + WDR + max. Illumination + intelligence on): 5 W (12 VDC); 6 W (PoE) |
| Casing Material | Metal |
| Product Dimensions | 81.0 mm × Φ109.9 mm (3.19"× Φ4.33") |
| Weight | Net Weight: 0.34 kg (0.75 lb) Gross Weight: 0.49 kg (1.08 lb) |
| Protection | IK10 ,IP67 |

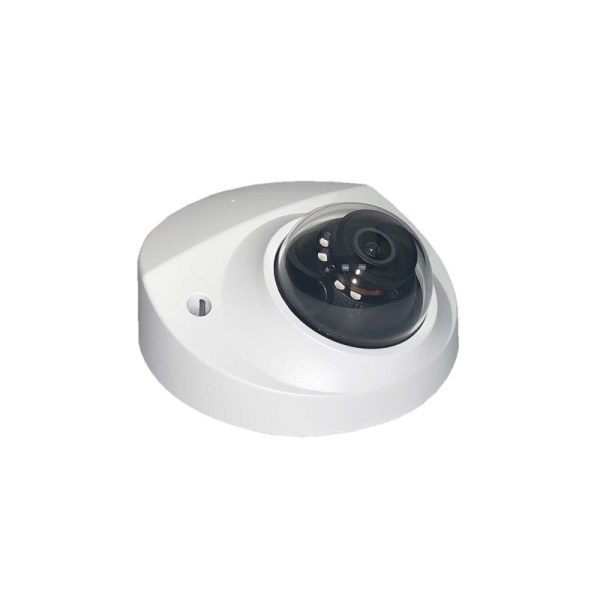

IPC-MD244F-IRM 4MP Lite IR Fixed-focal Dome Network Camera
Login to see prices SKU: IPC-MD244F-IRM-2.8MM
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/3" CMOS |
| Lens Type | |
| Camera Style | |
| Max. Resolution | 2688 × 1520 |
| ROM/RAM | 128 MB/128 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.008 lux@F1.6 (Color, 30 IRE); 0.0008 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance | 30 m (98.4 ft)(IR) |
| Pan/Tilt/Rotation Range | Pan: –30°–30°; Tilt: 0°–80°; Rotation: 0°–360° |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.) |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 108°; V: 56°; D: 128° 3.6 mm: H: 88°; V: 46°; D: 104° |
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by sub stream) |
| Audio | |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Power | 12V DC/PoE |
| Power Consumption | <5.4W |
| Casing | Metal |
| Dimensions | 55 mm × Φ108.9 mm (2.2" × Φ4.3") |
| Gross Weight | 0.52 kg (1.15 lb) |
| Protection | IK10 ,IP67 |

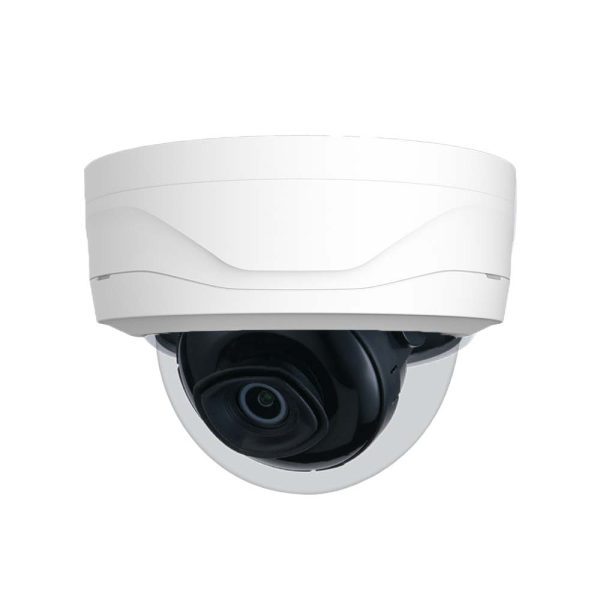

IPC-MD344E-IR-3.6 4MP LITE AI IR FIXED FOCAL DOME NETWORK CAMERA
Login to see prices SKU: IPC-MD344E-IR-3.6
| Camera Resolutions | |
|---|---|
| Lens Type | |
| Camera Style | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/ RAM | 128 MB/512 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.005 Lux@F1.6 |
| IR Distance | 50 m |
| IR LEDs Number | 3 (IR LEDs) |
| Pan/Tilt/Rotation Range | Horizontal: 0°–355°; vertical: 0°–65°; rotation: 0°–355° |
| Video Bit Rate | H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps |
| Digital Noise Reduction | 3D DNR |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal:103°; vertical: 55°; diagonal: 122° |
| Edge Storage | FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | <7.3W |
| Casing | Metal + Plastic |
| Dimensions | 81 mm × Φ109.9 mm (3.2" × Φ4.3") |
| Protection | IK10 ,IP67 |
IPC-PD49425XB-W 4MP 25x Starlight IR WizSense Network PTZ Camera
Login to see prices SKU: IPC-PD49425XB-W
| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.8" STARVIS™ CMOS |
| Pixel | 4MP |
| Max. Resolution | 2560 × 1440 |
| ROM/RAM | 4GB/1GB |
| Shutter Speed | 1/1 s–1/30 ,000 s |
| Minimum Illumination | 0Lux with IR on ,AGC ON) ,Color: 0.005Lux@(F1.6 |
| Illuminator Number | 4 |
| Compression | H.265+/H.265/H.264+/H.264/MJPEG (sub stream) |
| Bit Rate | H.265/H.264: 3 kbps–20480 kbps |
| Focal Length | 4.8 mm–120 mm |
| Max. Aperture | F1.6–F4.0 |
| Field of View | H: 60.0°–2.5°; V: 30.8°–2.2°; D: 66.7°–2.9° |
| Digital Noise Reduction | 2D/3D DNR |
| Pan/Tilt Range | Pan: 0°–360° (endless); Tilt: -15°–90° (auto flip 180°) |
| Storage | NAS; Local PC; Micro SD card (256G) |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL62368-1+CAN/CSA C22.2,No. 62368-1 |
| Power | DC 12V/3A PoE+ (802.3at) |
| Power Consumption | 13W ; 21W (IR on) |
| Protection | IP66 |
| Dimensions | Φ160 mm × 295 mm (6.30" × 11.61") |
| Net Weight | 3 kg (6.61 lb) |
| Gross Weight | 4.8 kg (10.58 lb) |
