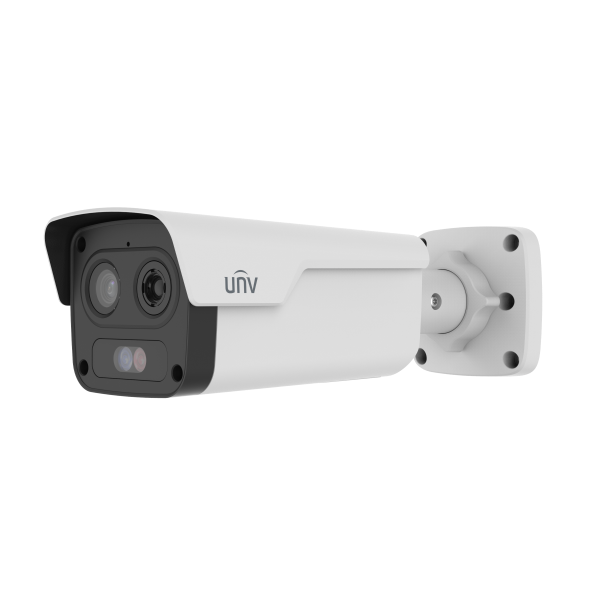

TIC2A32SA-F10-4F8AC-I1 Thermal & Optical Dual-spectrum Bullet Network Camera
Login to see prices| Original Resolution | Optical:N/A Thermal:256 × 192 |
|---|---|
| Sensor | Optical:1/2.8" CMOS Thermal:Vanadium oxide uncooled focal plane arrays |
| Min. Illumination | Optical:Colour: 0.003 lux (F1.6 ,AGC ON) B/W: 0.002 lux(F1.6 ,AGC ON) 0 lux with IR Thermal:N/A |
| Pixel Size | Optical:N/A Thermal:12 um |
| NETD | < 50 mk@F1.0@25 ℃ |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual ,1 ~ 1/100000s |
| WDR | 120 dB |
| S/N | >56 dB |
| Iris | Optical:F1.6 Thermal:F1.0 |
| Wavelength | Optical:750 nm Thermal:N/A |
| Frame Rate | Optical:4MP(2688*1520) ,Max 30fps Thermal:960P(1280*960) ,Max 30fps |
| Video Compression | Ultra 265 ,H.265 ,H.264 ,MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| Video Stream | Triple streams |
| Audio Compression | G.711U ,G.711A |
| Audio Bitrate | 128 Kbps |
| Edge Storage | MicroSD ,up to 512 GB |
| Network Storage | ANR |
| Power | DC12V(±25%) ,PoE(IEEE802.3af) |
| Power Consumption | Max 12W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 269.1 x 95.7 x 83 mm (10.6" x 3.75" x 3.25")(L x W x H) |
| Weight | 0.95kg(2.1lb) |
| Camera Style | |
| Surge Protection | 6 KV |

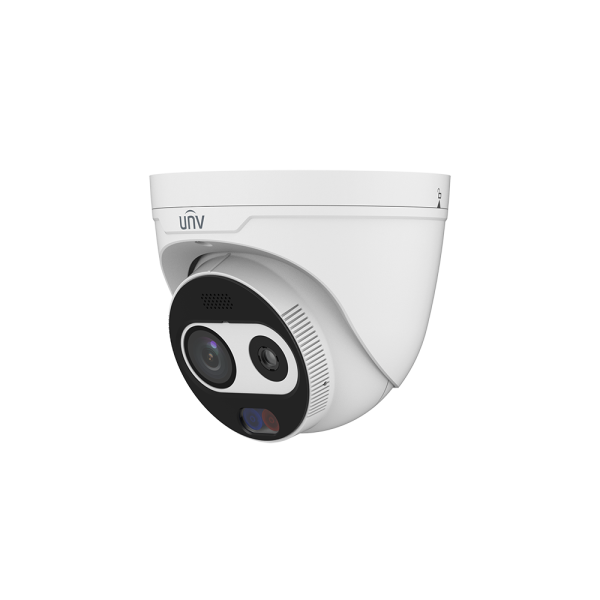

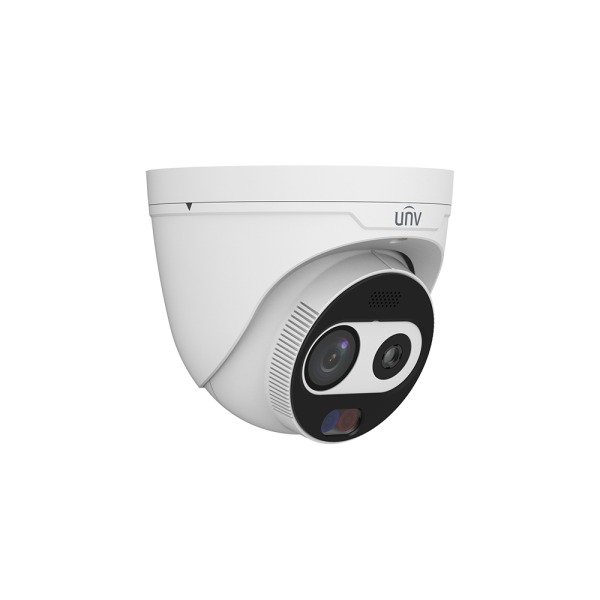

TIC3612SA-F7-4F6AC-I1 Thermal & Optical Dual-spectrum Turret Network Camera
Login to see prices| Sensor | Optical:1/2.8" CMOS Thermal:Vanadium oxide uncooled focal plane arrays |
|---|---|
| Camera Style | |
| Min. Illumination | Optical:Colour: 0.003 lux (F1.6 ,AGC ON) B/W: 0.002lux(F1.6 ,AGC ON) 0 lux with IR Thermal:N/A |
| Day/Night | Optical:IR-cut filter with auto switch (ICR) Thermal:N/A |
| Shutter | Auto/Manual ,1 to 1/100000 s |
| WDR | 120 dB |
| Focal Length | Optical:6.0 mm Thermal:7.0 mm |
| Iris | Optical:F1.6 Thermal:F1.0 |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| S/N | >56 dB |
| OSD | Up to 8 OSDs |
| Digital Noise Reduction | 2D/3D DNR |
| Audio Compression | G.711U ,G.711A |
| Audio Bitrate | 128 Kbps |
| Sampling Rate | 16KHZ |
| Edge Storage | MicroSD ,up to 512 GB |
| Network Storage | ANR |
| Audio | |
| Interface Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Power | DC12V(±25%) ,PoE(IEEE802.3af) |
| Power Consumption | Max 12W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H) |
| Weight | 0.72kg(1.6lb) |
| Maximum Bitstream | 35 |
| Surge Protection | 6 KV |
