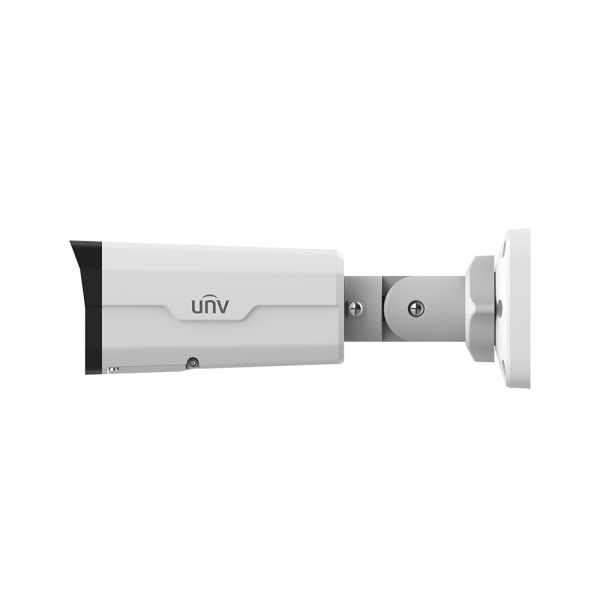

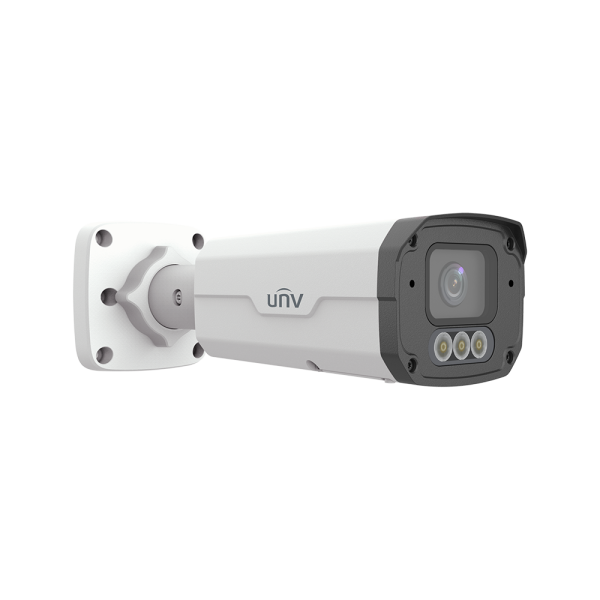

IPC2324SE-ADZK-WL-I0 4MP HD Intelligent Dual Illuminators ColorHunter VF Bullet Network Camera

SKU: IPC2324SE-ADZK-WL-I0
Sensor

1/1.8" CMOS

Camera Resolutions

Lens Type

Camera Style

WDR

120 dB

Min. Illumination

Color: 0.0005 Lux (F1.2

,

AGC ON)

Supplemental Light

Dual light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 90°

,

Rotate: 0° to 360°

S/N

>56 dB

Iris

F1.2

Illumination Distance (IR)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 11.5 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

245 mm × 86 mm × 85 mm (9.6" × 3.4" × 3.3" ) (L × W × H)

Weight

0.9 kg (1.98 lb)

Material

Metal

Surge Protection

6 KV

Protection

IP67

IPC2B14SE-ADF28K-WP-I1 4MP ColorHunter with Wise-ISP Fixed Warm Light Bullet Network Camera

SKU: IPC2B14SE-ADF28K-WP-I1
Sensor

1/1.8" CMOS

Camera Resolutions

Camera Style

Lens Type

Min. Illumination

Colour: 0.0003 lux ( F1.0

,

AGC ON)

WDR

130 dB

Supplemental Light

Warm light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° ~ 360°

,

Tilt: 0° ~ 90°

,

Rotate: 0° ~ 360°

S/N

>56 dB

Iris

F1.0

Illumination Distance (Warm Light)

40 m (131.2 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Audio

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Power

DC 12V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max 4.5W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

265.2 × 95.2 × 82.9mm (10.4" × 3.7" × 3.3") (L x W x H)

Weight

0.89kg (1.96lb)

Material

Metal + Plastic

Surge Protection

4 KV

Protection

IK10

,

IP67

IPC2B14SE-ADF40K-WP-I1 4MP WDR OwlView Plus Bullet Network Camera

SKU: IPC2B14SE-ADF40K-WP-I1
Sensor

1/1.8" CMOS

Camera Style

Camera Resolutions

Lens Type

WDR

130 dB

Min. Illumination

Colour: 0.0003 lux ( F1.0

,

AGC ON)

Supplemental Light

Warm light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° ~ 360°

,

Tilt: 0° ~ 90°

,

Rotate: 0° ~ 360°

S/N

>56 dB

Iris

F1.0

Illumination Distance (Warm Light)

40 m (131.2 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Audio

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Power

DC 12V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max 4.5W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

265.2 × 95.2 × 82.9mm (10.4" × 3.7" × 3.3") (L x W x H)

Weight

0.89kg (1.96lb)

Material

Metal + Plastic

Surge Protection

4 KV

Protection

IK10

,

IP67

IPC2B18SE-ADF28K-WP-I1 8MP WDR OwlView Plus Bullet Network Camera

SKU: IPC2B18SE-ADF28K-WP-I1
Sensor

1/1.2" CMOS

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

130 dB

Min. Illumination

Color: 0.0003 Lux (F1.0

,

AGC ON)

Supplemental Light

Warm light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 90°

,

Rotate: 0° to 360°

S/N

>56 dB

Iris

F1.0

Illumination Distance (Warm Light)

40 m (131.2 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Audio

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 6.0 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) (L × W × H)

Weight

0.93 kg (2.05 lb)

Material

Metal + Plastic

Surge Protection

4 KV

Protection

IK10

,

IP67

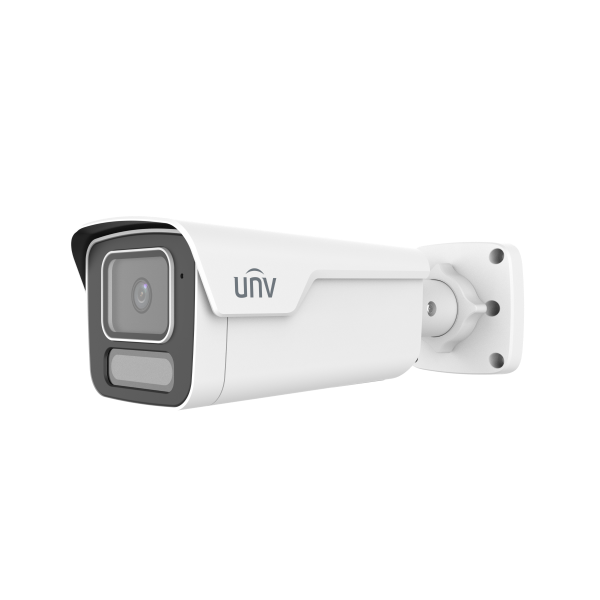

IPC2B18SE-ADF40K-WP-I1 8MP WDR OwlView Plus Bullet Network Camera

SKU: IPC2B18SE-ADF40K-WP-I1
Sensor

1/1.2" CMOS

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

130 dB

Min. Illumination

Color: 0.0003 Lux (F1.0

,

AGC ON)

Supplemental Light

Warm light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 90°

,

Rotate: 0° to 360°

S/N

>56 dB

Iris

F1.0

Illumination Distance (Warm Light)

40 m (131.2 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Audio

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 6.0 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) (L × W × H)

Weight

0.93 kg (2.05 lb)

Material

Metal + Plastic

Surge Protection

4 KV

Protection

IK10

,

IP67

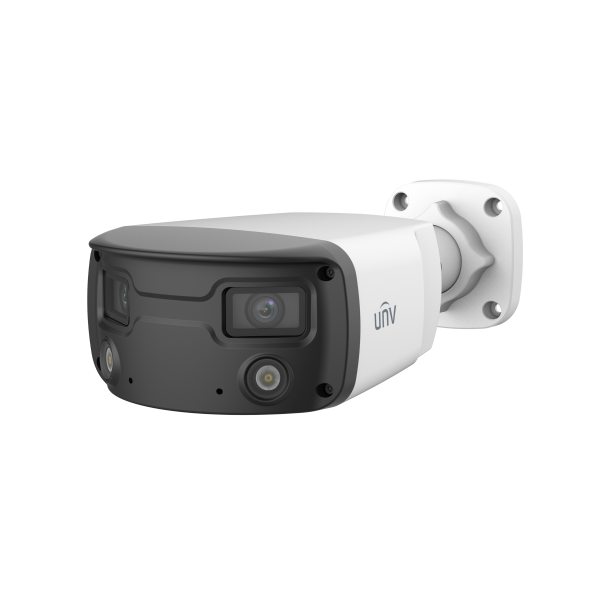

IPC2K24SE-ADF40KMC-WL-I0 4MP ColorHunter OmniView Fixed Warm Light Bullet Network Camera

SKU: IPC2K24SE-ADF40KMC-WL-I0
Sensor

1/2.9" CMOS

Min. Illumination

Color: 0.0005 Lux (F1.0

,

AGC ON)

Lens Size

Lens Type

WDR

DWDR

Camera Resolutions

Supplemental Light

Warm light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 90°

,

Rotate: 0° to 360°

S/N

>52 dB

Iris

F1.0

Illumination Distance (Warm Light)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 6.5 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

273 mm × 130 mm × 76 mm (10.7" × 5.1" × 3.0") (L × W × H)

Weight

0.95 kg (2.09 lb)

Material

Metal

Surge Protection

4 KV

Protection

IP67

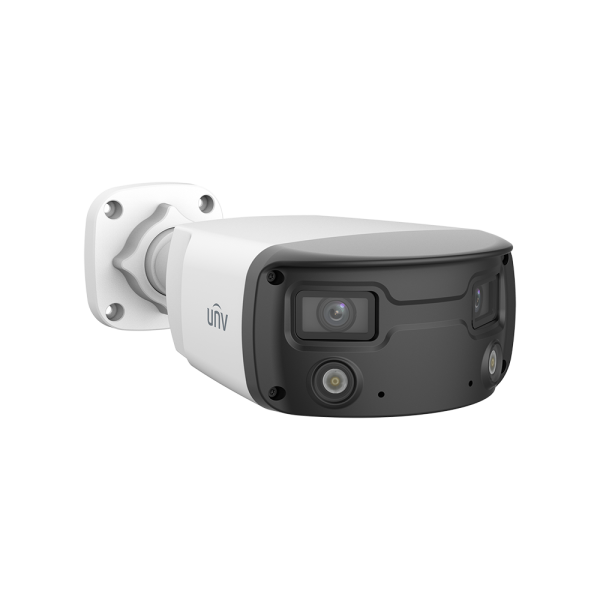

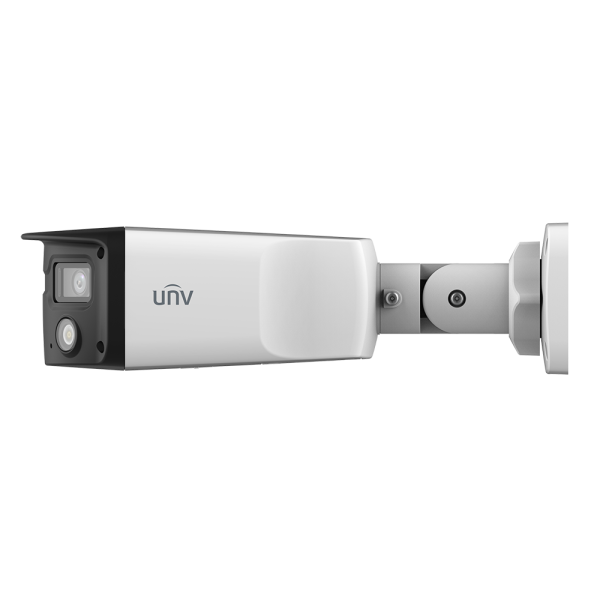

IPC2K28SE-ADF40KMC-WL-I0 8MP ColorHunter OmniView Fixed Warm Light Bullet Network Camera

SKU: IPC2K28SE-ADF40KMC-WL-I0
Sensor

1/2.7" CMOS

Camera Resolutions

Camera Style

Lens Size

Lens Type

WDR

120 dB

Min. Illumination

Color: 0.0005 Lux (F1.0

,

AGC ON)

Supplemental Light

Warm light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 90°

,

Rotate: 0° to 360°

S/N

>52 dB

Iris

F1.0

Illumination Distance (Warm Light)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Audio

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 13 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

273 mm × 130 mm × 76 mm (10.7" × 5.1" × 3.0") (L × W × H)

Weight

0.96 kg (2.12 lb)

Material

Metal

Surge Protection

4 KV

Protection

IP67

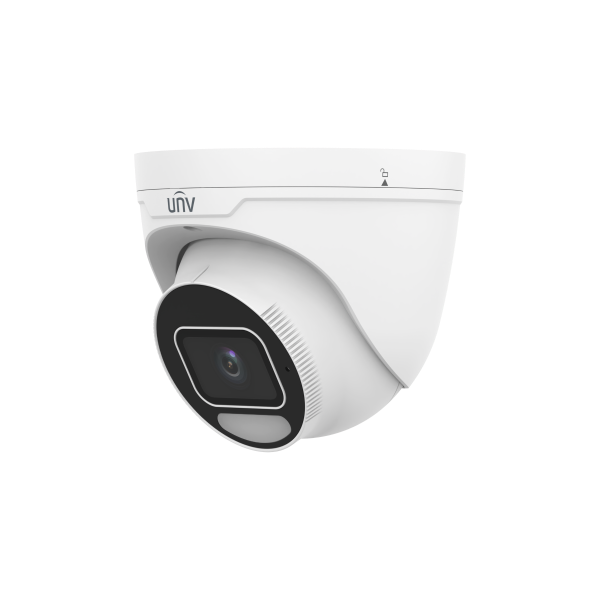

IPC3634SE-ADF28K-WP-I1 4MP WDR OwlView Plus Eyeball Network Camera

SKU: IPC3634SE-ADF28K-WP-I1
Camera Resolutions

Lens Size

Camera Style

Lens Type

WDR

130 dB

Sensor

1/1.8" CMOS

Min. Illumination

Color: 0.0003 Lux (F1.0

,

AGC ON)

Supplemental Light

Warm light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 75°

,

Rotate: 0° to 360°

S/N

>56 dB

Iris

F1.0

Illumination Distance (Warm Light)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Audio

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 4.5 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H)

Weight

0.67 kg (1.48 lb)

Material

Metal

Surge Protection

4 KV

Protection

IK10

,

IP67

IPC3634SE-ADF40K-WP-I1 4MP WDR OwlView Plus Eyeball Network Camera

SKU: IPC3634SE-ADF40K-WP-I1
Sensor

1/1.8" CMOS

Min. Illumination

Color: 0.0003 Lux (F1.0

,

AGC ON)

Camera Resolutions

Camera Style

Lens Type

WDR

130 dB

Supplemental Light

Warm light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 75°

,

Rotate: 0° to 360°

S/N

>56 dB

Iris

F1.0

Illumination Distance (Warm Light)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 4.5 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H)

Weight

0.67 kg (1.48 lb)

Material

Metal

Surge Protection

4 KV

Protection

IK10

,

IP67

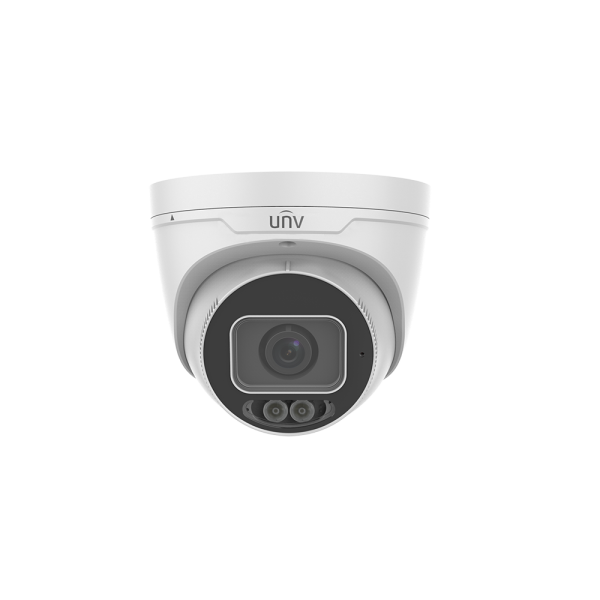

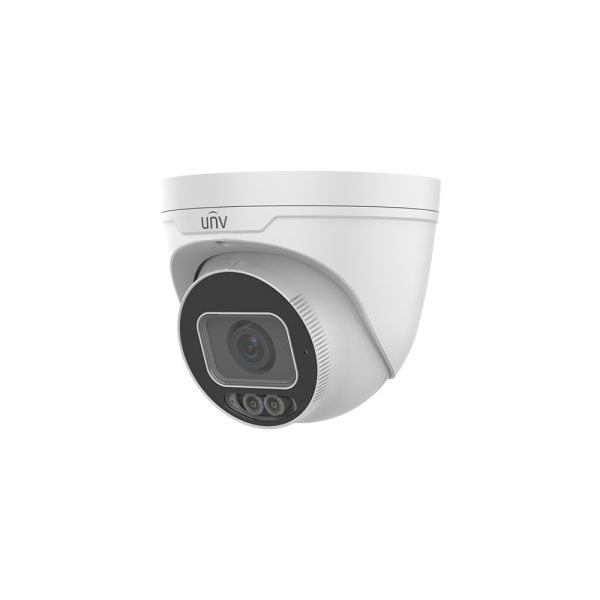

IPC3634SE-ADZK-WL-I0 4MP ColorHunter VF Dual-light Turret Network Camera

SKU: IPC3634SE-ADZK-WL-I0
Sensor

1/1.8" CMOS

Min. Illumination

Color: 0.0005 Lux (F1.2

,

AGC ON)

,

0 Lux with IR/LED on

Camera Resolutions

Lens Size

Camera Style

Lens Type

WDR

120 dB

Supplemental Light

Dual light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 72°

,

Rotate: 0° to 360°

S/N

>56 dB

Iris

F1.2

Illumination Distance (IR)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 10.0 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H)

Weight

0.66 kg (1.45 lb)

Material

Metal

Surge Protection

6 KV

Protection

IK10

,

IP67

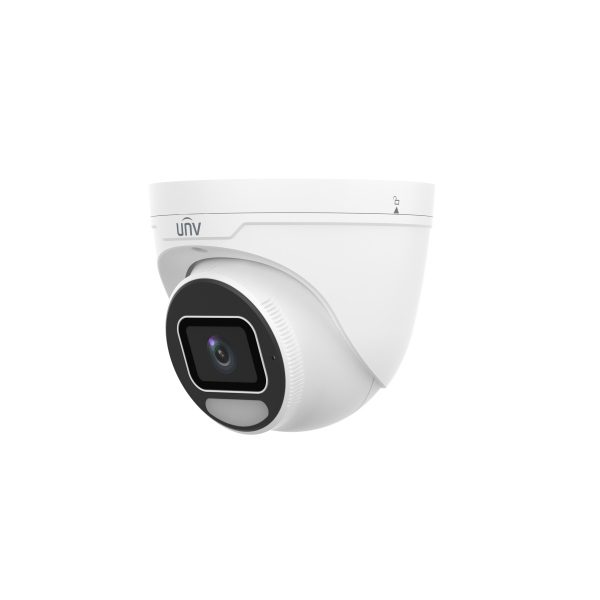

IPC3638SE-ADF28K-WP-I1 8MP WDR OwlView Plus Eyeball Network Camera

SKU: IPC3638SE-ADF28K-WP-I1
Sensor

1/1.2" CMOS

Min. Illumination

Color: 0.0003 Lux (F1.0

,

AGC ON)

Camera Resolutions

Camera Style

Lens Type

WDR

130 dB

Supplemental Light

Warm light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 75°

,

Rotate: 0° to 360°

S/N

>56 dB

Iris

F1.0

Illumination Distance (Warm Light)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 6.0 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H)

Weight

0.69 kg (1.52 lb)

Material

Metal

Protection

IK10

,

IP67

Surge Protection

4 KV

IPC3638SE-ADF40K-WP-I1 8MP WDR OwlView Plus Eyeball Network Camera

SKU: IPC3638SE-ADF40K-WP-I1
Sensor

1/1.2" CMOS

Min. Illumination

Color: 0.0003 Lux (F1.0

,

AGC ON)

Camera Resolutions

Camera Style

Lens Type

WDR

130 dB

Supplemental Light

Warm light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 75°

,

Rotate: 0° to 360°

S/N

>56 dB

Iris

F1.0

Illumination Distance (Warm Light)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 6.0 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H)

Weight

0.69 kg (1.52 lb)

Material

Metal

Protection

IK10

,

IP67

Surge Protection

4 KV

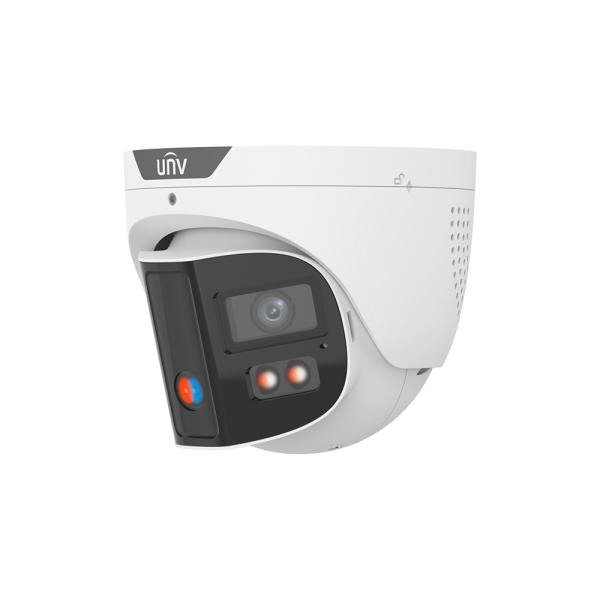

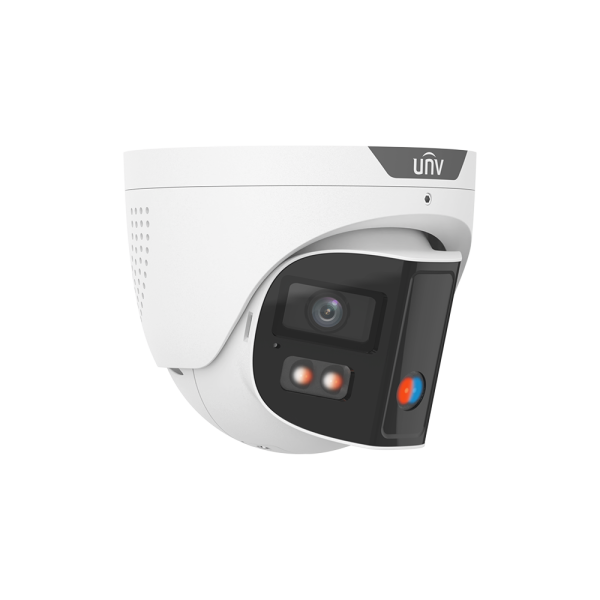

IPC3K28SE-ADF28KMC-DL-I0 8MP Double-Light Alarm Binocular Eyeball Network Camera

SKU: IPC3K28SE-ADF28KMC-DL-I0
Sensor

1/2.5" CMOS

Min. Illumination

Color: 0.0005 Lux ( F1.0

,

AGC ON)

,

0 Lux with light

Camera Resolutions

Camera Style

Lens Type

WDR

130 dB

Supplemental Light

Dual light

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°

,

Tilt: 0° to 75°

,

Rotate: 0° to 360°

S/N

>52 dB

Iris

F1.0

Illumination Distance (IR)

30 m (98.4 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Audio

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 12.6 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø128.7 mm × 109.9 mm (Ø5.1" × 4.3") (Ø × H)

Weight

0.86 kg (1.90 lb)

Material

Metal

Protection

IK10

,

IP67

Surge Protection

4 KV
