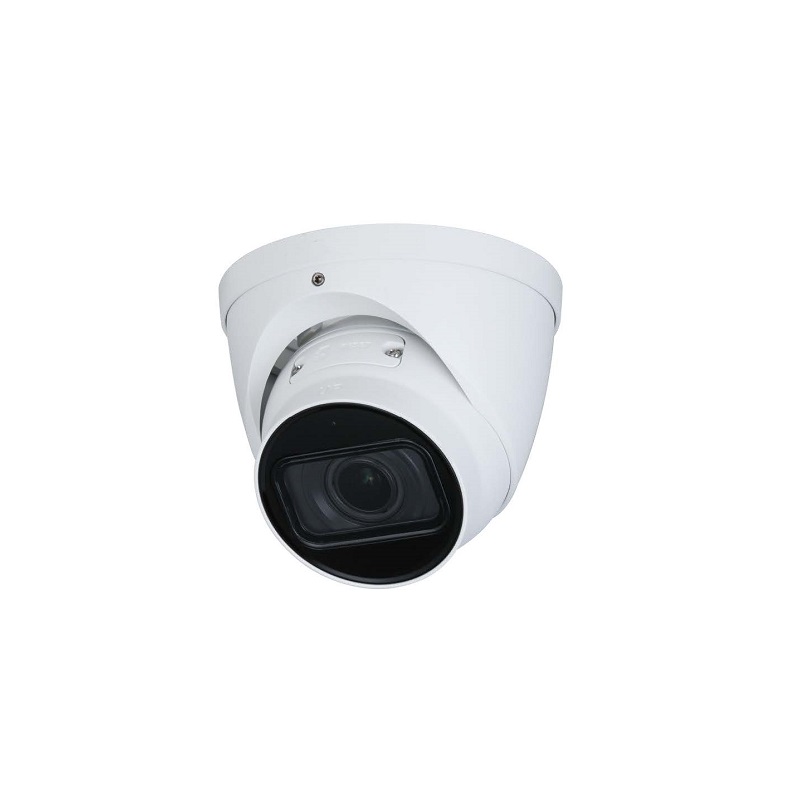

IPC-EB284T-IR-S-ZS 8MP IR Vari-focal Eyeball WizSense Network Camera

Name: IPC-EB284T-IR-S-ZS 8MP IR Vari-focal Eyeball WizSense Network Camera
SKU: IPC-EB284T-IR-S-ZS

SKU: IPC-EB284T-IR-S-ZS

8MP IR Vari-focal Eyeball WizSense Network Camera

16 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

8-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840 × 2160)@20 fps and supports 2688 × 1520 (2688 × 1520)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 40 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Supports max. 256 G Micro SD card; built in MIC.
12 VDC/PoE power supply, easy for installation.
IP67 protection.·SMD Plus.

Product Manual

No related firmware found.

Additional information

Image Sensor	1/2.7" CMOS
Max. Resolution	3840 (H) × 2160 (V)
Camera Style	Eyeball
Camera Resolutions	8 MP
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100 , 000 s
S/N Ratio	>56 dB
Illumination Distance	40 m (131.23 ft) (IR)
Focal Length	2.7 mm–13.5 mm
Lens Type	Motorized Lens
Video Bit Rate	H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps
Audio	Built-in Mic
Network Port	RJ-45 (10/100 Base-T)
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2.8 W (12 VDC); 3.6 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.4 W (12 VDC); 7.6 W (PoE)
Protection	IP67
Casing Material	Metal
Product Dimensions	108.3 mm 脳桅122 mm (4.26" 脳桅4.80")
Net Weight	0.70 kg (1.54 lb)
Gross Weight	0.88 kg (1.94 lb)
