CVI-BU223R-IR-Z 2MP Starlight HDCVI IR Bullet Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Camera Style | |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 1937(H)×1097(V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| Minimum Illumination | 0.005 Lux/F1.3, 30IRE, 0 Lux IR on |
| IR Distance | 60 m |
| Lens Type | |
| Lens Mount | Board-in |
| Focal Length | 2.7mm–13.5mm |
| Max. Aperture | F1.3 |
| WDR | 120 dB |
| Digital Noise Reduction | 2D/3D DNR |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Power | DC12V ±25% |
| Power Consumption | Max 10.1W (12V DC, IR on) |
| Ingress Protection & Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimension | 213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56") |
| Net Weight | 0.61kg (1.34lb) |
| Gross Weight | 0.74kg (1.63lb) |

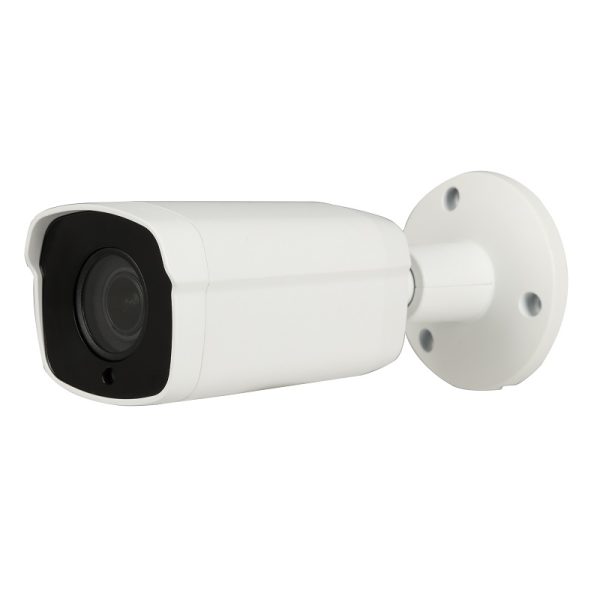

CVI-BU240R-IR-Z 4 MP WDR HDCVI IR Motorized Bullet Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Image Sensor | 1/3" CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| Camera Style | |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| Minimum Illumination | 0.01 Lux/F1.3, 30IRE, 0 Lux IR on |
| IR Distance | 60 m |
| IR LEDs | 4 |
| Lens Type | |
| Lens Mount | Board-in |
| Focal Length | 2.7-13.5mm |
| Max. Aperture | F1.3 |
| Video Resolution | 4MP (2560×1440) |
| Video Frame Rate | 25fps@4MP, 25/30fps@1080P, 25/30fps@720P |
| Video Output | 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output |
| WDR | 120 dB |
| Noise Reduction | 2D/3D |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Power | 12V DC ±25% |
| Power Consumption | Max 11.1W (12V DC, IR on) |
| Casing | Aluminium |
| Dimensions | 213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56") |
| Net Weight | 0.61kg (1.34lb) |
| Gross Weight | 0.74kg (1.63lb) |

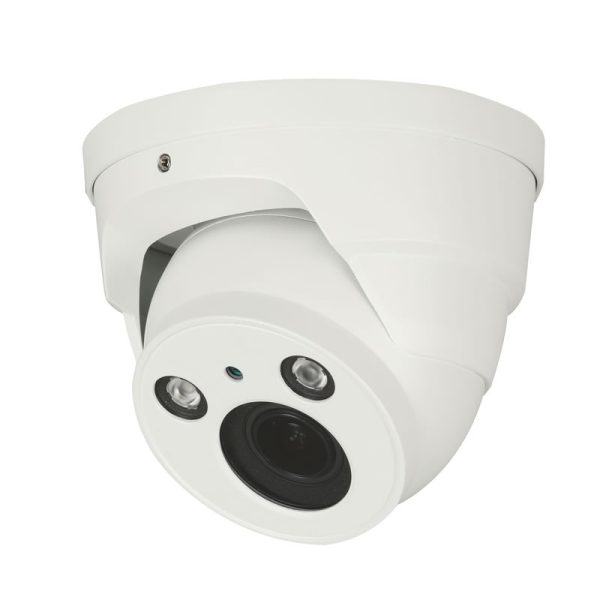

CVI-EB240R-IR-Z 4 MP WDR HDCVI IR Motorized Eyeball Camera
Login to see prices| Image Sensor | 1/3" CMOS |
|---|---|
| Lens Size | |
| Effective Pixels | 2688(H)×1520(V) |
| Scanning System | Progressive |
| Shutter Speed | PAL: 1/4s~1/100000s NTSC: 1/3s~1/100000s |
| Camera Style | |
| Minimum Illumination | 0.01 Lux/F1.3, 30IRE, 0 Lux IR on |
| IR Distance | 60 m |
| IR LEDs | 2 |
| Lens Type | |
| Lens Mount | Board-in |
| Focal Length | 2.7-13.5mm |
| Max. Aperture | F1.3 |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
| Resolution | 4MP (2560×1440) |
| Frame Rate | 25fps@4MP, 25/30fps@1080P, 25/30fps@720P |
| WDR | 120 dB |
| Noise Reduction | 2D/3D |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Power | 12V DC ±25% |
| Power Consumption | Max 8.4W (12V DC, IR on) |
| Ingress Protection & Vandal Resistance | IP67 |
| Casing | Aluminium |
| Dimensions | Φ122mm×104.9mm (Φ4.8"×4.13") |
| Net Weight | 0.59kg (1.30lb) |
| Gross Weight | 0.74kg (1.63lb) |

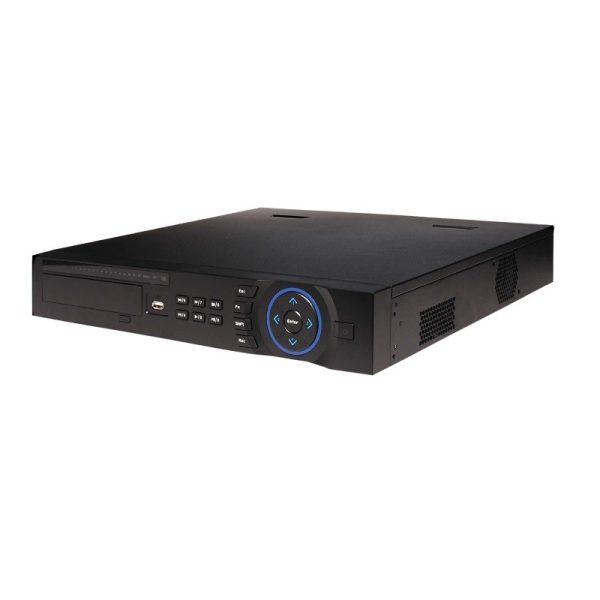

CVR804L-16 16 Channel 1080P 4HDD 1.5U HD-CVI DVR
Login to see prices| Channels | |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video Input | 16-ch |
| Display Interface | HDMI1(4K)，HDMI2( 1080P) ,1 VGA ,VIDEO OUT |
| Display Resolution | 3840×2160(HDMI1,)1920×1080, 1280×1024, 1280×720, 1024×768 |
| Display Split | 1/4/8/9/16/25/36 |
| Recording Video Compression | H.264 |
| Recording Bit Rate | 32~8192Kb/s |
| Synchronous playback | 1/4/9/16ch |
| HDD Support | |
| Internal HDD | 4 SATA ports, up to 32TB, 1 eSATA |
| USB Interface | 3 ports (2 Rear USB3.0, 1 Front USB2.0) |
| RS232 | 1 port, For PC communication & Keyboard |
| RS485 | 1 port, For PTZ control |
| Case | |
| Power | 100 to 240 VAC |
| Power Consumption | ≤40W(without HDD) |
| Dimension(W×D×H) | 1.5U, 440mm×416mm×68mm |
| Weight | 6KG(without HDD) |

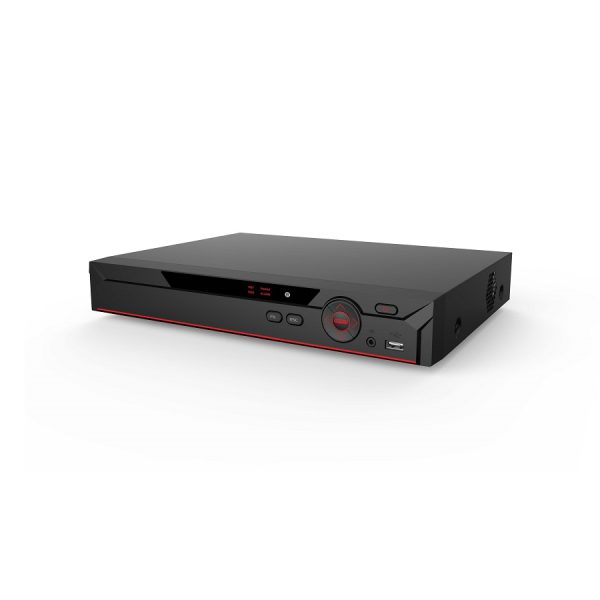

iXVR531H-8 8 Channel Penta-brid 1080P Mini 1U Digital Video Recorder
Login to see prices| Main Processor | Embedded Processor |
|---|---|
| Operating System | Embedded LINUX |
| Analog Camera Input | 8 Channel ,BNC |
| HDCVI Camera | 5MP ,4MP ,1080P@25/30fps ,720P@50/60fps ,720P@25/30fps |
| AHD Camera | 5MP ,4MP ,1080P@25/30 ,720P@25/30fps |
| IP Camera Input | 8+4 channels, each channel up to 6MP |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Channels | |
| Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Display Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Playback | 1/4/9It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode. |
| Storage Internal HDD | 1 SATA Port, up to 10TB capacity |
| USB/RS485 | USB: 2 USB Ports (USB 2.0) RS485: 1 Port, for PTZ Control |
| Case | |
| Power | DC12V |
| Power Consumption (Without HDD) | <7W |
| Dimensions | Mini 1U, 325 mm × 257 mm × 55 mm (12.80" × 10.10" × 2.17") |
| Net Weight (without HDD) | 1.2 kg (2.7 lb) |
| Gross Weight | 1.9 kg (4.2 lb) |
| Installation | Desktop installation |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |

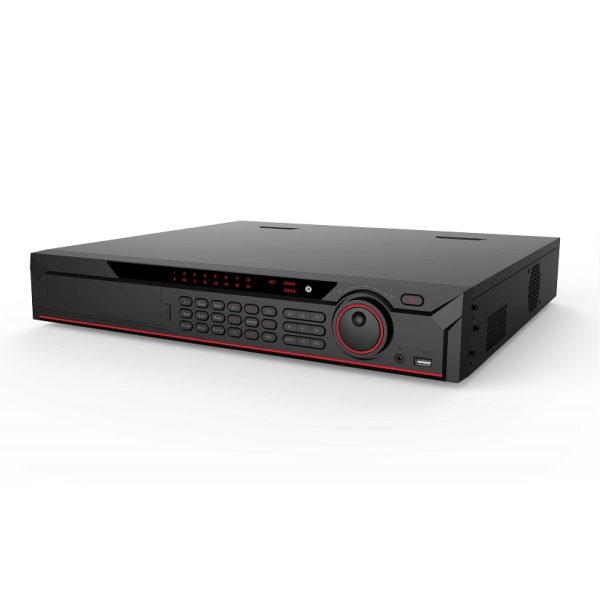

iXVR534L-32 32 Channel Penta-brid 5M-N/1080P 1.5U WizSense Digital Video Recorder
Login to see prices| Channels | |
|---|---|
| Main Processor | Embedded Processor |
| Performance | 2 channels ,max 12 face pictures/sec processing 2 channels video stream face recognition ,only support analog camera |
| Database Application | Each database can be applied to video channels independently |
| Analog Camera Input | 32 channels ,BNC |
| HDCVI Camera Input | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| IP Camera Input | 32 channels, each channel up to 8MP |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Record Rate | Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N /720P /960H / D1 /CIF (1fps–25/30fps) Sub stream: D1/CIF (1fps–15fps) |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Resolution | HDMI 1:3840×2160 ,1920×1080 ,1280×1024 ,1280×720 HDMI2/VGA: 1920×1080 ,1280×1024 ,1280×720 |
| Playback | 1/4/9/16 |
| Internal HDD | 4 SATA Ports, up to 10TB capacity for each disk |
| eSATA | 1 Port |
| USB/RS485/ RS232 | USB: 3 USB Ports (1 USB 2.0 , 2 USB 3.0) RS485: 1 Port, for PTZ Control RS232: 1 Port, for PC Communication & Keyboard |
| HDD Support | |
| Power | 100 to 240 VAC |
| Power Consumption (Without HDD) | <22W |
| Case | |
| Dimensions | 1.5U, 440 mm × 421 mm × 76 mm (17.32" × 16.54" × 2.99") |
| Net Weight (without HDD) | 4.8 kg (10.7 lb) |
| Gross Weight | 7.1 kg (15.6 lb) |
| Installation | Desktop/racket mounted |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
