NVR304-16B-P16-IQ 4 HDDs 16-ch 16 PoE 1.5U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 ,10 x 1080P@30 ,16 x 720P@30 Smart On：2 x 4K@30 ,4 x 4MP@30 ,8 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100~240V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 150 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 4Kg (8.8lb) |
| Dimensions | 400mm × 369mm × 74mm (15.7"×14.5"×2.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR304-32B-IQ 4 HDDs 32-ch 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 ,10 x 1080P@30 ,20 x 720P@30 ,32 x D1 Smart On：2 x 4K@30 ,4 x 4MP@30 ,8 x 1080P@30 ,16 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/5 A |
| Alarm Out | N/A |
| RS485 | N/A |
| Alarm In | N/A |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 3.4Kg (7.5lb) |
| Dimensions | 440mm × 350mm × 48mm (17.3"×13.8"×1.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR304-32B-P16-IQ 4 HDDs 32-ch 16 PoE 1.5U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 ,10 x 1080P@30 ,20 x 720P@30 ,32 x D1 Smart On：2 x 4K@30 ,4 x 4MP@30 ,8 x 1080P@30 ,16 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100~240V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 150 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 4Kg (8.8lb) |
| Dimensions | 400mm × 369mm × 74mm (15.7"×14.5"×2.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

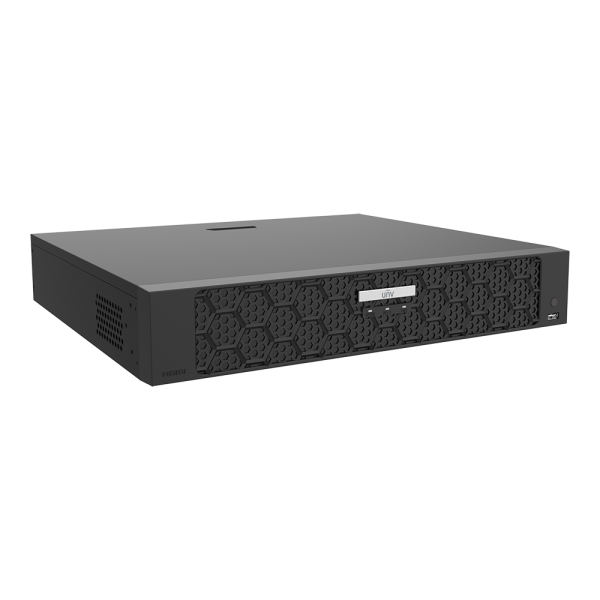

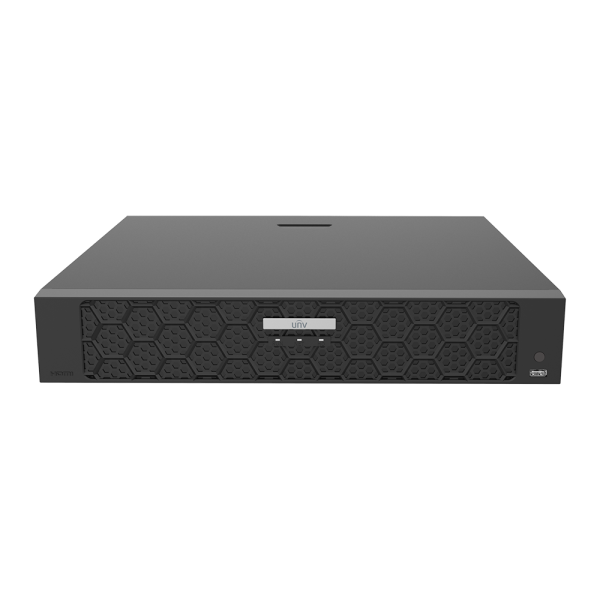

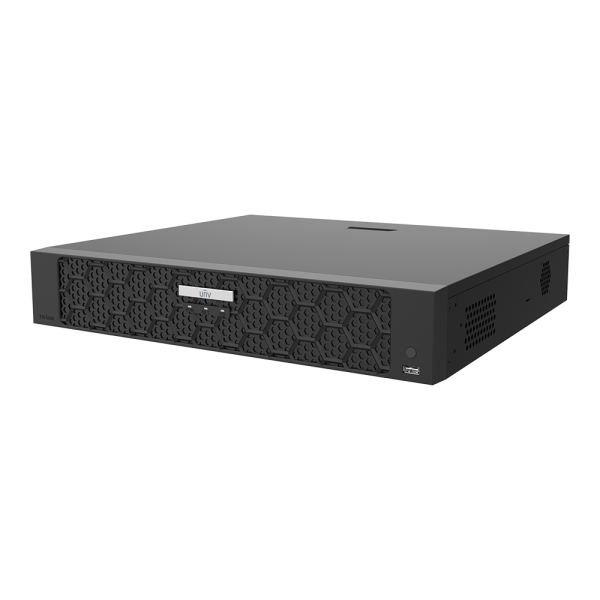

NVR504-16B-P16 4 HDDs 16-ch 16 PoE 1.5U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 ,14 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 150 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 20W |
| Weight (without HDD) | ≤ 4Kg (8.82lb) |
| Dimensions | 400mm × 368mm × 74mm (15.7"×14.5"×2.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

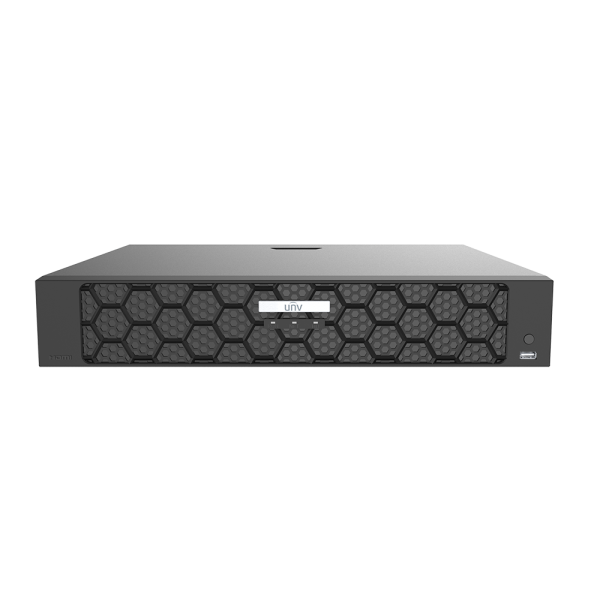

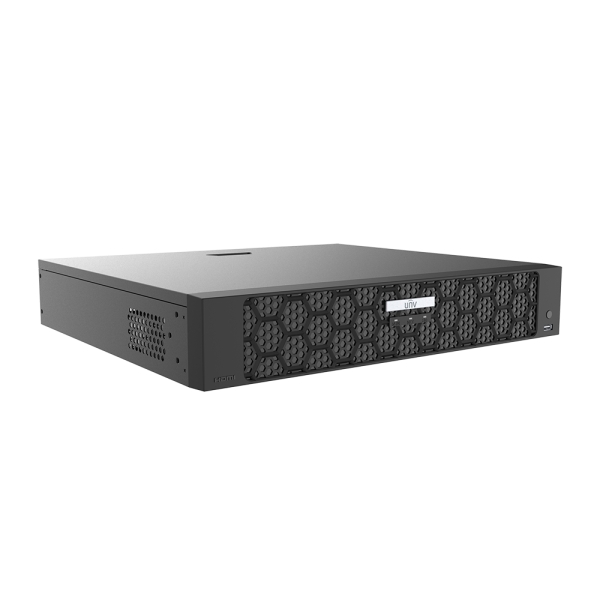

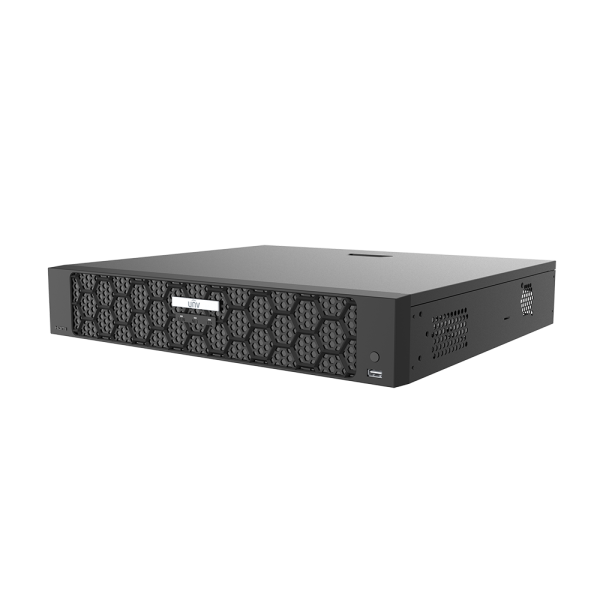

NVR504-16B-P16-IQ 4 HDDs 16-ch 16 PoE 1.5U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 Smart On：2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 ,12 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100~240V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 150 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 4Kg (8.8lb) |
| Dimensions | 400mm × 368mm × 74mm (15.7"×14.5"×2.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

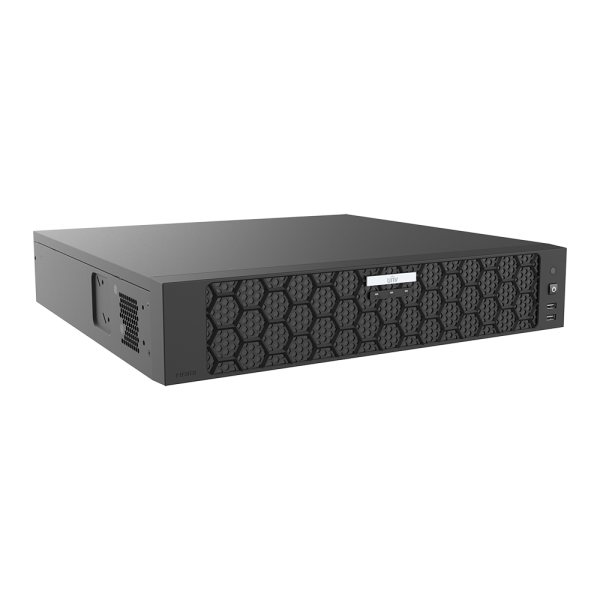

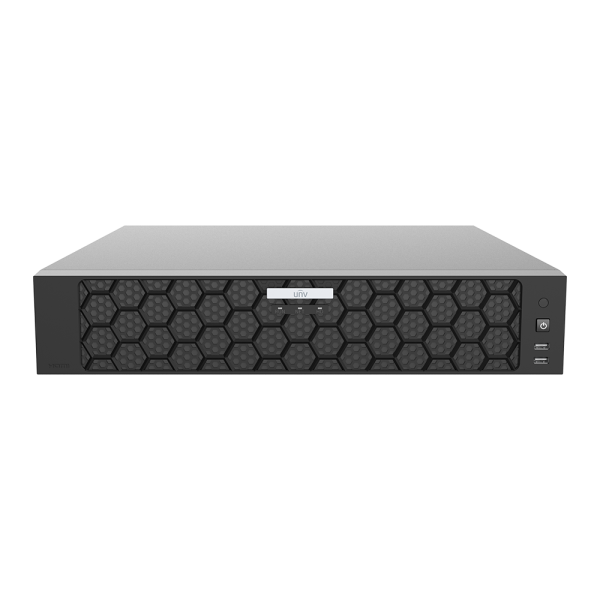

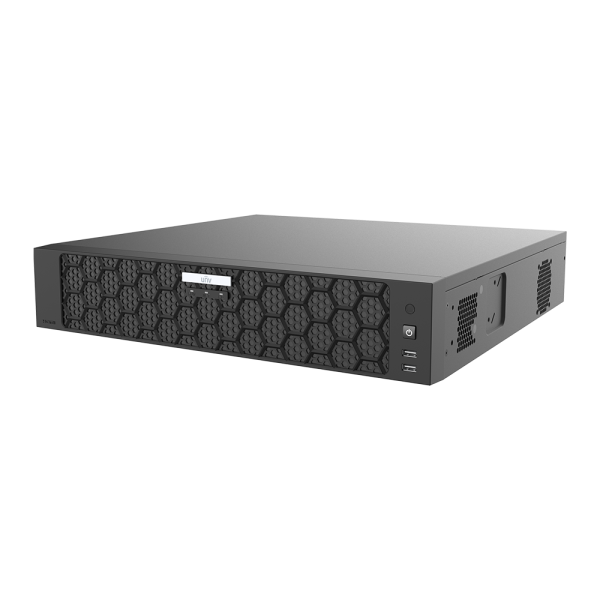

NVR504-16E-P16-IQ 4 HDDs 16-ch 16 PoE 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off: 2 x 32MP@30 ,4 x 16MP@30 ,5 x 12MP@30 ,8 x 4K@30 ,10 x 6MP@30 ,12 x 5MP@30 ,16 x 4MP@30 Smart On: 1 x 32MP@30 ,3 x 16MP@30 ,4 x 12MP@30 ,6 x 4K@30 ,8 x 6MP@30 ,9 x 5MP@30 ,12 x 4MP@30 ,16 x 3MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Incoming Bandwidth | Smart Off: 384 Mbps ,Smart On: 200 Mbps |
| Outgoing Bandwidth | Smart Off: 384 Mbps ,Smart On: 200 Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 150 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤50W |
| Weight (without HDD) | ≤5.5KG |
| Dimensions | 442mm × 432.9mm × 88.6mm (17.4" ×17" ×3.5" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

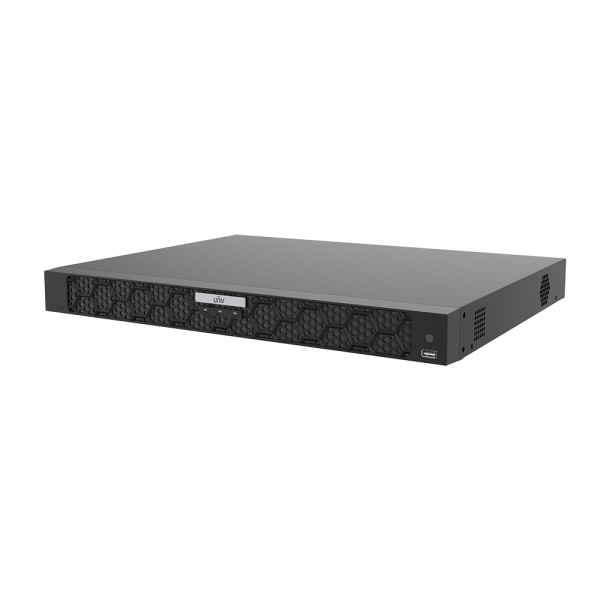

NVR504-32B 4 HDDs 32-ch 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 ,32 x 960P@25 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 ,14 x 1080P@30 ,30 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front: 1 x USB2.0 ,Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/5 A |
| Power Switch | Support |
| RS485 | 1 |
| RS232 | N/A |
| Power Consumption (without HDD) | ≤ 20W |
| Weight (without HDD) | ≤ 3.4Kg (7.50lb) |
| Dimensions | 440mm × 344mm × 48mm(17.3"×13.5"×1.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

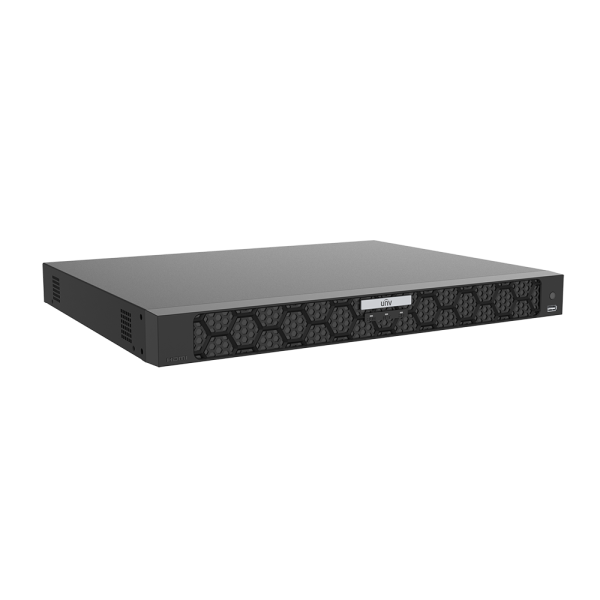

NVR504-32B-IQ 4 HDDs 32-ch 1U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 ,32 x 720P@30 Smart On：2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 ,12 x 1080P@30 ,24 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/5 A |
| Power Switch | Support |
| RS485 | 1 |
| RS232 | N/A |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 3.4Kg (7.5lb) |
| Dimensions | 440mm × 344mm × 48mm (17.3"×13.5"×1.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR504-32B-P16 4 HDDs 32-ch 16 PoE 1.5U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 ,32 x 960P@25 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 ,14 x 1080P@30 ,30 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 150 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 20W |
| Weight (without HDD) | ≤ 4Kg (8.82lb) |
| Dimensions | 400mm × 368mm × 74mm (15.7"×14.5"×2.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR504-32B-P16-IQ 4 HDDs 32-ch 16 PoE 1.5U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 ,32 x 720P@30 Smart On：2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 ,12 x 1080P@30 ,24 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100~240V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 150 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 4Kg (8.8lb) |
| Dimensions | 400mm × 368mm × 74mm (15.7"×14.5"×2.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

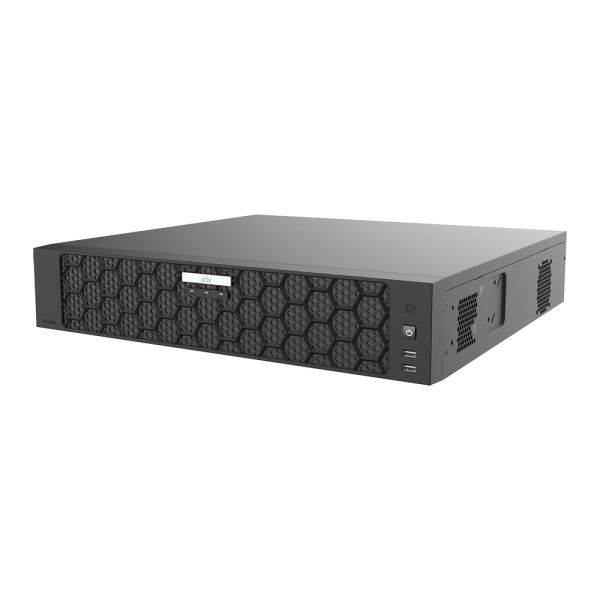

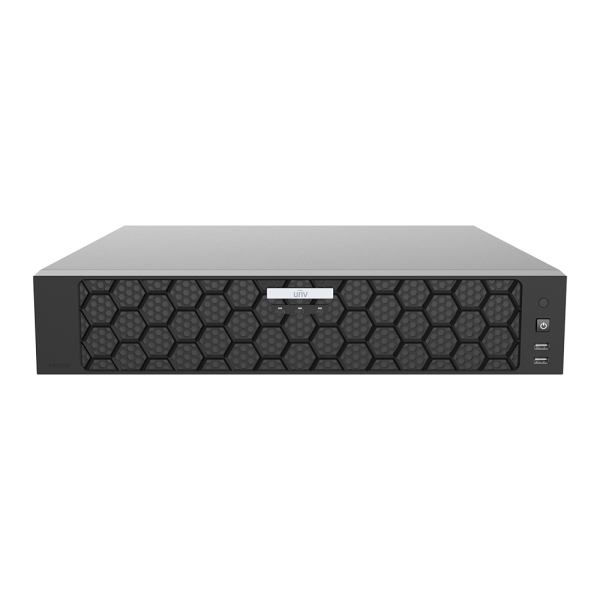

NVR504-32E-IQ 4 HDDs 32-ch 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 32MP@30 ,4 x 16MP@30 ,5 x 12MP@30 ,8 x 4K@30 ,10 x 6MP@30 ,12 x 5MP@30 ,16 x 4MP@30 ,20 x 3MP@30 ,32 x 1080P@30 Smart On：1 x 32MP@30 ,3 x 16MP@30 ,4 x 12MP@30 ,6 x 4K@30 ,8 x 6MP@30 ,9 x 5MP@30 ,12 x 4MP@30 ,16 x 3MP@30 ,24 x 1080P@30 ,32 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Incoming Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Outgoing Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100~240V |
| Network Working Mode | Muli-access ,load balance ,network fault-tolerance |
| RS485 | 1 |
| Alarm In | 16-ch |
| Power Consumption (without HDD) | ≤ 35W |
| Weight (without HDD) | ≤ 5.5Kg (12.1lb) |
| Dimensions | 442mm × 432mm × 86mm (17.4"×17.0"×3.4") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR504-32E-P24-IQ 4 HDDs 32-ch 24 PoE 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 24 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off: 2 x 32MP@30 ,4 x 16MP@30 ,5 x 12MP@30 ,8 x 4K@30 ,10 x 6MP@30 ,12 x 5MP@30 ,16 x 4MP@30 ,20 x 3MP@30 ,32 x 1080P@30 Smart On: 1 x 32MP@30 ,3 x 16MP@30 ,4 x 12MP@30 ,6 x 4K@30 ,8 x 6MP@30 ,9 x 5MP@30 ,12 x 4MP@30 ,16 x 3MP@30 ,24 x 1080P@30 ,32 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Incoming Bandwidth | Smart Off: 384 Mbps ,Smart On: 200 Mbps |
| Outgoing Bandwidth | Smart Off: 384 Mbps ,Smart On: 200 Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| PoE Interface | 24 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 210 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤50W |
| Weight (without HDD) | ≤5.5KG |
| Dimensions | 442mm × 432.9mm × 88.6mm (17.4" ×17" ×3.5" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR504-64E-IQ 4 HDDs 64-ch 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 32MP@30 ,4 x 16MP@30 ,5 x 12MP@30 ,8 x 4K@30 ,10 x 6MP@30 ,12 x 5MP@30 ,16 x 4MP@30 ,20 x 3MP@30 ,32 x 1080P@30 ,64 x 720P@30 Smart On：1 x 32MP@30 ,3 x 16MP@30 ,4 x 12MP@30 ,6 x 4K@30 ,8 x 6MP@30 ,9 x 5MP@30 ,12 x 4MP@30 ,16 x 3MP@30 ,24 x 1080P@30 ,48 x 720P@30 ,64 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Incoming Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Outgoing Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100~240V |
| Network Working Mode | Muli-access ,load balance ,network fault-tolerance |
| RS485 | 1 |
| Alarm In | 16-ch |
| Power Consumption (without HDD) | ≤ 35W |
| Weight (without HDD) | ≤ 5.5Kg (12.1lb) |
| Dimensions | 442mm × 432mm × 86mm (17.4"×17.0"×3.4") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR504-64E-P24-IQ 4 HDDs 64-ch 24 PoE 2U Network Video Recorder
Login to see prices| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 24 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off: 2 x 32MP@30 ,4 x 16MP@30 ,5 x 12MP@30 ,8 x 4K@30 ,10 x 6MP@30 ,12 x 5MP@30 ,16 x 4MP@30 ,20 x 3MP@30 ,32 x 1080P@30 ,64 x 720P@30 Smart On: 1 x 32MP@30 ,3 x 16MP@30 ,4 x 12MP@30 ,6 x 4K@30 ,8 x 6MP@30 ,9 x 5MP@30 ,12 x 4MP@30 ,16 x 3MP@30 ,24 x 1080P@30 ,48 x 720P@30 ,64 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Incoming Bandwidth | Smart Off: 384 Mbps ,Smart On: 200 Mbps |
| Outgoing Bandwidth | Smart Off: 384 Mbps ,Smart On: 200 Mbps |
| Remote Users | 128 |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0 ,Rear panel: 2 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| PoE Interface | 24 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 210 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤50W |
| Weight (without HDD) | ≤5.5KG |
| Dimensions | 442mm × 432.9mm × 88.6mm (17.4" ×17" ×3.5" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
