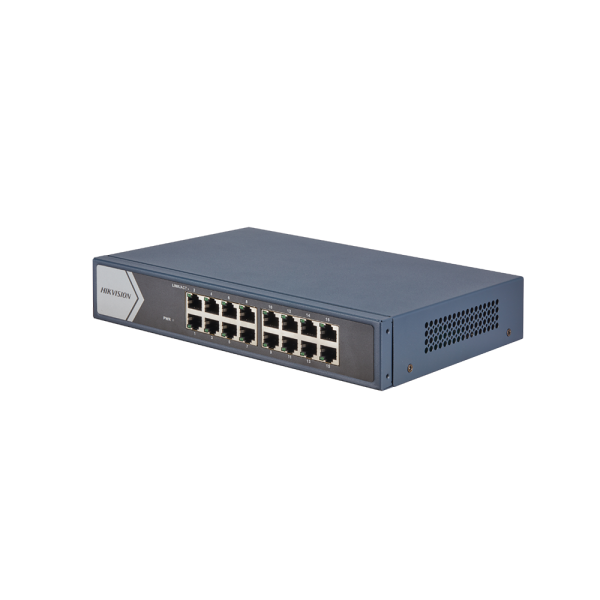

DS-3E0516-E 16 PORT GIGABIT UNMANAGED SWITCH
Login to see prices| Port number | 16 x 1000M Ethernet port |
|---|---|
| Port type | RJ45 port ,Full duplex ,MDI/MDI-X adaptive |
| Standard | IEEE 802.3 ,IEEE 802.3u ,IEEE 802.3x |
| Processing Types | Store-and-forward switching |
| MAC address table | 8 K |
| Exchange capacity | 32 Gbps |
| Packet forwarding rate | 23.808 Mpps |
| Internal cache | 4.1 Mbits |
| Shell | Metal material, fan-free design |
| Weight | 1.2 kg (2.6 lb) |
| Dimension | 257 mm × 44.5 mm ×175.8 mm (10.1” × 1.8” × 6.9”) |
| Power | 220 VAC |

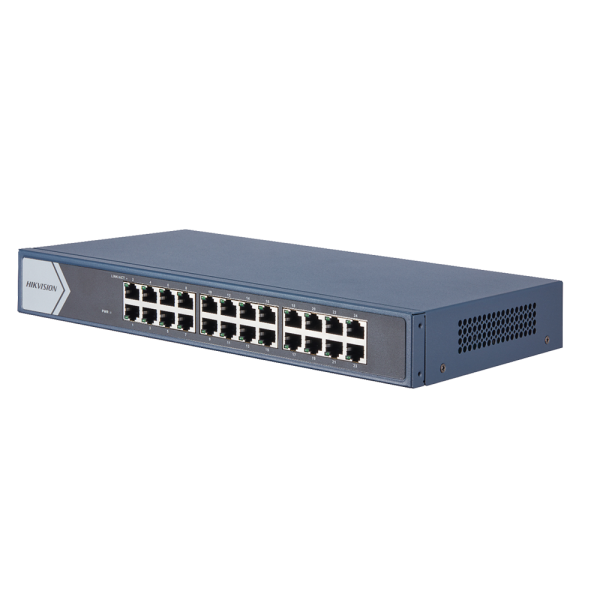

DS-3E0524-E 24 PORT GIGABIT UNMANAGED SWITCH
Login to see prices| Port number | 24 x 1000M Ethernet port |
|---|---|
| Port type | RJ45 port ,Full duplex ,MDI/MDI-X adaptive |
| Standard | IEEE 802.3 ,IEEE 802.3u ,IEEE 802.3x |
| Processing Types | Store-and-forward switching |
| MAC address table | 8 K |
| Exchange capacity | 48 Gbps |
| Shell | Metal material, fan-free design |
| Weight | 1.6 kg (3.5 lb) |
| Relative humidity | 5% to 95% (no condensation) |
| Power | AC220V |

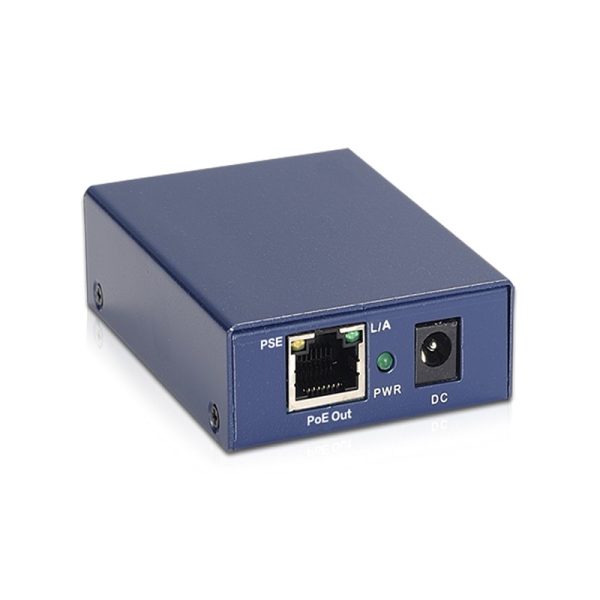

POE-EX01A POE EXTENDER
Login to see prices| Compliance | IEEE 802.3af ,lEEE 802.3at ,Support PoE power up to 15.4W |
|---|---|
| Processing types | Store-and-forward Half-duplex back pressure;EEE802.3x full-duplex flow control |
| Data Rate | 10/100Mbps |
| Pin Definition | 12/36 for power/45/78 for data |
| PoE Power Input | 48V |
| PoE Power Output | 48V |
| Certification | CE,FCC,RoHs |
| Warranty | 1 year |

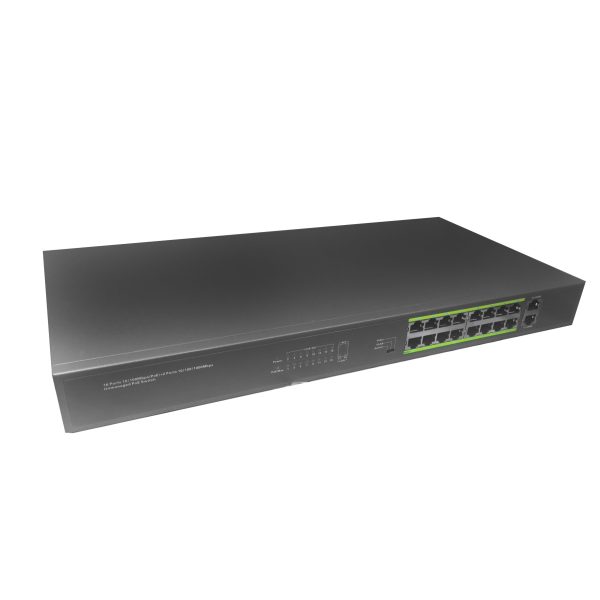

POE-SW16P-2G-150 16 Ports PoE switch with 2 Gigabit Uplink
Login to see prices| PoE Port Count | 16 ports |
|---|---|
| PoE power | Wiring: Data & power provided over pairs 1/2(+) and 3/6(-). |
| Processing types | Store-and-forward |
| Buffer memory | 5.36M |
| MAC Address | 4k |
| Backplane Bandwidth | 7.2Gbps |
| PoE Budget | 150W |
| Network latency | Less than 20us for 64-byte frames in Store-and forward mode |
| Power Input | AC110–260V |
| Casing | Metal case |
| Dimension | 282x178x44mm (LxWxH) |
| Weight | 1.4KG |
| Installation | Desktop |

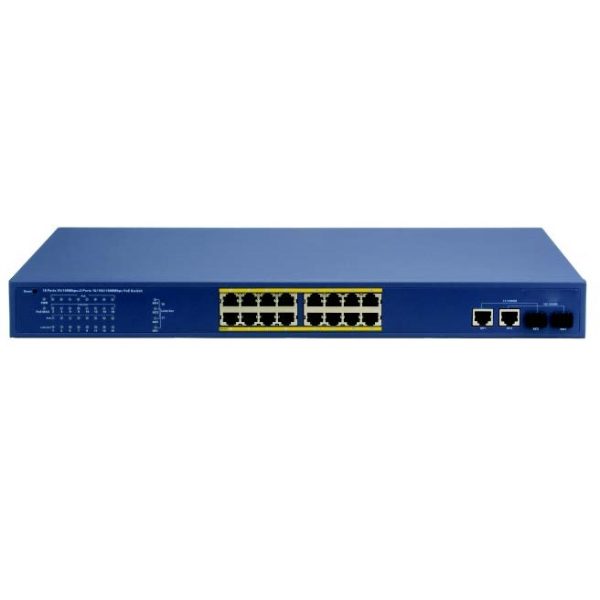

POE-SW16PG-2GF-250 16 PORTS HIGH POWER POE FIBER SWITCH 10/100MBPS UPLINK
Login to see prices| Network Standards | IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3X Flow Control IEEE802.3af/lEEE802.3 at Power over Ethernet |
|---|---|
| PoE Port Count | 16 ports |
| PoE Power | 15.4/25.5W per port Wiring: Data provided over pairs over 1/2 and 3/6 Cable: Unshielded UPT cat.5 or higher |
| Processing types | Store-and-forward Half-duplex back pressure and IEEE802.3x full-duplex flow control |
| Address data base Table Size | 8000 MAC address |
| Backplane Bandwidth | 8.8 Gbps |
| Network Latency | Less than 20us for 64-by teframes in Store-and-forward mode for 100Mbps to 100Mbps transmission |
| LED Indicator | Power,Link/Act,PoEMax |
| Intelligent PoE Control | Over Temperature Power Limite PoE Classification |
| Size | 440*285*44 |
| Weight | 3.88kg |
| Network ports | 1610/100Mbps auto-sensing Fast PoE Ethernet Ports 410/100/1000Mbps auto-sensing Gigabit uplink Ports Ethernet switching ports(RJ-45) -2 Dual Personality SFP ports |

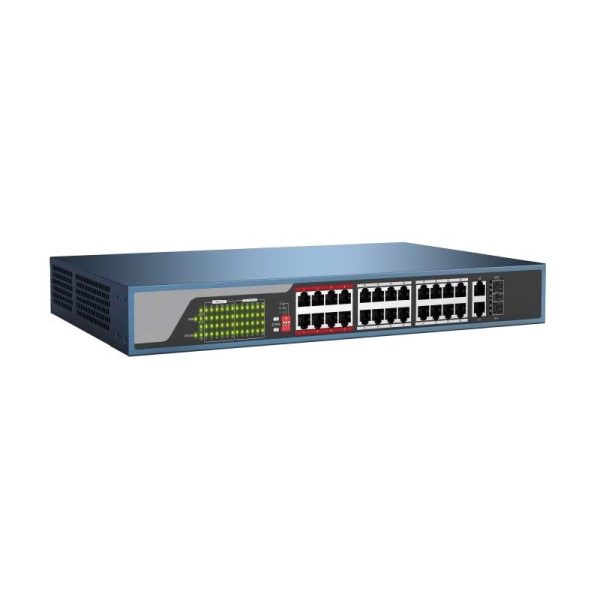

POE-SW24P-2G-440 24-PORTS 100MBPS UNMANAGED POE SWITCH
Login to see prices| PoE Port | 24 ,10/100Mbps RJ45 ports |
|---|---|
| PoE Port Count | 24 ports |
| Network Ports | 26 |
| Uplink Port | 2 ,1000M Combo Port |
| High Priority Ports | Ports 1-8 |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| PoE Power Budget | 370W |
| Switching Capacity | 8.8Gbps |
| MAC Address | 4k |
| Power | 100 to 240 VAC |
| Power Consumption | ≤440W |
| Surge Protection | 4KV |
| Weight | 4.29kg |
| Dimensions | 440mm*285mm*43mm |

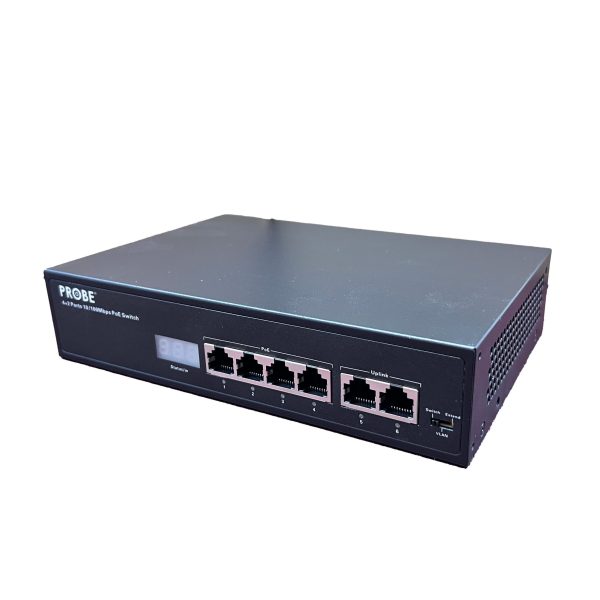

POE-SW4P-2G-65 6-port PoE switch with 4 PoE RJ45 ports and 2 uplink ports
Login to see prices| Downlink Ports | 4*10/100M RJ45 ports |
|---|---|
| Uplink ports | 2*100M RJ45 Uplink ports |
| PoE Standard Power Supply | IEEE 802.3at、IEEE 802.3af |
| PoE Port Count | 4 ports |
| Total Power Supply | 65W |
| LED Indicator | Link / Act |
| Transmission Mode | IEEE802.3 full duplex flow control and backpressure half duplex flow control |
| Backplane Bandwidth | 1.2Gbps |
| Packet Forwarding Rate | 0.89Mpps |
| MAC Address | 2K |
| Power Supply | AC 100~240V 50/60HZ |
| Size | 200mm × 133mm × 44mm |

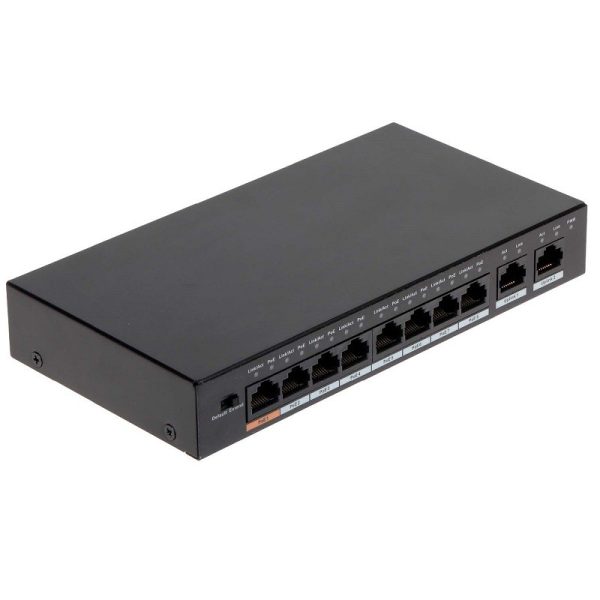

POE-SW8P-2G-96 10-Port Fast Ethernet PoE Switch with 8 PoE Ports
Login to see prices| Ethernet Ports | 8*10/100Mbps PoE ports 2*10/100/1000Mbps ports |
|---|---|
| PoE Power Consumption | Port1≤60W ,Port2-8≤30W ,Total≤96W |
| PoE Port Count | 8 ports |
| PoE Protocol | IEEE802.3af (PoE) ,IEEE802.3at (PoE+) ,Hi-PoE |
| Switching Capacity | 5.6Gbps |
| Packet Forwarding Rate | 4.17Mpps |
| MAC Table Size | 16K |
| Power | DC48~57V power adapter |
| Lightning Protection | Common Mode 2KV Differential Mode 0.5KV |
| Weight | 0.49kg |
| Dimension | 190mm×100mm×30mm |
