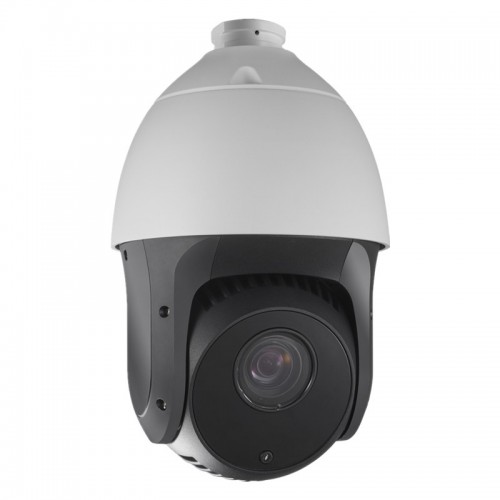

AP112-IR/25X 2 MP 25x IR Turbo 4-Inch Speed Dome
Login to see prices| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Camera Style | |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080) |
| Minimum Illumination | Color: 0.005 Lux @(F1.6 ,AGC ON) B/W: 0.001 Lux @(F1.6 ,AGC ON) 0 lux with IR |
| WDR | ≥120 dB |
| Shutter Speed | PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
| Day & Night | IR cut filter |
| Focal Length | 4.8 mm to 120 mm, 25× Optical |
| Max. Aperture | F1.6 to F3.5 |
| Horizontal Field of View | 57.6° to 2.5° (wide-tele) |
| Pan Range | 360° endless |
| Pan Speed | Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s |
| IR Distance | 100 m |
| Power | DC 12V |
| Protection | IP66 |
| Mounting | Various mounting modes optional |
| Dimension | 164.5 mm × 295 mm (6.47" × 11.61") |
| Weight (approx.) | 2 Kg (4.41 Ib.) |

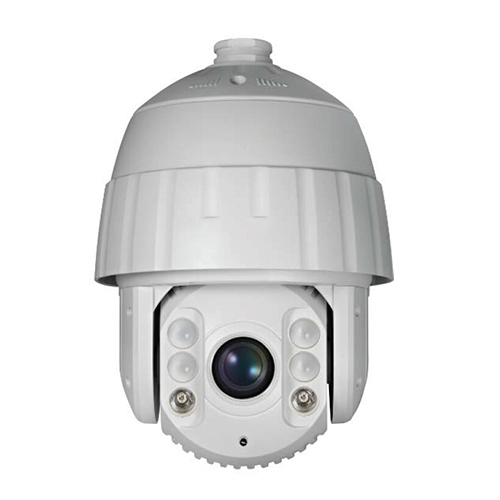

AP312-IR 25X 2 MP IR Turbo 7-Inch Speed Dome
Login to see prices| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 1920 × 1080 |
| Minimum Illumination | Color: 0.005 Lux@(F1.6 ,AGC ON) B/W: 0.001 Lux@(F1.6 ,AGC ON) 0 lux with IR |
| Shutter Speed | PAL: 1/1 s to 1/10000 s NTSC: 1/1 s to 1/10000 s |
| Camera Style | |
| WDR | ≥120 dB |
| Day/Night | IR cut filter |
| Focal Length | 4.8 mm to 120 mm, 25×Optical |
| Horizontal Field of View | 57.6° to 2.5°(wide-tele) |
| IR Distance | 150 m |
| Video Output | Switchable TVI/ AHD /CVI /CVBS video output,(NTSC or PAL composite, BNC) |
| Power | 24 VAC Max.40 W(IR: 14 W) |
| Protection | IP66 |
| Mounting | Various mounting modes optional |
| Dimension | 220 mm×353.4 mm(8.66"×13.91") |
| Weight(approx.) | 4.5 kg(9.92 lb.) |

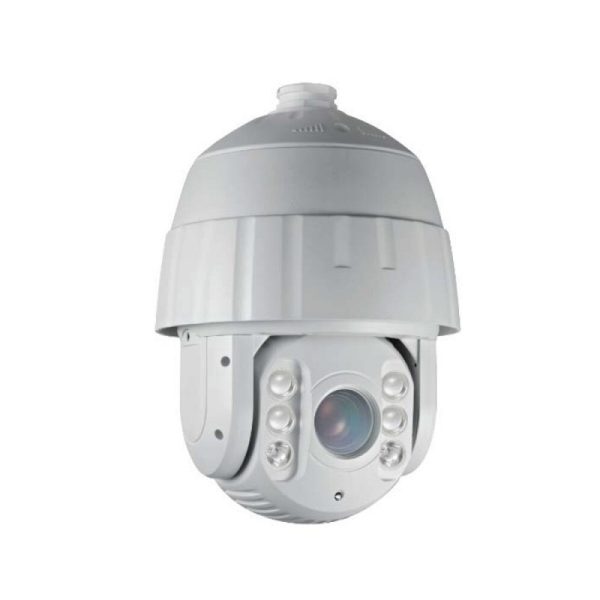

AP312-IR/32X 2 MP 32x IR Turbo 7-Inch Speed Dome
Login to see prices| Image Sensor | 1/3" CMOS |
|---|---|
| Camera Resolutions | |
| Effective Pixels | 3270 K |
| Horizontal Resolution | 1100 TVL |
| Signal System | PAL / NTSC |
| Minimum Illumination | Color: 0.2 Lux@( F1.6,AGC ON) ; B / W: 0.02 Lux@( F1.6,AGC ON) |
| Shutter Speed | PAL: 1-1 / 10,000 s ; NTSC: 1-1 / 10,000 s |
| Day & Night | IR Cut Filter |
| Focal Length | 4.8mm~120mm |
| Zoom Speed | Approx.3.0 s(Optical Wide-Tele) |
| Angle of View | 58-1.7 degree(Wide-Tele) |
| Pan Range | 360° endless |
| Pan Speed | Pan Manual Speed: 0.1°-160° / s; Pan Preset Speed: 240° / s |
| IR Distance | 120 m |
| Power | 24 VAC |
| Mounting | Various mounting modes optional |
| Protection Level | IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection |
| Dimensions | φ220×353.4 mm (φ8.66”×13.91”)(Outdoor) |
| Weight (approx.) | 5.5 kg(12.13 Ibs) |
