iNVR431HP8-8-4KE 8CH COMPACT 1U 8POE 1HDD WIZSENSE NETWORK VIDEO RECORDER
Login to see prices| Main Processor | Industrial-grade processor |
|---|---|
| Operating System | Embedded LINUX |
| AI by Recorder | Face detection ,face recognition ,perimeter protection and SMD Plus |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map |
| Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
| Multi-screen Display | 1st Screen: 1/4/8/9 2nd Screen: 1/4/8/9 |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Multi-channel Playback | Up to 8 channels |
| Record Mode | General ,motion detection; intelligent; alarm |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Channels | |
| PoE Port | 8 ports, 10/100 Mbps, IEEE 802.3 af/at |
| Case | |
| Power | 53 VDC ,1.812 A |
| Power Consumption | Total output of NVR is <10 W(without HDD) Total output power of PoE is 72W,the maximum output power of a single port is 25.5W |
| Net Weight | 0.92 kg (2.03 lb) |
| Gross Weight | 2.05 kg (4.52 lb) |
| Packaging Dimensions | 372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13") (W × L × H) |
| Product Dimensions | 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" ×1.87") |

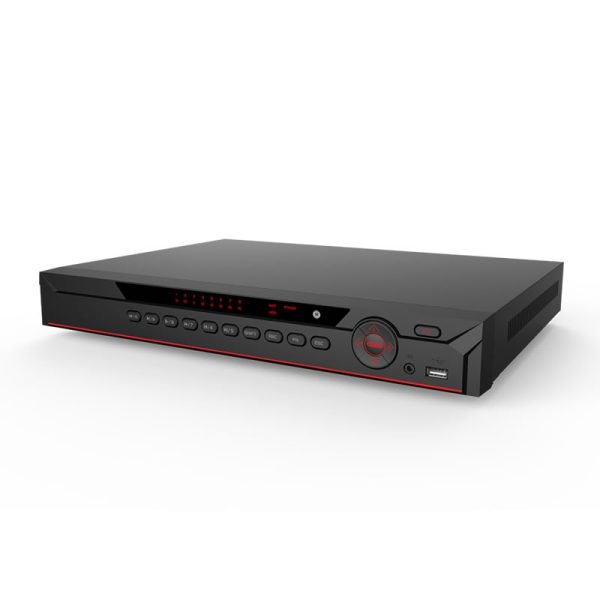

iNVR432HP6-16-4KE 16CH 1U 16POE 2HDDS WIZSENSE NETWORK VIDEO RECORDER
Login to see prices| Main Processor | Industrial-grade processor |
|---|---|
| Case | |
| Channels | |
| Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
| AI by Recorder | Face detection ,face recognition ,perimeter protection and SMD Plus |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Disk Interface | 2 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature. |
| Power | 100 to 240 VAC |
| Power Consumption | Total output of NVR is <10 W(without HDD) Total output power of PoE is 130W,the maximum output power of a single port is 25.5W |
| Net Weight | 2.60 kg (5.73 lb) |
| Gross Weight | 3.80 kg (8.38 lb) |
| Product Dimensions | 375.0 mm × 329.3 mm x 53.0 mm (14.76" × 12.96" × 2.09") (W × L × H) |
| Packaging Dimensions | 451.0 mm × 425.0 mm × 147.0 mm (17.75" × 16.73" × 5.79") |

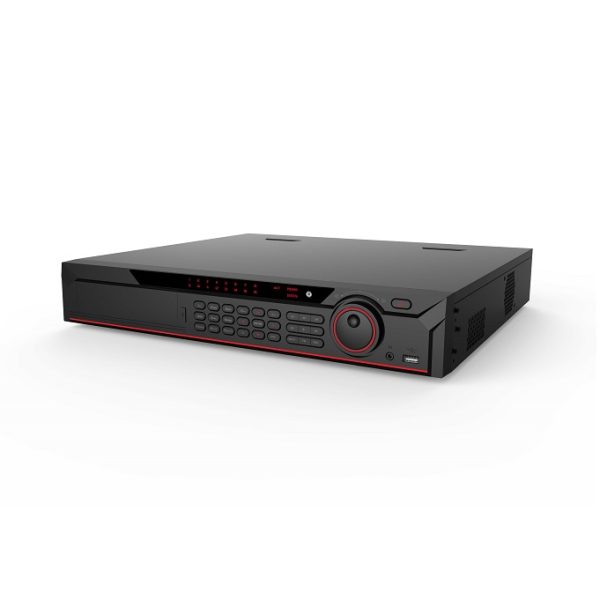

iNVR434HP6-32-4K 32 CHANNEL 1.5U 16POE 4HDDS WIZSENSE NETWORK VIDEO RECORDER
Login to see prices| Channels | |
|---|---|
| Main Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Operation Interface | Web; local GUI |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map |
| AI by Device | Face detection; face recognition; perimeter protection; SMD Plus |
| Video Output | 1-ch VGA output and 1-ch HDMI output; simultaneous/ heterogeneous video sources output for VGA and HDMI is configurable |
| Multi-screen Display | 1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9 |
| Video | Smart H.265+; Smart H.264+; H.265; H.264; MJPEG |
| Audio | PCM; G.711A; G.711U; G.726 |
| Face Attributes | 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| Face Database Capacity | Up to 10 face databases with 20 ,000 images |
| Record Mode | Manual; schedule (general; MD; alarm; MD & alarm; intelligent) |
| HDD Support | |
| HDD | 4 SATA ports, up to 10 TB. The maximum HDD capacity varies with environment temperature |
| USB | 1 front USB 2.0 port, 1 rear USB 3.0 ports |
| Network Bandwidth | AI off: Access: 256 Mbps; Storage: 256 Mbps; Forward: 256 Mbps AI on: Access: 160 Mbps; Storage: 160 Mbps; Forward: 160 Mbps |
| Resolution | 16MP; 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
| Network | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port |
| Built-in PoE Ports | 16 |
| Power | 100 to 240 VAC |
| Power Consumption | Total output of NVR is ≤ 10 W (without HDD) Total output power of PoE is 130 W, the maximum output power of a single port is 25.5 W |
| Case | |
| Net Weight | 4.82 kg (13.77 lb) |
| Gross Weight | 7.09 kg (20.26 lb) |
| Product Dimensions | 440.0 mm × 415.6 mm x 76.0 mm (17.32" × 16.36" × 2.99") |
| Package Dimensions | 529.0 mm × 499.0 mm × 211.0 mm (20.83" × 19.65" × 9.31") |

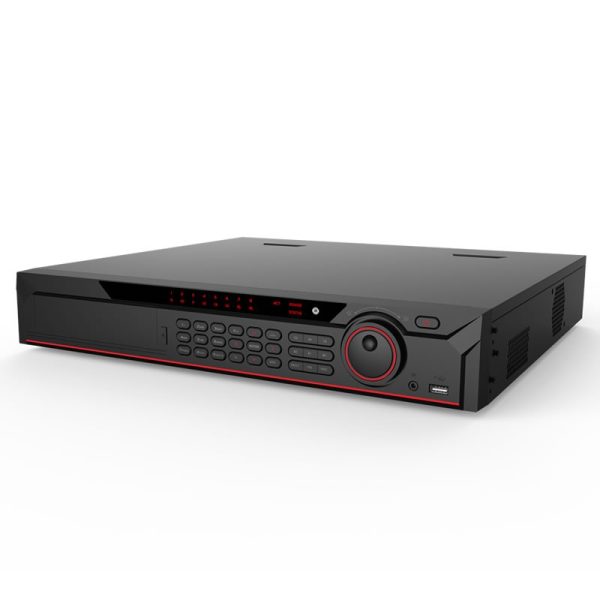

iNVR538-32-4K 32 CHANNELS 2U 8HDD WIZSENSE NETWORK VIDEO RECORDER
Login to see prices| Channels | |
|---|---|
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operation Interface | Web; local GUI |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| AcuPick AI by Camera + Recorder | Max. 16-channel, 1 combined event per channel/s |
| Access Channel | 32 |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36 Sub screen: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 16 channels |
| HDD Support | |
| HDD Interface | 8 SATA ports, each disk can contain up to 16 TB. This limit varies depending on the environment temperature. |
| eSATA/RS-232 | 45658 |
| RS-485 | 2 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication) |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| Network Port | 2(10/100/1000 Mbps Ethernet port, RJ-45) |
| Power | 100 to 240 VAC |
| Power Consumption | Total output of NVR is ≤ 13 W (without HDD) |
| Case | |
| Net Weight | 6.4 kg (14.11 lb) |
| Gross Weight | 9.01 kg (19.86 lb) |
| Product Dimensions | 439.9 mm × 457.9 mm x 89.0 mm (17.32" × 18.03" × 3.50") |
| Packaging Dimensions | 570.0 mm × 570.0 mm x 226.0 mm (22.44" × 22.44" × 8.90") |
iNVR538-64-4K 64 CHANNELS 2U 8HDDS WIZSENSE NETWORK VIDEO RECORDER
Login to see prices| Main Processor | Industrial-grade processor |
|---|---|
| Operating System | Embedded LINUX |
| Operation Interface | Web; local GUI |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| AcuPick AI by Camera + Recorder | Max. 16-channel, 1 combined event per channel/s |
| Perimeter Performance AI by Recorder | 4 channels, 10 IVS rules for each channel |
| Access Channel | 64 |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder | 2 channels (up to 12 face images/s each channel) |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16 |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Network Port | 2(10/100/1000 Mbps Ethernet port, RJ-45) |
| Channels | |
| Power | 100 to 240 VAC |
| Power Consumption | Total output of NVR is ≤ 13 W (without HDD) |
| Net Weight | 6.4 kg (14.11 lb) |
| Gross Weight | 9.01 kg (19.86 lb) |
| Product Dimensions | 439.9 mm × 457.9 mm x 89.0 mm (17.32" × 18.03" × 3.50") |
| Packaging Dimensions | 570.0 mm × 570.0 mm x 226.0 mm (22.44" × 22.44" × 8.90") |
| Case |

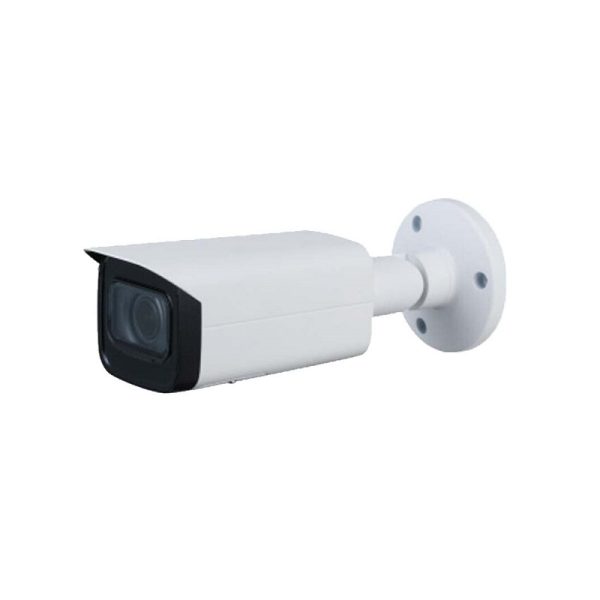

IPC-BU244T-IR-ZAS 4MP Lite IR Vari-focal Bullet Network Camera
Login to see prices| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Lens Type | |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/128 MB |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Scanning System | Progressive |
| Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Minimum Illumination | 0.008 Lux@F1.5 |
| Illumination Distance | 60 m (196.85 ft) |
| Digital Noise Reduction | 3D DNR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution and lower.) |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Close Focus Distance | 0.8 m–0.8 m (2.62 ft–2.62 ft) |
| Network | RJ-45 (10/100 Base-T) |
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Storage | FTP; Micro SD card (support max. 256 G); NAS; SFTP |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | < 9.6 W |
| Protection | IK10 ,IP67 |
IPC-BU284T-IR-ZAS-S 8MP IR Vari-focal Bullet WizSense Network Camera
Login to see prices| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Camera Style | |
| Max. Resolution | 3840 × 2160 |
| ROM/RAM | 128 MB/256 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° ; Tilt: 0°–90°; Rotation: 0°–360° |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7-13.5mm |
| Max. Aperture | F1.5 |
| Field of View | H: 113°–31°; V: 58°–18°; D: 138°–36° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Audio | |
| Power | 12 VDC/PoE (802.3af) |
| Protection | IK10 ,IP67 |
| Casing Material | Metal |
| Net Weight | -ZS: 0.74 kg (1.63 lb) -ZAS: 0.77 kg (1.70 lb) |
| Video Bit Rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Network Port | RJ-45 (10/100 Base-T) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |

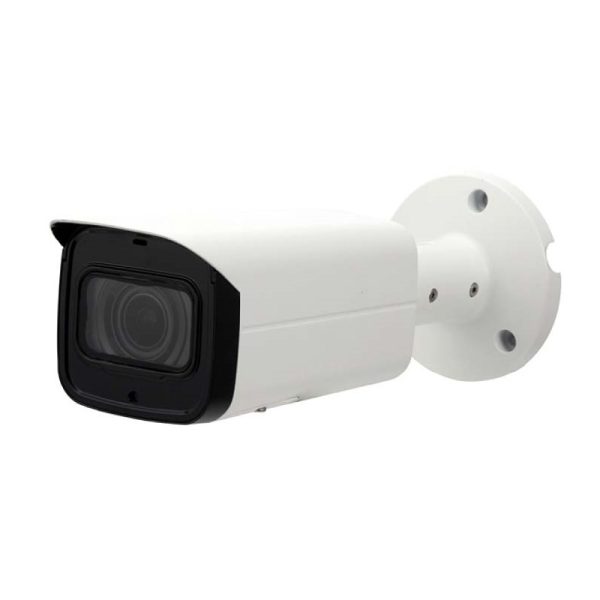

IPC-BU344T-IR-ZAS 4MP LITE AI IR VARI-FOCAL MOTORIZED BULLET NETWORK CAMERA
Login to see prices| Camera Resolutions | |
|---|---|
| Camera Style | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 2688(H)×1520(V) |
| ROM/RAM | 128 MB/512 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/3 s to 1/100 ,000 s ,Auto/Manual |
| Minimum Illumination | 0.005 Lux@F1.5 |
| IR Distance | 60 m |
| Pan/Tilt/Rotation Range | Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360° |
| WDR | 120 dB |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Lens Type | |
| Lens Mount | Φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 104°–27°； Vertical: 55° –15° ；Diagonal: 124° –31° |
| Edge Storage | FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPE |
| Power | 12V DC/PoE (802.3af) |
| Power Consumption | <9.8 W |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 244.1 mm × 79.0 mm × 75.9 mm (9.6" × 3.1" × 3.0") |
| Gross Weight | 1090 g (2.4 lb) |

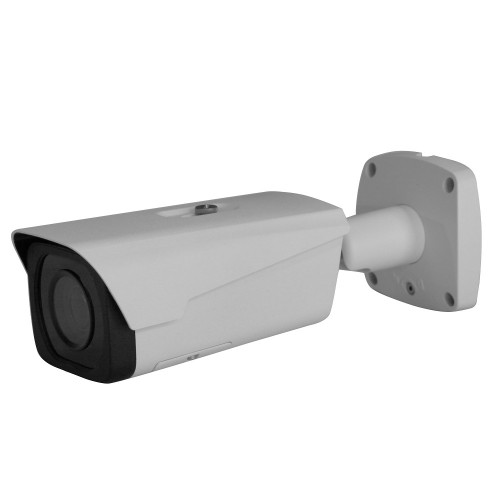

IPC-BU584E-IR-ZE 8 MP WDR IR Motorized Bullet Network Camera
Login to see prices| Image Sensor | 1/2.5" Progressive Scan CMOS |
|---|---|
| IR Distance | Distance up to 50m (164ft) |
| Lens Type | |
| Effective Pixels | 3840(H)×2160(V) |
| Camera Style | |
| RAM/ROM | 512MB/32MB |
| Lens Mount | Board-in |
| Scanning System | Progressive |
| Shutter Speed | 1/3s to 1/100000s |
| Minimum Illumination | 0.05 Lux/F1.4 (Color,1/3 s,30 IRE); 0.2 Lux/F1.4 (Color,1/30 s,30 IRE); 0 Lux /F1.4(IR on) |
| S/N Ratio | More than 50dB |
| IR LEDs | 4 |
| Digital Noise Reduction | 3D DNR |
| Focal Length | 2.7mm~12mm |
| Camera Resolutions | |
| Max. Aperture | F1.4 |
| Angle of View | H:110°~40° , V:58°~23° |
| Close Focus Distance | 0.3 m |
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
| Bit Rate | H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps |
| Power | DC12V ,PoE (802.3af)(Class 0) |
| Power Consumption | <12.95W |
| Protection | IP67, IK10 |
| Casing | Metal |
