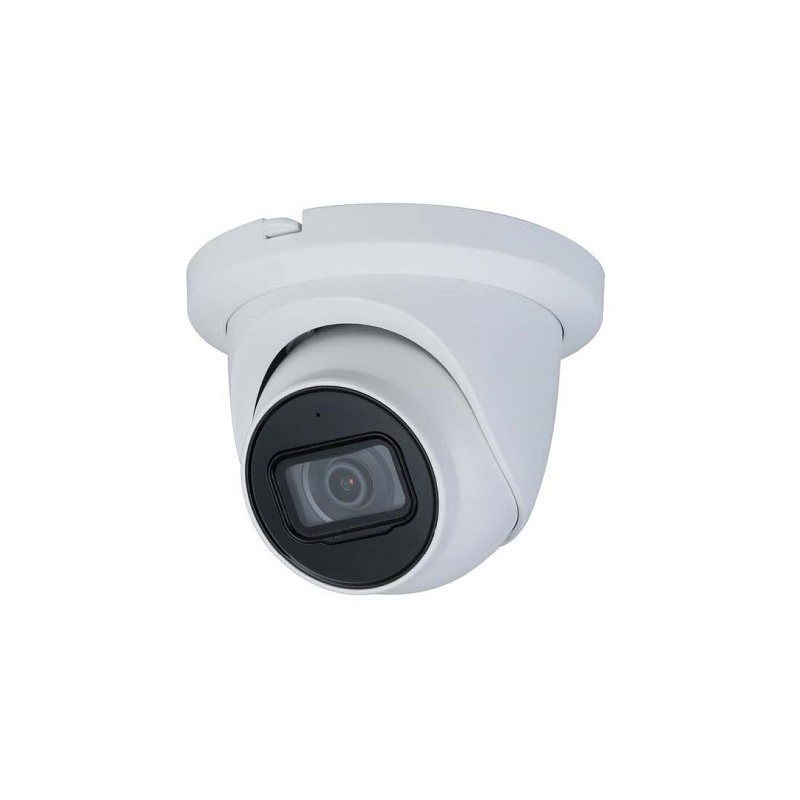

IPC-EB284TM-IR-S 8MP IR FIXED-FOCAL EYEBALL WIZSENSE NETWORK CAMERA

Name: IPC-EB284TM-IR-S 8MP IR FIXED-FOCAL EYEBALL WIZSENSE NETWORK CAMERA
SKU: IPC-EB284TM-IR-S 2.8

SKU: IPC-EB284TM-IR-S 2.8

8MP IR FIXED-FOCAL EYEBALL WIZSENSE NETWORK CAMERA

16 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

8-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.·H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Supports max. 256 G Micro SD card; built in MIC.
12 VDC/PoE power supply.
IP67 protection.
SMD Plus.

Product Manual

No related firmware found.

Additional information

Image Sensor	1/2.7" Progressive Scan CMOS
Lens Type	Fixed Lens
Effective Pixels	3840(H)×2160(V)
ROM/ RAM	128 MB/256 MB
Minimum Illumination	0.009 Lux@F2.0
Illumination Distance	30 m (98.43 ft) (IR)
Camera Resolutions	8 MP
Video Bit Rate	H.264: 32 Kbps–8192 Kbps; H.265: 12 Kbps–8192 Kbps
Digital Noise Reduction	3D DNR
Camera Style	Eyeball
Lens Mount	M12
Max. Aperture	F2.0
Audio	Built-in Mic
Storage	FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2.7 W (12 VDC); 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 4.5 W (12 VDC); 5.4 W (PoE)
Protection	IP67
Casing Material	Inner core: Metal; Cover: Metal Decoration ring: Plastic Quick install mounting plate: Metal
Product Dimensions	99.1 mm × Φ121.9 mm (3.90"× Φ4.80")
Net Weight	0.48 kg (1.06 lb)
Gross Weight	0.68 kg (1.50 lb)
