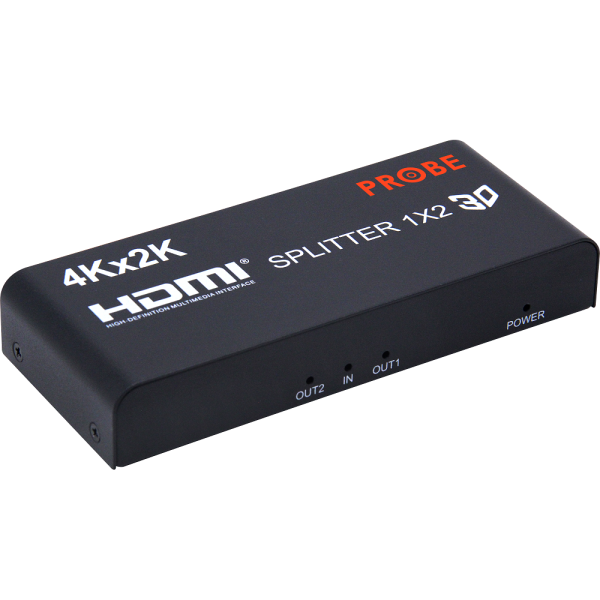

P-HDMI-1X2-4K 1×2 HDMI Splitter Support Full 3D
Login to see prices| HDMI version | HDMI 1.4b |
|---|---|
| HDMI resolution | up to 3840×2160/30Hz |
| Support video format | 8/10/12bit Deep color |
| Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth | 340MHz |
| Max baud rate | 3.4Gbps |
| Input cable distance | ≤8m AWG26 HDMI standard cable |
| Output cable distance | ≤8m AWG26 HDMI standard cable |
| HDTVI Input | 1 HDMI |
| HDMI output | 2 HDMI |
| Max working current | 500mA |
| Specifications of power adapter | input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1A |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimensions | 128x53x23.5 (mm) |
| Weight | 139g |

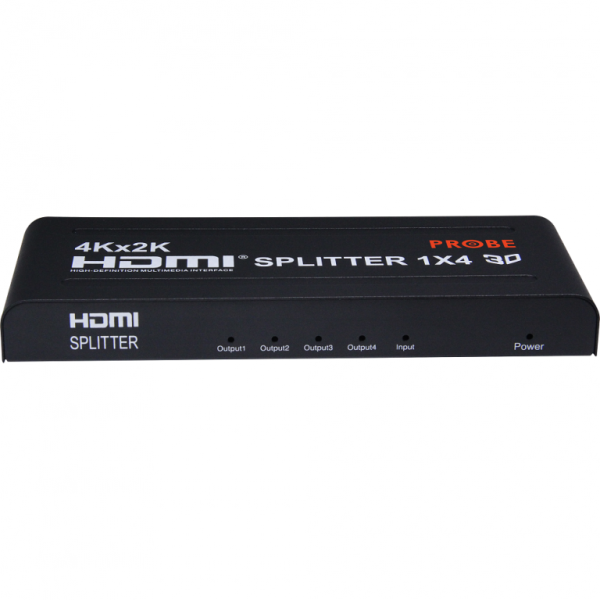

P-HDMI-1X4-4K 1 x 4 4K HDMI Splitter Support 3D Video Format
Login to see prices| HDMI version | HDMI 1.4b |
|---|---|
| HDMI resolution | up to 3840*2160/30Hz |
| Support video format | 8/10/12 bit deep color |
| Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth | 340MHz |
| Max baud rate | 3.4Gbps |
| Input cable distance | (1080p resolution) ≤20m, (4K resolution)≤15m AWG26 HDMI standard cable |
| Output cable distance | (1080p resolution) ≤20m,(4K resolution)≤15m AWG26 HDMI standard cable |
| Max working current | 500mA |
| Power adapter format | input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1.5A |
| Dimension | 178x67x23 (mm) |
| Weight | 230g |

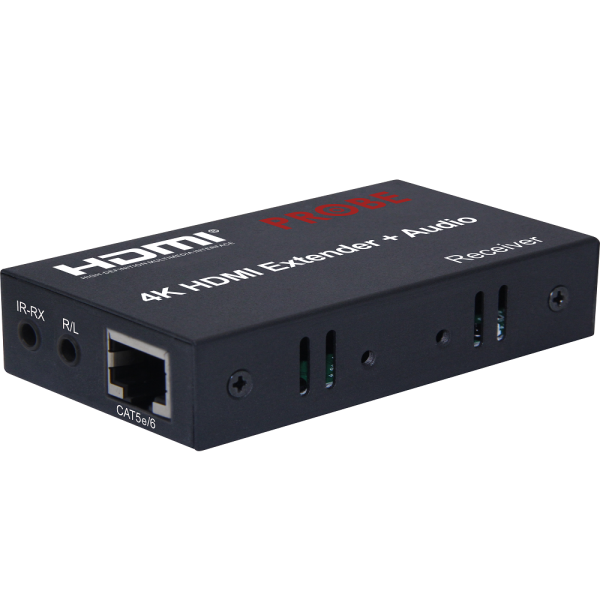

P-HDMI-ED100M-4K 4K HDMI EXTENDER PLUS AUDIO SUPPORT IR CONTROL
Login to see prices| Length of CAT5e/CAT6 cable between Rx and TX | Up to 100 meters |
|---|---|
| HDMI Input | 4k/1080p/720p/576p/576i/480p/480i |
| HDMI Output | 4k/1080p/1080i/720p/576p/576i/480p/480i |
| Max bandwidth | 340MHz |
| Max baud rate | 3×3.4Gbps |
| Input video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TTL) |
| Input HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| Output HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| TX Max working current | 350mA |
| RX Max working current | 200mA |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Dimensions | 82x45x18 (mm) |
| TX Weight | 100g |
| RX Weight | 120g |

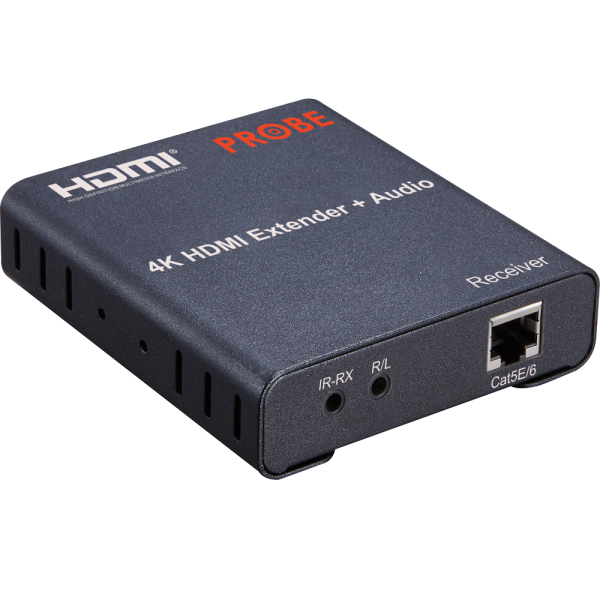

P-HDMI-ED100M-4KL 4K HDMI HIGH SAFETY EXTENDER PLUS AUDIO SUPPORT 3D VIDEO FORMAT
Login to see prices| Length of CAT5e/CAT6 cable between Rx and TX | Up to 100 meters |
|---|---|
| HDMI Input | 4k/1080p/720p/576p/576i/480p/480i |
| HDMI Output | 4k/1080p/1080i/720p/576p/576i/480p/480i |
| Max bandwidth | 340MHz |
| Max baud rate | 3×3.4Gbps |
| Input video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TTL) |
| Input HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| Output HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| TX Max working current | 350mA |
| RX Max working current | 200mA |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimensions | 81×87.5×23.5 (mm) |
| TX Weight | 210g |
| RX Weight | 200g |

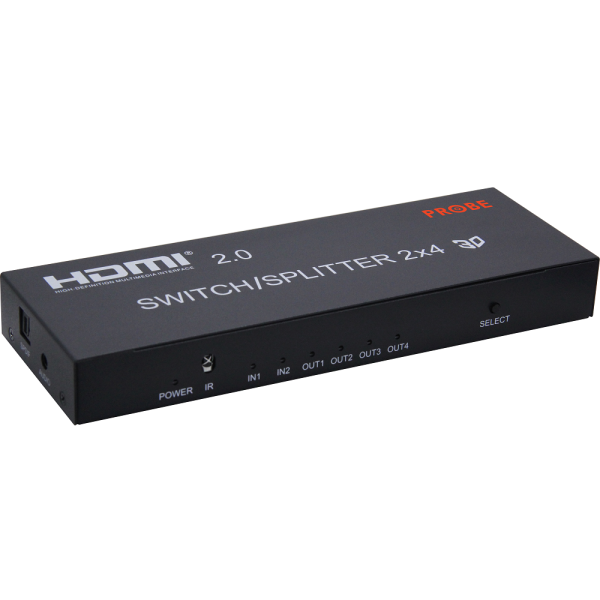

P-HDMI-SW2X4 2 ×4 HDMI 2.0 Switch/Splitter with High Definition and Long Transmission Distance
Login to see prices| HDMI version | HDMI 2.0a |
|---|---|
| HDMI resolution | up to 3840*2160/60Hz |
| Support video color format | 8/10/12 bit deep color |
| Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth | 600MHz |
| Max baud rate | 6Gbps |
| Input cable distance | (1080p resolution) ≤20m,(4K resolution)≤10m AWG26 HDMI standard cable |
| Output cable distance | (1080p resolution) ≤20m, (4K resolution)≤10mAWG26 HDMI standard cable |
| Max working current | 500mA |
| Power adapter format | Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Dimension | 200x70x25 (mm) |
| Weight | 280g |

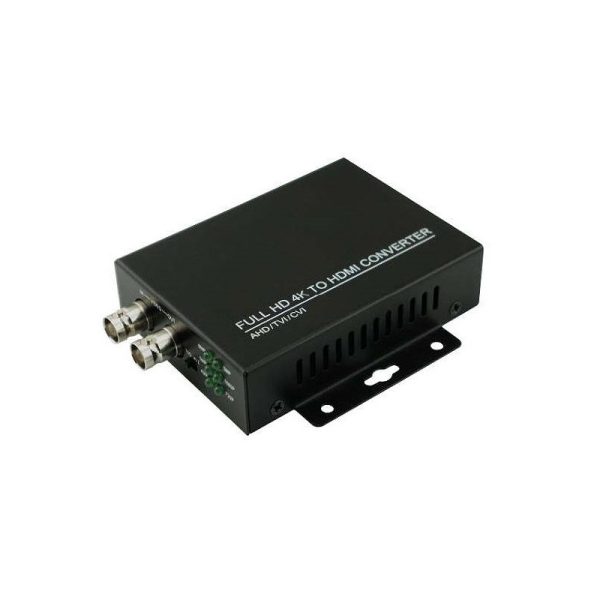

W-HDA-HDMI-100 4K CVI/TVI/AHD+CVBS TO 4 HDMI MONITORS
Login to see prices| Input Port | One channel CVI/TVI/AHD/CVBS BNC input |
|---|---|
| Output Port | One Channel CVI/TVI/AHD/CVBS BNC output ，One channel HDMI output |
| Cable length | 500~700meters ,Different resolution ,different transmission distance |
| External power supply | DC 5V（1A） |
| Working Humidity | 30%-90% |
| Dimension/Weight | 109mm x 94mm x 25mm / 0.18kg |
