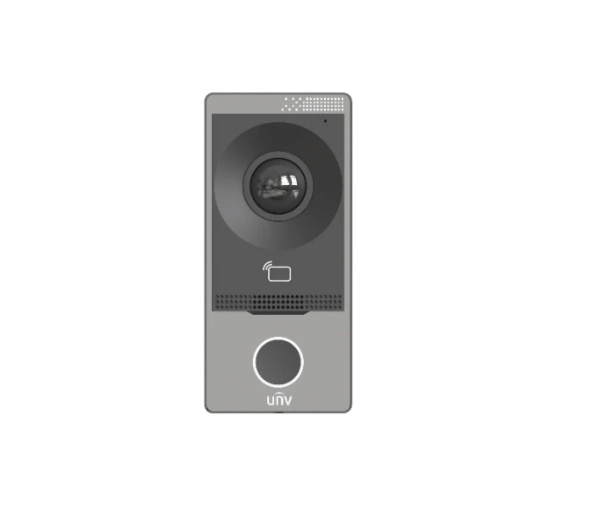

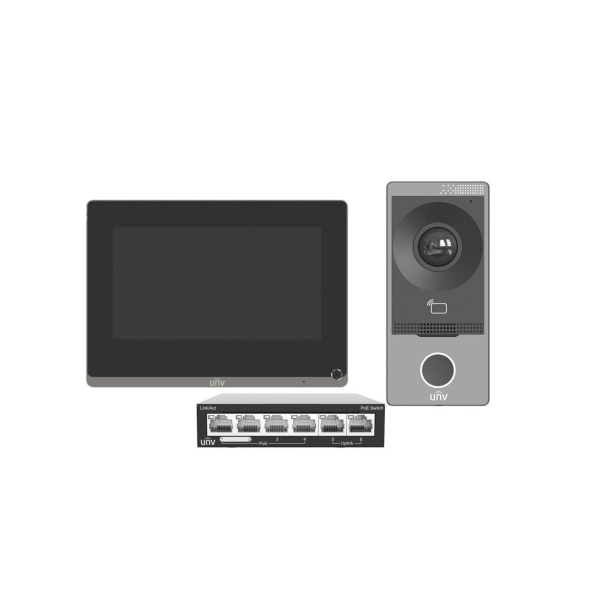

KIT/201S/372S/NSW2020 Video Intercom KIT(PoE switch),Villa Kit
Login to see prices
OEI-371S-H-W Wall Mounted 7-inch Indoor Station (Concealed wire installation)
Login to see prices| Operation System | Linux |
|---|---|
| Screen Resolution | 1024×600 |
| Power Consumption | ＜10W |
| Screen | 7-inch ultra-thin TFT LCD screen |
| Audio Quality | Noise suppression ,echo cancellation and AGC |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Audio Compression Standard | MP3 G711 |
| Power Supply | DC12V±25% ,IEEE802.3af ,Standard PoE |
| Weight | 377g |
| Network | 100Mbps network port ,supports IEEE802.3af PoE power supply |
| Interface | Power*1 ,network*1 ,Wi-Fi*1 ,RS485*1 ,IO output*2 ,IO input*8 ,TF card slot*1 |
| Dimensions (L x W x H) | 193.2mm×143.4mm×24.3mm |
| Protocol | UNV private protocol |
| Network protocol | TCP/IP ,IPv4 ,HTTP ,RTP ,RTSP ,NTP |
| Capacity | 200 ScreenShots 200 Zone Alarms A total of 20 connected devices ,including IPCs ,entrance stations ,NVRs (up to 2) ,and Doorbells |
| Linked Indoor Station Capacity | 19 extensions |

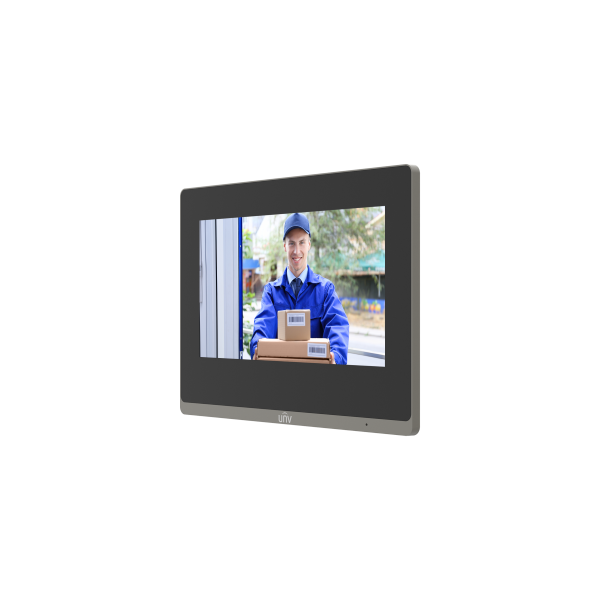

OEI-372S-H-W Wall Mounted 7-inch Indoor Station(Open wire installation)
Login to see prices| Operation System | Linux |
|---|---|
| Screen Resolution | Screen resolution 1024×600 |
| Power Consumption | ＜10W |
| Screen | 7-inch ultra-thin TFT LCD screen |
| Audio Quality | Noise suppression ,echo cancellation and AGC |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Audio Compression Standard | MP3 G711 |
| Power Supply | DC12V±25% ,IEEE802.3af ,Standard PoE |
| Weight | 360g |
| Network | 100Mbps network port ,supports IEEE802.3af PoE power supply ,WIFI4、2.4GHZ |
| Interface | Power*1 ,network*1 ,WiFi*1 ,RS485*1 ,IO output*2 ,IO input*8 ,TF card slot*1 |
| Dimensions (L x W x H) | 193mm×143mm×25mm |
| Network protocol | TCP/IP ,IPv4 ,HTTP ,RTP ,RTSP ,NTP |
| Protocol | UNV private protocol |
| Capacity | 200 ScreenShots 200 Zone Alarms A total of 20 connected devices ,including IPCs ,entrance stations ,NVRs (up to 2) ,and Doorbells |
| Linked Indoor Station Capacity | 19 extensions |

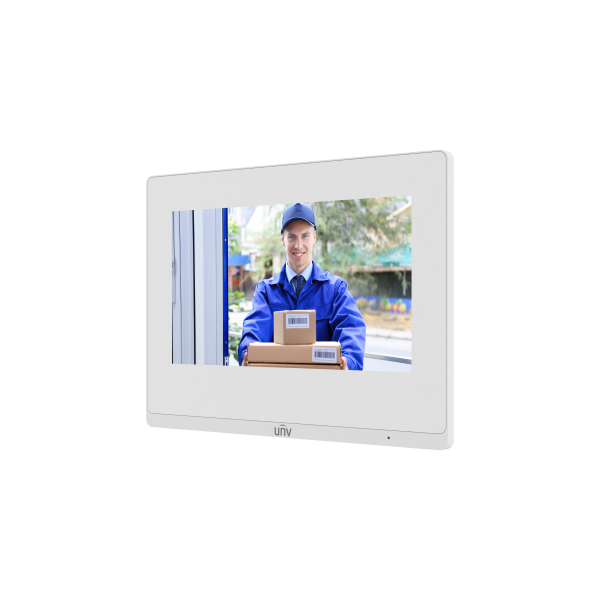

OEI-372S-H-W-Z Wall Mounted 7-inch Indoor Station (Open wire installation)
Login to see prices| Operation System | Linux |
|---|---|
| Screen Resolution | 1024×600 |
| Power Consumption | ＜10W |
| Screen | 7-inch ultra-thin TFT LCD screen |
| Audio Quality | Noise suppression ,echo cancellation and AGC |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Audio Compression Standard | MP3 G711 |
| Power Supply | DC12V±25% ,IEEE802.3af ,Standard PoE |
| Weight | 360g |
| Network | 100Mbps network port ,supports IEEE802.3af PoE power supply ,WIFI4、2.4GHZ |
| Interface | Power*1 ,network*1 ,WiFi*1 ,RS485*1 ,IO output*2 ,IO input*8 ,TF card slot*1 |
| Dimensions (L x W x H) | 193mm×143mm×25mm |
| Network protocol | TCP/IP ,IPv4 ,HTTP ,RTP ,RTSP ,NTP |
| Protocol | UNV private protoco |
| Capacity | 200 ScreenShots 200 Zone Alarms A total of 20 connected devices ,including IPCs ,entrance stations ,NVRs (up to 2) ,and Doorbells |
| Linked Indoor Station Capacity | 19 extensions |

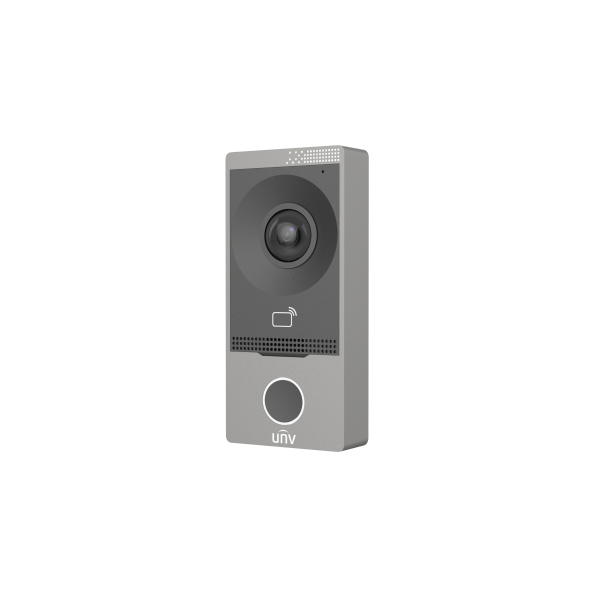

OEU-201B-HMK-W Plastic Villa Door Station with Built-in Card Reader
Login to see prices| Operation System | Linux |
|---|---|
| Supplement Light | IR light(Adaptive infrared compensation) |
| Power Consumption | ＜10W |
| Volume Adjustment | Adjustable |
| Audio Quality | Noise suppression ,echo cancellation and AGC |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Protection | IP65 |
| Power Supply | DC 12V±25% input;IEEE802.3af ,Standard PoE |
| Weight | 0.261Kg |
| Network | 100Mbps network port ,supports IEEE802.3af PoE power supply |
| Interface | Power *1 ,network port *1 ,WIFI ,RS485 ,door lock interface *2 ,IO input *4 |
| Dimensions (L x W x H) | 78mm×170mm×34mm |
| WDR | Support DWDR |
| Protocol | UNV private protocol |
| Button | 1 physical button |
| Card Capacity | 2000 |

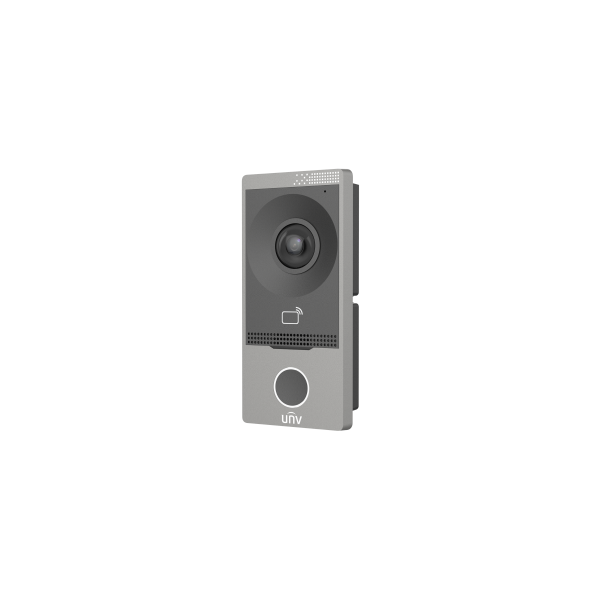

OEU-201S-HMK-W Metal Villa Door Station with Built-in Card Reader & Mic,Speaker
Login to see prices| Operation System | Linux |
|---|---|
| Supplement Light | IR light(Adaptive infrared compensation) |
| Power Consumption | ＜10W |
| Volume Adjustment | Adjustable |
| Audio Quality | Noise suppression ,echo cancellation and AGC |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Protection | IP65 ,IK08 |
| Power Supply | DC 12V±25% input;IEEE802.3af ,Standard PoE |
| Weight | 0.267Kg |
| Network | 100Mbps network port ,supports IEEE802.3af PoE power supply，WIFI |
| Interface | Power *1 ,network port *1 ,RS485 ,door lock interface *2 ,IO input *4 |
| Dimensions (L x W x H) | 79mm×171mm×34mm |
| WDR | Support DWDR |
| Protocol | UNV private protoco |
| Button | 1 physical button |
| Card Capacity | 10000 |

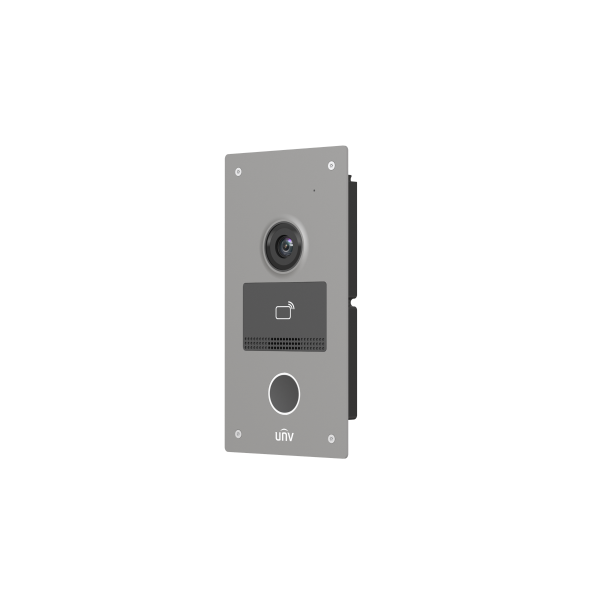

OEU-201S-HMK-Z Single-Button Villa Video Door Station with IC Card Access Control
Login to see prices| Operation System | Linux |
|---|---|
| Supplement Light | IR light (adaptive) |
| Power Consumption | ＜10W |
| Volume Adjustment | Support |
| Audio Quality | Noise reduction ,echo cancellation ,auto gain control |
| Audio Input | Built-in mic |
| Audio Output | Built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Protection | IP65 ,IK08 |
| Power Supply | DC12V ±25% ,PoE power supply |
| Weight | 267g |
| Network | 100Mbps network interface ,supports IEEE802.3af PoE power supply |
| Interface | Power supply*1 ,network interface*1 ,RS485*1 ,door lock interface*2 ,IO input*4 |
| Dimensions (L x W x H) | 102mm x 31.6mm x 194mm |
| WDR | Supports DWDR |
| Protocol | Uniview private protocol |
| Button | Door call button*1 ,tamper button*1 |
| Card Capacity | 10000 |
OEU-202S-HMK2 2-Button Metal Villa Video Door Station with IC Card Access
Login to see prices| Operation System | Linux |
|---|---|
| Supplement Light | IR light (adaptive) |
| Power Consumption | PoE: 6.48W DC12V: 5.35W |
| Volume Adjustment | Support |
| Audio Quality | Noise suppression ,echo cancellation ,AGC |
| Audio Input | 1 x Built-in omnidirectional microphone |
| Audio Output | 1 x Built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Protection | IP65 ,IK08 |
| Power Supply | DC12V ±25% ,IEEE802.3af PoE power supply |
| Weight | 375g |
| Network | 100Mbps network port ,supports IEEE802.3af PoE power supply |
| Interface | Power*1 ,network port*1 ,RS485*1 ,Wiegand*1 ,IO input*4 ,door lock*2 (support electric lock/door magnet) ,tamper button*1 |
| Dimensions (L x W x H) | 96mm*176mm*33mm |
| WDR | Support DWDR |
| Protocol | Private protocol |
| Button | 2 x Call button |
| Card Capacity | 10000 |

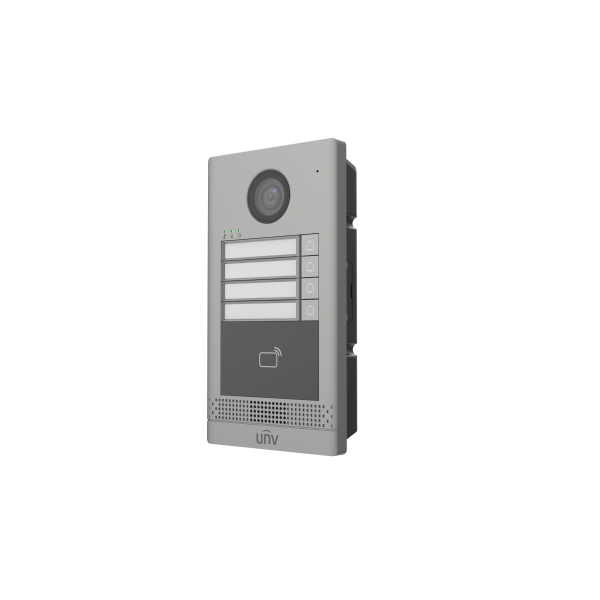

OEU-202S-HMK4 4-Button Metal Villa Video Door Station with IC Card Access
Login to see prices| Operation System | Linux |
|---|---|
| Supplement Light | IR light (adaptive) |
| Power Consumption | PoE: 6.48W DC12V: 5.35W |
| Volume Adjustment | Support |
| Audio Quality | Noise suppression ,echo cancellation ,AGC |
| Audio Input | 1 x Built-in omnidirectional microphone |
| Audio Output | 1 x Built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Protection | IP65 ,IK08 |
| Power Supply | DC12V ±25% ,IEEE802.3af PoE power suppl |
| Weight | 680g |
| Network | 100Mbps network port ,supports IEEE802.3af PoE power supply |
| Interface | Power*1 ,network port*1 ,RS485*1 ,Wiegand*1 ,IO input*4 ,door lock*2 (support electric lock/door magnet) ,tamper button*1 |
| Dimensions (L x W x H) | 96mm*176mm*33mm |
| WDR | Support DWDR |
| Protocol | Private protocol |
| Button | 4 x Call button |
| Card Capacity | 10000 |

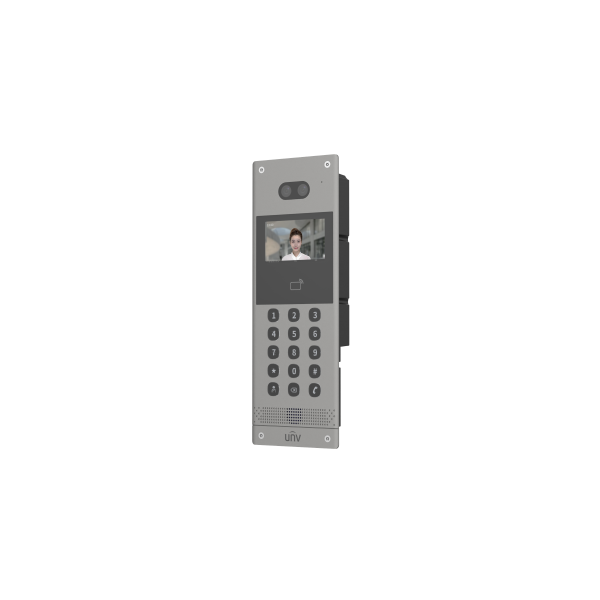

OEU-301E-HMKA Metal Apartment Door Station with IC Card Reader and 2MP Camera
Login to see prices| Operation System | Linux |
|---|---|
| Illuminator | IR illuminator |
| Power Consumption | 9W |
| Volume Adjustment | Support |
| Audio Quality | Noise reduction ,echo cancellation ,auto gain control |
| Audio Input | Built-in mic |
| Audio Output | Built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Protection | IP65 ,IK08 |
| Power Supply | DC12V ±25% (VDD12V/GND)、IEEE802.3af PoE power supply |
| Weight | 912g |
| Screen Size | 3.97 inch |
| Interface | Power supply*1 ,network interface*1 ,RS485*1 ,Wiegand interface*1 (supports input or output mode) ,door lock interface*2 ,IO input*4 ,IO output*2 ,door opening button*2 ,door magnet*2 ,tamper button*1 |
| Dimensions (L x W x H) | 125.0mm x 52.5mmx 358.0mm |
| WDR | Support |
| Protocol | Private protocol |
| Button | 15 buttons (with LED backlight) ,with braille in rows 1-4 Keypad layout: Row 1: 1/2/3 Row 2: 4/5/6 Row 3: 7/8/9 Row 4: */0/# Row 5: Management center/cancel/call |
| Card Capacity | 15000 |

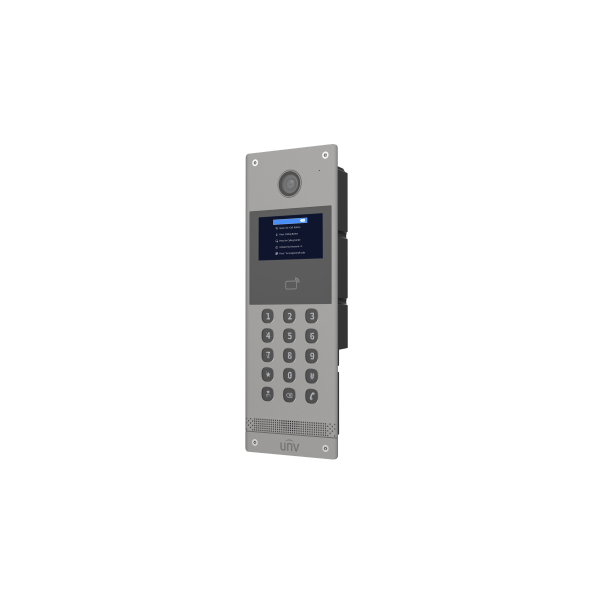

OEU-301S-HMKA Metal Apartment Video Door Station with IC Card Access
Login to see prices| Operation System | Linux |
|---|---|
| Supplement Light | IR light (adaptive) |
| Power Consumption | PoE: 10.73W DC12V: 8.62W |
| Volume Adjustment | Support |
| Audio Quality | Noise suppression ,echo cancellation ,AGC |
| Audio Input | 1 x Built-in omnidirectional microphone |
| Audio Output | 1 x Built-in speaker |
| Audio Compression Bitrate | 128Kbps |
| Protection | IP65 ,IK08 |
| Power Supply | DC12V ±25% ,IEEE802.3af PoE power supply |
| Weight | 2.10kg |
| Network | 100Mbps network port ,supports IEEE802.3af PoE power supply |
| Interface | Power*1 ,network port*1 ,RS485*1 ,IO input*4 ,IO output*2 ,door lock*2 (electric lock/door magnet) ,door opening button*2 ,door magnet*2 ,tamper button*1 |
| Dimensions (L x W x H) | 125mm*358mm*53mm |
| WDR | Support DWDR |
| Protocol | 125mm*358mm*53mm |
| Button | 15 buttons with braille Buttons layout: Row 1: 1/2/3 Row 2: 4/5/6 Row 3: 7/8/9 Row 4: */0/# Row 5: Management center/Call/Cancel |
| Card Capacity | 10000 |
