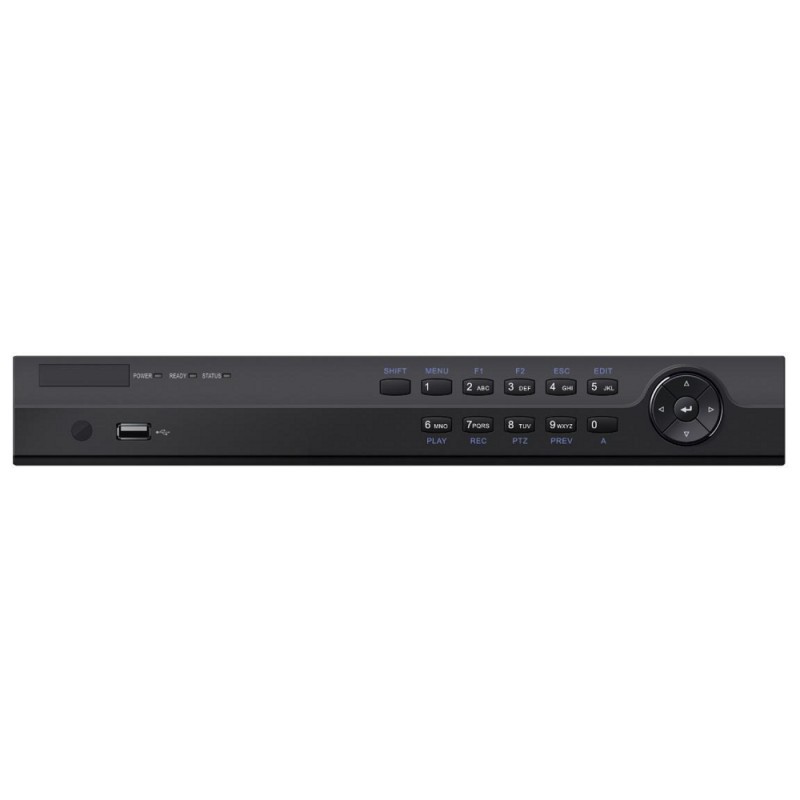

AR326-8/E 8 Channel 8 MP 1HDD Bay TVI 4.0 ALL IN ONE DVR

SKU: AR326-8/E

8 Channel 8 MP 1HDD Bay TVI 4.0 ALL IN ONE DVR

20 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • Up to 4-ch 8 MP IP cameras input
  • 8 MP HDTVI video input
  • Support Audio Over Coax
  • Defogging function enabled for the supported analog cameras
  • Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Download

Product Manual

Related Firmware

TitleDescriptionDownload
AR326-4 AR324-8AR326-4 AR324-8 V4.21.100 V3.5.37K72A_V3.5.37_190313
AR328-4/8 AR326-8/16 AR324-16AR328-4/8 AR326-8/16 AR324-16 V4.21.100 V3.5.37
Additional information
Video compression

H.265+/H.265/H.264+/H.264

Analog video input

8-ch BNC interface(1.0Vp-p

,

75Ω)

,

supporting coaxitron connection

HDTVI input

8MP

,

5MP

,

4MP

,

3MP

,

1080p30

,

1080p25

,

720p60

,

720p50

,

720p30

,

720p25

AHD input

5MP

,

4MP

,

1080p25

,

1080p30

,

720p25

,

720p30

IP Video Input

2-ch Up to 8MP resolution Supports H.265+/H.265/H.264+/H.264 IP cameras

Case

Audio compression

G.711 u

Channels

Encoding resolution

8MP /5MP /4MP /3MP /1080p /720p /WD1 /4CIF /VGA /CIF

Video Bit Rate

32 Kbps to 10 Mbps

Synchronous playback

8‐ch

HDD Support

Capacity

Up to 8 TB capacity for each disk

Interface Network

1 RJ45 10M/100M self-adaptive Ethernet Interface

Power

DC 12V

Consumption (without HDD)

≤20 W

Dimensions

315×242×45 mm(12.4×9.5×1.8 inch)

Weight (without HDD)

≤1.16 kg(2.6 lb)
