HCD-EV/105M 5.0 MEGAPIXEL 1440P HD 4 IN 1 CAMERA
Login to see prices| Image Sensor | 1/2.5" Progressive Scan CMOS |
|---|---|
| Effective Pixels | 2592(H)×1944(V) |
| Video Frame Rate | PAL:15fps@1440P NTSC:20fps@1440P |
| Electronic Shutter | PAL:1/50s~1/30000s NTSC:1/60s~1/30000s |
| Camera Resolutions | |
| Minimum Illumination | Color.0.01 Lux@F1.2 |
| Synchronization | Internal |
| WDR | DWDR |
| Power Supply | DC12V |
| Power Consumption | 100mA |
| Transmission Distance | Over 200m via 75-3 coaxial cable |
| Unit G.W. | 0.56KG |
| Gift Box Size | 270mm*205mm*100mm |
| Package/CTN | 24PCS/CTN |
| CTN G.W. | 13.5KG |
HDC-D2SAFEH28-FC 5 Megapixel Full Color 4 In 1 Turret Camera
Login to see prices| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Camera Style | |
| Camera Resolutions | |
| Image Resolution | 5M:2592*1944 4M:2560*1440 2M:1920*1080 |
| Electronic Shutter | AUTO |
| Focus Length | 2.8mm |
| Light Distance | up to 25m |
| Infrared LED | NO，Suport Warm white (4000K) |
| WDR | DWDR |
| IR Status | AGC Auto Control |
| Material | Metal |
| Protection | IP67 |
| Dimension | ￠109 x 93(H) mm |
| Weight | 800g |
HDC-D2SBFEH28-FC 5 MEGAPIXEL FULL COLOR 4 IN 1 TURRET CAMERA
Login to see prices| Video Output Mode | AHD/TVI: 5M@20fps/12.5fps ,4M@30fps25fps ,2M@30fps/25fps; CVI: 4M@30fps ,2M@30fps /25fps |
|---|---|
| Image Sensor | 1/3" CMOS |
| Camera Resolutions | |
| Camera Style | |
| Image Resolution | 5M:2592*1944 4M:2560*1440 2M:1920*1080 |
| TV System | PAL/NTSC |
| Scanning System | Progressive |
| Lens Focus Length | 2.8mm |
| IR Cut Filter | YES |
| Light Distance | up to 25m |
| WDR | DWDR |
| Digital Noise Reduction | DNR |
| Housing | Metal, IP67 |
| Power | DC12V±10% |
| Dimensions | ￠109 x 93(H) mm |
| Weight | 600g |
HDC-DI08/2M 2 MP 1080P 4 In 1 MINI Fixed IR Turret Camera
Login to see prices| Color | White |
|---|---|
| Camera Resolutions | |
| Camera Style | |
| Lens Type | |
| Image Sensor | 1/2.7" 2.4MP CMOS |
| Effective Pixels | 1944(H)×1092(V) |
| Minimum Illumination | Color.0.1lux. BW: 0.5lux.Color. DSS: 0.017lux. BWDSS: 0.0008lux |
| Shutter Speed | PAL:1/50s~1/10,000s/NTSC:1/60s~1/10,000s |
| Video Frame Rate | PAL:25fps@1080P/ NTSC:30fps@1080P |
| Power | DC12V±10% |
| Power Consumption | 300mA |
| Max.IR LEDs length | 5-8m |
| UnitG.W. | 0.172KG |
| Protection | IP66 |
| Dimension | 59mm*56mm |
| CTNG.W. | 10KG |
| Meas. | 46.5*35*27.8mm |
HDC-DI3A02/5M-2812-B (W) 5.0 MEGAPIXEL 1944P HD 4 IN 1 CAMERAS
Login to see prices| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Effective Pixels | 2592(H)×1944(V) |
| Video Frame Rate | NTSC:5MP:20FPS/ 4MP:30FPS，15FPS PAL:5MP:12.5FPS/ 4MP:25FPS,12.5FPS |
| Electronic Shutter | PAL:1/50s~1/300,000s NTSC:1/60s~1/300,000s |
| Min.Illumination | Color.0.1lux.BW:0.5lux.Color.DSS:0.017lux.BW DSS:0.0008lux |
| Power | DC 12V |
| Power Consumption | 660mA |
| Dimensions | 120mm*86mm |
| Package/CTN | 24PCS/CTN |
HDC-EV/105M 5 MEGAPIXEL 1440P HD 4 IN 1 CAMERA
Login to see prices| Camera Resolutions | |
|---|---|
| Image Sensor | 1/2.5" CMOS sensor |
| Effective Pixels | 2592(H)×1944(V) |
| Video Frame Rate | PAL:15fps@1440P NTSC:20fps@1440P |
| Shutter Speed | PAL:1/50s~1/30000s NTSC:1/60s~1/30000s |
| Minimum Illumination | Color.0.01 Lux@F1.2 |
| Synchronization | Internal |
| WDR | DWDR |
| Lens Size | |
| Power | DC 12V |
| Power Consumption | 100mA |
| Transmission Distance | Over 200m via 75-3 coaxial cable |
| Unit G.W. | 0.56KG |
| Gift Box Size | 270mm*205mm*100mm |
| Package/CTN | 24PCS/CTN |
| CTN G.W. | 13.5KG |
| Meas. | 661*337*385mm |

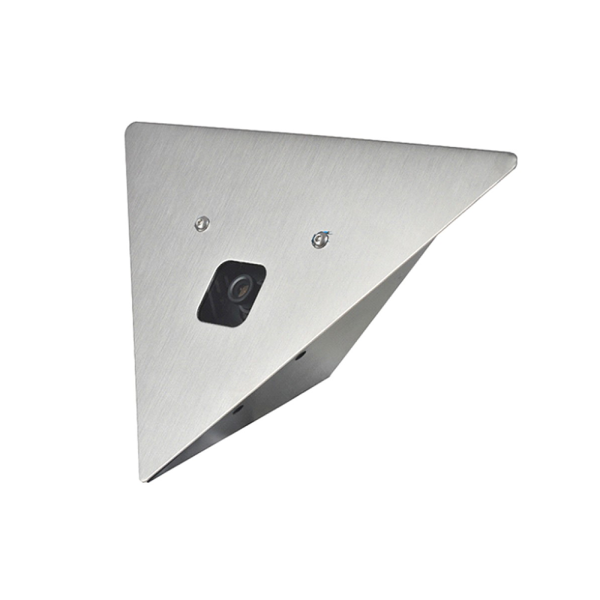

HDC-EV/2M 2.4 MEGAPIXEL 1080P HD 4 IN 1 ELEVATOR CAMERA SUPPORTS TVI, CVI AND AHD
Login to see prices| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Effective Pixels | 1920(H)×1080(V) |
| Camera Resolutions | |
| Video Frame Rate | PAL:25fps@1080P NTSC:30fps@1080P |
| Shutter Speed | PAL:1/50s~1/100,000s NTSC:1/50s~1/100,000s |
| Minimum Illumination | 0Lux with IR ,AGC ON) ,Color: 0.01Lux@(F1.2 |
| Synchronization | Internal |
| Lens Size | |
| Power | DC 12V |
| Power consumption | 100mA |
| Unit G.W. | 0.56KG |
| Gift Box Size | 270mm*205mm*100mm |
| Package/CTN | 24PCS/CTN |
| CTN G.W. | 13.5KG |
| Meas. | 661*337*385mm |

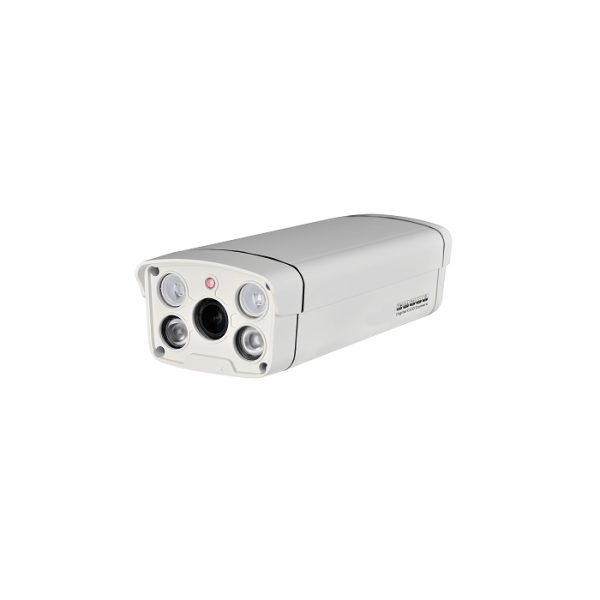

HDC-LP4A/2M-Z 2.4MEGAPIXEL 1080P HD MOTORIZED VARI FOCAL 4 IN 1 LPR CAMERA
Login to see prices| Image Sensor | 1/3" 2.4 Megapixel CMOS |
|---|---|
| Effective Pixels | 1944(H)×1092(V) |
| Video Frame Rate | PAL:25fps@1080P NTSC:30fps@1080P |
| Shutter Speed | PAL:1/50s~1/300,000s NTSC:1/60s~1/300,000s |
| Minimum Illumination | Color.0.1 lux. BW:0.5 lux. Color.DSS: 0.017 lux. BW DSS: 0.0008 lux |
| Synchronization | Internal |
| Lens Type | |
| Power | DC 12V |
| Power consumption | 1.5A |
| Unit G.W. | 1.5KG |
| Dimension | 241mm*110mm*80mm |
| Package/CTN | 12PCS/CTN |
| CTN G.W. | 17.5KG |
| Meas. | 605*423*37mm |

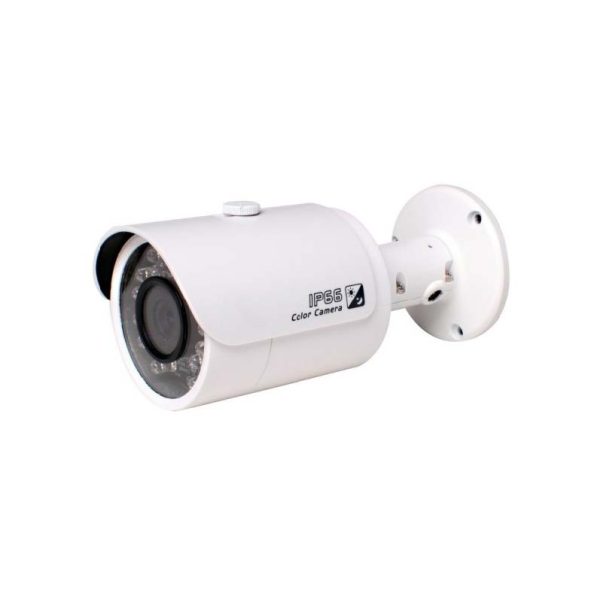

HDC-MBI2402M 2MP HD-4-IN-1 FIXED FOCUS MINI BULLET CAMERA
Login to see prices| Image Sensor | 1/2.7" 2.4MP Sensor |
|---|---|
| Camera Resolutions | |
| Effective Pixels | 1920(H)×1080(V) |
| Shutter Speed | PAL:1/50s~1/100000s NTSC:1/60s~1/100000s |
| Camera Style | |
| Minimum Illumination | 0Lux with IR ,AGC ON) ,Color: 0.01Lux@(F1.2 |
| Lens Size | |
| View Angle | 100°-30.8°(H),64.5°-23.3°(V) |
| Compatibility | AHD / CVI / TVI / Analog |
| Lens Type | |
| Resolution | 1080P (1920×1080) |
| Video Frame Rate | PAL:25fps@1080P NTSC:30fps@1080P |
| Remote Monitoring | By monitoring the video recorder |
| Day/Night | Auto / Color / BW / EXT |
| IR Distance | 30 m |
| IR LED - count | 24 IR |
| Protection | IP66 |
| Power | DC12V ±10% |
| Power Consumption | 660mA |
| Dimensions | 4.7" x 4.7" x 3.4" (120 x 120 x 86mm) |
| Weight | 1.63LBS (0.74KG) |

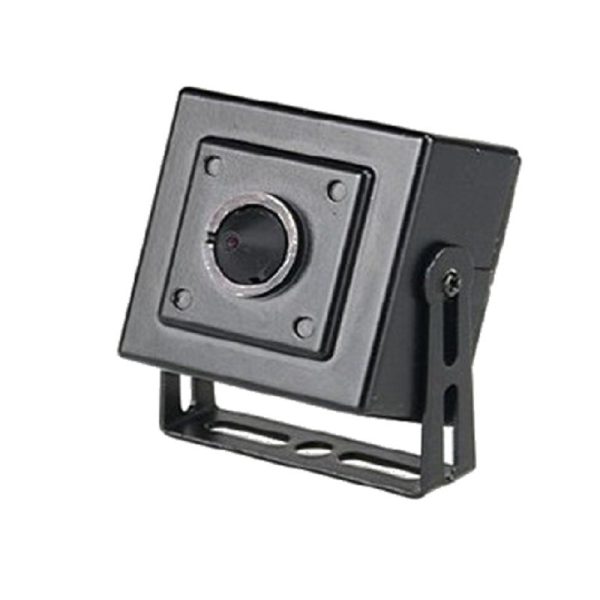

HDC-PH/2M-3.7 2.4 MEGAPIXEL 1080P HD 4 IN 1 CAMERAS
Login to see prices| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Effective Pixels | 1920(H)×1080(V) |
| Video Frame Rate | PAL: 25fps@1080P NTSC: 30fps@1080P |
| Shutter Speed | PAL:1/50s~1/100,000s NTSC:1/50s~1/100,000s |
| Minimum Illumination | 0Lux with IR ,AGC ON) ,Color: 0.01Lux@(F1.2 |
| Synchronization | Internal |
| Lens Size | |
| Power | DC 12V |
| Power consumption | 100mA |
HDC-PIR/2M-IR-3.7 2.4 MP IR MOTION DETECTOR 1080P HD 4 IN 1 CAMERAS
Login to see prices| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Effective Pixels | 1920(H)×1080(V) |
| Video Frame Rate | PAL: 25fps@1080P NTSC: 30fps@1080P |
| Shutter Speed | PAL:1/50s~1/100,000s NTSC:1/50s~1/100,000s |
| Minimum Illumination | 0Lux with IR ,AGC ON) ,Color: 0.01Lux@(F1.2 |
| Synchronization | Internal |
| Lens Size | |
| Power | DC 12V |
| Power consumption | 250mA |

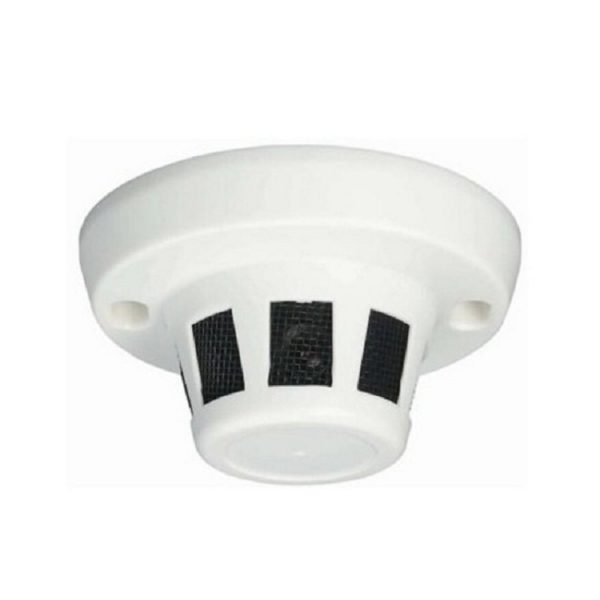

HDC-SM/2M 3.7MM 2.4 MP 1080P HD 4 IN 1 SMOKE CAMERA
Login to see prices| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Effective Pixels | 1920(H)×1080(V) |
| Video Frame Rate | PAL:25fps@1080P NTSC:30fps@1080P |
| Shutter Speed | PAL:1/50s~1/100,000s NTSC:1/50s~1/100,000s |
| Minimum Illumination | 0Lux with IR ,AGC ON) ,Color: 0.01Lux@(F1.2 |
| Camera Resolutions | |
| Synchronization | Internal |
| Lens Size | |
| Power | DC 12V |
| Power consumption | 100mA |
| Unit G.W. | 0.24KG |
| Gift Box Size | 270mm*205mm*100mm |
| Package/CTN | 48PCS/CTN |
| CTN G.W. | 11.5KG |
| Meas. | 560*425*430mm |

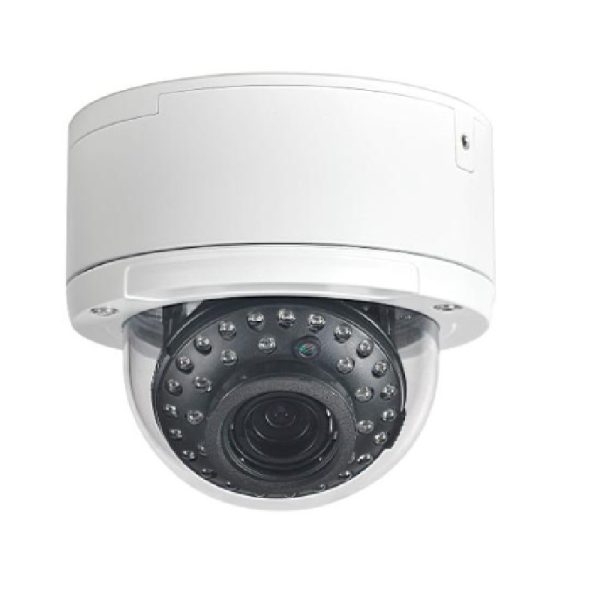

HDC-VD105E-IR-VF 5.0 MEGAPIXEL 1944P HD 4 IN 1 CAMERAS
Login to see prices| Image Sensor | 1/2.5" CMOS sensor ,5.0 megapixel |
|---|---|
| Camera Resolutions | |
| Effective Pixels | 2592(H)×1944(V) |
| Video Frame Rate | NTSC:5MP:20FPS/4MP:30FPS，15FPS PAL:5MP:12.5FPS/4MP:25FPS ,12.5FPS |
| Shutter Speed | PAL:1/50s~1/100,000s NTSC:1/50s~1/100,000s |
| Minimum Illumination | 0Lux with IR ,AGC ON) ,Color: 0.01Lux@(F1.2 |
| Synchronization | Internal |
| Lens Size | |
| Power | DC 12V |
| Power consumption | 250mA |
| Unit G.W. | 0.83KG |
| Package/CTN | 16PCS/CTN |
| CTNG.W. | 20KG |
| Meas. | 661*337*340mm |

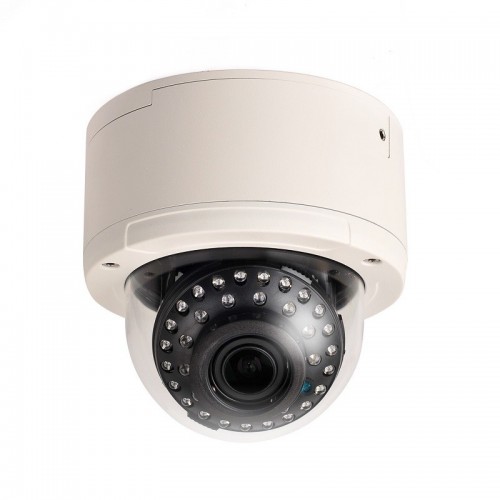

HDC-VPI35/2M-Z 2 MP 1080P 4 IN 1 MOTORIZED IR VANDAL DOME CAMERA
Login to see prices| Image Sensor | 1/3" 2.4 Megapixel CMOS |
|---|---|
| Lens Type | |
| Camera Style | |
| Signal system | PAL/NTSC |
| Effective Pixels | 1944(H)×1092(V) |
| Minimum Illumination | Color.0.1 lux. BW: 0.5 lux. Color. DSS: 0.017 lux. BWDSS: 0.0008 lux |
| Shutter Speed | PAL:1/50s~1/30,000s/NTSC:1/60s~1/30,000s |
| Lens Size | |
| Lens Mount | ￠5 |
| Video Frame Rate | PAL:25fps@1080P/NTSC:30fps@1080P |
| HD Video Output | AHD/CVI/TVI/CVBS(Long press the confirmation key switching TVI/AHD/CVI) |
| Power | 12VDC ±15% |
| Power Consumption | 550mA |
| Protection | IP66 |
| Max.IRLEDs length | 25-35m |
| Transmission Distance | Over 300m via 75-3 coaxial cable |
| Unit G.W. | 0.83 KG |
| Dimensions | 136mm*127mm |
| Package/CTN | 16PCS/CTN |
| CTNG.W. | 20KG |
| Meas. | 661*337*385mm |
WAC348-FD/F 4K COLORVU POC FIXED TURRET CAMERA
Login to see prices| Camera Resolutions | |
|---|---|
| Lens Type | |
| Video Output Mode | AHD/TVI/CVI: 8M@15fps/12.5fps ,4M/2M@30fps/25fps |
| Camera Style | |
| Image Sensor | 1/2.8" SONY CMOS sensor |
| Image Resolution | 8M:3840*2160 4M:2560*1440 2M:1920*1080 |
| TV System | PAL/NTSC |
| Minimum Illumination | Color : 0.01 lux@F1.6, AGC ON; B/W : 0 lux with IR |
| Lens Size | |
| Scanning System | Progressive Scan |
| Lens Focus Length | 2.8mm |
| Infrared LED | 42μ x 2PCS |
| Infrared Distance | 25M |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Housing | Metal （Ring Plastic） , IP67 |
| Power | DC12V±10%, 500mA |
| Dimensions | φ126.8 x 93.8(H) mm |
| Weight | 750g |

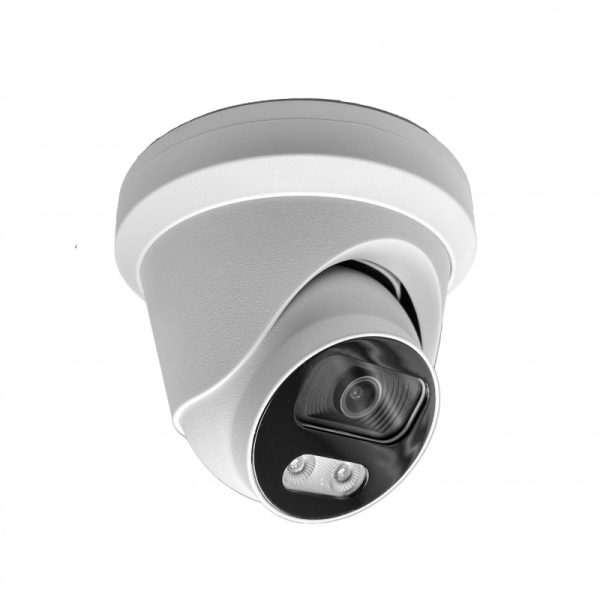

WAC348-FD/FU 4K COLOR DAY & NIGHT TVI TURRET CAMERA
Login to see prices| Video Output Mode | AHD/TVI/CVI: 8M@15fps/12.5fps ,4M/2M@30fps/25fps |
|---|---|
| Camera Style | |
| Image Sensor | 1/2.8" SONY CMOS sensor |
| Image Resolution | 8M:3840*2160 4M:2560*1440 2M:1920*1080 |
| Minimum Illumination | Color : 0.01 lux@F1.6 ,AGC ON; B/W : 0 lux with IR |
| Scanning System | Progressive |
| Lens Focus Length | 2.8mm |
| Infrared Distance | 25M |
| WDR | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Housing | Metal （Ring Plastic） , IP67 |
| Power | DC12V±10% ,500mA |
| Dimension | φ126.8 x 93.8(H) mm |
| Weight | 750g |

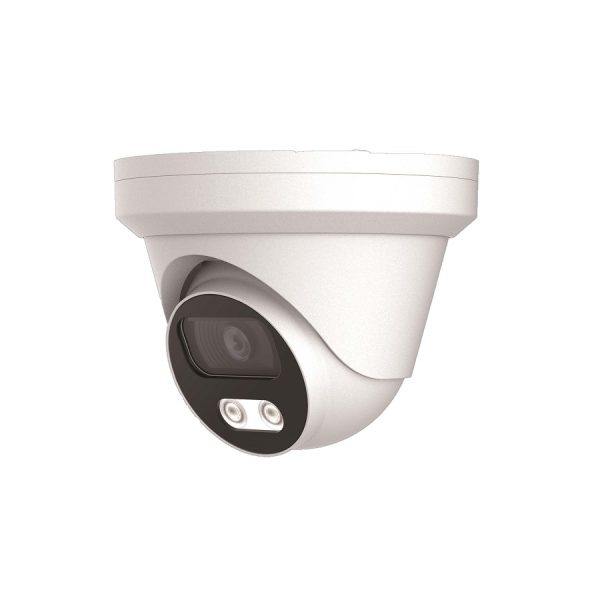

WAC348E-FD/FU 8MP COLOR DAY & NIGHT TVI TURRET CAMERA
Login to see prices| Image Sensor | 1/2.5" CMOS sensor |
|---|---|
| Camera Style | |
| Camera Resolutions | |
| Image Resolution | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 |
| TV System | PAL/NTSC |
| Minimum Illumination | Color : 0.03 lux@F2.0 ,0 Lux with white light |
| Scanning System | Progressive |
| Lens Focus Length | 3.6mm |
| Housing | Metal （Ring Plastic）, IP67 |
| Bracket | NO |
| Power | DC12V±10% |
| Dimension | φ126.8 x 93.8(H) mm |
| Weight | 750g |
