AY-E20 ULTRA SLIM PROX READER
Login to see prices SKU: AY-E20
| Operating Voltage Range | 5 to 16 VDC from a regulated power supply (power usually supplied from host controller) |
|---|---|
| Input Current | Standby: 40 mA @ 12 VDC Maximum: 100 mA @ 16 VDC |
| Tamper Output | Open collector, active low, 16 mA max sink current |
| Power Supply Type | Linear type recommended |
| Cable Distance to Host Controller | Up to 150 m (500 ft) using an 18-AWG cable |
| Proximity Card Read Range* | 3.5 cm (1.37 in.) * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. |
| Proximity Card Modulation | ASK at 125 KHz |
| Proximity Card Compatibility | EM cards |
| Card Transmit Format | Wiegand 26-Bit, Clock & Data, Serial RS232 |
| LED Indicato | One bi-colored LED |
| Operating Environmen | Outdoor usage Weather-resistant, meets IP68, epoxy potte |
| Operating Temperature | -31°C to 63°C (-25°F to 145°F) |
| Operating Humidity | 0 to 95% (non condensing) |
| Dimensions (H x W x D) | 155 x 45 x 8 mm (6.10 x 1.77 x 0.31 in.) |
| Weight | 135 g (4.76 oz) |
| SYSTEM COMPONENTS | The AY-E20 is compatible with a variety of Rosslare's Wiegand 26-bit supported single/double/multi door controllers (AC-215, AC-225, AC525), proximity cards and key fobs, and many third-party access control systems. |
| PRODUCT WARRANTY | 5-Year Limited Product Warranty |
AY-G6270B O26 MIFARE AND MIFARE PLUS/DESFIRE EV1 READER
Login to see prices SKU: AY-G6270B
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26,32,34,40,56,64,128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use • IP68 water and dust resistant • AY-G6270 and AY-H6270 pigtail models • IP65 water and dust resistant • AY-G6270 and AY-H6270 terminal block models • AY-G6370 and AY-H6370 |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.) |
| Weight | 155 g (5.5 oz) |

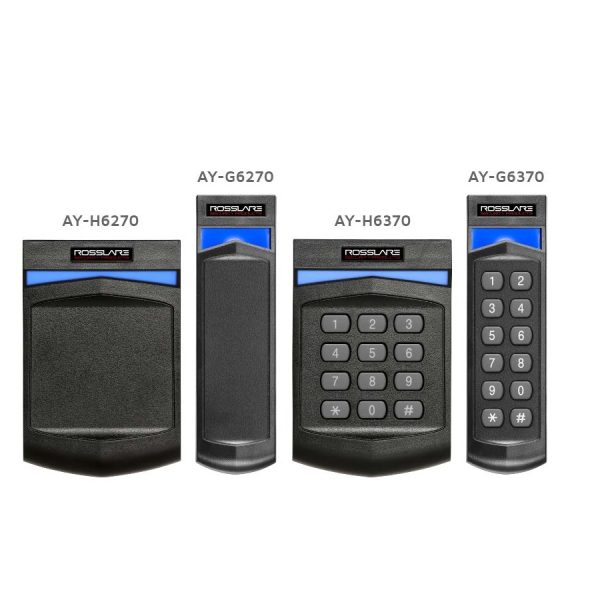

AY-G6270B+P00 O2S MIFARE AND MIFARE PLUS EV1 PROX READER
Login to see prices SKU: AY-G6270B+P00
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.) |
| Weight | 155 g (5.5 oz) |
AY-G6270B+TR0 O2S MIFARE AND MIFARE PLUS EV1 PROX READER
Login to see prices SKU: AY-G6270B+TR0
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by:85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26,32,34,40,56,64,128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m(500ft) with18-AWG cable OSDP(RS-485):1200m(4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use • IP68 water and dust resistant • AY-G6270 and AY-H6270 pigtail models • IP65 water and dust resistant • AY-G6270 and AY-H6270 terminal block models • AY-G6370 and AY-H6370 |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.) |
| Weight | 155 g (5.5 oz) |
AY-G6280B+P00 MIFARE DESFIRE EV1 SMART CARD READER PROX ONLY
Login to see prices SKU: AY-G6280B+P00
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 30 mm (1.5 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
AY-G6280B+TRO MIFARE DESFIRE EV1 SMARTCARD READER PROX ONLY
Login to see prices SKU: AY-G6280B+TRO
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 30 mm (1.5 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
AY-G6370B+P00 O2S MIFARE PLUS X/S SMART CARD READER WITH KEYPAD
Login to see prices SKU: AY-G6370B+P00
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Vandal Resistance | IK08 |
| Dimensions of Pigtail Models (H x W x D) | 120.0 x 80.0 x 23.0 mm (4.7 x 3.2 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.) |
| Weight | 217 g (7.7 oz) |
AY-G6370B+TR0 O2S MIFARE PLUS X/S SMART CARD READER WITH KEYPAD
Login to see prices SKU: AY-G6370B+TR0
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.) |
| Weight | 155 g (5.5 oz) |
AY-G6380B+P00 O2S MIFARE DESFIRE EV1 SMART CARD READER PIGTAIL
Login to see prices SKU: AY-G6380B+P00
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 30 mm (1.5 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |

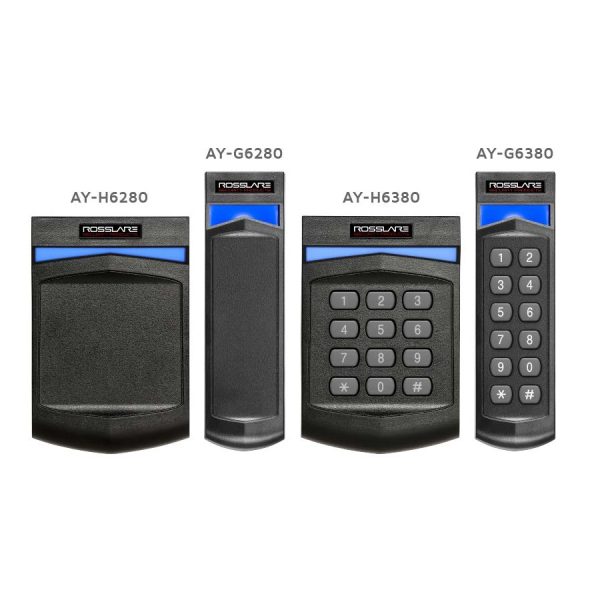

AY-G6380B+TR0 AY-G SERIES OPEN TO SECURE- TERMINAL BLOCK
Login to see prices SKU: AY-G6380B+TR0
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 30 mm (1.5 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
AY-H12C 26 BIT WEIGAND READER WEATHERPRF PROX US GANG
Login to see prices SKU: AY-H12C
| Operating Voltage Range | 5–16 VDC, from a regulated power supply |
|---|---|
| Standby Input Current | 60 mA @ 12 V |
| Maximum Input Current | 120 mA @ 12 V |
| Tamper Output | Open collector, active low, max. sink current 16 mA |
| LED Control Input | Dry Contact, N.O. |
| Output Form | Wiegand 26-Bit, RS-232, or Clock & Data |
| Audio/Visual | Tri-colored LED indicator, built-in sounder |
| Design | Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments. |
| Operating Environment | Water resistant, suitable for outdoor use (IP65) |
| Operating Temperature | -31ºC to 63ºC (-25ºF to 145ºF) |
| Operating Humidity | 0% to 95% (non-condensing) |
| Dimensions (H x W x D) | 110 x 75 x 15 mm (4.3 x 3.0 x 0.6 in.) |
| Weight | 100 g (3.5 oz) |

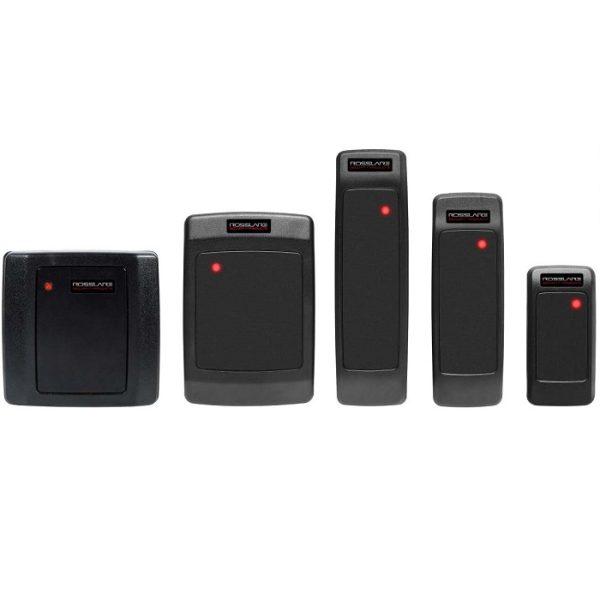

AY-H25 MIFARE SMARTCARD CONTACTLESS US GANG BOX READER
Login to see prices SKU: AY-H25
| Operating Voltage Range | 5 to 16 VDC from a regulated power supply |
|---|---|
| Standby Input Current | 35 mA |
| Maximum Input Current | 55 mA |
| Tamper Output | Open collector, active low, max. sink current 16 mA |
| Inputs | Programmable LED and buzzer control inputs, N.O, Dry Contact |
| Indicators | Tri-colored LED indicators |
| Output Format | Selectable transmission formats: Wiegand 26-Bit w/site code, Fixed 26-bit, 32-Bit, 32-Bit reversed, 34-Bit, 40-Bit and Clock & Data |
| Proximity Card Reader | Compatible Cards: MIFARE Classic EV1 Compatible ISO-14443A Range also depends on electrical environment and proximity to metal. |
| Max. Read Range | 70 mm (2.8 in.) |
| Operating Environment | Water resistant, suitable for outdoor use (meets IP65) |
| Dimensions | 110 x 75 x 15 mm (4.3 x 3.0 x 0.6 in.) |
| Weight | 116.9 g (4.1 oz) |
| SYSTEM COMPONENTS | The AY-x25B series of readers are compatible with a variety of Rosslare's controllers as well as with many third party systems |
| PRODUCT WARRANTY | 5-Year Limited Product Warranty |
AY-H6270B+P00 AY H SERIES OPEN TO SECURE
Login to see prices SKU: AY-H6270B+P00
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic ELED ControlV1 MIFARE Plus | 40 to 45mTwo Inputs: Green LED CTL and RED LED CTL–TTLm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 120.0 x 80.0 x 23.0 mm (4.7 x 3.2 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.) |
| Weight | 217 g (7.7 oz) |
AY-H6270B+TR0 O2S GANGBOX PROX READER
Login to see prices SKU: AY-H6270B+TR0
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic EV1 MIFARE Plus | 40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 120.0 x 80.0 x 23.0 mm (4.7 x 3.2 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.) |
| Weight | 217 g (7.7 oz) |
AY-H6280B+P00 02S MIFARE DESFIRE EV1 SMARTCARD READER
Login to see prices SKU: AY-H6280B+P00
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 25 mm (1 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
