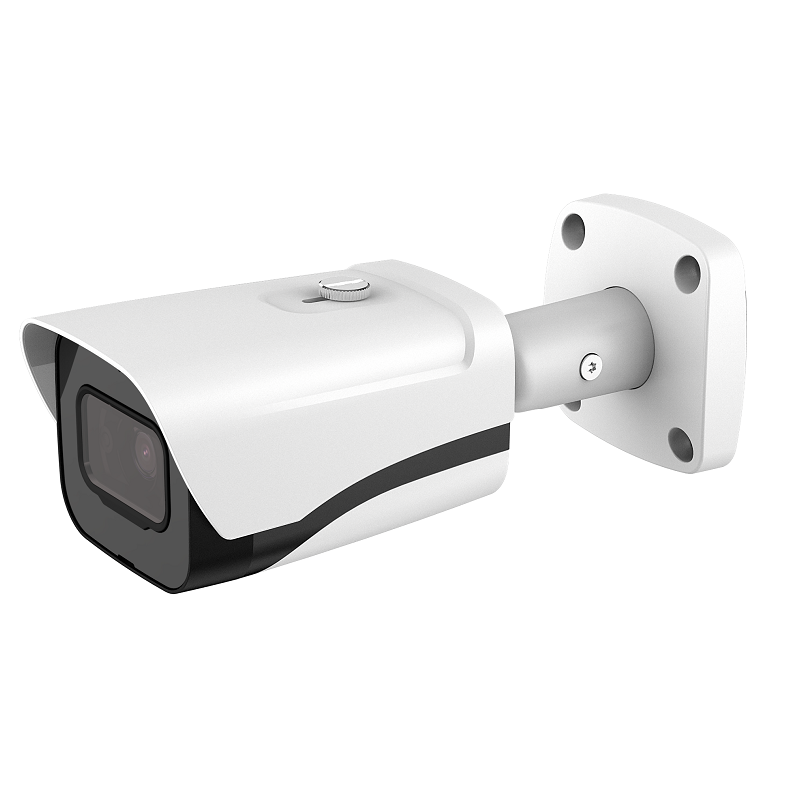

IPC-MB344E-IR 4MP Lite AI IR Fixed focal Mini Bullet Network Camera

Name: IPC-MB344E-IR 4MP Lite AI IR Fixed focal Mini Bullet Network Camera
SKU: IPC-MB344E-IR-2.8MM

SKU: IPC-MB344E-IR-2.8MM

4MP Lite AI IR Fixed focal Mini Bullet Network Camera

20 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

4MP, 1/3″ CMOS image sensor, low illuminance, high image definition
Outputs max. 4MP (2688 x 1520)@30 fps
H.265 codec, high compression rate, low bit rate
Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card, built-in Mic
12V DC/POE power supply
IP67 protection
SMD Plus

Product Manual

No related firmware found.

Additional information

Camera Resolutions	4 MP
Camera Style	Bullet
Lens Type	Fixed Lens
Image Sensor	1/3" Progressive Scan CMOS
Max. Resolution	2688 × 1520
ROM/RAM	128 MB/512 MB
Scanning System	Progressive
Shutter Speed	1/3 s to 1/100 , 000 s , Auto/Manual
Minimum Illumination	0Lux with IR on , AGC ON) , Color: 0.005Lux@(F1.6
Illumination Distance	50 m (164.0 ft)
Pan/Tilt/Rotation Range	Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360°
Video Bit Rate	H.264: 3 Kbps–8192 Kbps ; H.265: 3 Kbps–8192 Kbps
WDR	120 dB
Digital Noise Reduction	3D DNR
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm; 6 mm
Max. Aperture	F1.6
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream)
Audio	Built-in Mic
Storage	FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Power	12V DC/PoE (802.3af)
Power Consumption	<5.4 W
Protection Grade	IP67
Casing	Metal
Dimensions	192.7 mm × 70.5 mm × 66.4 mm (7.6"×2.8"×2.6")
Gross Weight	780 g (1.7 lb)
