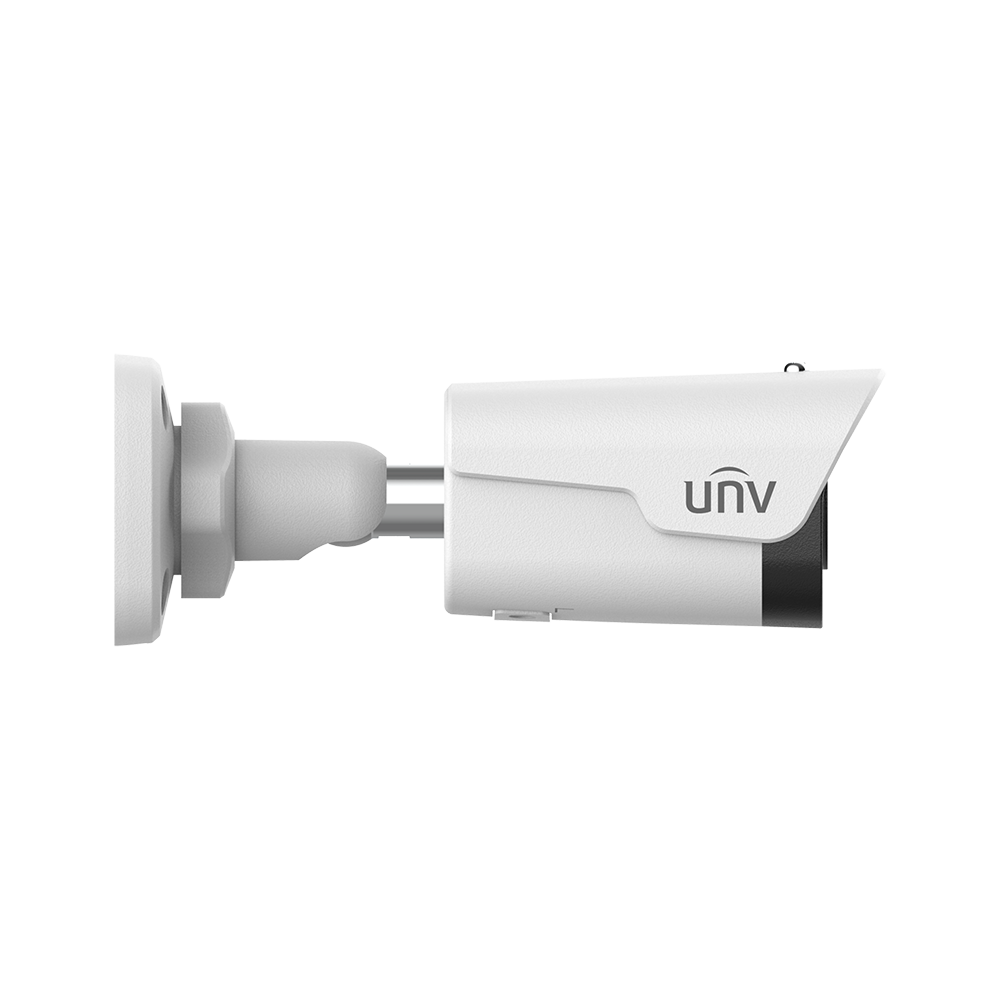

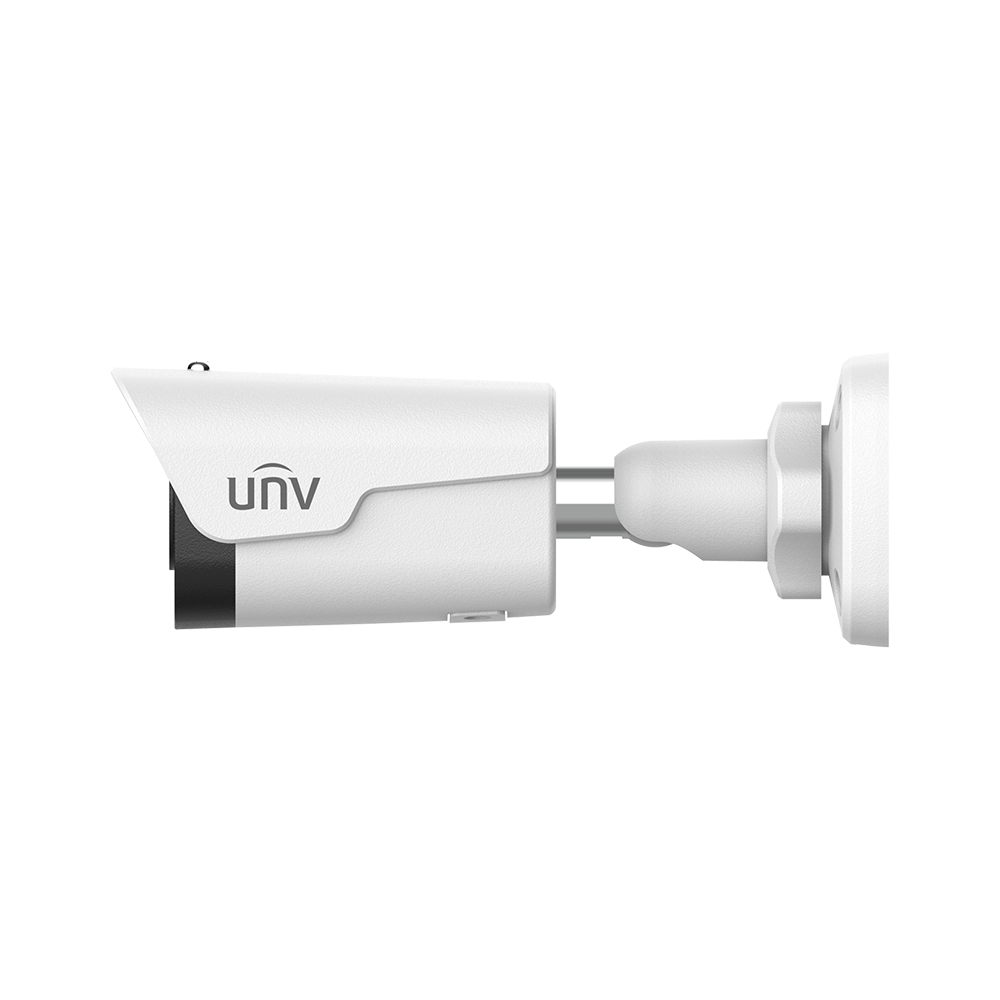

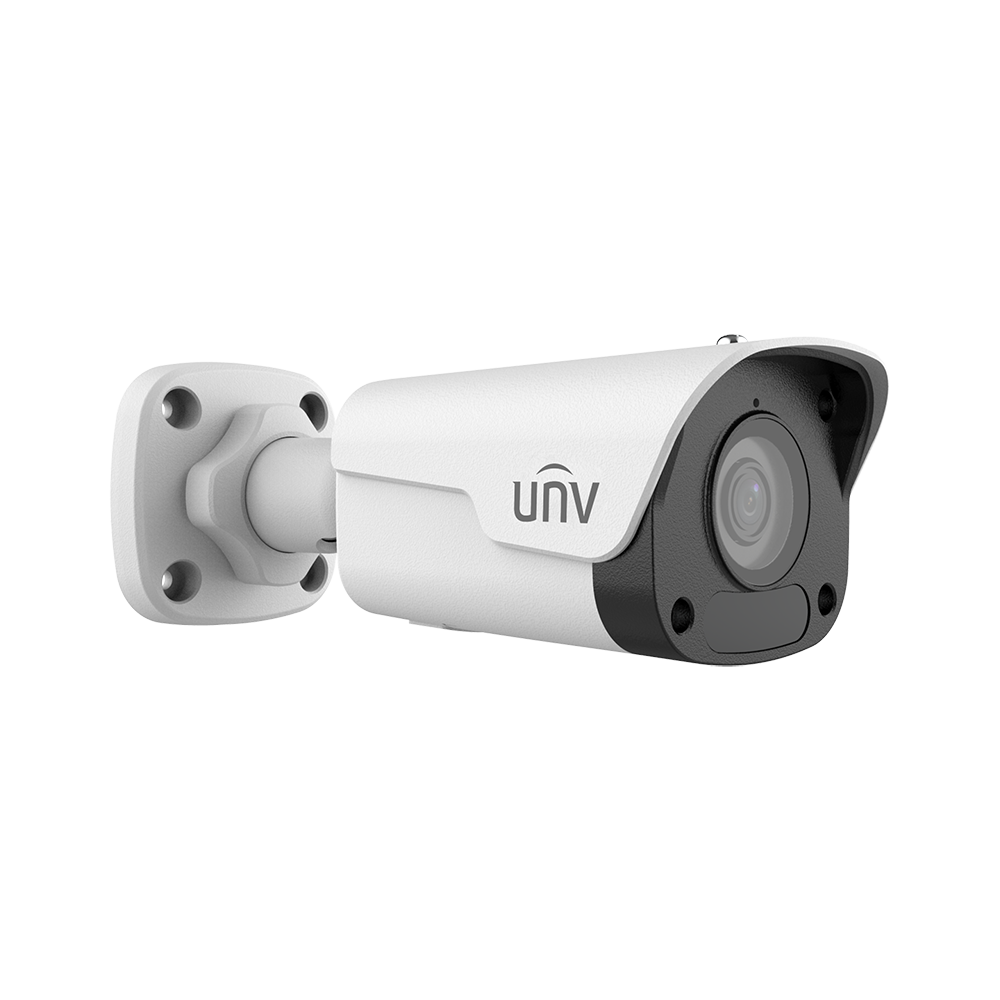

EC-B4F28M-V3 4MP WDR IR Mini Bullet Network Camera

Name: EC-B4F28M-V3 4MP WDR IR Mini Bullet Network Camera
Brand: UNV
SKU: EC-B4F28M-V3

SKU: EC-B4F28M-V3

4MP WDR IR Mini Bullet Network Camera

16 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

High quality image with 4MP, 1/3.0″ CMOS sensor
4MP (2560 × 1440)@25/20 fps; 3MP (2304 × 1296)@30/25 fps; 2MP (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Smart IR, up to 30 m (98 ft) IR distance
Supports up to 512 GB Micro SD Card
Support PoE power supply
3-Axis

Product Manual

No related firmware found.

Additional information

Sensor	1/2.9" CMOS
Camera Resolutions	4 MP
Camera Style	Bullet
Lens Size	2.8mm
Lens Type	Fixed Lens
WDR	120 dB
Min. Illumination	Colour: 0.01 lux ( F2.0 , AGC ON) 0 lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual , 1 ~ 1/100000s
Adjustment Angle	Pan: 0° ~ 360° , Tilt: 0° ~ 90° , Rotate: 0° ~ 360°
S/N	>52 dB
IR On/Off Control	Auto/Manual
Iris	F2.0
Illumination Distance (IR)	30 m (98.4 ft)
Wavelength	850nm
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps to 6144 Kbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	Micro SD , up to 512 GB
Network Storage	ANR , NAS (NFS)
Network Interface	1 × RJ45 10 M/100 M Base-TX Ethernet
Audio	Built-in Mic
Power	DC 12V±25% , PoE (IEEE 802.3af) Power consumption: Max 7.0W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	166 × 63 × 62mm (6.5” × 2.5” × 2.5”)
Weight	0.39kg (0.86lb)
Material	Graphene + Metal
Surge Protection	4 KV
Protection	IP67
