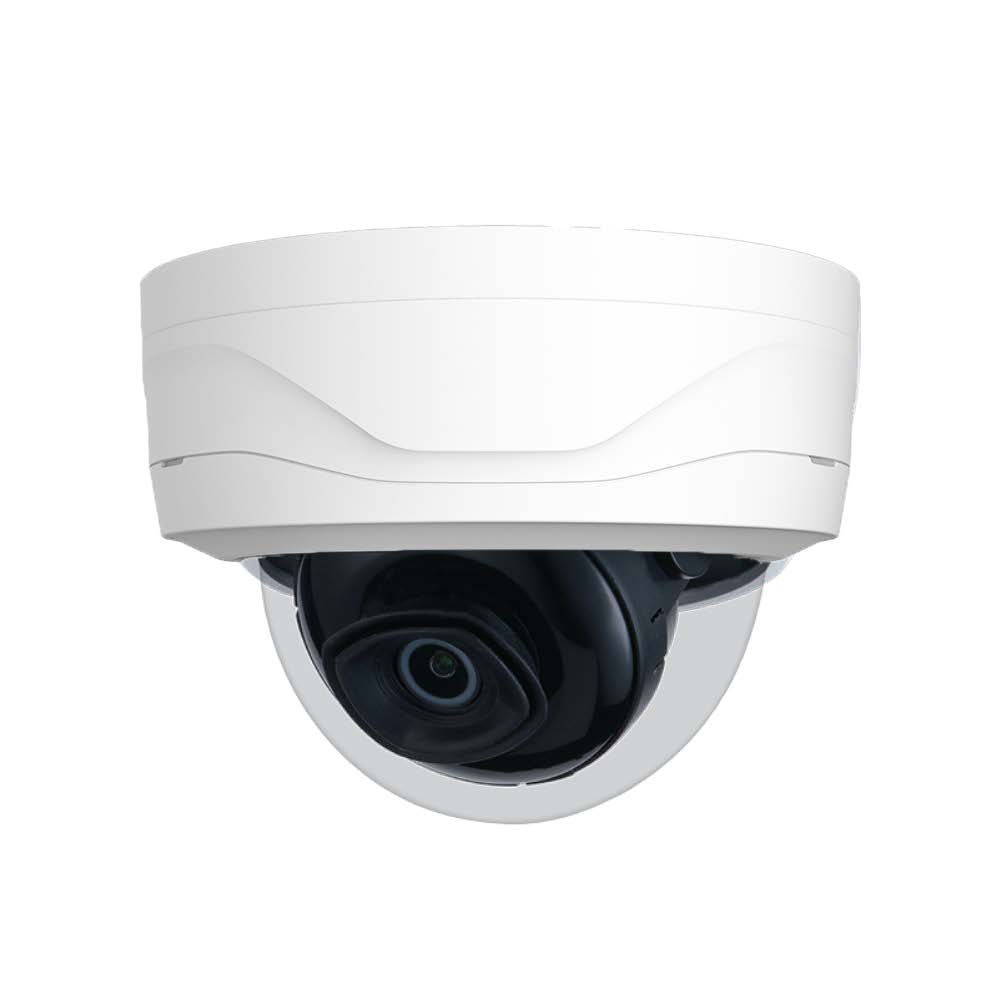

IPC-MD344E-IR-3.6 4MP LITE AI IR FIXED FOCAL DOME NETWORK CAMERA

Name: IPC-MD344E-IR-3.6 4MP LITE AI IR FIXED FOCAL DOME NETWORK CAMERA
SKU: IPC-MD344E-IR-3.6

SKU: IPC-MD344E-IR-3.6

4MP LITE AI IR FIXED FOCAL DOME NETWORK CAMERA

10 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
Outputs max. 4MP (2688 × 1520)@30 fps
H.265 codec, high compression rate, low bit rate
Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card
12V DC/POE power support
IP67, IK10 protection
SMD

Product Manual

No related firmware found.

Additional information

Camera Resolutions	4 MP
Lens Type	Fixed Lens
Camera Style	Dome
Image Sensor	1/2.7" Progressive Scan CMOS
Effective Pixels	2688(H)×1520(V)
ROM/ RAM	128 MB/512 MB
Scanning System	Progressive
Shutter Speed	1/3 s to 1/100 , 000 s , Auto/Manual
Minimum Illumination	0.005 Lux@F1.6
IR Distance	50 m
IR LEDs Number	3 (IR LEDs)
Pan/Tilt/Rotation Range	Horizontal: 0°–355°; vertical: 0°–65°; rotation: 0°–355°
Video Bit Rate	H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps
Digital Noise Reduction	3D DNR
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Lens Mount	M12
Focal Length	2.8 mm
Max. Aperture	F1.6
Field of View	2.8 mm: Horizontal:103°; vertical: 55°; diagonal: 122°
Edge Storage	FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Power	12V DC/PoE (802.3af)
Power Consumption	<7.3W
Casing	Metal + Plastic
Dimensions	81 mm × Φ109.9 mm (3.2" × Φ4.3")
Protection	IK10 , IP67
