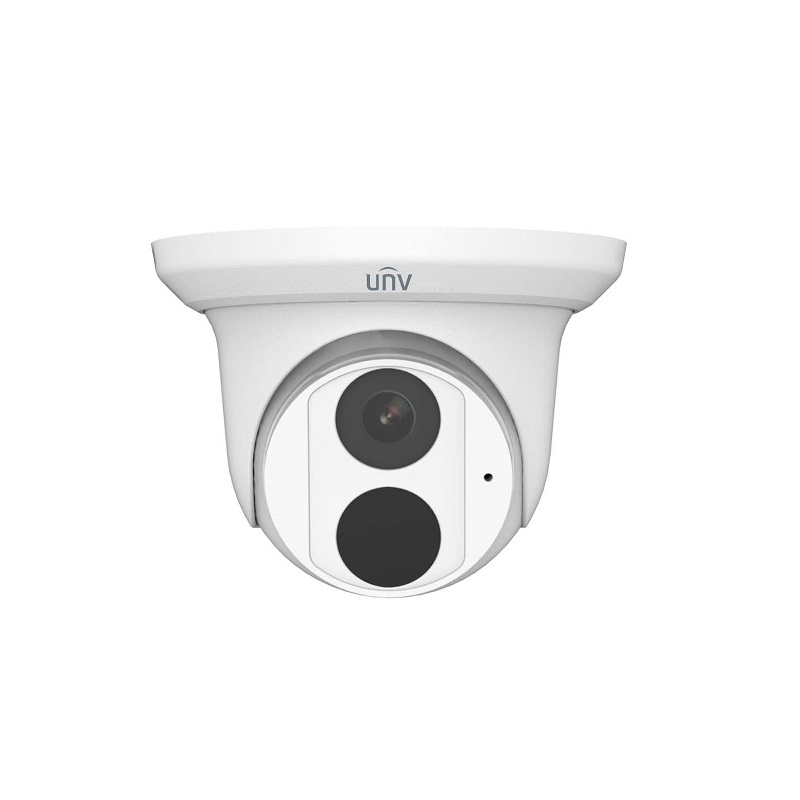

EC-T4F28M-V3 4MP Fixed Dome Network Camera

Name: EC-T4F28M-V3 4MP Fixed Dome Network Camera
Brand: UNV
SKU: EC-T4F28M-V3

SKU: EC-T4F28M-V3

4MP Fixed Dome Network Camera

17 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

High quality image with 4MP, 1/2.9″ CMOS sensor
4MP (2560*1440)@20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Smart IR, up to 30m (98ft) IR distance
Support 128 G Micro SD card
Support PoE power supply
3-Axis

Product Manual

No related firmware found.

Additional information

Camera Resolutions	4 MP
Camera Style	Dome
Lens Type	Fixed Lens
Image Sensor	1/2.9" Progressive Scan CMOS
Minimum Illumination	Colour: 0.01Lux (F2.0 , AGC ON); 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter Speed	1s to 1/100000s
Adjustment angle	Pan: 0°to 360° , Tilt: 0°to 75° , Rotate: 0°to 360°
WDR	120 dB
Lens Size	2.8mm
IR Range	Up to 30 m
Wavelength	850nm
Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps to 6144 Kbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	MicroSD，up to 128GB
Network Storage	ANR , NAS(NFS)
Audio	Built-in Mic
Interface Network	1 RJ45 10M/100M Base-TX Ethernet
Power	DC 12V±25% , PoE (IEEE 802.3af) Power consumption: Max 4.0W
Power Interface	5.5mm coaxial power plug
Dimension	Φ126 x 94mm (Φ5.0” x 3.7”)
Weight	0.30kg (0.66lb)
Material	Metal+Plastic
Surge Protection	4KV
