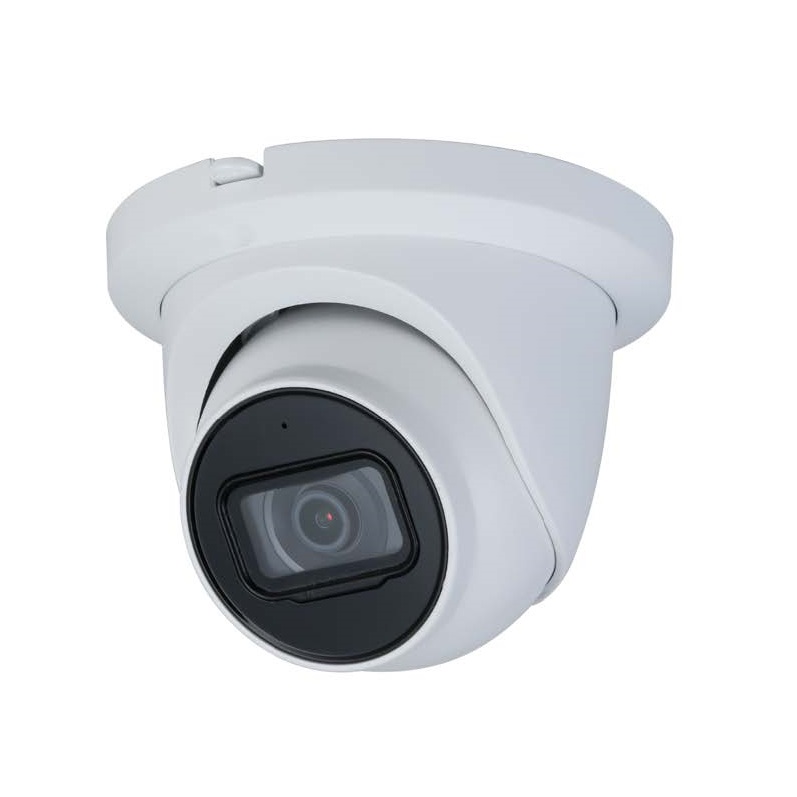

IPC-EB244TM-IR 4MP WDR IR Fixed Eyeball Network Camera built-in Mic

SKU: IPC-EB244TM-IR 3.6mm

4MP WDR IR Fixed Eyeball Network Camera built-in Mic

17 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

4MP, 1/3” CMOS image sensor, low illuminance, high image definition
Outputs 4MP (2560 × 1440)@25/30 fps, Max. supports 4MP(2688 × 1520) @ 20 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering,no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
Supports max. 256 GB Micro SD card, built-in Mic
12V DC/POE power support
IP67 protection

Product Manual

No related firmware found.

Additional information

Camera Resolutions	4 MP
Image Sensor	1/3" Progressive Scan CMOS
Effective Pixels	2688(H)×1520(V)
ROM/RAM	128 MB/128 MB
Scanning System	Progressive
Shutter Speed	1/3 s to 1/100 , 000 s , Auto/Manual
Minimum Illumination	0.008 Lux @ F1.6
IR Distance	30 m
Pan/Tilt/Rotation Range	Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Video Bit Rate	H.264: 32 Kbps–6144 Kbps; H.265: 12 Kbps–6144 Kbps
Digital Noise Reduction	3D DNR
Camera Style	Eyeball
Lens Type	Fixed Lens
Lens Mount	M12
Focal Length	2.8 mm
Max. Aperture	F1.6
Field of View	Pan: 102.0° /Tilt: 55.0°/ Diagonal: 121.0°
Edge Storage	Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Video Compression	H.265; H.264; H.264B; MJPEG
Audio	Built-in Mic
Power	12V DC/PoE (802.3af)
Power Consumption	< 6.6 W
Protection	IP67
Casing	Metal
Dimensions	99.1 mm × Φ121.9 mm (3.9" × Φ4.8")
Gross Weight	0.65 kg (1.4 lb)
