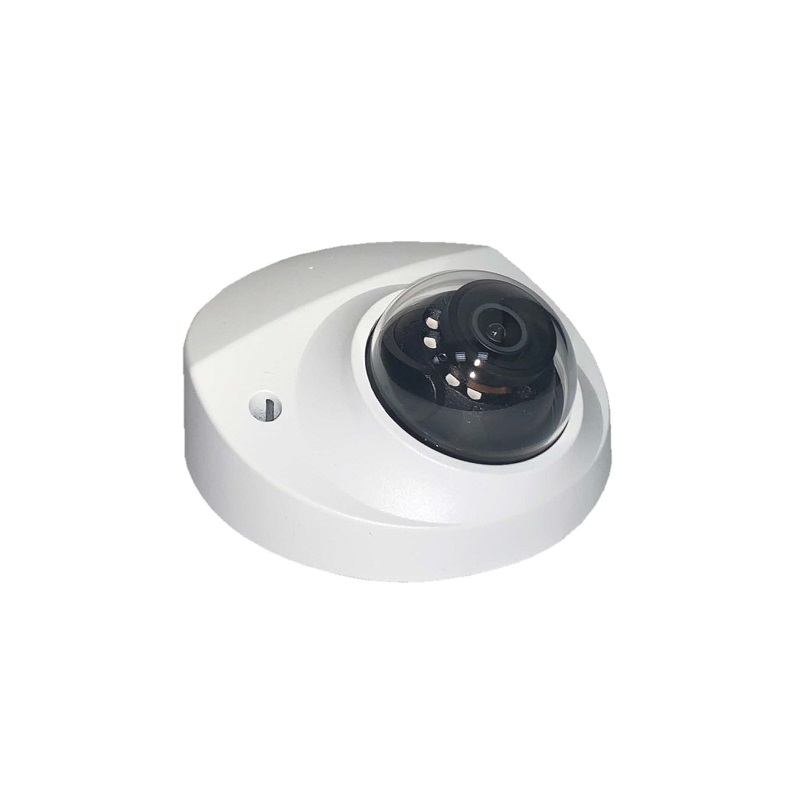

IPC-MD244F-IRM 4MP Lite IR Fixed-focal Dome Network Camera

Name: IPC-MD244F-IRM 4MP Lite IR Fixed-focal Dome Network Camera
SKU: IPC-MD244F-IRM-2.8MM

SKU: IPC-MD244F-IRM-2.8MM

4MP Lite IR Fixed-focal Dome Network Camera

13 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

4-MP, 1/3″ CMOS image sensor, low illuminance, high image definition.
Outputs max. 4MP (2688 x 1520) @20 fps, and supports 2560 x 1440 (2560 x 1440) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
RoI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire.
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; built-in Mic; supports max. 256 GB Micro SD card.
12V DC/PoE power supply.
IP67, IK10 protection.

Product Manual

No related firmware found.

Additional information

Camera Resolutions	4 MP
Image Sensor	1/3" CMOS
Lens Type	Fixed Lens
Camera Style	Dome
Max. Resolution	2688 × 1520
ROM/RAM	128 MB/128 MB
Scanning System	Progressive
Shutter Speed	1/3 s to 1/100 , 000 s , Auto/Manual
Minimum Illumination	0.008 lux@F1.6 (Color, 30 IRE); 0.0008 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
Illumination Distance	30 m (98.4 ft)(IR)
Pan/Tilt/Rotation Range	Pan: –30°–30°; Tilt: 0°–80°; Rotation: 0°–360°
Video Bit Rate	H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.)
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F1.6
Field of View	2.8 mm: H: 108°; V: 56°; D: 128° 3.6 mm: H: 88°; V: 46°; D: 104°
Video Compression	H.265; H.264; H.264B; MJPEG (only supported by sub stream)
Audio	Built-in Mic
Storage	FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Power	12V DC/PoE
Power Consumption	<5.4W
Casing	Metal
Dimensions	55 mm × Φ108.9 mm (2.2" × Φ4.3")
Gross Weight	0.52 kg (1.15 lb)
Protection	IK10 , IP67
