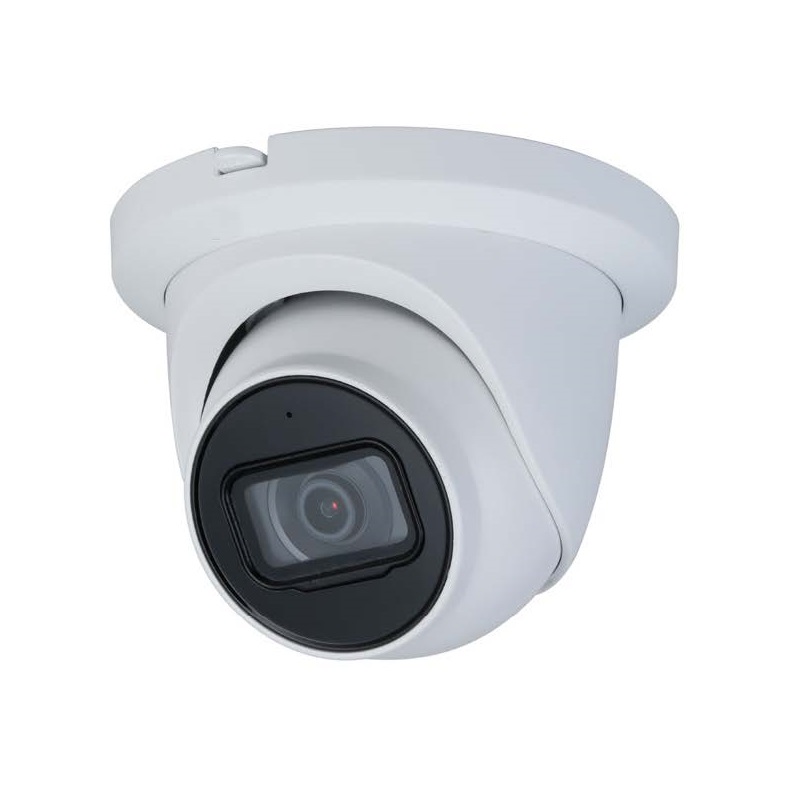

IPC-EB244TM-IR-S 4MP IR Fixed-focal Eyeball WizSense Network Camera

Name: IPC-EB244TM-IR-S 4MP IR Fixed-focal Eyeball WizSense Network Camera
SKU: IPC-EB244TM-IR-S 2.8

SKU: IPC-EB244TM-IR-S 2.8

4MP IR Fixed-focal Eyeball WizSense Network Camera

14 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

4-MP 1/2.9″ CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440 @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 30 m.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Supports max. 256 G Micro SD card; built-in MIC.
12 VDC/PoE power supply.
IP67 protection.
SMD Plus.

Product Manual

No related firmware found.

Additional information

Camera Resolutions	4 MP
Image Sensor	1/2.9" Progressive Scan CMOS
Lens Type	Fixed Lens
Max. Resolution	2688 × 1520
ROM/RAM	128 MB/128 MB
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
Focal Length	2.8 mm; 3.6 mm
Lens Mount	M12
Digital Noise Reduction	3D DNR
Protection	IP67
Video Compression	H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Storage	FTP; SFTP; Micro SD card (support max. 256 GB)
Power	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2.5 W (12 VDC); 3.3 W (PoE); Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE)
Casing Material	Inner core: Metal Cover: Metal Decoration ring: Plastic
Product Dimensions	99.1 mm × Φ121.9 mm (3.90" × Φ4.80")
Net Weight	0.48 kg (1.06 lb)
Gross Weight	0.68 kg (1.5 lb)
Audio	Built-in Mic
Camera Style	Eyeball
